Microchannel Plate - Photomultiplier (MCP-PMT) | SIMTRUM Photonics Store

Products / Light Analysis /Photodetectors /Photomultiplier Tubes (PMTs) /Microchannel Plate - Photomultiplier (MCP-PMT) /
Microchannel Plate - Photomultiplier (MCP-PMT)
Overview 011/014 012 015 021 082/201/203 Related Products Order Now!

Microchannel Plate –Photomultiplier(MCP-PMT)

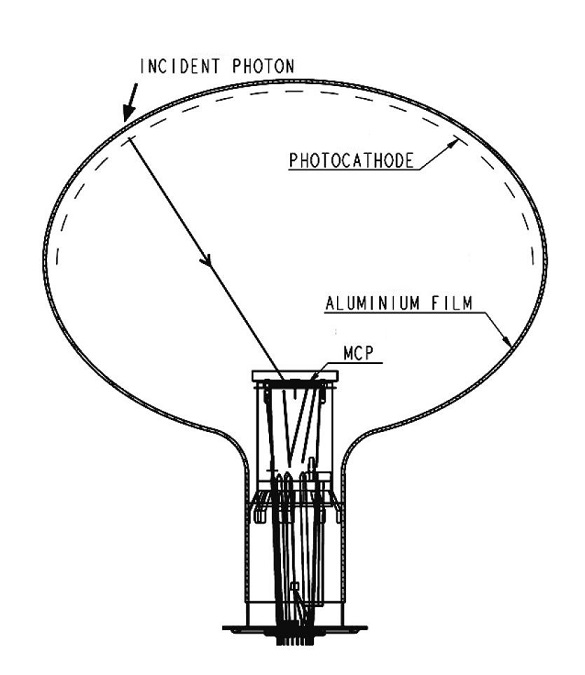

MCP-PMT mainly consists of a photocathode, a microchannel plate multiplication system and an anode. The multiplication system contains a single or multiple microchannel plates. When the weak light signal passes through the photocathode, it will excite the photoelectrons, which will be transported to MCP for multiplication under the proximity-focus electric field or the electrostatic focusing electric field. Finally, the amplified electronic signal will be received by the anode and output through the signal line, so as to realize the detection of single photon and other weak signals.

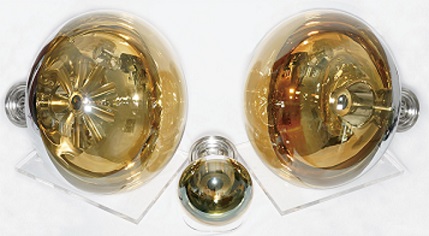

Large Area of MCP-PMT





Selection Guide for MCP-PMT

Item Product Name Shape Outer Diameter  Inner Diameter Spectral Range Peak Wavelength Typ. Photocathode Integral Luminious Typ. QE Typ. Gain Typ. Anode Sensitivity Typ. Dark Count Rate Typ. Peak to Valley Ratio Typ. Charge Resolution Typ. Rise Time Typ.
STN6082 Large Area MCP-PMT Round Dia.203mm / 290-650nm 380mm 90A/lm

30%@

410nm

 1 × 107 900A/lm 10 kHz 7 35% 4ns
STN6201 Large Area MCP-PMT Round Dia.508mm / 290-650nm 380mm 90A/lm

30%@

410nm

 1 × 107 900A/lm 30 kHz 7 35% 1.4ns
STN6203 Large Area MCP-PMT Round Dia.508mm / 290-650nm 380mm 90A/lm

30%@

410nm

 1 × 107 900A/lm 20 kHz 4 40% 1.4ns
STN6011 MCP-PMT Round Dia.36.6mm

Dia.18mm

(min)

 115-320nm 250nm /

15%@

250nm

 1 × 106 / 500Hz 3 35% 1.2ns
STN6012 MCP-PMT Round Dia.50mm

Dia.10mm

(min)

 290-650nm 380mm 70A/lm

22%@

410nm

 1 × 106 /

1000Hz

@0.2pe

 2 45% 180ps
STN6014 MCP-PMT Round Dia.36.6mm

Dia.18mm

(min)

 290-650nm 380mm 70A/lm

22%@

410nm

 1 × 106 /

1000Hz

@0.2pe

 10 30% 1.2ns
STN6015 MCP-PMT Round Dia.35.5mm

Dia.18mm

(min)

 290-650nm 380mm 70A/lm

22%@

410nm

 1 × 106 /

1000Hz

@0.2pe

 3 35% 250ps
STN6021 MCP-PMT Square SQ51mm

46mm

(min)

 280-650nm 380mm 70A/lm

22%@

410nm

 2 × 106 /

500Hz

@0.2pe

 3 35% 300ps

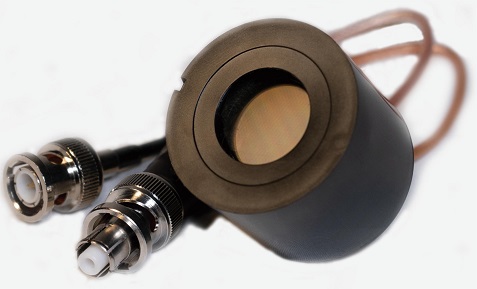

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6011/STN6014

Our STN6011 and STN6014 are MCP-PMT with 1×106 gain and 1.2ns rise time. They are mainly used in ultraviolet communication , space exploration, molecular science , medical science biochemistry and material engineering.





Feature



STN6011

  • Fast response ,high sensitivity
  • Large pulsed peak current
STN6014
  • High speed
  • High gain ,low noise



Application

STN6011
  • Ultraviolet communication
  • Space exploration
STN6014
  • Molecular science, medical science
  • Biochemistry, material engineering





Product Specifications and Brochures

Product Brochure Link:

Parameter Description
 Window Material MgF2 glass AVG Glass
 Photocathode Material CsTe Bialkali
 Multiplier Structure 2 MCP 2 MCP
Model STN6011 STN6014 Unit.
Min. Typ. Max. Min. Typ. Max.
Cathode Parameters  Spectral Response 115-320 290-650 nm
 Quantum Efficiency Peak Wavelength / 250 / / 380 / nm
 QE / 15@250nm / / 22@410nm / %
 Luminous Sensitivity / / / / 70 / μA/lm
 Radiant Sensitivity / 30@250nm / / 72@410nm / mA/W
Anode Parameters  Supply Voltage / 1800 2500 / 1800 2500 V
 Gain / 1 × 106 / / 1 × 106 / /
 Dark Count Rate@0.2pe / 500 2000 / 1000 5000 Hz
 Charge Resolution / 35 / / 30 / %
 Peak to Valley Ratio / 3 / / 10 / /
 Pulsed Peak Current / 150 / / / / /
Time Response  Rise Time / 1.2 / / 1.2 / ns
 Pulse Width / 2 / / 2 / ns
 Fall Time / 1.6 / / 1.6 / ns
 TTS@σ(SPE) / 50 / / 50 / ps
TTS@σ (MPE ) / 20 / / 20 / ps
 Operating Ambient Temperature -30~+50℃ ℃
 Storage Temperature -50~+50℃ ℃

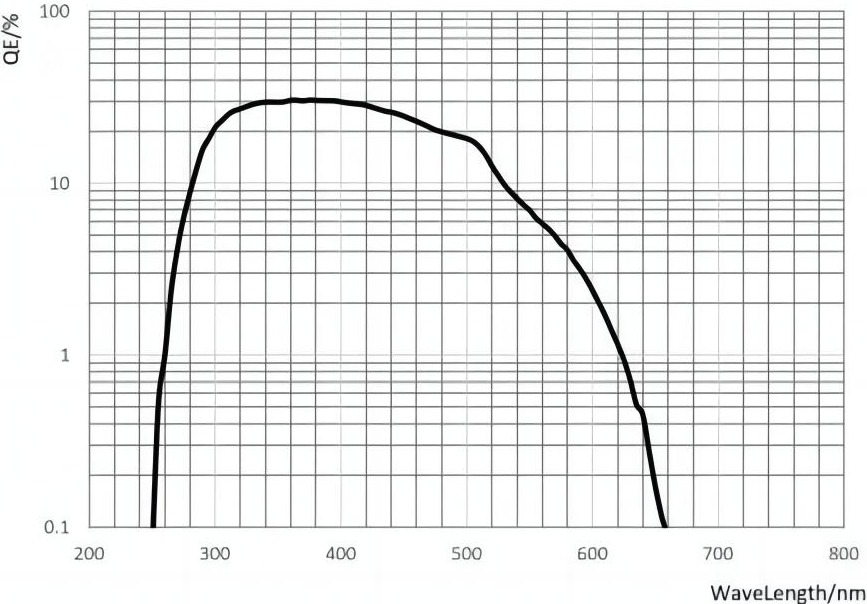

Spectral Graph

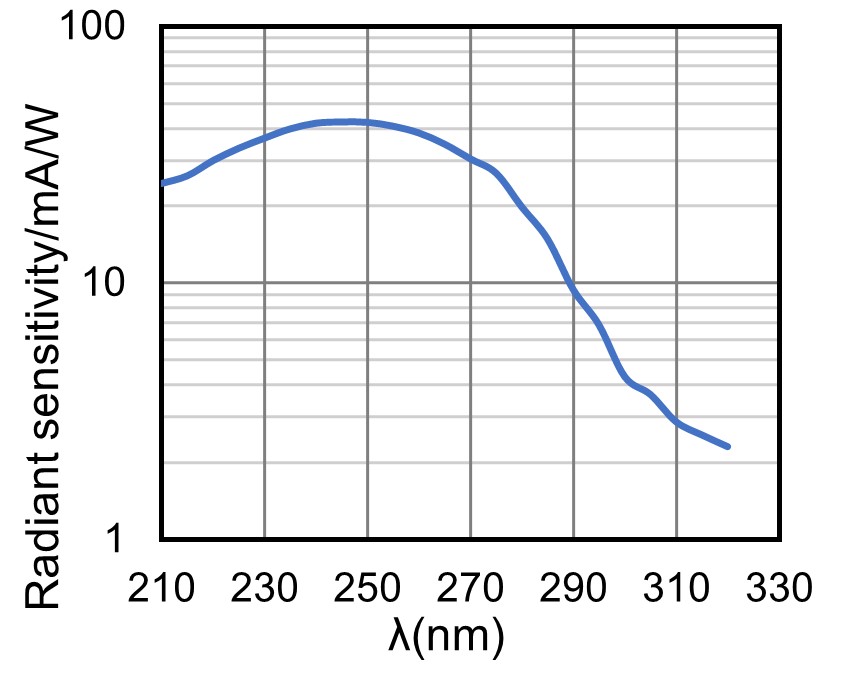

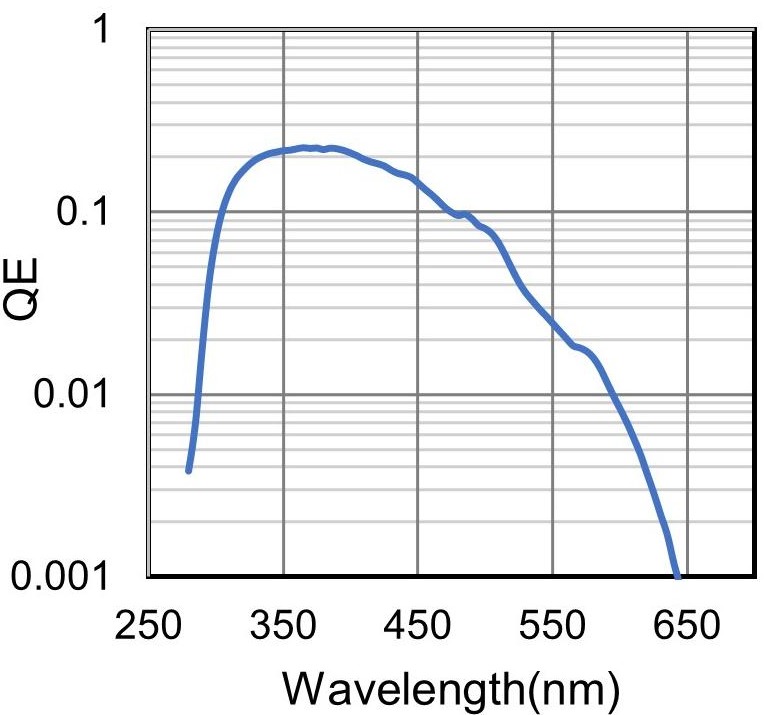

STN6011 Typical Spectral Response Curve  STN6014  Typical Spectral Response Curve

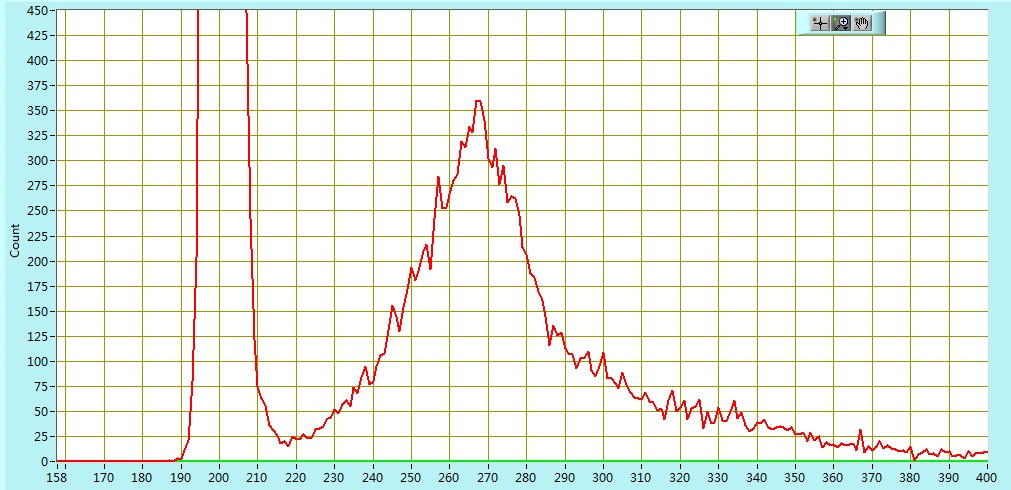

Typical Single Photoelectron Spectrum

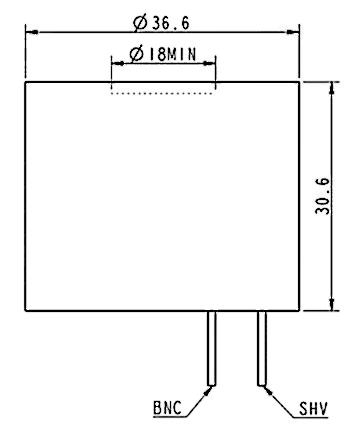

Dimension

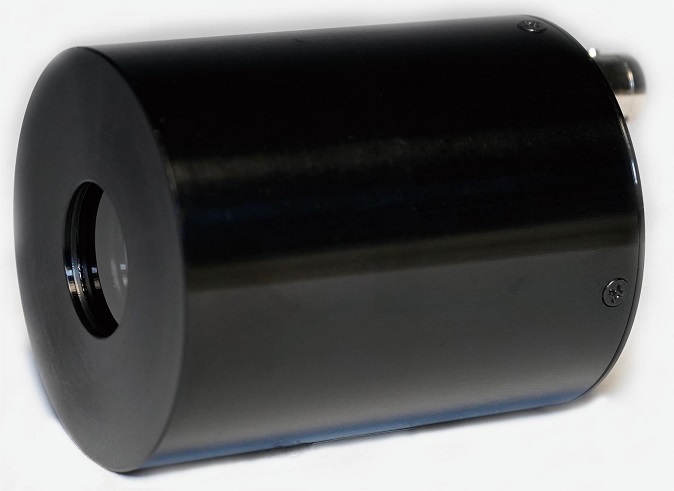

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6012

STN6012 is a MCP-PMT featuring fast response ,high gain ,low noise. It is mainly used in molecular science , medical science, biochemistry and material engineering.



Feature

  • Fast response
  • High gain ,low noise

Application

  • Molecular science ,medical science
  • Biochemistry ,material engineering







Product Specifications and Brochures

Product Brochure Link:

Parameter Description
 Window Material AVG Glass
 Photocathode Material Bialkali
 Multiplier Structure 2 MCP
STN6012 Min. Typ. Max. Unit.
Cathode Parameters  Spectral Response 290-650 nm
 Quantum Efficiency Peak Wavelength / 380 / nm
 Luminous Sensitivity / 70 / μA/lm
 QE @410nm / 22 / %
 Radiant Sensitivity@410nm / 72 / mA/W
Anode Parameters  Supply Voltage / 2500 3400 V
 Gain / 1 × 106 / /
 Dark Count Rate@0.2pe / 1000 5000 Hz
 Charge Resolution / 45 / %
 Peak to Valley Ratio / 2 / /
Time Response  Rise Time / 180 / ps
 Pulse Width / 400 / ps
 Fall Time / 750 / ps
 TTS@σ(SPE) / 40 / ps
 TTS@σ (MPE ) / 15 / ps
 Operating Ambient Temperature -30~+50 ℃
 Storage Temperature -50~+50 ℃





Spectral Graph

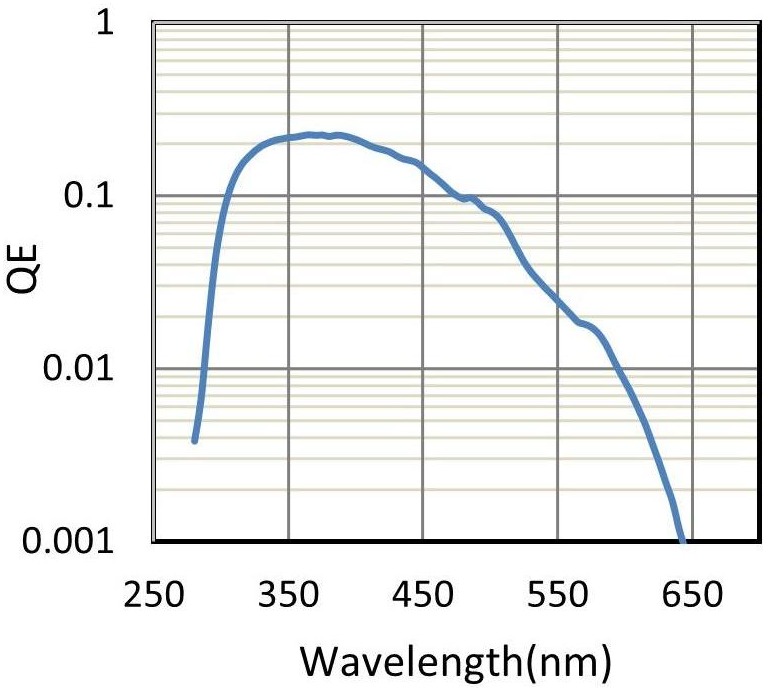

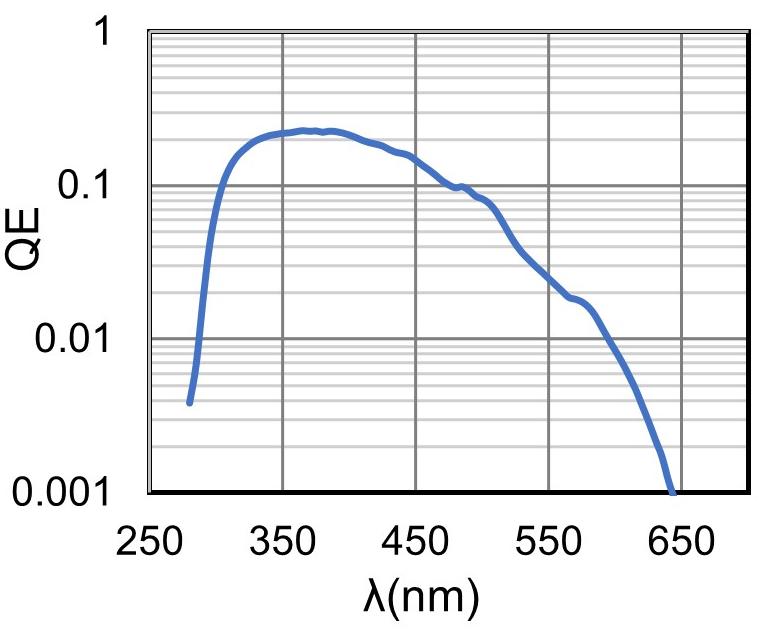

           Typical Spectral Response Curve

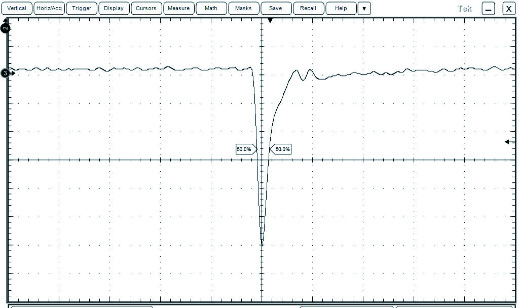

Typical Single Photoelectron Spectrum

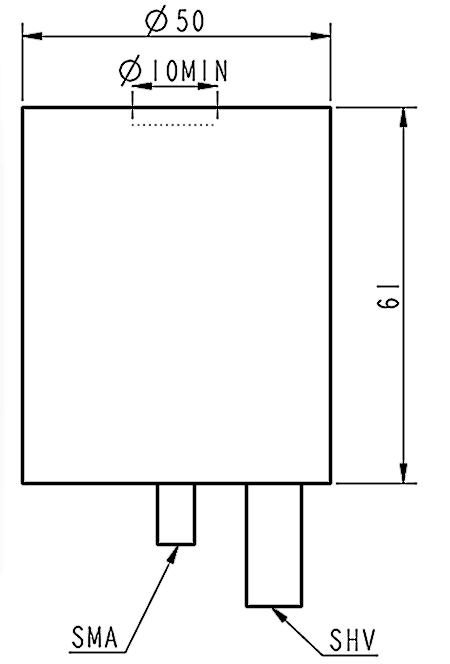

Dimension




Microchannel Plate - Photomultiplier(MCP-PMT) - STN6015

STN6015 is a MCP-PMT featuring high speed ,high gain ,low noise. It is mainly used in specialized medical imaging,  cherenkov – RICH, TOF, TOP, DIRC, high energy physics and security.



Feature

  • High speed
  • High gain
  • Low noise

Application

  • Specialized medical imaging
  • Cherenkov – RICH, TOF, TOP, DIRC
  • High energy physics ,security







Product Specifications and Brochures

Product Brochure Link:

Parameter Description
 Window Material AVG glass
 Photocathode Material Bialkali
 Multiplier structure 2 MCP
 Anode Structure 2×2
STN6015 Min. Typ. Max. Unit.
Cathode Parameters  Spectral Response 290-650 nm
 Quantum Efficiency Peak Wavelength / 380 / nm
 Luminous Sensitivity / 70 / μA/lm
 QE @410nm / 22 / %
 Radiant Sensitivity@410nm / 72 / mA/W
Anode Parameters  Supply Voltage / 1700 2500 V
 Gain / 1×106 / /
 Dark Count Rate@0.2pe(Single Anode) / 1000 5000 Hz
 Charge Resolution / 35 / %
 Peak to Valley Ratio / 3 / /
Time Response  Rise Time / 250 / ps
 Pulse Width / 650 / ps
 Fall Time / 650 / ps
 TTS@σ(SPE) / 50 / ps
 TTS@σ (MPE ) / 10 / ps
 Operating Ambient Temperature -30~+50 ℃
 Storage Temperature -50~+50 ℃





Spectral Graph

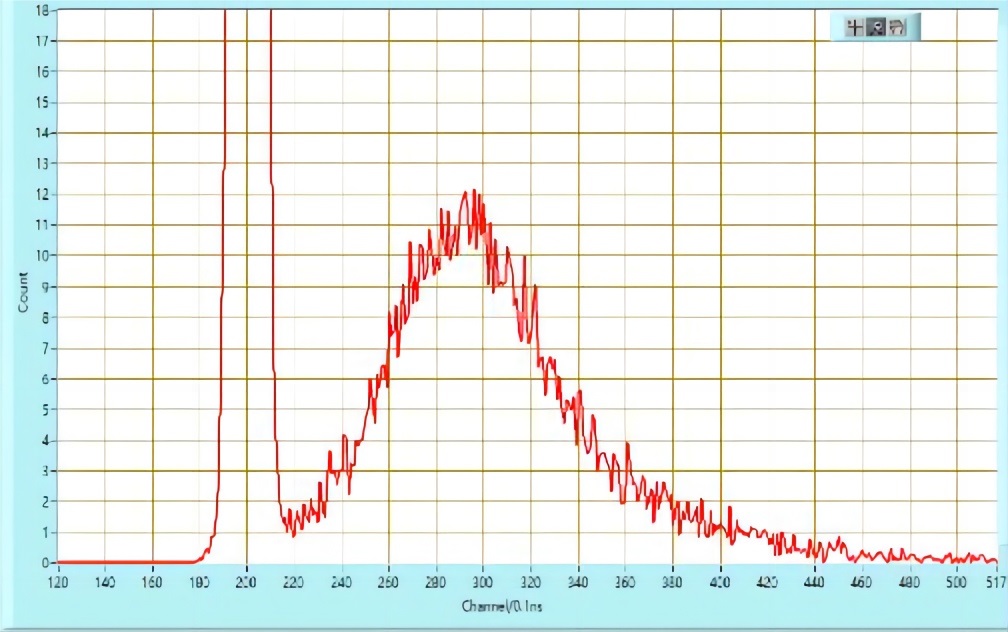

         Typical Spectral Response Curve   Typical Single Photoelectron Spectrum

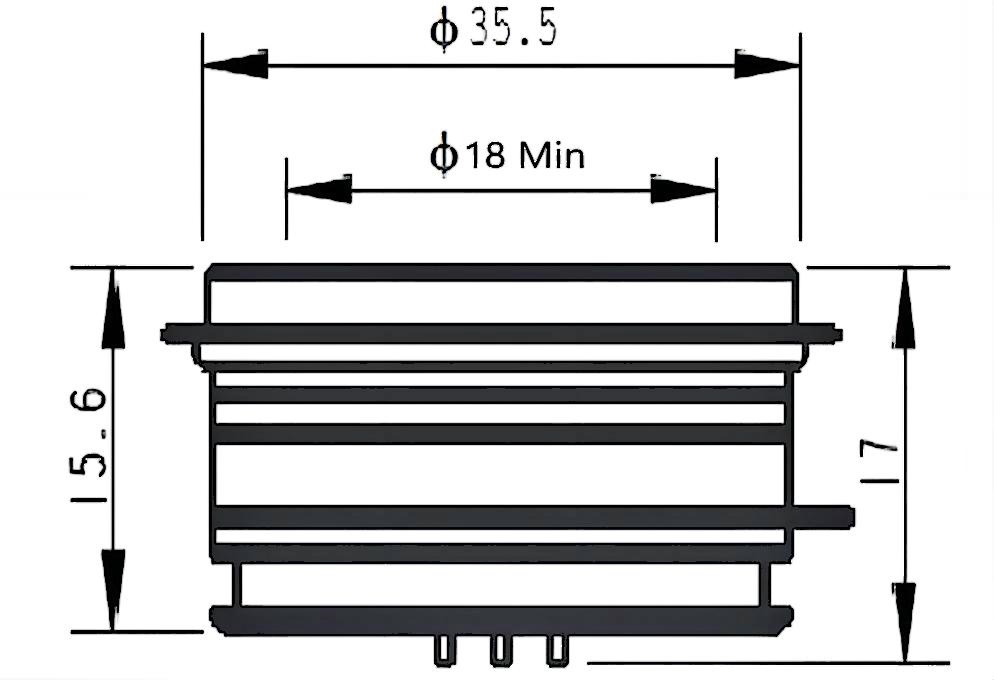

Dimension

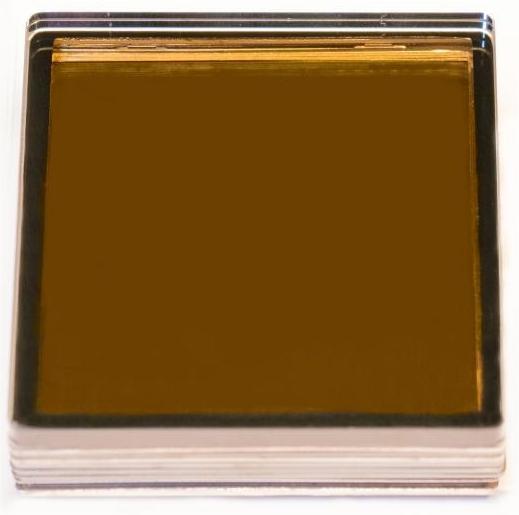

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6021

STN6015 is a  quare MCP-PMT featuring high speed ,high gain ,low noise. It is mainly used in specialized medical imaging,  cherenkov – RICH, TOF, TOP, DIRC, high energy physics and security.



Feature

  • High speed
  • High gain
  • Low noise

Application

  • Specialized medical imaging
  • Cherenkov – RICH, TOF, TOP, DIRC
  • High energy physics ,security







Product Specifications and Brochures

Product Brochure Link:

Parameter Description
 Window Material AVG Glass
 Photocathode Material Bialkali
 Multiplier Structure 2 MCP
 Anode Structure 8 ×8
STN6021 Min. Typ. Max. Unit.
Cathode Parameters  Spectral Response 280-650 nm
 Quantum Efficiency Peak Wavelength / 380 / nm
 Luminous Sensitivity / 70 / μA/lm
 QE @410nm / 22 / %
 Radiant Sensitivity@410nm / 72 / mA/W
Anode Parameters  Supply Voltage / 2500 3200 V
 Gain / 2 × 106 / /
 Dark Count Rate@0.2pe(Single Anode) / 500 5000 Hz
 Charge Resolution / 35 / %
 Peak to Valley Ratio / 3 / /
Time Response  Rise Time / 300 / ps
 Pulse Width / 650 / ps
 Fall Time / 800 / ps
 TTS@σ(SPE) / 50 / ps
 TTS@σ (MPE ) / 15 / ps
 Operating Ambient Temperature -30~+50 ℃
 Storage Temperature -50~+50 ℃





Spectral Graph

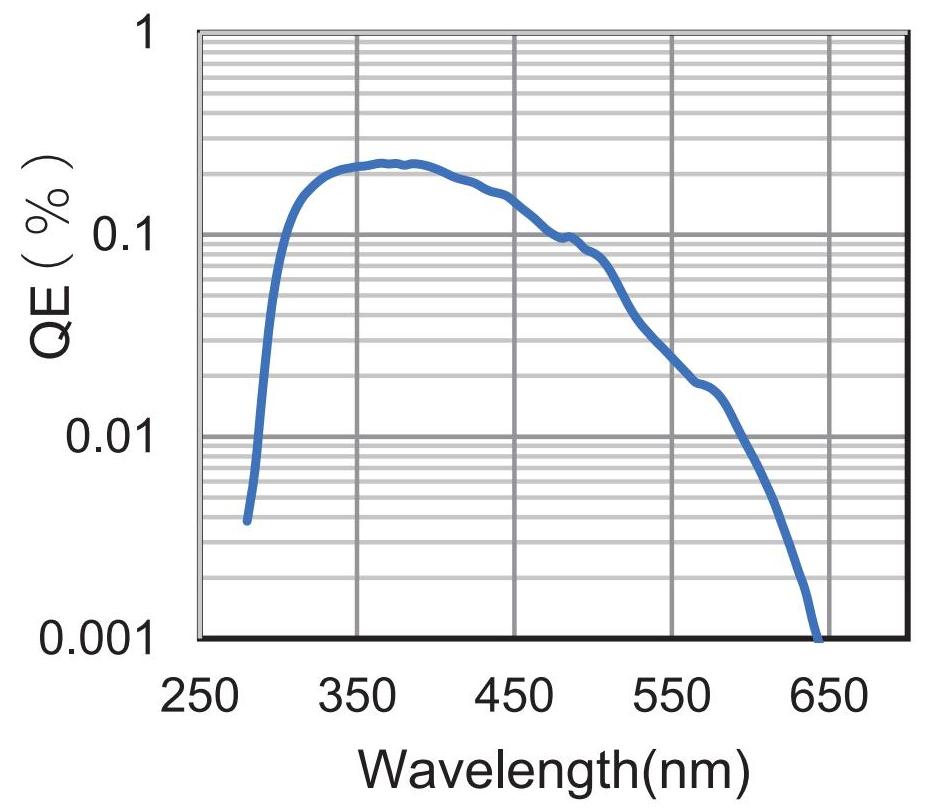

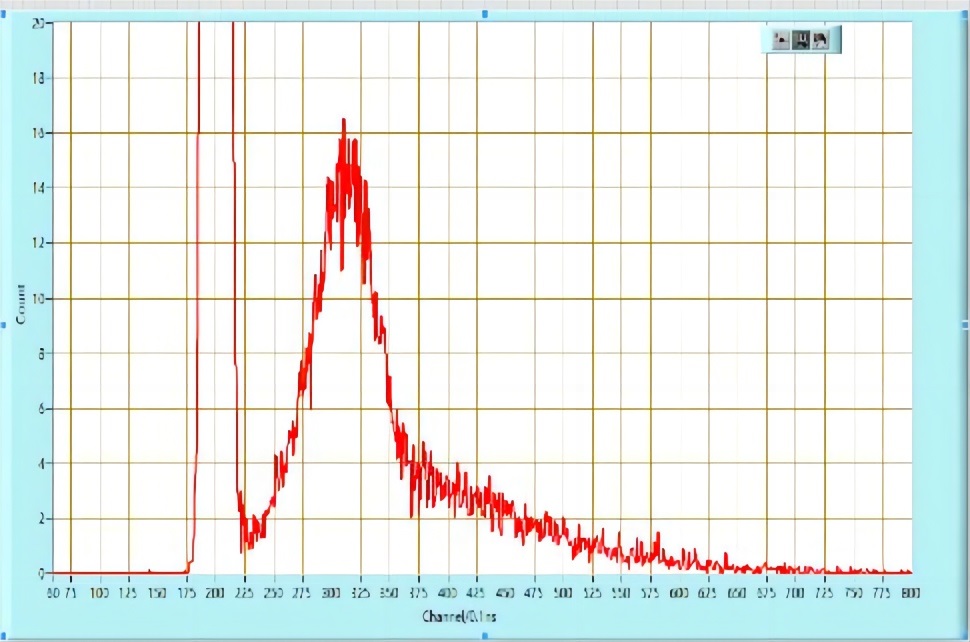

          Typical Spectral Response Curve  Typical Single Photoelectron Spectrum







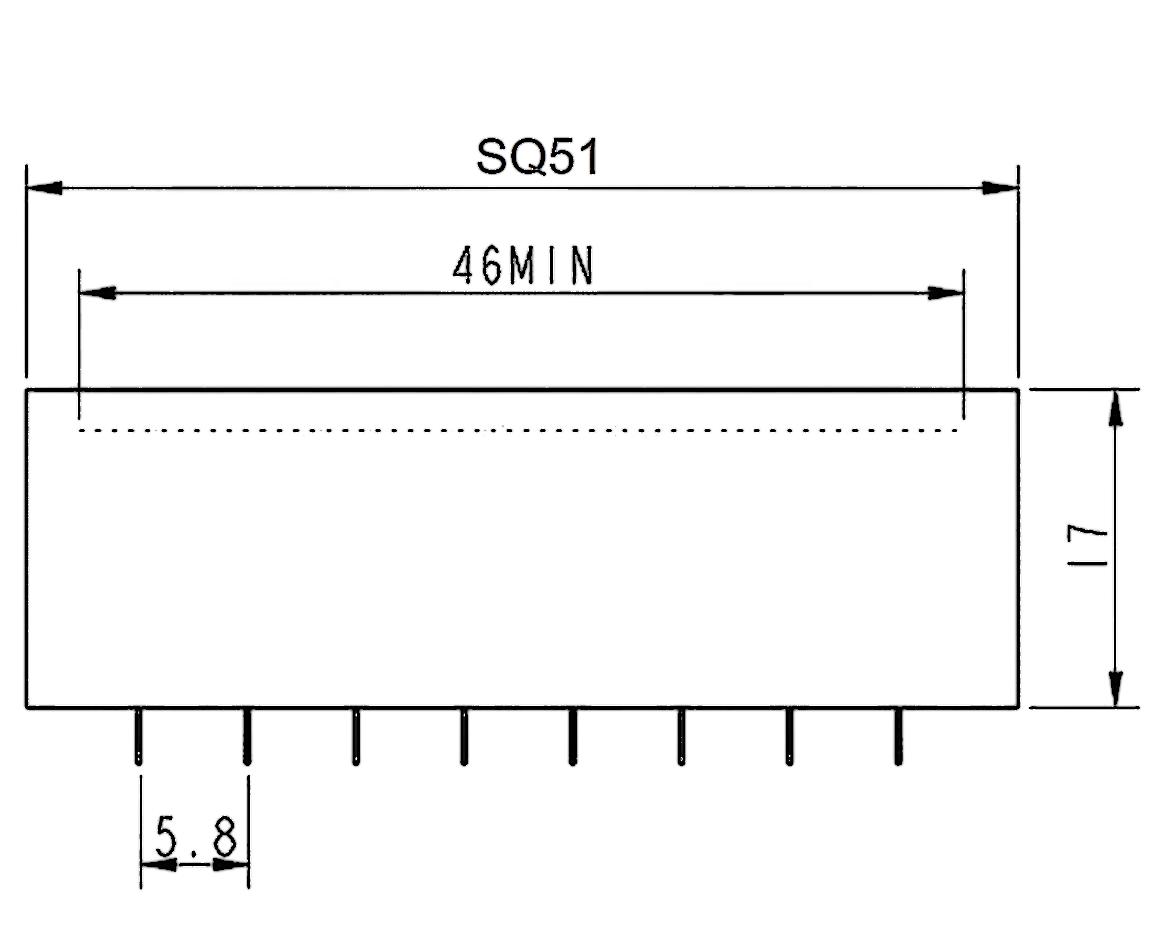

Dimension






Microchannel Plate - Photomultiplier - STN6082/STN6201/STN6203

The large-area MCP-PMT(including STN6082/STN6201/STN6203) is a vacuum electronic device that converts extremely weak light signals into electrical signals. It is a large-area, high-detection efficiency electrostatic focusing photomultiplier tube with independent intellectual property rights.This product uses Sb-K-Cs cathode as a photoelectric conversion cathode, which has high quantum efficiency for photons in the 350-450nm wavelength; using a microchannel plate as an electron multiplier tube system, the superposition of two microchannel plates can achieve an electron gain of more than 107 . The multiplication distance of the microchannel plate is short, so it has superior time response



Product performance can be customized according to customer needs. At present, the main products are 8-inch and 20-inch MCP-PMT.



Feature

  • High gain ,low noise ,fast response
  • Good single photon peak-to-valley ratio

Application

•   High energy physics






Product Specifications and Brochures

Product Brochure Link:

Parameter Description
 Window Material Borosilicate glass
 Photocathode Material Sb-K-Cs
 Multiplier structure MCP
 Operating Ambient Temperature -30℃~+50℃
 Storage Temperature -50℃~+50℃
Model STN6082 STN6201 STN6203 Unit
 Diameter 8 20 Inch
 Product Performance Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. /
Cathode Parameters  Spectral Range 290-650 nm
 QE Peak Wavelength / 380 / / 380 / / 380 / nm
 Photocathode Integral Luminious / 90 / / 90 / / 90 / A/lm
 @410nm/QE / 30 / / 30 / / 30 / %
Anode Parameters  Supply Voltage 1500 1750 2000 1500 1750 2000 1650 1900 2100 V
 Gain / 1 × 107 / / 1 × 107 / / 1 × 107 / /
 Anode Sensitivity / 900 / / 900 / / 900 / A/lm
 Dark Count Rate / 10 25 / 30 100 / 20 60 kHz
 Peak to Valley Ratio 3 7 / 3 7 / 2.5 4 / /
 Charge Resolution / 35 50 / 35 60 / 40 60 %
Time
Response		  Rise Time / 4 / / 1.4 / / 1.4 / ns
TTS / 1.6 / / 15 / / 5 / ns
After Pulse Ratio / 1 / / 1 / / 1 / %





Spectral Graph

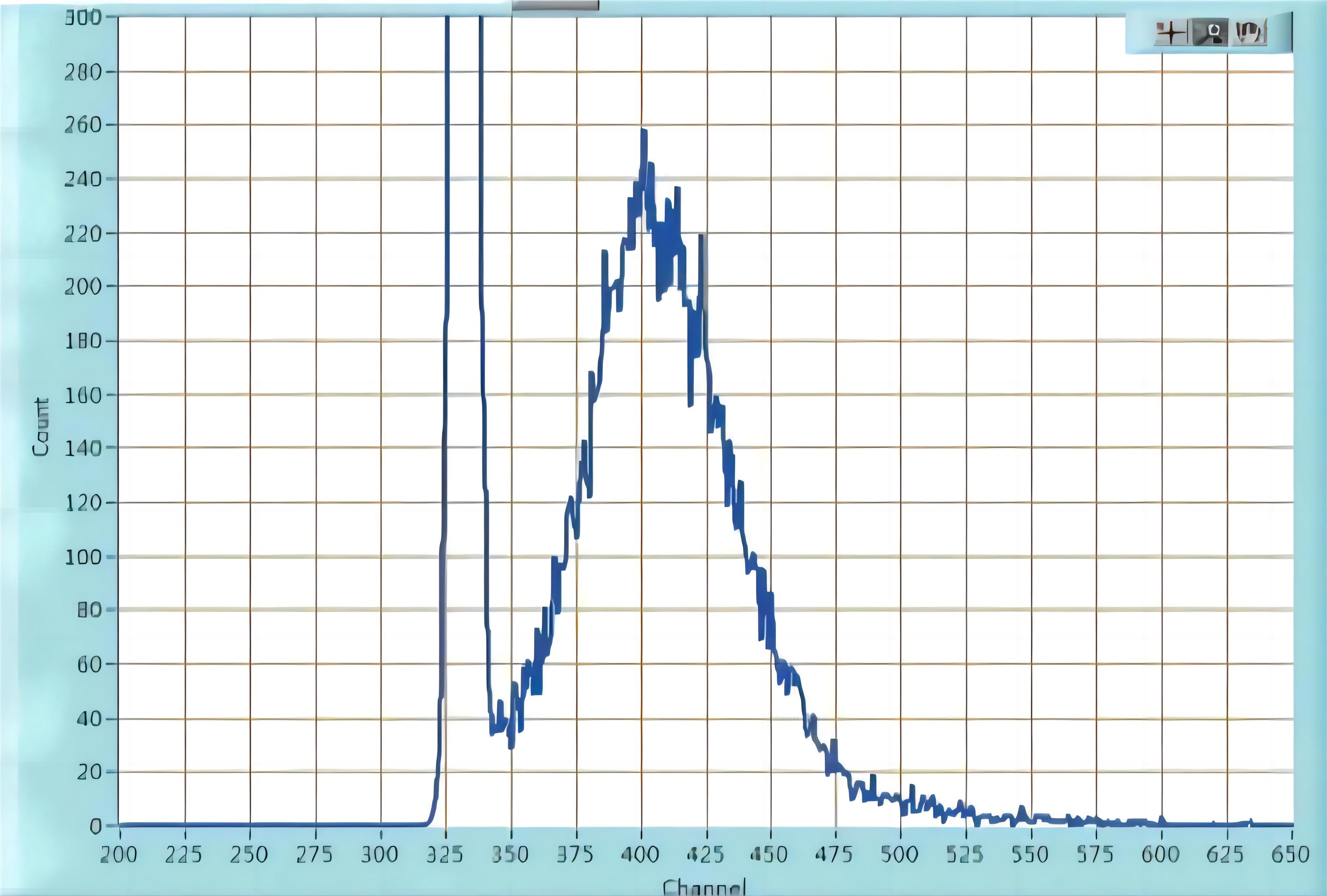

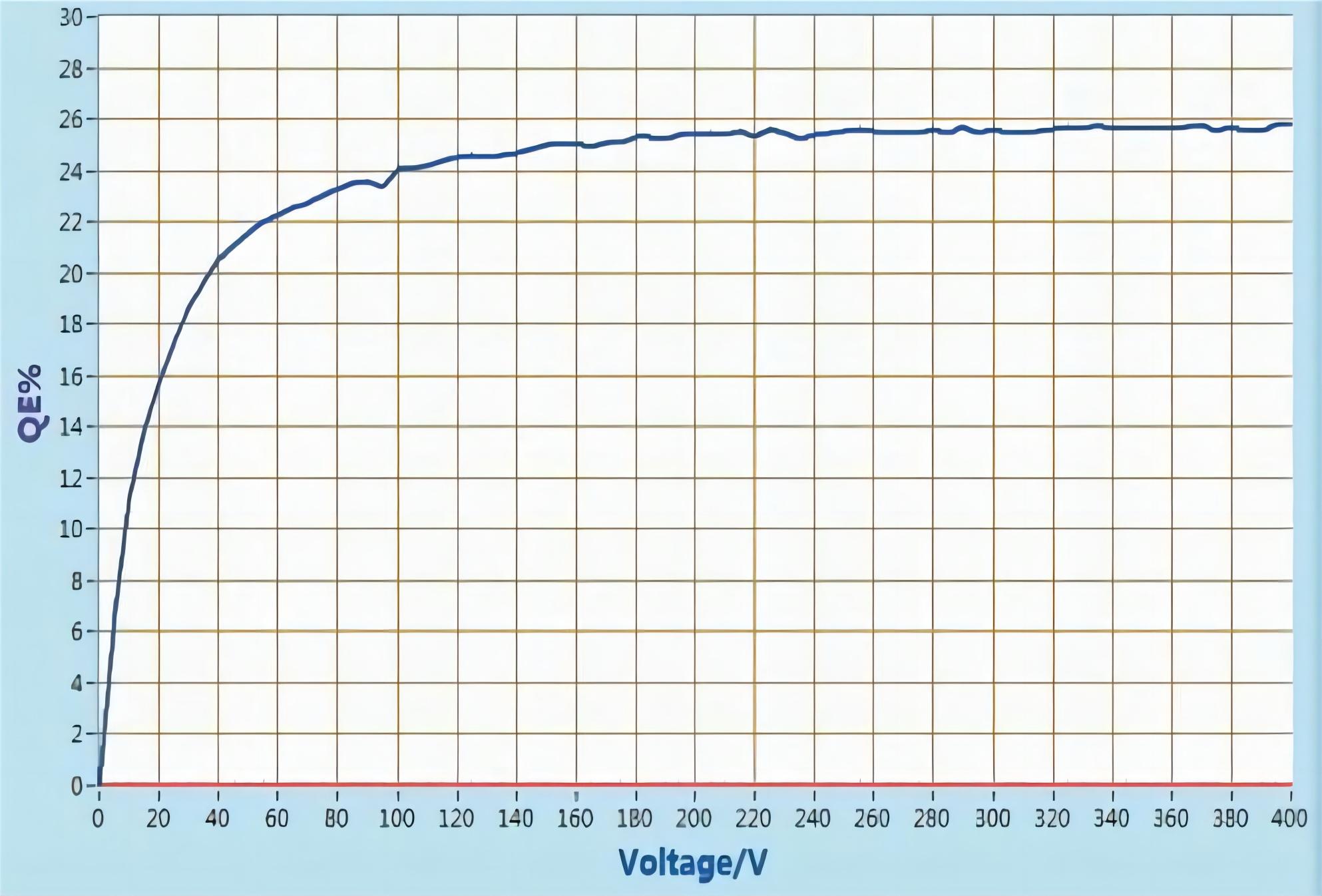

    Typical Spectral Response Curve   Plateau Characteristics   Typical Single Photoelectron Spectrum

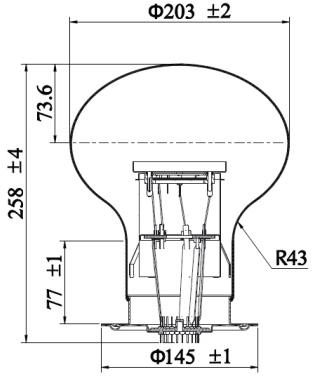

Dimension



STN6082

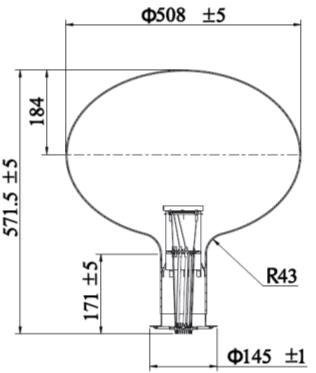

           STN6201

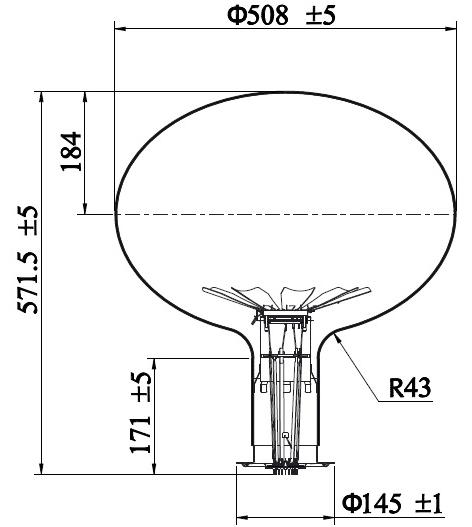

                STN6203

Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit
