Microscope Cameras

SIMTRUM Provides a few types of Camera for microscope application, including Visible to NIR CCD camera, visible-NIR CMOS Camera and HDMI Color CMOS Camera

Camera Category Resolution Pixel Size FPS Wavelength Note
Microscope  TE-Cooling USB3.0 CCD Camera 1.5MP to 12MP 6.45um to 3.1um ~30FPS 380nm - 650nm IR Cut filter
Microscope  USB3.0 CCD Camera 1.5MP to 12MP 6.45um to 3.1um ~30FPS 380nm - 650nm IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera 24MP and 61MP 5.94um and 3.76um up to 190FPS 380nm -650nm UV extended available
TE-Cooling USB3.0 CMOS Camera 10MP to 45MP 4.63um to 2.31um up to 96FPS 380nm - 650nm IR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger 0.5MP / 0.5MP 6.9um / 9um 20FPS 380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera 0.5MP to 45MP
6.9um to 1.55um upto 520FPS 380nm - 650nm IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced 1.3MP to 10MP 9.7um to 4.6um upto 86FPS 200nm -1100nm
Microscope USB3.0 CMOS Camera with ISP 1.5MP to 45MP
3.4um to 1.2um upto 165FPS 380nm - 650nm IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera 5MP 2um 30FPS 380nm - 650nm IR Cut filter

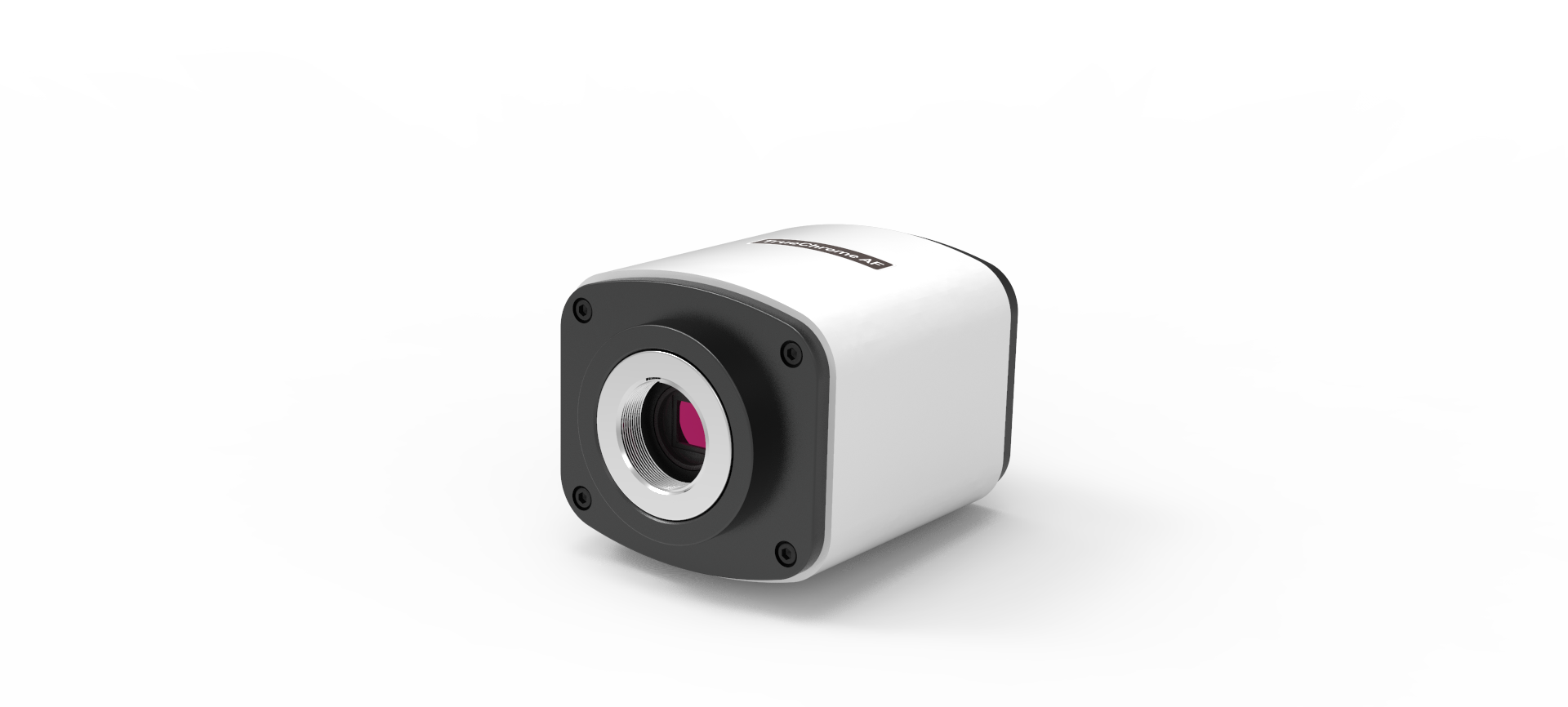

HDMI Color CMOS Camera 2MP to 8MP   60FPS 380 - 1100nm

UV & NIR Enhanced CMOS Camera 4.2/8MP,  2.1/4.1MP
  upto 200FPS 200-1100nm UV or NIR Enhance

Technical Support Available: Contact us  You can download our full Product Line Card Click Here
