HDMI Color CMOS Camera

Product Brochure Link: TrueChrome Series

中文产品册: TrueChrome Series


Product Model4K Pro Auto FocusMetricsHD Lite
SensorSony IMX183C CMOSCMOSCMOSCMOS
Sensor Size
1/2.8''1/2.8''1/2.5''
Preview Resolution
2MP (1920 x 1080)2MP (1920 x 1080)5MP (2592 x 1944)
Capture Resolution8MP (3840x2160)6MP, 3264 x 18366MP (3264 x 1836)5MP (2592 x 1944)
Frame RateHDMI: 30fps@3840x2160
USB 3.0: 25fps@3840x2160
Ethernet: 30fps 3840x2160
60fps @ HDMI,   35fps @ USB2.030fps @ HDMI,   30fps @ USB2.015fps @ HDMI, 15   fps @ USB2.0
Image FormatHDMI: JPG/TIFF
USB 3.0: JPG/PNG/TIFF/DICOM
Ethernet: JPG/PNG/TIFF/DICOM

SD card (16G)SD card (8G)
Video Recording
30fps @ SD Card,   30fps @PC30fps @ SD Card,   30fps @PC15fps @ SD Card,   15fps @PC
Exposure ModeAuto/ManualAuto/ManualAuto/ManualAuto/Manual
Exposure Time2ms~10s2ms - 10s2ms - 10s2ms - 10s
White BalanceAuto/ManualAuto/ManualAuto/ManualAuto/Manual
Setting
White Balance,   Exposure Time, Noise, Reduction, Gain, Gamma, WDRWhite Balance,   Exposure Time, Noise, Reduction, Gain, Gamma, WDRWhite Balance,   Exposure Time, Noise, Reduction, Gain, Gamma, WDR
Built-in SoftwareHDMI: Embedded   software, PC: Mosaic V2Cloud 1.0 VerCloud 1.0 VerCloud 1.0 Ver
PC SoftwareWindows 7/8/10   (32bit/64bit)Mosaic V2Mosaic V2Mosaic V2
Data InterfaceHDMI: Connect monitor
USB3.0: Connect computer or U disk
LAN: Connect Internet
USB2.0: Connect mouse
USB 2.0, SD, HDMIUSB 2.0, SD, HDMIUSB 2.0, SD, HDMI
Optical InterfaceStandard   C-MountStandard C-MountStandard C-MountStandard C-Mount
Camera Size105.7x78x70.8   (mm)90.7x78x70.8 (mm)90.7x78x70.8 (mm)90.7x74.5x67.2   (mm)
Camera Weight505g460g448g272g

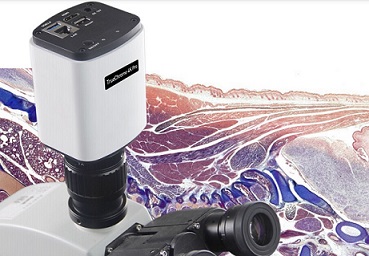

4K Pro not only can accurately determine the exposure intensity of complex light scenes, but also accurately restore difficult colours such as blue, purple and pink, and maintain a high speed of 30 frames per second. Equipped with live stitching, EDF and sharpening, the TrueChrome 4K Pro is a camera suited for life science, or applications which needs super-resolution imaging.



Key Features

USB 3.0: 25 fps

Ethernet: 30 fps

2ms to 10s Exposure Time

4K HDMI and USB3.0 two-in-one

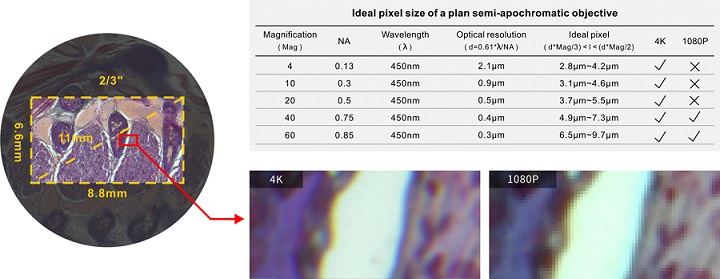

Ideal pixel size of a plan semi apochromatic objective


What can 4K bring to you?

The ideal camera pixel refers to the pixel size that is just big enough to resolve the optical resolution of a microscope. But in order to fully perform the optical efficiency of microscope, the real adopted camera pixel size should be smaller than ideal. The smaller the pixel size, the higher the resolution. Refer to the diagram below: Assume an incident wavelength of 450nm, then the adopted camera pixel size should be smaller than 2.8um pixel size which corresponds to 4 multiples of minimum objective lens. Under the same 2/3 FOV, the actual resolution of a 1080P (1920 ×1080) camera is only equal to 4.6um (=8.8mm/1920) but this barely meets the demands of a 40X and 60X objective lens. This is contrast to 4K (3640×2160) resolution is about 2.3um(=8.8mm/3640), meeting the demands of all objective lenses and making the optical lens work at its best efficiency. This is regardless of whether it is equipped with a 4K or 1080P monitor, it can get higher resolution results.

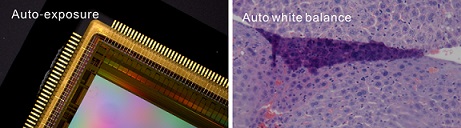

Auto exposure & auto white balance


Much Stronger 4K Image Signal Processor

The upgrade to 4K resolution requires the camera to process a larger amount of data. Generally, it is not easy to perfectly reveal 4K images but Tucsen 4K ISP performs a very good professional level. It can not only can accurately determine the exposure intensity of complex light scenes but also accurately restore difficult colours such as blue, purple, pink, and maintain a high speed of 30 frames per second.

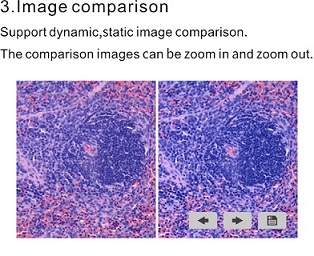

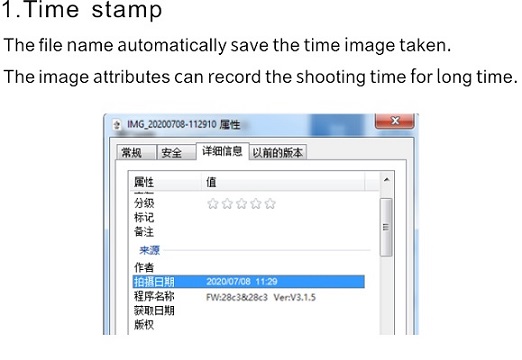

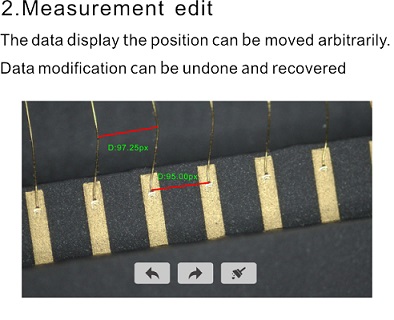

 Time stamp      Measurement edit     Image comparison


Embedded-type functionality upgrade

Based on previous generation of TrueChrome Metrics embedded software, three utility functions are added on TrueChrome 4K Pro to continuously optimize your shortcut operation experience.



Auto Focus has real-time image stitching, real-time depth-of-field fusion. Equipped with perfect colour reproduction and being the fastest USB2.0 camera with 30 fps, the TrueChrome AF is a camera suited for life science, or applications which needs super-resolution imaging.


Key Features

CMOS Sensor Type

2MP (1920 x 1080) Preview Resolution

USB 2.0: 35 fps

2ms to 10s Exposure Time

HDMI Autofocus Colour Microscope Camera

Built-in-mouse control for autofocus and image measurement operations

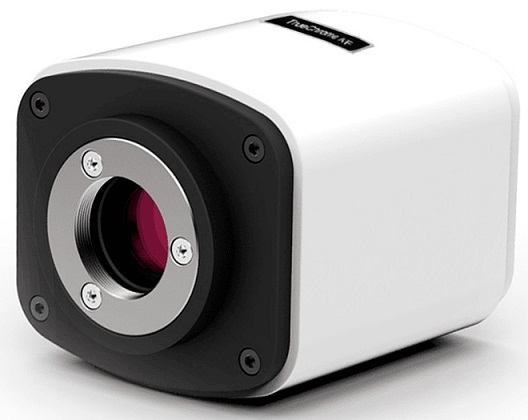

Truechrome auto focus

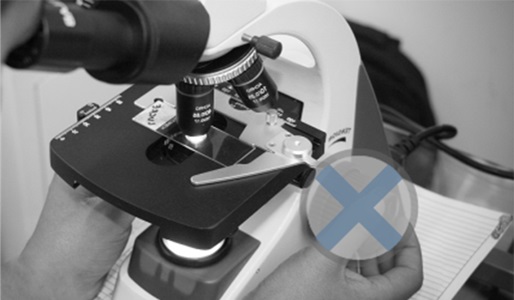

    An unprecedented high-speed focusing experienceimage.png


AF offers both continuos and single-shot autofocus modes. It also  supports mouse wheel control for fine-tuning. Data transfer of up to 60 frames per second enables users to get clear images with ease.

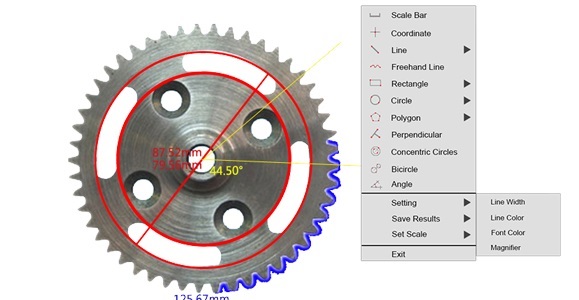

          Professional digital image measurement system



AF provides extremely powerful measurement functionalities including, freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and many more. Three different length units of millimeter,centimeter, and micrometer are provided to meet various measurement requirements in different applications.



Compatible with Computational Imaging Software

Fast, efficient and worry-free is the core design concept of Mosaic V2.1 software. It adopts a new image "shooting-processing-measurement-reporting" function, modular design, and integrates various intelligent image processing algorithms from Tucsen. It is dedicated to providing users with more simple operation modes and improve work efficiency in all circumstances.

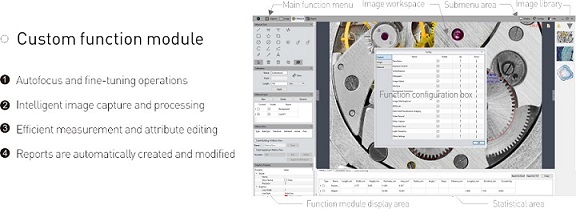

Custom function module


Metrics is able to produce high speed images at 30 fps, excellent fluorescence imaging and 1080 video recording. Being highly intelligent with the best white balance, exposure, and saturation, the Metrics is a camera suited for life science, fluorescence imaging or applications which needs super-resolution imaging.


Key Features

CMOS Sensor Type

2MP (1920 x 1080) Preview Resolution

2ms to 10s Exposure Time

30 Frames Per Second High Speed Image

Excellent Fluorescence Imaging

3D Noise-reduction Function

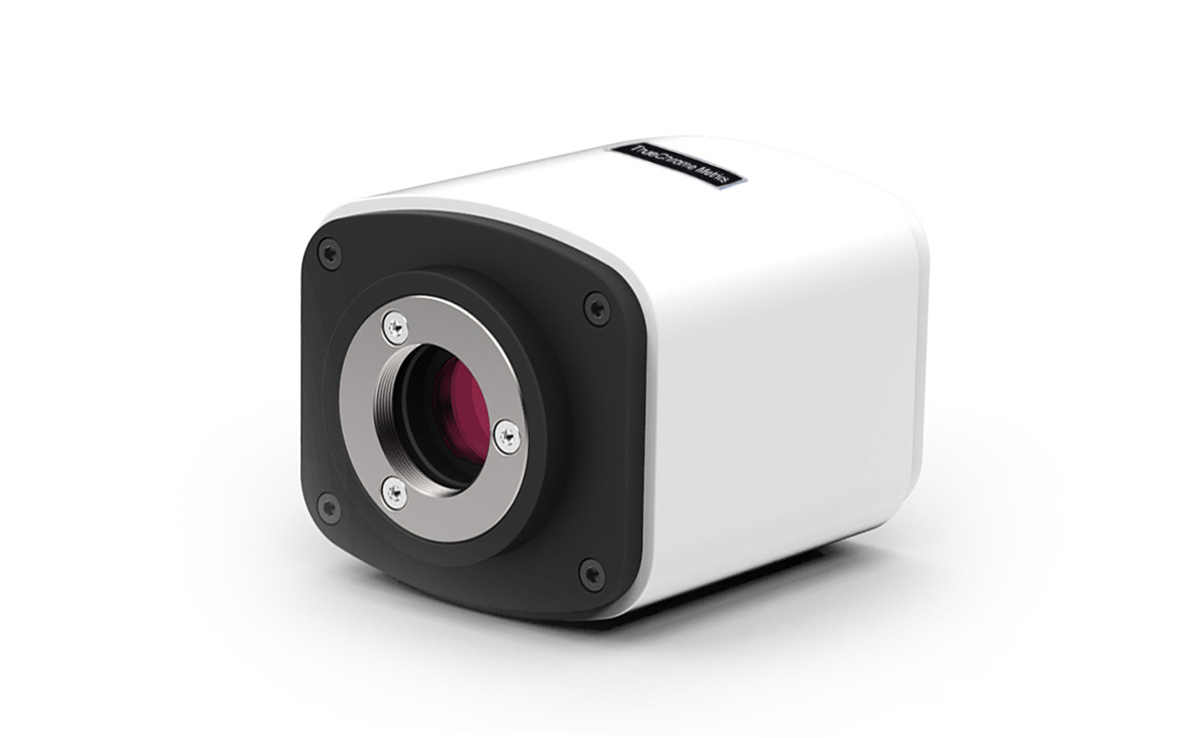

TrueChrome Metrics

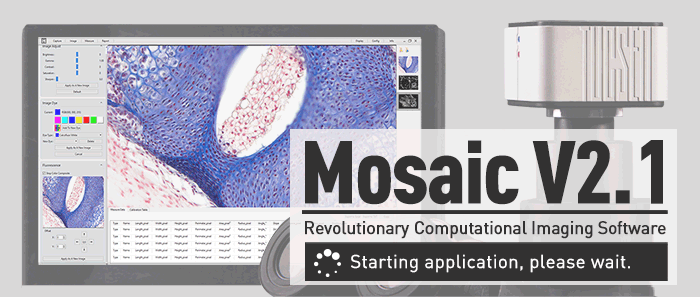

TrueChrome Metrics PC Software


Metrics PC Software

New generation of computational imaging software, redefines the image acquisition - editing - measurement - report output workflow process, and provides two core functions: real-time image stitching and real-time depth of field expansion(EDF). Please click on the image below to learn more.

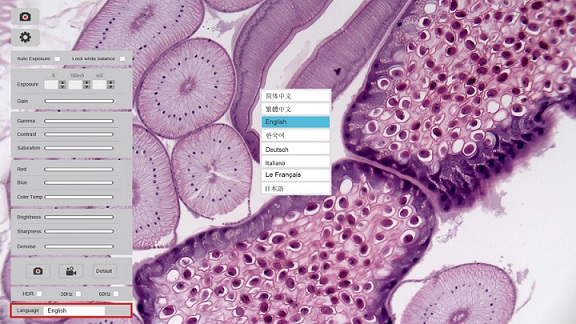

8 different localization options


8 different localization options

Metrics allows free switching of eight local languages, including English, Chinese Simplified, Traditional Chinese, German, Italian, French, Korean and Japanese.

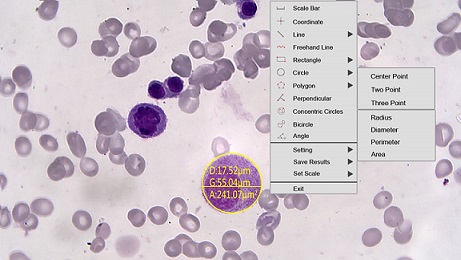

Micron-level precision measurement


A variety of efficient measurement tools to achieve micron-level precision

Metrics is equipped with a variety of measuring tools such as free line, rectangle, circle, polygon, dotted line, concentric circle, double circle, angle and so on. It can realize the precision of microns such as line distance, angle, length, circumference, area Measurement, the data can be accurate to 1/100 microns, very small cells can be measured very accurately.



 Variety of measurement applicatins


Variety of measurement applications

In addition to microns, TrueChrome Metrics also supports millimeters, centimeters of up to two orders of magnitude and can fully meet the needs of users under different scenarios of diverse measurement applications. It provides the user high productivity quantitative analysis via an intuitive interface.

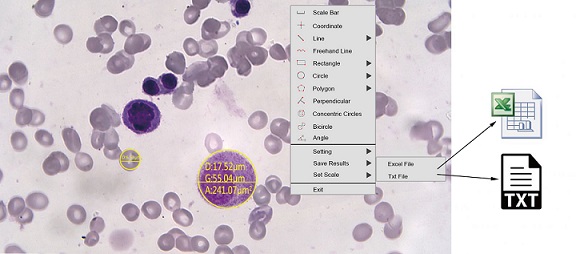

Convenient measurement data management


Convenient measurement data management

TrueChrome Metrics supports both Excel and text file save formats. This results in convenience for measurement data management.







HD Lite is embedded with a easy to use software, 3D noise reduction capability and ROI magnification function . Equipped with complete exposure and gain setting allowing exposure settings from 1ms to up to 10 seconds, the HD Lite is a camera suited for large view or applications which needs super-resolution imaging.


Key Features

CMOS Sensor Type

5MP (2592 x 1944) Preview Resolution

USB 2.0: 15 fps

2ms to 10s Exposure Time

ROI Magnification Function

Image Comparison Function

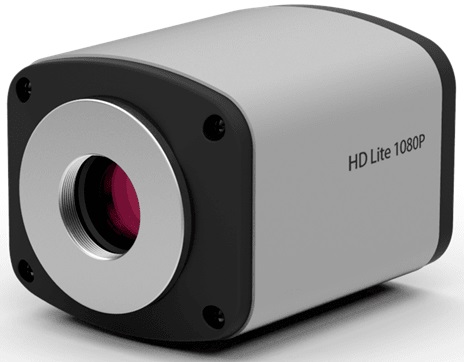

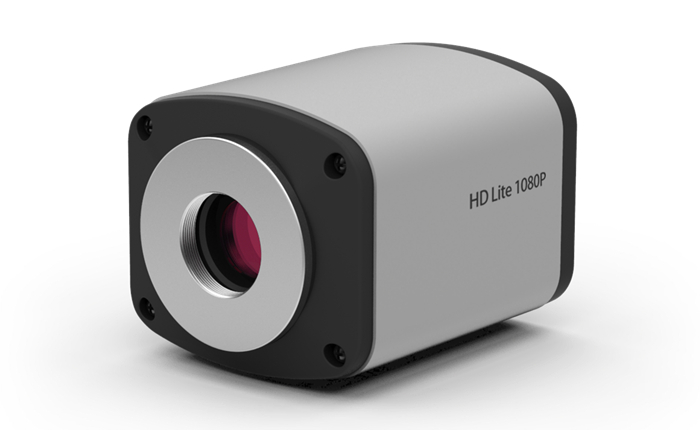

HD Lite

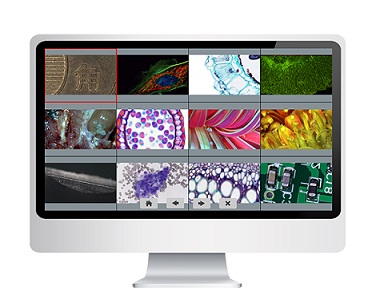

5,000,000 pixel CMOS camera


HD Lite uses a new 5 megapixel HD image sensor. The detail is more clearly presented, providing for excellent image quality.

5,000,000 pixel CMOS camera

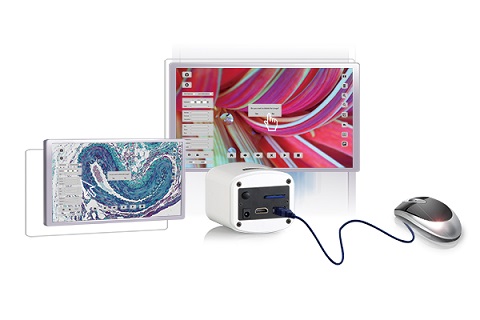

Built- in Mouse Control


The significant innovation of HD Lite is embedding the application software inside the camera. The user can control the camera with just a mouse. There is no need for a PC.

Built- in Mouse Control

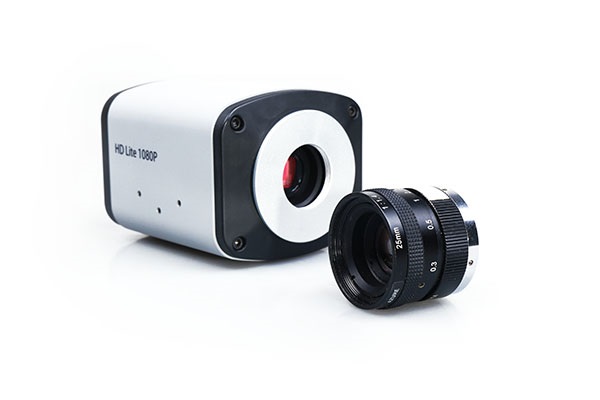

Superb Smart Camera

HD Lite automatically analyzes the acquired images and optimizes the white balance, exposure time and saturation, to present perfect images. Whatever for bright field bio imaging or dark field birefringent crystal imaging, HD Lite delivers ideal images, barely needing any parameter adjustment.


Superb Smart Camera
HD Lite Smart Camera

Documents & Manuals


Camera Quick Start

Support: Dhayana Series Cameras


Mosaic 1.6 Software Introduction

Support: Dhayana Series Cameras



Camera Quick Start

Support: FL-20, FL-20BW, TrueChrome Series, HD Lite (HDMI), MIchrome Series, GT USB2.0 Series





Mosaic 2.2 Software Introduction

Support: FL-20, FL-20BW, TrueChrome Series, HD Lite (HDMI), MIchrome Series, GT USB2.0 Series





Tucsen Camera Quick Start (TCapture)






TCapture Software Introduction





Software & Drivers*



 Software--Mosaic 1.6.8 windows

         Support: Dhyana 95/400BSI/400DC/400D




 Software-- Mosaic 2.2 Mac

          Support: MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics





 Software--Mosaic 2.3 windows

          Support: MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics/HD Lite





 Plugin-- Directshow and Twain

          Support:MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics/HD Lite/4K





 Driver--Corporate with all cameras

          Support for Windows 7 and above (32 & 64bit)





image.png Plugin--Labview (with user guide)

          Support: Dhyana95 | Dhyana 400BSI V1/V2 | Dhyana400D | Dhyana 401DS | Dhyana 201DS





image.png Plugin--Matlab (with user guide)

          Support: Dhyana95 | Dhyana 400BSI V1/V2 | Dhyana400D | Dhyana400DC | Dhyana 401DS | Dhyana 201DS





image.png Plugin--MetaXpress (with user guide)

                          Support: Dhyana95 | Dhyana 400BSI V1/V2| Dhyana400D | Dhyana400DC | FL-20BW





image.png Plugin--Micromanager (with user guide)

                     Support: Dhyana95 | Dhyana 400BSI V1/V2| Dhyana400D | Dhyana400DC | FL-20BW





 Software--TCapture 5.1.1

          Support: TrueChrome Metrics/IIS/II/HD Lite | DigiRetina16/500/DigiSwift | ISH1000/500/300/130





 Software--TCapture 4.3.0.605

          Support: CCD | X1000/500 Camera





*Please open link in a new tab



Microscop Cameras

Camera CategoryResolutionPixel SizeFPSWavelengthNote
Microscope  TE-Cooling USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Microscope  USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera24MP and 61MP5.94um and 3.76umup to 190FPS380nm -650nmUV extended available
TE-Cooling USB3.0 CMOS Camera10MP to 45MP4.63um to 2.31umup to 96FPS380nm - 650nmIR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger0.5MP / 0.5MP6.9um / 9um20FPS380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera0.5MP to 45MP
6.9um to 1.55umupto 520FPS380nm - 650nmIR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced1.3MP to 10MP9.7um to 4.6umupto 86FPS200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP1.5MP to 45MP
3.4um to 1.2umupto 165FPS380nm - 650nmIR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera5MP2um30FPS380nm - 650nmIR Cut filter
HDMI Color CMOS Camera2MP to 8MP
60FPS380 - 1100nm

UV & NIR Enhanced CMOS Camera4.2/8MP,  2.1/4.1MP

upto 200FPS200-1100nmUV or NIR Enhance


Scientific Cameras

TypeModelWavelengthSensor   TypeResolutionPixel sizeFrame RateQE
X-RAY sCMOS Camera XF9580-1000eVBSI sCMOS2048 x 204822.5um or 13.3um 48~100% full range
XUV/VUV CameramaxCam1-300nm BSI/FSI CCD 1024 x 25526um
Refer to brochures
High Speed sCMOS CameraDhyana 2100200-1100nmFSI CMOS / Mono5220(H) x 4096(V)4.5um x 4.5um450fps@8bit63%@520nm
Dhyana 9KTDI200-1100nmBSI sCMOS TDI/Mono90725um x 5um510kHZ@8bit82%@550nm,
Cooled High Sensitivity sCMOS Camera95V2200-1100nmBSI sCMOS/Mono2048(H) x 2048(V)11μm x 11μm48fps@12bit STD95%@560nm
400BSI V2200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm74fps@CL, 40fps@USB3.095%@600nm
400BSI V3200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm100fps@CL, 40fps@USB3.095%@600nm
400D200-1100nmFSI   sCMOS/Mono2048(H) x 2040(V)6.5μm x 6.5μm35fps@16bit72%@595nm
400DC200-1100nmFSI   sCMOS/Color2048(H) x 2044(V)6.5μm x 6.5μm22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras6060BSI200-1100nmBSI sCMOS/Mono6144(H) x 6144(V)10μm x 10μm26.4fps@12-bit STD95%@580nm
4040BSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.090%@550nm
6060FSI200-1100nmFSI sCMOS/Mono6144(H) x   6144(V)10μm x 10μm44fps@12-bit STD72%@550nm
4040FSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.074%@600nm
Compact Industry sCMOS Camera401D  200-1100nmFSI sCMOS/Mono2048(H) x 2048(V)6.5μm x 6.5μm40fps@16bit, 45fps@8bit72%@595nm
401A-G200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
401A-U200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
201D200-1100nm2048(H) x 1152(V)6.5μm x 6.5μm70fps@16bit, 80fps@8bit72%@595nm


Intensified CMOS Cameras

TypeTime-Resolved iCMOSHigh-speed Gated iCMOS CameraHigh-speed Fluorescence iCMOS Camera
540M/S1000M/SFLUO (1000 FPS)FLUO (2000 FPS)
Product Image

TRiCAM_Specifications 1.jpeg

Framerate 162 fps540 fps1000 fps1000 fps - 7500 fps2000 fps - 6400 fps
Sensor Resolution1920 x 1200 pixels1696 x 1710 pixels1280 x 1024 pixels1280 x 1024 pixels1920 x 1080 pixels*
Pixel size5.86 x 5.86  µm 8 x 8 µm6.6   x 6.6 µm6.6 x 6.6 µm10 x 10 µm
Photon gain (max.)50000 lm/m^2/lx 11000 lm/m^2/lx11000 lm/m^2/lx36000 lm/m^2/lx36000 lm/m^2/lx
Gating repetition rate100 or 300Khz100khz100khz100khz100khz
Intensifier18mm intensifier Dual-stage   intensifierDual-stage intensifierSingle-stage intensifier  Single-stage intensifier
Bit Depth10 bit and 12 bit8 bit8 and 12 bit8 and 12 bit8 bit
Minimum exposure time40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)


Imaging Intensified Tube

TypeTime-Resolved Image IntensifierHigh-speed Image Intensifier
Model 18Model 25Model 18Model 25
Product Image

Input diameter18mm25mm18mm25mm
Effective areaGen II: ø 17.5 mm, Gen III: 13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mmGen II: ø 17.5 mm, Gen III:   13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition 100 kHz, 300 kHz or 1 MHz100 kHz, 300 kHz or 1 MHz100khz Or 300khz ,  2.5 MHz  burst mode100khz Or 300khz,  2.5 MHz burst mode
Min. gate width< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)
Frame RateUp to 500 fpsUp to 500 fpsup to 1,000,000 fpsup to 1,000,000 fps
Photon Gain

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000
S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000
S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000


Short-wave, Mid-wave, Long-wave Infrared Cameras

ProductSpectral RangeRsolutionCoolingFeature
SWIR Camera400-1700nm1.3MP, 0.3MPuncooled
MIR CameraMid Infrared Detector3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Mid Infrared Camera3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Duel Band Detector3.7 to 4.8um|7.7 to 9.5um320*256px Cooled
LWIR CameraCooled LWIR Detector7.7um to 9.4um0.08MP, 0.3MPCooled
Cooled LWIR Camera7.7um to 9.4um0.3MPCooled
LWIR Thermography Camera 8 to 14um0.08MP, 0.3MP,1.5MPUncooledBroad Temperature Range
Thermography Camera for Skin Screening8 to 14um320*256px UncooledBody Temperature
Thermal Imaging Cameras for Phone8 to 14um256*192pxUncooledFor Smart Phone
Compact Thermal Imaging Camera8 to 14um0.08MP, 0.3MPUncooledFor CCTV , Drone



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
4K Pro
16MP, USB 3.0 & HDMI & Gige
4-6 Weeks Request for quote
Auto Focus
6MP, USB 2.0 & HDMI
4-6 Weeks Request for quote
TrueChrome Metrics
6MP, USB 2.0 & HDMI
4-6 Weeks Request for quote
HD Lite
5MP, USB 2.0 & HDMI
4-6 Weeks Request for quote

HD Lite - Parameter

TrueChrome Metrics - Parameter

Auto Focus - Parameter

4K Pro - Parameter

TrueChrome Metrics - Download

Auto Focus - Download

4K Pro - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
