CW Laser Diode Module 375-785nm

The Stradus® line of lasers is a fully CDRH-compliant series of high-performance, circularized laser diode modules. The highly integrated diode laser modules contain all the necessary optical power regulation, temperature regulation, communication interface, and protection circuitry. All our lasers are single mode TEM00 lasers. with wavelength cover from UV, Visable and NIR. we also provide OEM customization service.

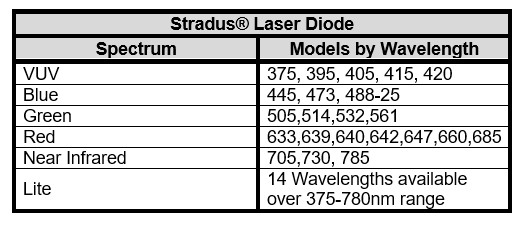

TypeWavelength Output PowerFiber output
UV Laser Diode Module375, 395, 405, 415, 420nmupto 200mWSM/MM
Blue Laser Diode Module445, 473, 488nmupto 200mWSM/MM
Green Laser Diode Module505, 515, 532, 561nmupto 200mWSM/MM
Red Laser Diode Module633, 639, 640, 642, 647, 660, 685nmupto 200mWSM/MM
NIR Laser Diode Module705, 730, 785nmupto 200mWSM/MM
Multiple Wavelength Laser Diode Module375 to 785nmupto 200mWSM/MM

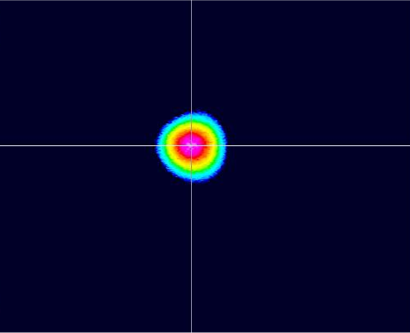

Power Stability (over 24 hours) : Extremely stable <0.5%  | Inbuilt Modulation: Digital and Analogue Options. | Single Mode TEM00: Beam Profile available on request.  | Customized Specificatoin: Yes
Technical Support Available: Contact us  You can download our full Product Line Card Click Here
