| Product Series |
Type |
Key Features |
| Mechanical Optical Switch |
Mechanically driven, physical path switching |
Mature & reliable, low IL (≤0.8–1.0 dB), epoxy-free optical path,
latching/non-latching, lifetime ≥10 million cycles |
| Magnet Optical Switch |
Magneto-optic effect, all-solid-state no moving parts |
Microsecond-speed switching (≤100 µs), ultra-long life (≥10 billion cycles),
fail-safe latching, pulse-driven low power consumption |

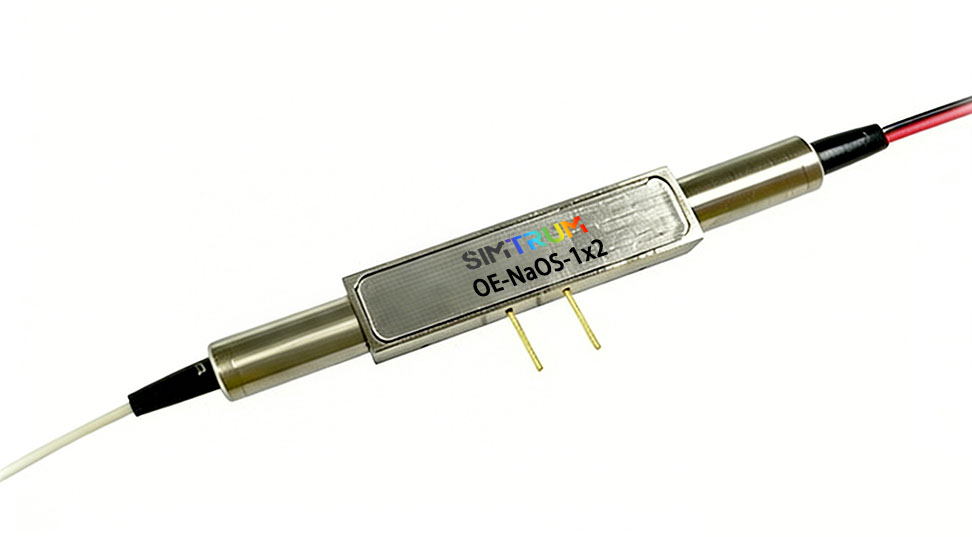

| NanoSpeed Optical Switch (Electric) |
Electro-optic material, voltage-controlled waveguide |
Nanosecond switching (≤300 ns), non-mechanical,
high repeatability (≤±0.01 dB), dual-level V0/V0 drive |

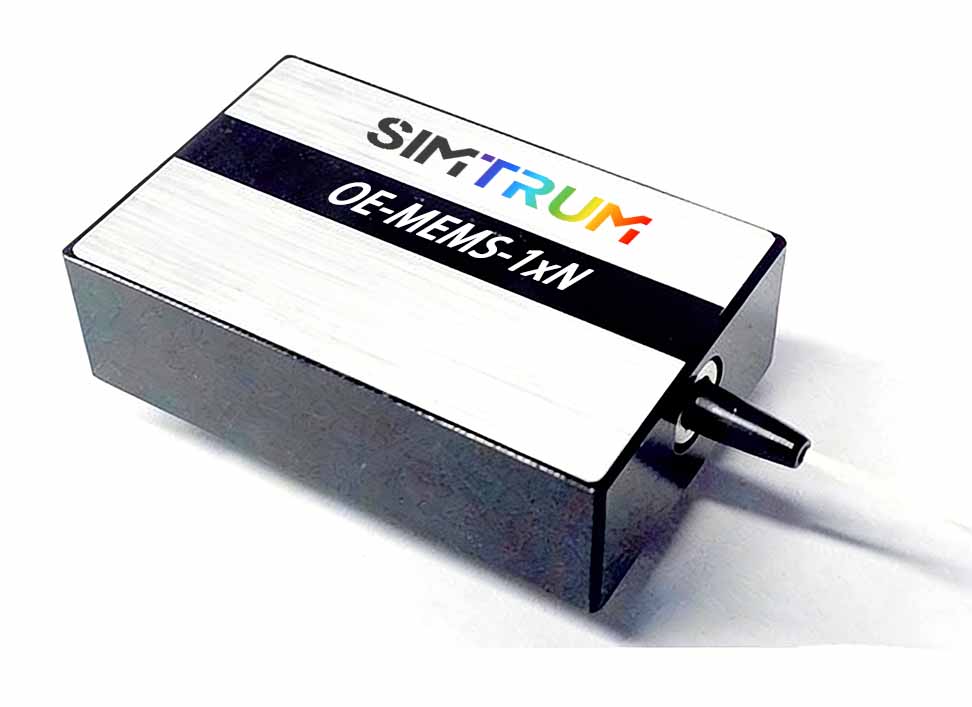

| MEMS Matrix Optical Switch |
Micro-electro-mechanical system, electrostatic mirror steering |
Any-to-any port connectivity, low IL (≤1.5 dB), high port density,
hit-less switching, integrated electronic control unit |
