Products / Imaging /Industrial Machine Vision Camera /Frame Grabber /

Frame Grabber

with Camera Link interface With CoaXPress Interface Order Now!

Frame Grabber with Camera Link interface

Our frame grabber with camera link 2.0 interface are divided into three kinds-full, base and full pro.They mainly differ in parameters. Please check the details and find the one you need.

Feature

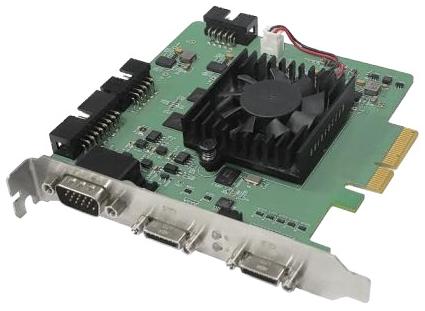

ST-sCLPE4Full ST-sCLPE4DBase	ST-sCLPE4 Full Pro
-Full/full+/base/medium(ST-sCLPE4Full only) -Base/dual-base(ST-sCLPE4DBase only) -Half-length substrate -Support mono/bayer/color mode -Support 8/10/12/14/16 bit multiple different pixel depths -Maximum horizontal resolution 64k pixels -PCle Gen2.0 and Camera Link 2.0(backward compatible) -Support external trigger signal input,encoder signal input and flash signal output -Support multi-card synchronization,support firmware online upgrade -Support Windows:10/7(64-Bit/32-Bit),Linux64-Bit,MacOS -Rich secondary development library(C/C++/C#)	-Half-length substrate -Full/full+/base/medium -Support mono/bayer/color mode -Support 8/10/12/14/16 bit multiple different pixel depths -Support JPEG color/black and white compression (8bit) -PCle Gen2.0 and Camera Link 2.0(backward compaible) -Maximum horizontal resolution 64k pixels -Support external trigger signal input,encoder signal input and flash signal output -Support multi-card synchronization,support firmware online upgrade -Support Windows,Linux system, MACOS -Rich secondary development library(C/C++/C#)

Product specifications and Brochures

Product Brochure Link:

Model	ST-sCL PE4 Full	ST-sCL PE4 DBase	ST-sCL PE4 Full Pro
Camera Link Mode	Full/Full+/Base/Medium	Base/Dual-Base	Base/Medium/Full/Full+
Interface Standard	Camera Link 2.0	Camera link 2.0	Camera Link 2.0
Pixel Depth	8/10/12/14/16 bit
Tap Arrangement	1 Tap-8/10/12/14/16-bit Mono/Bayer； 1 Tap-8/10-bit RGB//RGBC/BGR/BGRC； 2 Taps-8/10/12/14/16-bit Mono/Bayer； 2 Taps-8/10-bit RGB/RGBC/BGR/BGRC； 3 Taps-8/10/12/14/16-bit Mono/Bayer； 3 Taps-8-bit RGB/BGR； 4 Taps--8/10/12-bit Mono/Bayer； 8 Taps-8/10-bit Mono/Bayer； 10 Taps-8-bit Mono/Bayer	1 Tap-8/10/12/14/16-bit Mono/Bayer 2 Taps-8/10/12/14/16-bit Mono/Bayer 1 Tap-8-bit RGB/BGR	1 Tap-8/10/12/14/16-bit Mono/Bayer 1 Tap-8/10-bit RGB/BGR/RGBC/BGRC 2 Taps-8/10/12/14/16-bit Mono/Bayer 2 Taps-8/10-bit RGB/BGR/RGBC/BGRC 3 Taps-8/10/12/14/16-bit Mono/Bayer 3 Taps-8-bit RGB/BGR 4 Taps-8/10/12-bit Mono/Bayer 8 Taps-8/10-bit Mono/Bayer 10 Taps-8-bit Mono/Bayer
Scan Type	Area scan/Line scan
Resolution Support	Level(min/max):128 byte/64k bytes;Vertica(min/max): 1 line/(Area array 256M/horizontal resolution),(Line scan unlimited)
Pixel Clock	20-85 MHz
Onboard Memory	512 MB
Output Data Rate	850 MB/s(max)
Communication Method	Support cmputer serial communication;1200-921600bps
Trigger Input	Support 2 signals imputs(photoelectrc isolation);Maximum frequency 68kHz;Level standard supports RS422;TTL and differential imput(3.3-24V)
Encoder Input	Support 1 orthogonal AB phase input(photoelectric isolation);Maximum frequency 2MHz;Level standard supports RS422 ;TTL and differential input (3.3-24V)
Inter-board Synchronization	Support multi-card synchronization(up to 4 capture cards);The synchronization deay is less than 25ns
Flash Control	Support 2 signal output(photoelectric isolation);Maximum frequency 40kHz
Operating Temperature	0-65℃
Secondary Development	Complete SDK packages;Supporting C/C++/C# language
System Requirement	Operating Windows :10/7(64-Bit/32-Bit),Linux 64-Bit,Mac OS;Hardware: PCle 2.0×4 Slot
Connector	SDR
Frame grabber power	<8.5W	<8.5W	<6W

Drawings

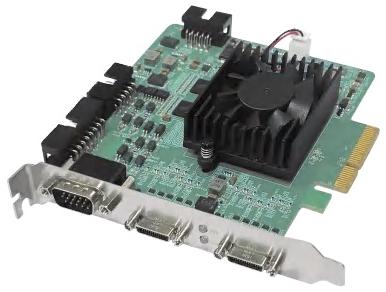

ST-sCLPE4DBase

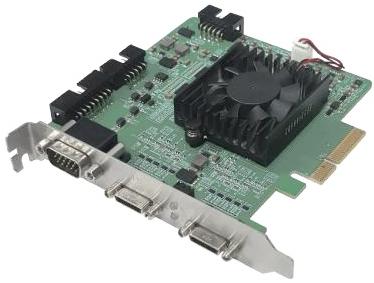

ST-sCLPE4Full

Frame Grabber With CoaXPress Interface

Our frame grabbers with CoaXPress interface differ in onboard memory,topology model , image interface ,protocol suppored and other parameters.Please check the details and find the one you need.

Feature

-Support CoaXPress camera power, controlling and triggering

-Monochrome, bayer, color cameras supporting line scan and area scan

-Compatible with GenCam standard and GenTL standard

-Flexible IO: 2 photoelectric solation input ,1 shaft encoder input, 2 photoelectric isolation output

-Fan speed automatically adjusts based on FPGA temperature for optimized thermal and noise performance

-Support Windows 10/7(64-Bit/32-Bit),Linux 64-Bit, Mac OS

-SDK development library supporting C,C++,C#

-GUI configuration tool

Frame Grabber Type

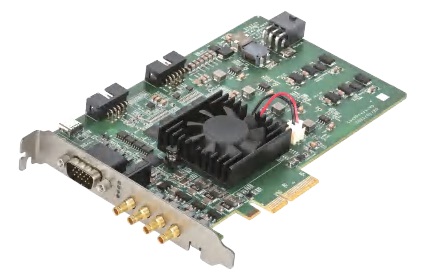

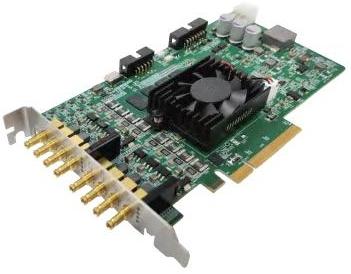

ST-CXP6	ST-CXP6-8	ST-CXP12
-PCle Gen3x4 -Support 1-4 channel CXP topological connection -Compliant with CoaXPress1.1/1.1.1 -Support four-channel PoCXP, single-channel 24V/13W -Support 1.25/2.5/3.125/5/6.25G high-speed link -Onboard 2GB image cache -Speed up to 25Gbps,each link up to 6.25Gbps -DIN 1.0/2.3 interface and 4-way three-color LED status indicator	-PCle Gen3x8 -Support Two groups of 1-4 CXP arbitrary topology connections -Compliant with CoaXPress 1.1/1.1.1 -Support eight-channel PoCXP, single-channel 24V/13W -Support 1.25/2.5/3.125/5/6.25G high-speed link -Onboard 4GB image cache -Speed up to 50Gbps,each link up to 6.25Gbps -DIN1.0/2.3 interface and 8-way three-color LED status indicator	-PCIe Gen3x8 -Support 1-4 channel CXP topological connection - Compliant with CoaXPress 2.0/2.1 -Support four-channel PoCXP, single-channel 24V/13W -Support 1.25/2.5/3.125/5/6.25/10/12.5G high-speed link - Onboard 4GB image cache -Speeds up to 50Gbps,each link up to 12.5Gbps - Micro BNC interface and 4-way t hree-color LED status indicator

Product specifications and Brochures

Product Brochure Link:

Model	ST-CXP6	ST-CXP6-8	ST-CXP12
Bit Depth	8/10/12/14/16 bit
Image Mode	Mono/Bayer/RGB/RGBA
Onboard Memory	2 GB	4 GB	4 GB
Topology Model	Support 1-4 channel CXP topological connection	Two groups of 1-4 CoaXPress arbirary topology connections	Support 1-4 channel CXP topological connection
Image Interface	4 channels DIN 1.0/2.3 CoaXPress with PoCXP	8 channels DIN 1.0/2.3 CoaXPress with PoCXP	4-channels Micro BNC CoaXPress with PoCXP
Transfer Rates	(1.25/2.5/3.125/5/6.25G)x4	(1.25/2.5/3.125/5/6.25G)x8	(1.25/2.5/3.125/5/6.25/10/12.5G)x4
Protocol Suppored	CoaXPress1.1/1.1.1;GenlCam;GenTL	CoaXPress1.1/1.1.1;GenlCam;GenTL	CoaXPress 2.0/2.1；GenCam; GenTL
Acquisitio Speed	19.4 Gbps(max)	38.8 Gbps(max)	38 Gbps(max)
PCIE Speed	PCle 3.0x4	PCle 3.0x8	PCle 3.0x8
PCIE Effective Payload Size	128/256bytes	128/256 bytes	128/256 bytes
Bus Bandwidth	3450 MB/s	6800MB/s	6800 MB/s
Maximum Camera Number	4 PCS	8 PCS	4 PCS
Scan Mode	Line scan /Area scan
Trigger Input	Support 2 signals imputs(photoelectric isolation);Maximum frequency 30kHz;Level standard supports 3.3-24V	Support 2 signals inputs(photoelectric isolaton);Maximum frequency 100kHz;Level standard supports 3.3-24V	Support 2 signals imputs(photoelectric isolation);Maximum frequency 100kHz;Level standard supports 3.3-24V
Encoder Input	Support 1 orthogonal AB phase input (photoelectric isolation); Maximum frequency 1MHz;TTL and differential input(1-24V)	Support l orthogonal AB phase input(photoelectric isolation);Maximum frequency 1MHz;TTL and differential input(1-24V)	Support l orthogonal AB phase input (photoeectric isolation); Maximum frequency IMHz;Level standard Support 1-24V
Flash Control	Support 2 signals output (photoelectric isolation);Maximum frequency 30kHz	Support 2 signals output (photoelectric isolation);Maximum frequency 100kHz	Support 2 signals output (photoelectric isoation); Maximum frequency 100kHz
Cooling Method	Fan cooling
Operating Temperature	0-55℃
Memory Management	Circular buffering supported;Accumulate frame/line to single buffer;DMA buffer is directly flled into system memory
System Requirements	Operating System: Windows 10/7(64-Bit/32-Bit),Linux 64-Bit,Mac OS;Hardware: PCle 3.0×4 Slot	Operating System: Windows 10/7(64-Bit/32-Bit),Linux 64-Bit, Mac OS;Hardware: PCle 3.0×8 Slot	Operating System: Windows 10/7(64-Bit/32-Bit),Linux 64-Bit, Mac OS;Hardware: PCIe 3.0x8Slot
GUI	Multi-camera display and configuration; Support image saving and loading


Drawings

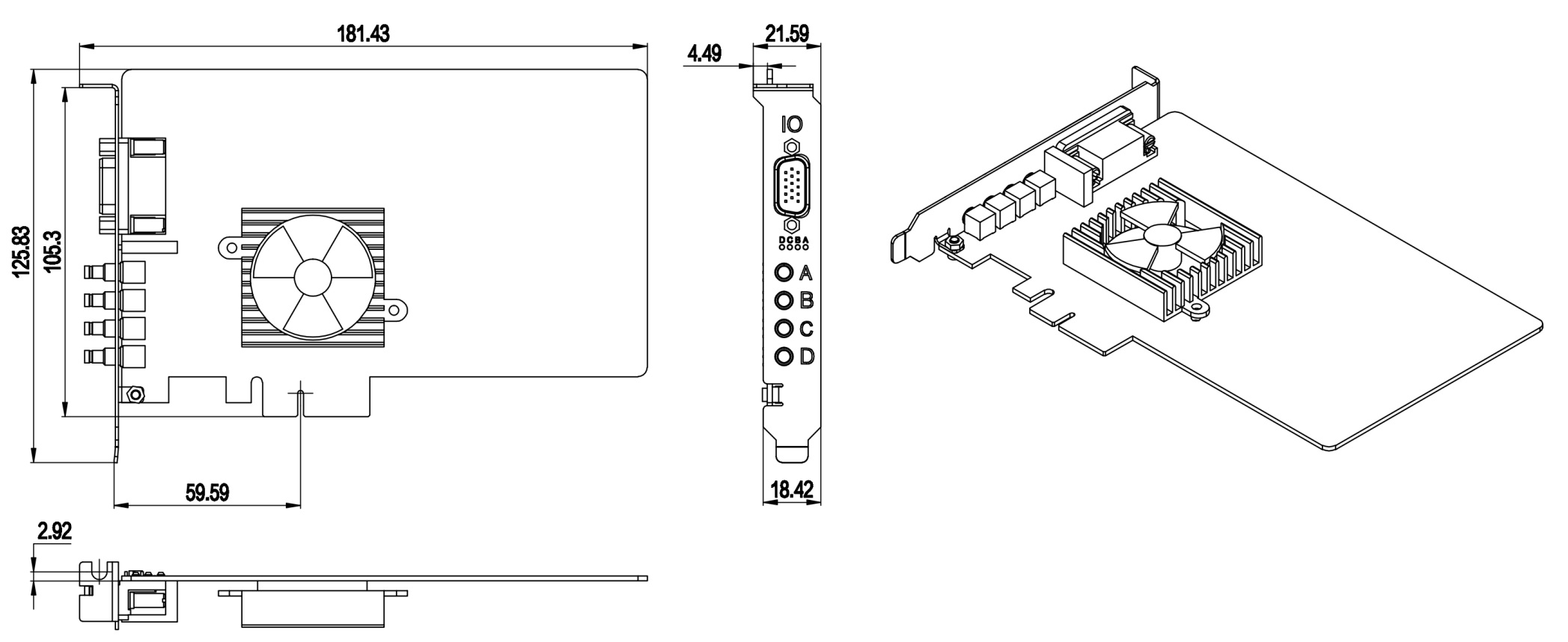

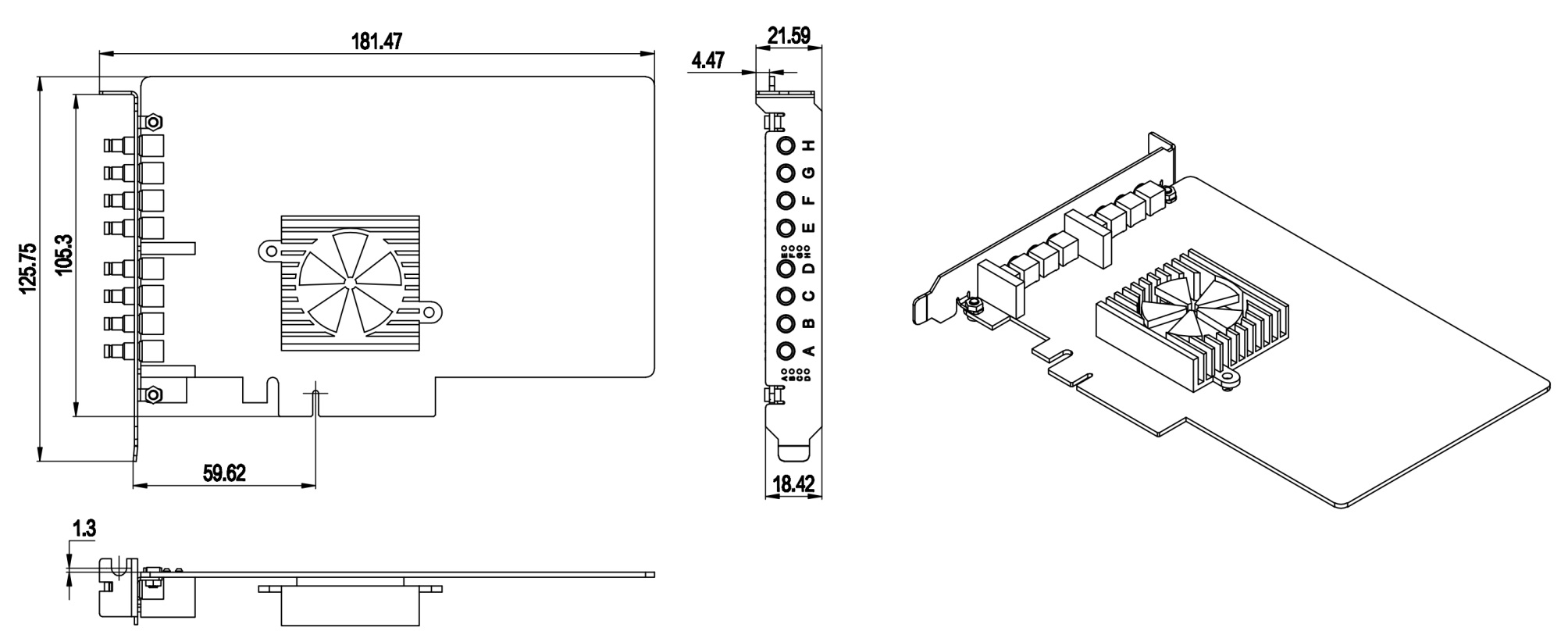

ST-CXP6	ST-CXP6-8

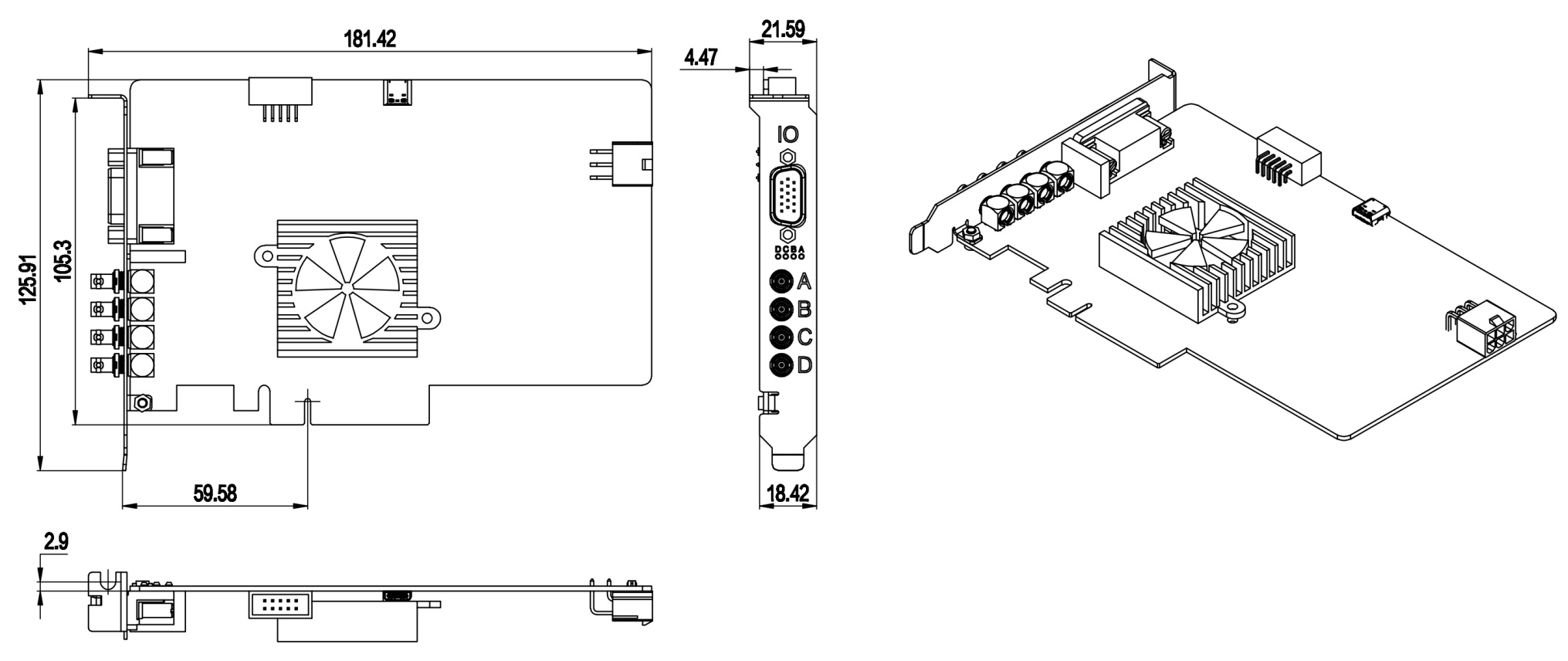

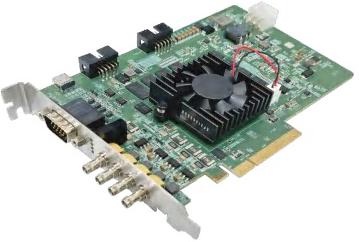

ST-CXP12

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Interface

Search Reset

	Availability	Reference Price (USD)
ST-sCL PE4 Full Frame Grabber, Camera Link Mode Full/Full+/Base/Medium, Interface Standard Camera Link 2.0, Pixel Depth 8/10/12/14/16 Bit, Scan Type Area Scan/Line Scan, Pixel Clock 20-85 MHz, Onboard Memory 512 MB, Output Data Rate 850 MB/s(Max),Connector SDR	6-8 weeks	Request for quote
ST-sCL PE4 DBase Frame Grabber, Camera Link Mode Base/Dual-Base, Interface Standard Camera Link 2.0, Pixel Depth 8/10/12/14/16 bit, Scan Type Area Scan/Line Scan, Pixel Clock 20-85 MHz, Onboard Memory 512 MB, Output Data Rate 850 MB/s(Max), Connector SDR	6-8 weeks	Request for quote
ST-sCL PE4 Full Pro Frame Grabber, Camera Link Mode Base/Medium/Full/Full+, Interface Standard Camera Link 2.0, Pixel Depth 8/10/12/14/16 bit, Scan Type Area Scan/Line Scan, Pixel Clock 20-85 MHz, Onboard Memory 512 MB, Output Data Rate 850 MB/s(Max), Connector SDR	6-8 weeks	Request for quote
ST-CXP6 Frame Grabber, Bit Depth 8/10/12/14/16 bit, Image Mode Mono/Bayer/RGB/RGBA, Onboard Memory 2 GB, Topology Model Support 1-4 Channel CXP Topological Connection, Image Interface 4 Channels DIN 1.0/2.3 CoaXPress With PoCXP, ,Acquisitio Speed 19.4 Gbps(Max), Transfer Rates (1.25/2.5/3.125/5/6.25G)x4, PCIE Speed PCle 3.0x4	6-8 weeks	Request for quote
ST-CXP6-8 Frame Grabber, Bit Depth 8/10/12/14/16 Bit, Image Mode Mono/Bayer/RGB/RGBA, Onboard Memory 4 GB, Topology Model Two Groups of 1-4 CoaXPress Arbirary Topology Connections, Image Interface 8 Channels DIN 1.0/2.3 CoaXPress With PoCXP, Transfer Rates (1.25/2.5/3.125/5/6.25G)x8, Acquisitio Speed 38.8 Gbps(Max), PCIE Speed PCle 3.0x8, Maximum Camera Number 8 PCS	6-8 weeks	Request for quote
ST-CXP12 Frame Grabber, Bit Depth 8/10/12/14/16 Bit, Image Mode Mono/Bayer/RGB/RGBA, Onboard Memory 4 GB, Topology Model Support 1-4 Channel CXP Topological Connection, Image Interface 4-Channels Micro BNC CoaXPress With PoCXP, Transfer Rates , Acquisitio Speed 38 Gbps(Max), (1.25/2.5/3.125/5/6.25/10/12.5G)x4, PCIE Speed PCle 3.0x8, Maximum Camera Number 4 PCS	6-8 weeks	Request for quote
