IR Beam Profiler (2-16um)

Overview Specifications and Model Guide Related Products Order Now!

Features

· Broadband 2 to 16 µm VOx microbolometer

· 640 x 480, 10.88 x 8.16 mm active area

· 17 µm pixels

· Port-powered USB 3.0, 3 m screw locking cable

· 30 FPS update rate (7.5 FPS for export)

· Integrated shutter for automated NUC

· 14-bit ADC

· 14 ms time constant – Pulsed lasers with PRR = 1 kHz

appear as CW

· No chopper/TEC

· Parallel capture on multiple cameras

· M² measurements

Applications

· MWIR/FIR/CO₂ laser profiling

· Field servicing of MWIR/FIR/CO₂ lasers and laser-based systems

· Optical assembly & instrument alignment

· Beam wander & logging

· M² measurement with available M2DU stage

Software

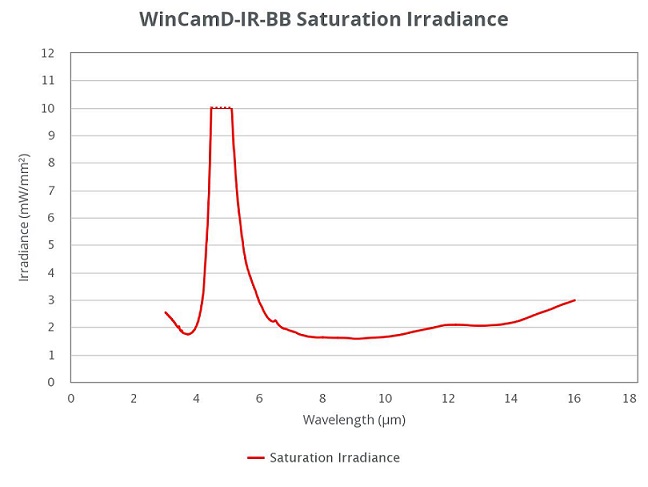

Saturation Chart

Product Brochure:IR Beam Profiler | Selection Guide

Specifications
Sensor	Vanadium oxide (VOx) microbolometer
Wavelength	Broadband MWIR/FIR: 2 to 16 µm
Pixel Count, H x V	307 kilopixels, 640 x 480
Image Area	10.88 x 8.16 mm
Pixel Dimension	17 x 17 µm
Min. Beam (10 pixels)	~170 µm
Shutter Type	Rolling
Max. Full Frame Rate	30 Hz (7.5 for export)
Signal to RMS Noise	≥1000:1
Opt./Elec. dB	30/60
ADC	14-bit
Measurable Sources	CW beams, pulsed sources (auto-trigger sync)
Measured Beam Powers	See the Approximate Saturation Power Limits graph
Manual Beam Attenuation	Provided 1" ND-1 and ND-2 reflective Germanium filters.
Displayed Profiles	2-D & 3-D plots
Displayed Profiles	10, 16, 256 or max colors or gray. Contoured display at 10 and 16 color.
Measured & Displayed Profile Parameters	Raw and smoothed profiles [Triangular running average filter up to 10% FWHM]
Beam Diameter	Diameter at two user set Clip levels
	Gaussian & Second Moment beam diameters
	Equivalent diameter above a user defined Clip level
	Equivalent Slit and Knife Edge diameters
Beam Fits	Gaussian & Top Hat profile fit & % fit
Beam Fits	Equivalent Slit profile
Beam Ellipticity	Major, Minor & Mean diameters. Auto-orientation of axes.
Centroid Position	Relative and absolute
	Intensity Weighted Centroid and Geometric Center
	Beam Wander Display and Statistics
Measurement Accuracy	5 µm processing resolution for interpolated diameters
	Absolute accuracy is beam profile dependent - ~10 µm accuracy is frequently achievable
	Centroid accuracy is also beam dependent. It can be as good as ±10 µm since it is arithmetically derived from all pixels above the centroid clip level.
Processing Options	Image & profile Averaging, 1, 5, 10, 20, Continuous.
	Background Capture and Subtraction.
	User set rectangular Capture Block for capture
	User set or Auto ellipse Inclusion region with beam tracking for processing
	*.ojf files save all WinCamD custom settings for particular test configurations
Pass/Fail display	On-screen selectable Pass/Fail colors. Ideal for QA & Production.
Log data and statistics	Min., Max., Mean, Standard Deviation, to 4096 samples
Relative Power Measurement	Rolling histogram based on user's initial input. Units of mW, µJ, dBm, % or user choice (relative to a reference measurement input)
Fluence	Fluence, within user defined area
Certification	RoHS, WEEE, CE
Multiple Cameras	Up to 4 cameras, parallel capture.
Multiple Cameras	1 to 8 cameras, serial capture.
Camera Dimensions‚ Width x Height x Depth	73 x 73 x 52 mm
Optical depth from housing/filter to sensor ±0.2 mm	15.5 mm
Mounting	1/4"-20 holes aligned with sensor center
Weight (Camera with 1" NDL-2 Ge filter)	422 g (14.9 oz)

Model	Sensor size	Resolution Range	Wavelength Range
Standard Beam profiler	up to 14.6mm	up to 24Mpx	190nm to 1100nm
1 inch Aperture Beam profiler	up to 25mm	up to 4.2Mpx	190nm to 1100nm
SWIR Beam Profiler	9.6 *7.7mm	640 * 512	900nm to 1700nm
IR Beam Profiler	10.88 * 8.16mm	540 * 480	2um to 16um
Terahertz Beam Profiler	11.3 *11.3 mm	up to 4.2Mpx	1- 18 Thz
Scan Slit Beam Profiler	Up to 4mm		190nm to 2500nm

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		IR Beam Profiler IR Beam Profiler (2-16um)		4-6 Weeks	Request for quote
