Adjustable Electrical Probe Station

Overview Specifications Software Video Library Application Related Products Order Now!

The Electrical Probe Temperature Stage is a product designed to characterize the temperature dependence of electrical properties during the heating and cooling phases of materials research. Based on the optical temperature stage, an electrical module has been added. By moving the needle pin during testing, the tip of the needle can be brought into contact with any area of the sample surface. The electrical signal is transmitted to the instrumentation for electrical testing through the wiring connected to the needle holder, and the electrical properties of the material at variable temperatures are analyzed.

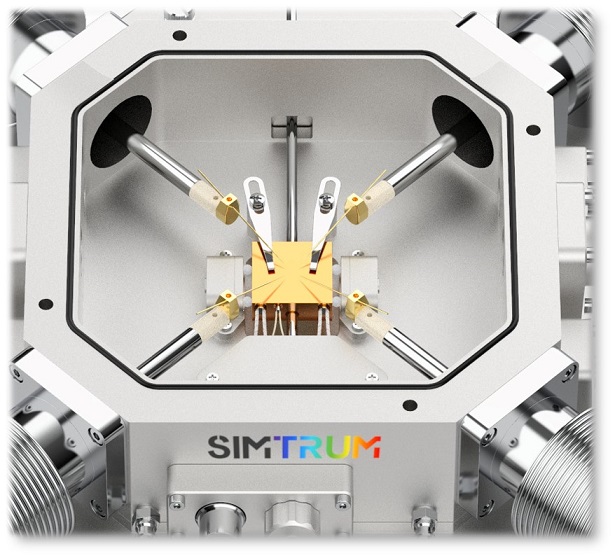

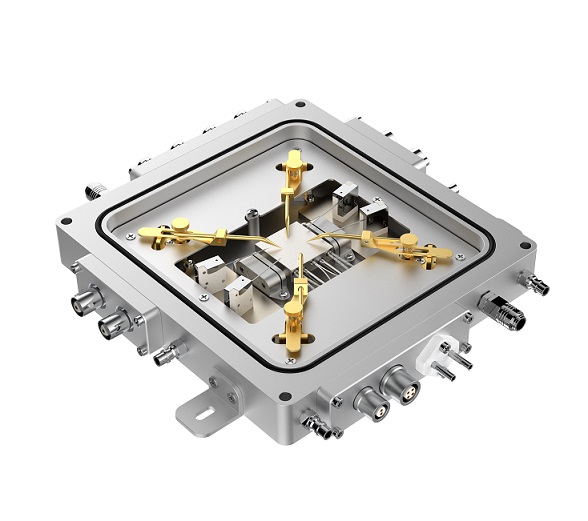

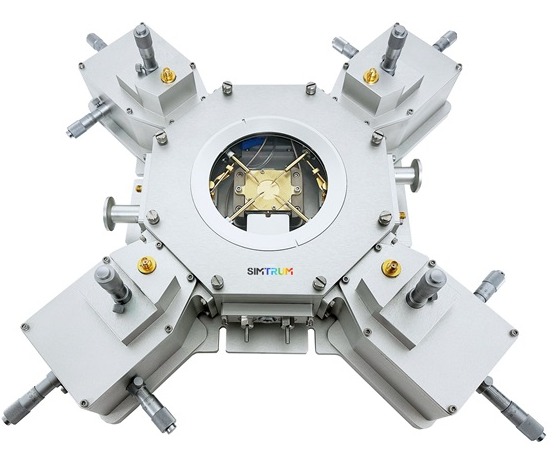

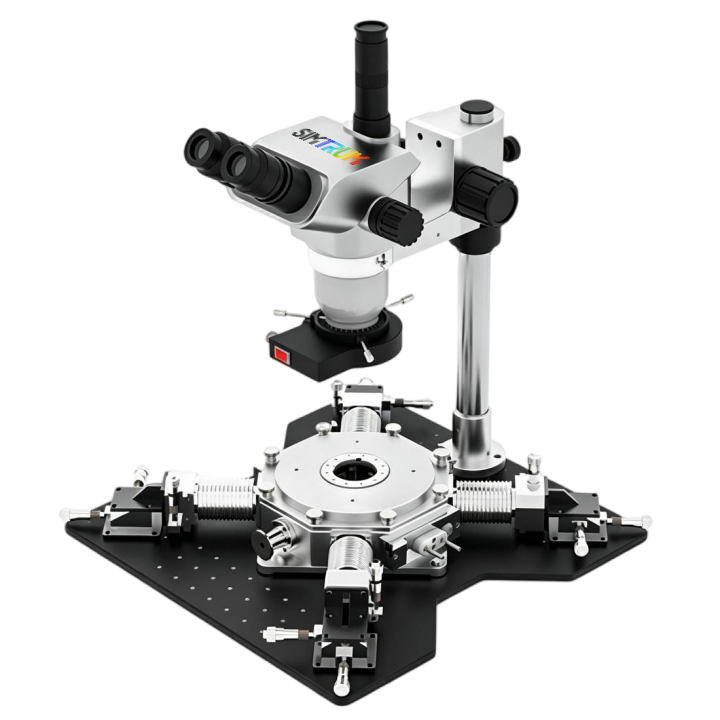

Manual External-Adjust Probe Station - Vacuum Bellows - With Microscope	Manual Adjustable Probe Pin Station - Vacuum Bellows	Manual Adjustable Probe Pin Station - Indexing Positioning

Features ● Temperature range: -190 to 400℃, temperature control accuracy ±0.1℃ ● Gas-tight chamber can pass protective gas ● Upgradeable vacuum chamber (10^-3 mbar ) ● Upgradeable magnetic field cancellation chamber ● Upgradeable vertical orientation ● Step up and down the temperature, 0-60 ℃/min ● Supports multi-probe testing (up to 8 ) ● Upgradable Triax BNC ● Support on-demand customization	Temperature Control System

Chamber Type
	Vacuum - Pumps up to 10-1 mbar
Gas-tight - Protective gas can be passed through	Vacuum - Pumps up to 10-1 mbar

Light Transmission Mode

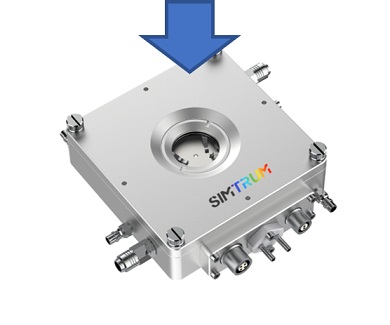

Top Reflection Mode Vertical Reflection Mode Stage Transmission Mode (2mm Stage hole)

Probe Types

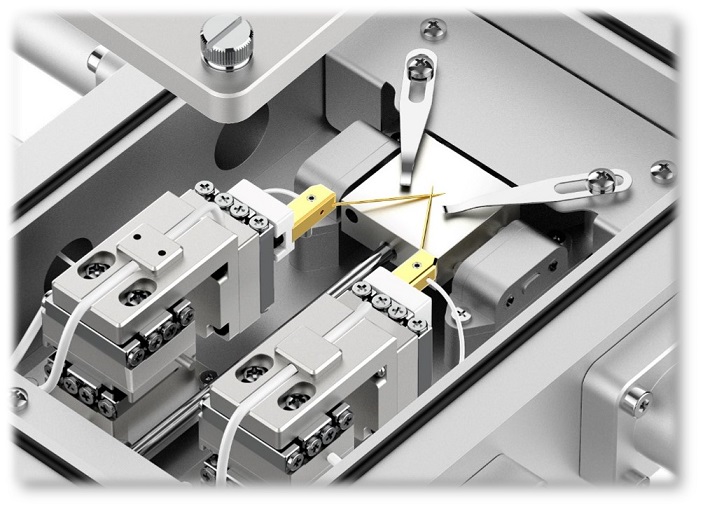

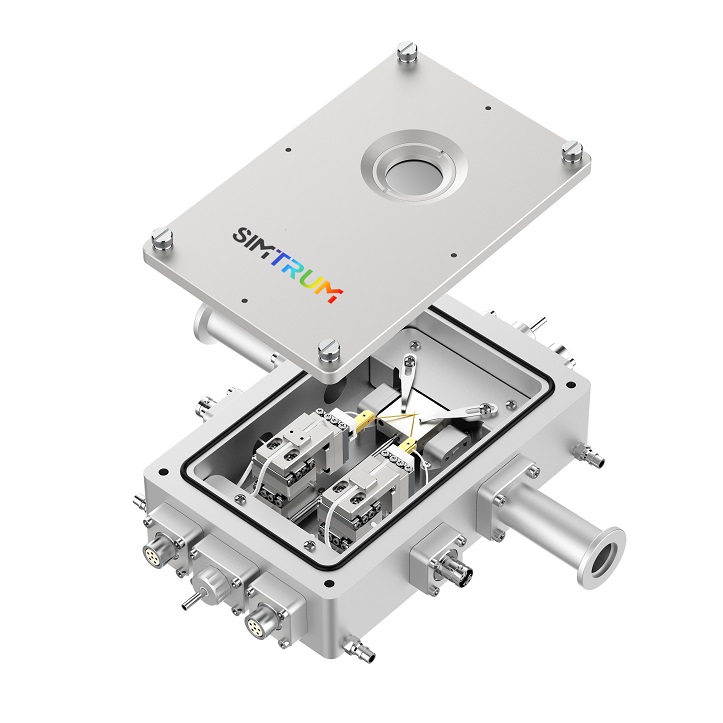

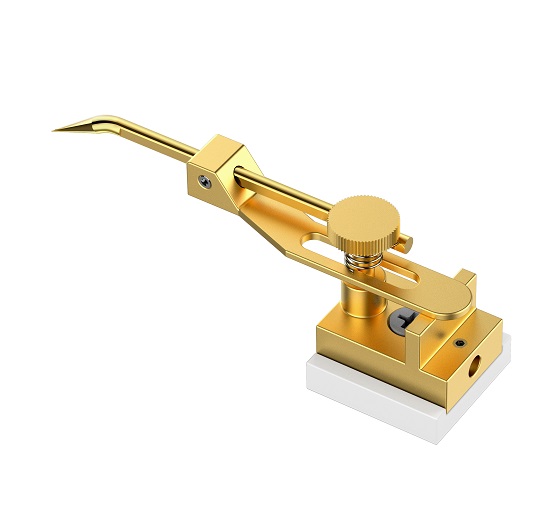

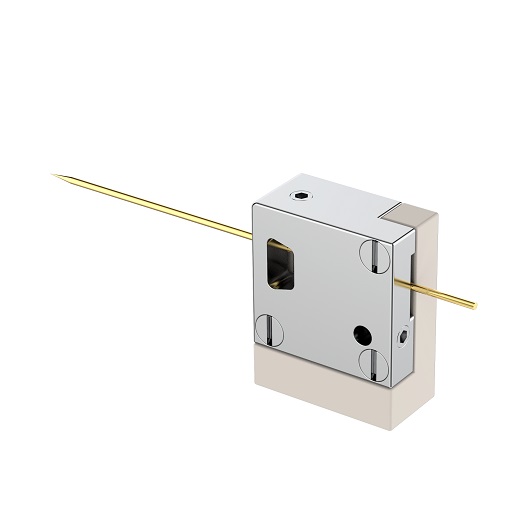

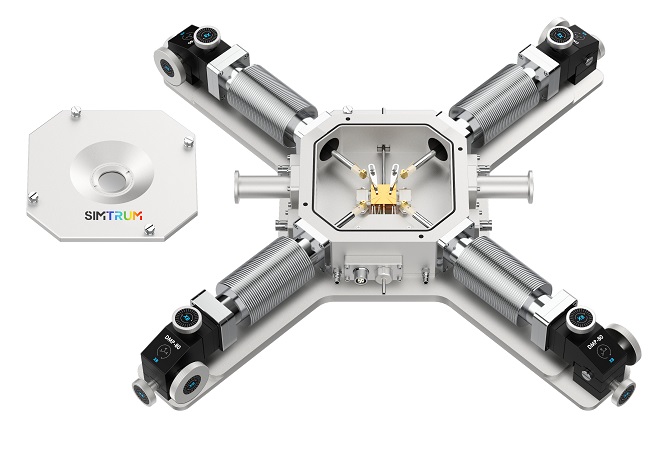

Fixed Probe Pin	Magnetic Probe Pin	Motorized Nano Scale Probe Pin

Customized Optical Interface	Customized Chamber


Liquid Nitrogen Consumption 1 ) The maximum liquid nitrogen consumption is 1L/h, maintained at -190 ℃ ; 2 ) Normal use 0.5L/h, high and low temperature changes.

Water Cooling System
Water Circulating System (temperature control)	The water circulation system is needed for Ultra-low or High-temperature environments. It attaches to the Temperature stage chamber ● For low temperatures application down to -190 degrees, it will prevent water condensation to the stage and chamber ● For high-Temperature application, it will cool the chamber wall to room temperature for safety

CRYO400-190-OP4-IP-C

Product Brochure Link (Click Here ):

Composition	project	parameter	remarks
Variable Temperature Chamber	temperature range	-190°C to 600°C	Dual-output thermostat: 1. Equipped with a 7-inch touchscreen for temperature control operations 2. Compatible with host computer software; supports editing of 32 temperature curves and storage of historical temperature curve data 3. The horizontal angle and length of the probe tip are adjustable.
	temperature range	-190°C to 400°C (under vacuum≤1Pa)
	Temperature control method	Digital PID temperature control (self-tuning)
	Temperature control accuracy	±0.1℃
	Display Precision	±0.1℃
	Sample Area	30mm*30mm
	Maximum heating rate	30℃/min
	Maximum cooling rate	-30℃/min
	Probe type	The rear end of the probe has adjustable XYZ axis orientation.
	Probe type	Displacement accuracy: <10 μm; displacement range: ±6 mm
	Probe material	Tungsten steel or beryllium copper (probe tip diameter: 1 μm)
	Number of probes	4 (can be expanded to 6)
	External dimensions	41041080mm
	Net weight of the cavity	5KG
Microscope	eyepiece	High-eye-point wide-angle eyepiece: WF20X/10mm
	Objective lens	Built-in continuous zoom objective with magnification range of 0.7–4.5×
	viewing head	Bilateral head observation with a 45° tilt; pupillary distance adjustment range: 54–76 mm; bilateral viewing angle adjustable.
	Zoom ratio	Continuous zoom 7–90X
	Lighting source	Adjustable brightness LED light source
	operating distance	100mm
	adjustable range	The pole height is 380 mm.
	adjustable range	elevation range: 50 mm
liquid nitrogen assembly	Liquid nitrogen pump	Power: 40 W; Flow rate: 20 L/min	Supporting low-temperature-resistant liquid nitrogen piping
liquid nitrogen assembly	Volume of the liquid nitrogen tank	10L	Supporting low-temperature-resistant liquid nitrogen piping


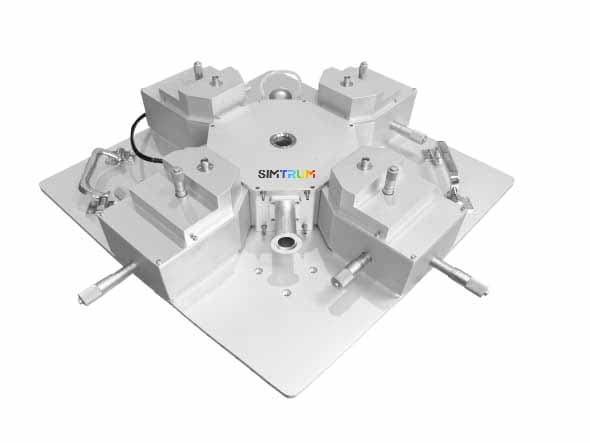

Parameter	PE120-25-OP4-IP	CRYO400-190-OP4-IP	RTH-1200-OP4-IP	CRYO400-190-OP4-VB
Peculiarity	Small temperature range; no need for refrigerant; average adjustment accuracy of the micrometer head, can be customized with larger displacement stroke, smaller equipment size; lower price	The temperature range is wider; liquid nitrogen cooling is required ; the micrometer head has average adjustment accuracy , and a larger displacement stroke can be customized, and the equipment size is smaller; the price is medium		The temperature range is wider; liquid nitrogen cooling is required; the translation stage has high adjustment accuracy and the translation stroke cannot be customized , but the equipment size is larger; the price is high
Hot and cold mode	Peltier	Liquid nitrogen cooling, resistance heating	Resistive Heating	Liquid nitrogen cooling\ resistance heating
Temperature range	-25~120℃ *	-190 ～ 400℃ *	RT-1000/1200℃	-190 ～ 400℃ *
Temperature stability	±0.1℃ (-190~-120℃ : ±0.3℃)	±0.1℃ (-190~-120℃ : ±0.3℃)	±0.1℃ (＜ 600℃ ) ±1℃ (＞ 600℃ )	±0.1℃ (-190~-120℃ : ±0.3℃)
Temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃
Heating and cooling speed	0～10℃/min	0～30℃/min, maximum 150 ℃ / min	Maximum heating rate: 200℃/ min	0～30℃/min, maximum 150 ℃ / min
Temperature control method	PID
Temperature Sensor	PT100
Optical Path	Reflected light path *Can be upgraded to transmitted light path
Window Material	Quartz glass (manually removable and replaceable)
Window size	Φ100 mm	Φ25 mm	Φ30 mm	Φ25 mm
Objective working distance	14mm	20.5mm	17.2mm	15mm
Light hole	No light-transmitting hole by default * Additional light-transmitting hole can be added upon upgrade
Window defrosting	Negative temperature air blowing defrosting
Sample stage size	40x40mm	23x23mm	20x20mm	23x23mm
Sample stage material	Brass	Silver	Ceramics	Silver
Dimensions	375×375×66mm *	436X436X132mm *	436X436X111mm *	430x430x60mm *
Sample chamber height	11mm	20.5mm	13.5mm	15mm
XYZ displacement range	±6mm *	±6mm *	±6mm *	±6mm
XYZ displacement accuracy	5/ 10μm	5/ 10μm	5/ 10μm	5/ 10μm
Chamber	Vacuum chamber* optional airtight
Housing cooling	Circulating water
Probe	Adjustable probe x 4	/	/	/
Probe interface	SMA x 8 or BNC x 4 upgradeable to triaxial BNC
Sample table potential	Default electrical suspension *Optional electrical grounding

Below are the User's Manual, Software, or Click Here to drop us a message for any corrections.

SIMTRUM HC-C Software Operation Manual

(Click)

SIMTRUM HC-C Software

(Click)

Welcome to the dedicated resource center for the SIMTRUM HC-C Optical Heating & Cryo Stages. Here you will find essential documentation and software tools to help you set up, operate, and customize your temperature control system. Whether you are a first‑time user or an experienced researcher, these materials will guide you through hardware installation, temperature control modes, and advanced programming.

SIMTRUM HC-C Software Operation Manual

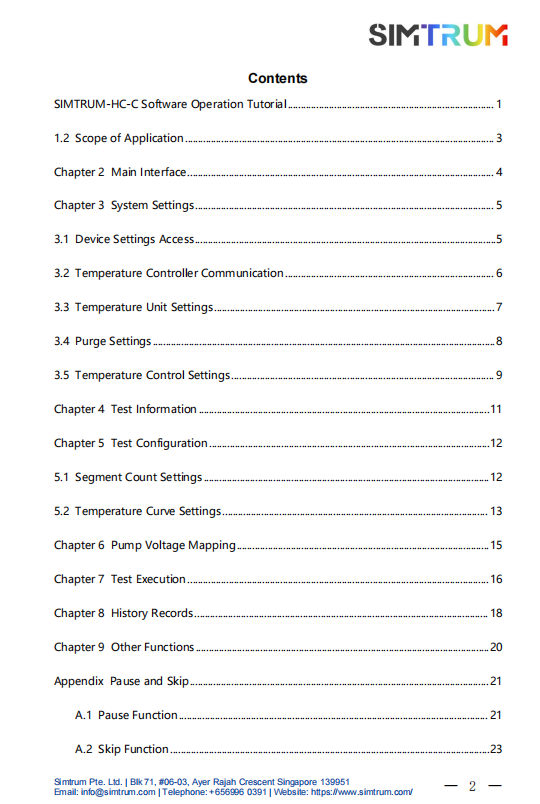

The SIMTRUM HC-C Software Operation Manual provides comprehensive step-by-step guidance on software installation, PC-to-controller communication, and core system configuration. It thoroughly details three essential temperature control modes—Fixed-point, Program Segment, and Multi-segment Formulation—alongside best practices, safety protocols, and data archiving, ensuring precise and stable ramping within the system’s hardware limits.
SIMTRUM HC-C Software
Built for precision and experimental flexibility, the SIMTRUM HC-C Software serves as the central command hub for your temperature-controlled stage. Beyond its clear and user-friendly interface, the software offers a robust suite of engineering features tailored for demanding scientific and industrial applications: Intuitive Dashboard & Real-Time Visualization, Advanced Multi-Segment Programming, Automated Data Logging & Traceability

For technical support or custom project inquiries, please contact us.

Welcome to the dedicated video and visual setup guide for the CRYO400-190-OP4-IP-C externally adjustable probe temperature station. We have compiled this step-by-step walkthrough to ensure a smooth and error-free installation. From the initial system composition to precise optical alignment, these visual instructions will help you prepare your cryogenic probe station for operation quickly and reliably.

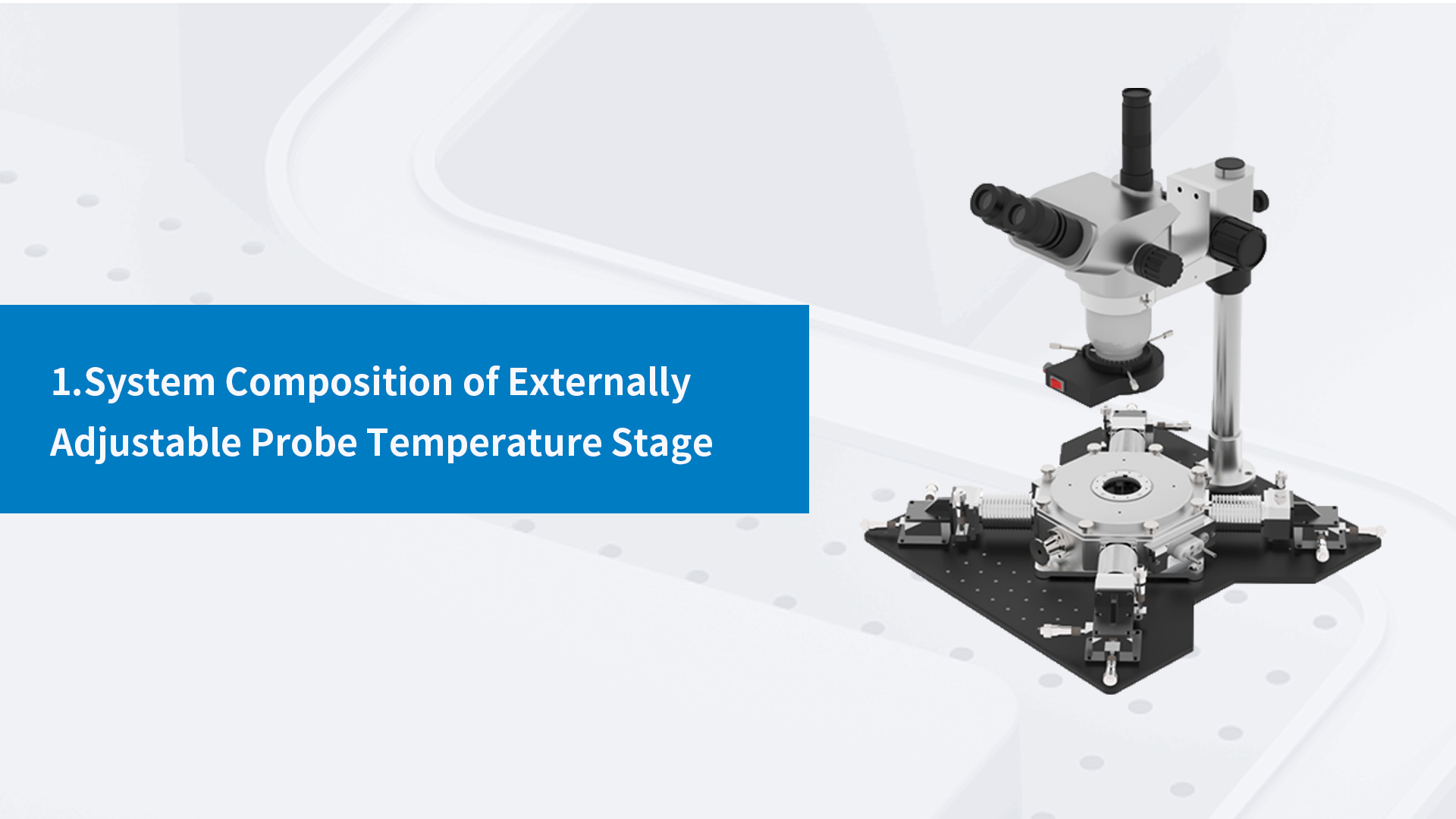

Step 1: System Composition Overview
Identify all core components of the CRYO400-190-OP4-IP-C, including the temperature control unit, external probe adjustment mechanism, cryogenic chamber, and all included accessories. This overview helps you understand the complete equipment setup before proceeding to the connections.
Step 2: Tube and Electrical Cable Connections (Part 1 & 2)
Follow these two detailed guides for proper fluidic tube routing and electrical cable interconnection. Learn how to securely connect the vacuum/liquid nitrogen pipelines and the sensor cables to ensure stable thermal control and data acquisition.

1.System Composition

2.1Tube and Electrical Cable Connection

2.2 Tube and Electrical Cable Connection

Step 3: Sample Mounting Procedure

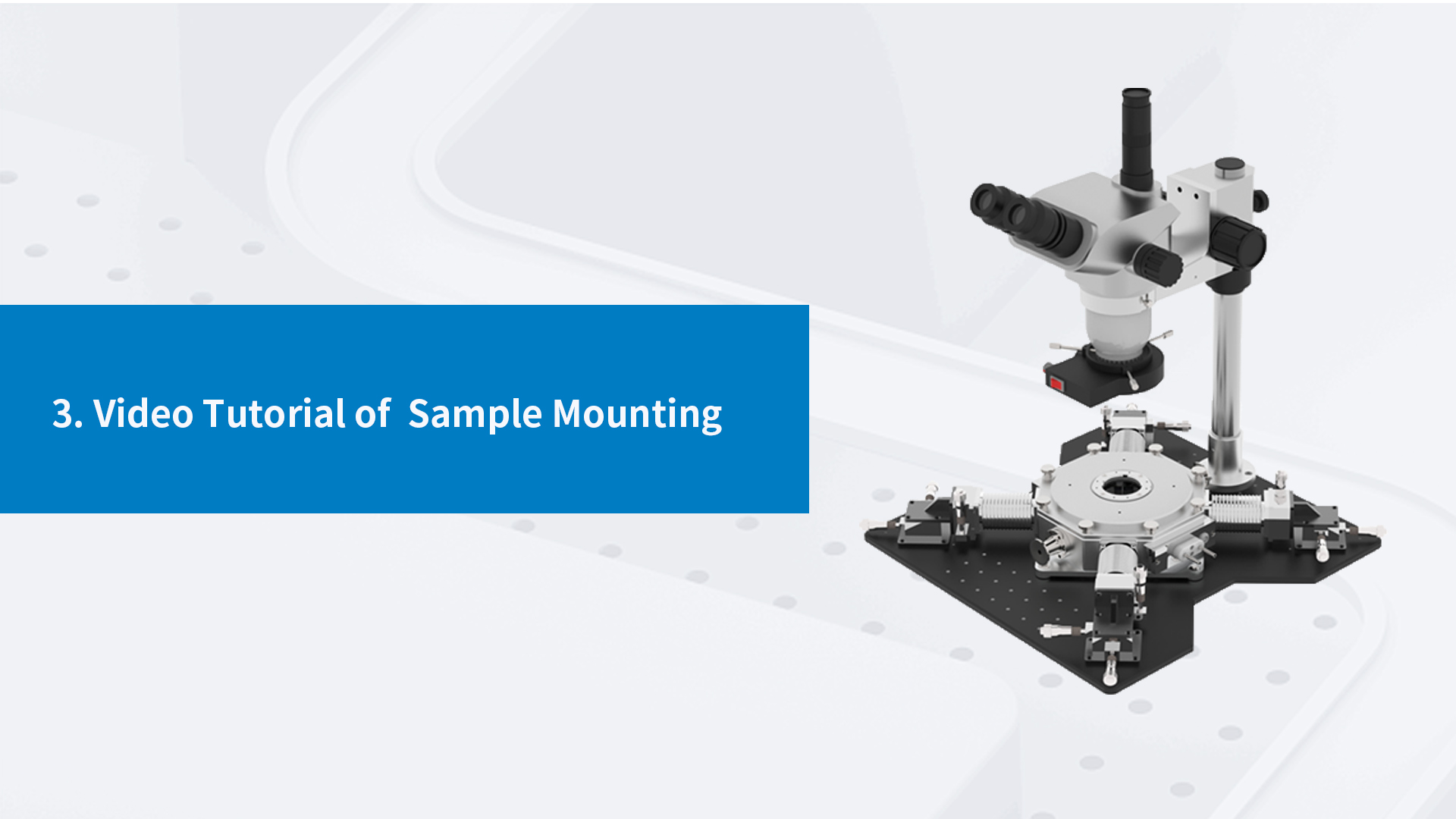

Precise and secure sample installation is crucial for accurate low-temperature measurements. This step demonstrates the correct method for mounting your samples onto the temperature stage, ensuring proper thermal contact and stability during testing.

3.Sample Mounting

4. Microscope and CCD Camera Installation

Step 4: Microscope and CCD Camera Installation

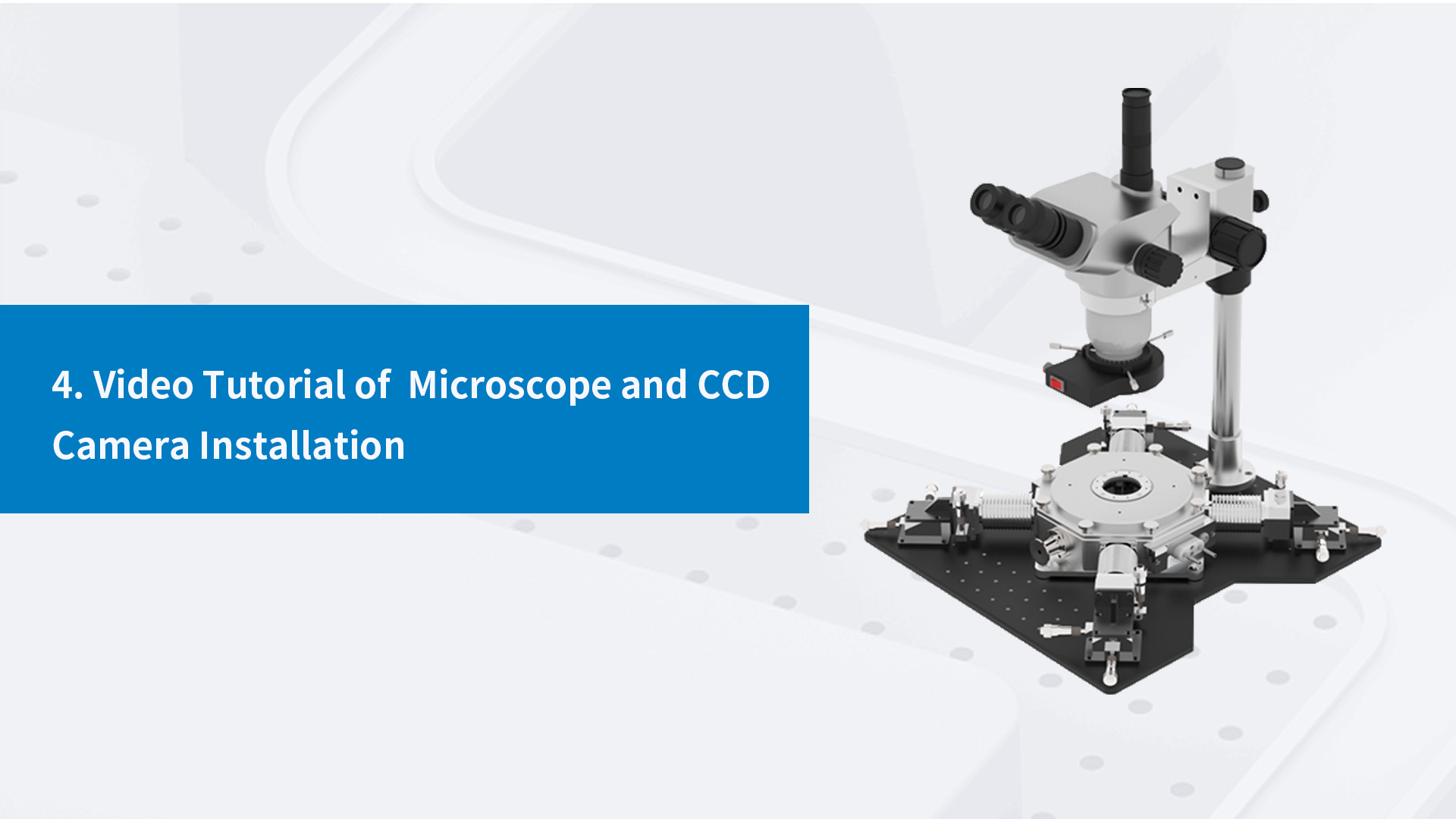

To observe the sample in real-time, the system requires precise optical integration. This guide covers how to install and align the optical microscope and CCD camera, enabling clear imaging and accurate probe positioning for your experiments.

Need further assistance?
If you have any questions during the setup process, or require custom adjustments for your specific research needs, please do not hesitate to contact our technical support team. We are happy to assist you remotely or provide additional training materials.

Application 1

● TCSPC Testing Solution for Bear Chip SPAD (APD)

● TCSPC Testing Solution for Packaged SPAD (APD) TO46 or T08 Product Brochure Link:

Free-space Bear Chip SPAD TCSPC Testing System

Fiber-based Bear Chip SPAD TCSPC Testing System

Application 2 Variable temperature Raman spectroscopy test

Optical Heating & Cryo Stage

Application 3 Optical vacuum hot stage for crystal sample testing

Optical vacuum hot stage

Application 4 High temperature Raman field temperature control test

1500℃ temperature hot plate

Application 5 Ultra-high temperature hot stage with Timegate time-gated Raman spectrometer on-site test

Ultra-high temperature hot plate

Application 6 External four-probe hot and cold stage for temperature and vacuum testing

Adjustable Electrical Probe Station

Application 7 Customized probe hot and cold bench joint debugging test

Electrical Probe Temperature Stage

Application 8 Customized SEM hot and cold stage for variable temperature testing

SEM Hot and Cold Stage

Application 9 XRD in-situ hot and cold stage adapted to X-ray diffractometer testing

XRD in-situ hot and cold stage

Application 10 Customized μTS desktop stretching machine hot and cold stage

In-situ Tensile Heating & Cryo Stage

Application 11 Customized Dielectric Charge and Discharge Test System

Optical Heating & Cryo Stage

Product	Temperature Range	Chamber Type	Optical Path	Electrinical Probe Arm
Optical Heating & Cooling Stage	-190°C to 1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No
X-ray/XRD Heating & Cryo Stage	-190°C to1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No (Customizable)
Electrical Probe Temperature Stage	-190°C to 600°C	Air-tight or Vacuum sealed	Transmission or Reflection	Fix probe arm
Adjustable Electrical Probe Station	-190°C to 600°C	Air-tight or Vacuum sealed	Transmission or Reflection	Adjustable probe arm
In-situ Tensile Heating & Cryo Stage	-190°C to 1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No(Customizable)
Live-Cell Incubator Stages	2℃ to 40℃（±0.1℃）	Air-tight	—	—

Get the Perfect Custom Combination! Contact us now for Various High-end Microscopes:

Confocal Raman Microscope

Spinning Disk Confocal Microscope

Line Scan Confocal Microscope

Auto-Fluorescence Microscope

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
Transmission Stage Upgrade Upgrade stage from Reflection to Transmission, Standard hole size 2mm	8-12 Weeks	$500.00
High Vacuum Upgrade High Vacuum Upgrade: upgraded high vacuum chamber and interface (KF16), vacuum level <10⁻³ Pa. Temperature range -190 to 400°C.	8-12 Weeks	$1500.00
Weak Magnetic Chamber Upgrade Upgraded Weak Magnetic Chamber, Enhancing shielding effectiveness to address challenges of magnetic field noise.	8-12 Weeks	$1500.00

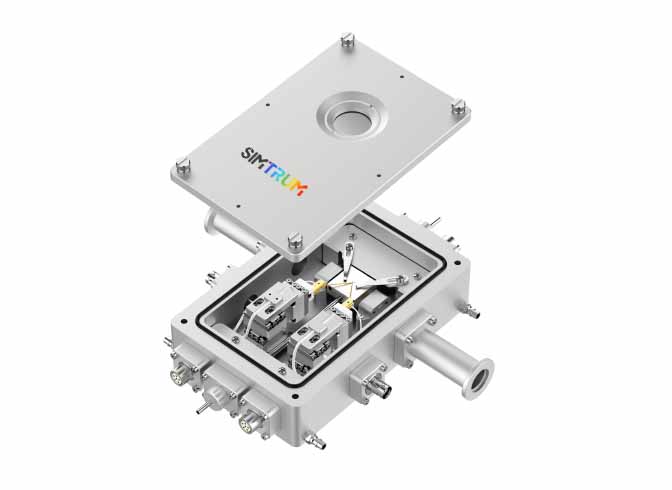

CRYO400-190V-EP2 Probe Cryo Station. Temp control range -190 to 400°C. Stage core: silver, 23×23mm. Probes: 2 motorized probe holders with tungsten steel gold-plated probes. Chamber: vacuum (≤1Pa). Price includes: Probe Stage, Temperature Controller (GTC-A), Cooling Controller (GRC-A), Chiller (GCW-A), LN2 Tank (2L), Software	8-12 Weeks	$39194.00
Connector Interface Upgrade Upgraded electrical connector from BNC to SMA type	8-12 Weeks	$500.00

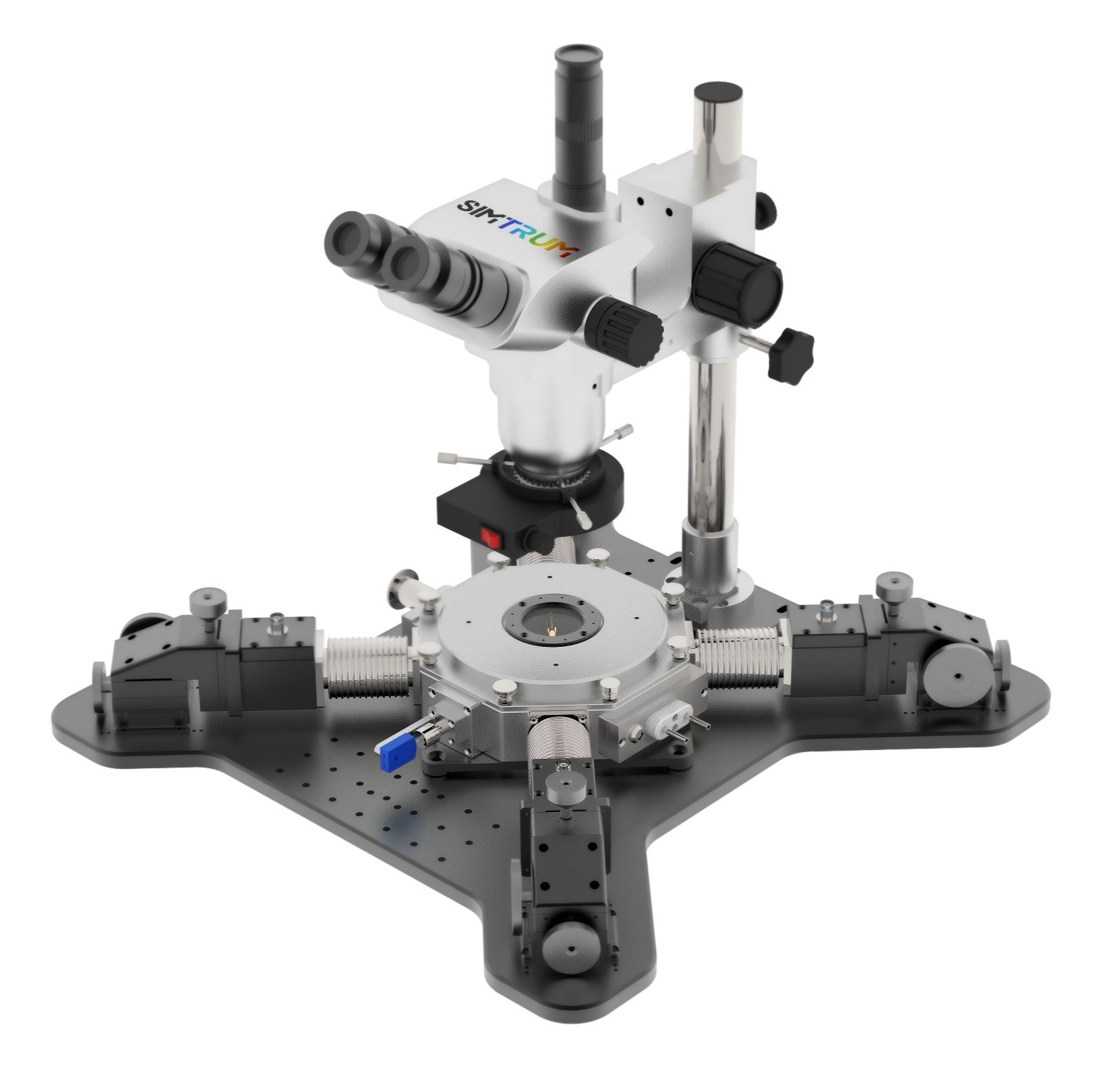

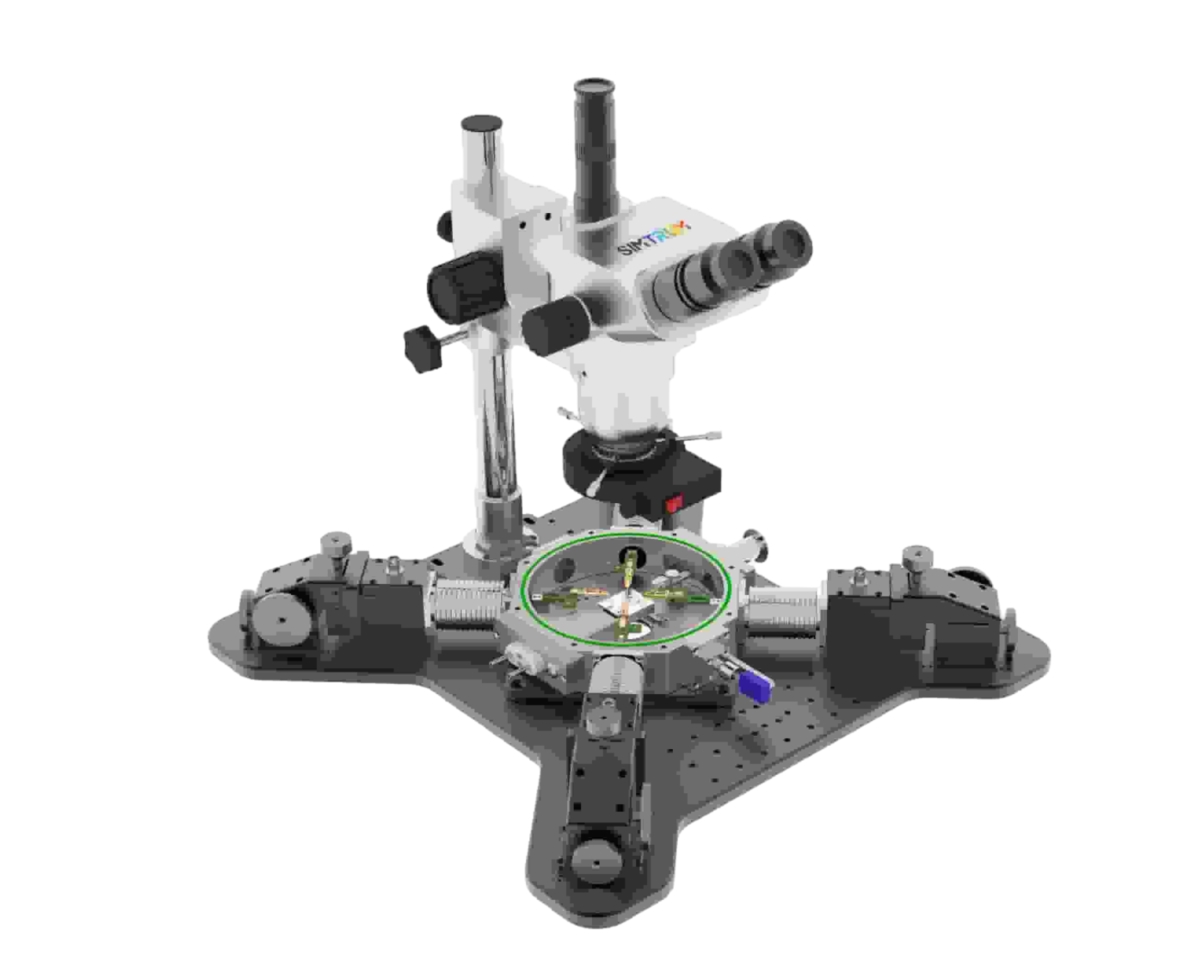

CRYO400-190-OP4-IP-C Externally adjustable probe station. Temp control range -190 to 400°C, Temperature stability ±0.1°C, Max. heating/cooling rate 30°C/min. 4 externally adjustable probes, vacuum, with microscope assembly. Price includes: Dual-output Temperature Controller, 4-probe stage, LN2 assembly, Microscope assembly, Vacuum assembly	8-12 Weeks	$21900.00
CRYO400-190-OP4-IP-TB-C Externally adjustable probe station. Temp control range -190 to 400°C, Temperature stability ±0.1°C, Max. heating/cooling rate 30°C/min. 4 externally adjustable probes, 3 coaxial BNC interface, vacuum, with microscope assembly. Price includes: Dual-output Temperature Controller, 4-probe stage (3-coaxial interface), LN2 assembly, Microscope assembly, Vacuum assembly.	8-12 Weeks	$25253.00
CRYO500-190-OP4-IP-C Externally adjustable probe station. Temp control range -190 to 500°C, Temperature stability ±0.1°C, Max. heating/cooling rate 30°C/min. 4 externally adjustable probes, vacuum, with microscope assembly. Price includes: Dual-output Temperature Controller, 4-probe stage, LN2 assembly, Microscope assembly, Vacuum assembly.	8-12 Weeks	$23053.00
CRYO500-190-OP4-IP-TB-C Externally adjustable probe station. Temp control range -190 to 500°C, Temperature stability ±0.1°C, Max. heating/cooling rate 30°C/min. 4 externally adjustable probes, 3 coaxial BNC interface, vacuum, with microscope assembly. Price includes: Dual-output Temperature Controller, 4-probe stage (3-coaxial interface), LN2 assembly, Microscope assembly, Vacuum assembly.	8-12 Weeks	$26582.00
CRYORT-190-OP4-TB-FC-C Low-current Probe Cryo Stage (pA-level electrical signals). Temp control range: room temperature to 190°C. Temperature stability ±0.5°C, resolution 0.1°C; control rate 0–10°C/min; PID control with PT100 sensor. Vacuum chamber <5Pa (roughing pump included); custom conductive sample stage 25×25mm, connected via triaxial cable for back-side biasing; chamber size >130×388mm; stage weight <5kg (system <8kg). 4 adjustable probe pins (travel +6mm, resolution 3μm) with high-frequency probes, plus 1 custom fiber-clamp probe pin for ~85° fiber alignment. Optical window 1–1.5 inch, working distance <25mm, 45° mirror holder for optical alignment. Price includes: Temperature Controller, Probe Cryo Stage, LN2 assembly (2L tank), Vacuum assembly (roughing pump <5Pa).	8-12 Weeks	Request for quote
