Photomultiplier Tube Side-On (Tube Only)
Overview STN1012 Series STN1013 Series Related Products Order Now!

Photomultiplier Tube Sind-on( Tube Only)

The photomultiplier tube is a photoelectric conversion device that can convert weak light signals into electrical signals. It can increase the incoming weak light signals by 105 to 108 times.  Photomultiplier tubes can be divided into head-on type and side-on type according to the angle of incident light.

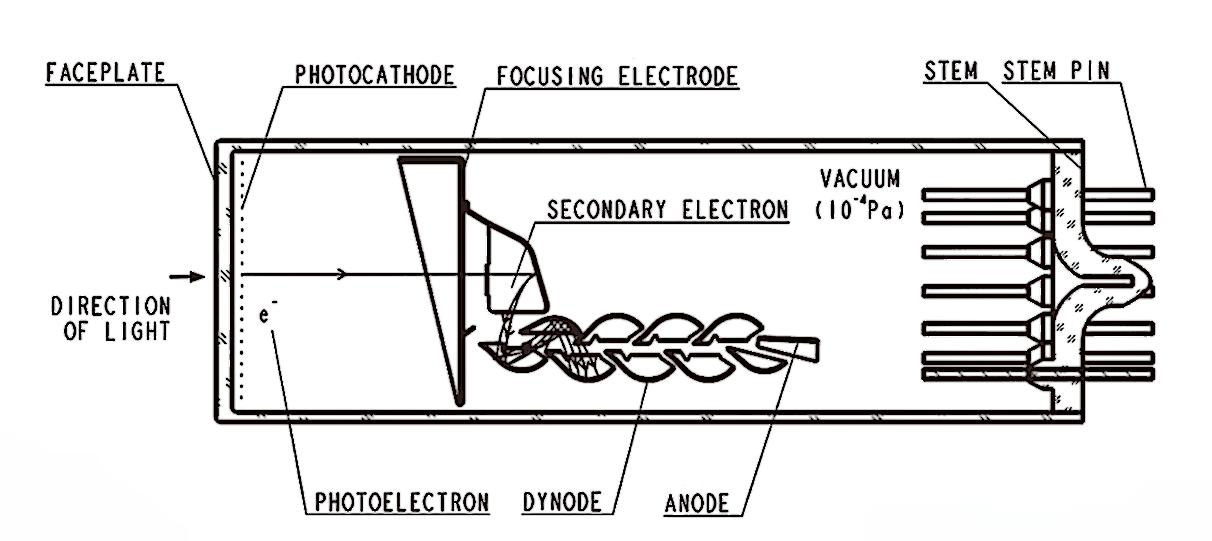

Structure of PMT







Selection Guide for Side-on Type

Item Product Name Tube Size Photocathode Area Shape Proportion of Cathode Wavelength (short) Wavelength     (long) Peak Wavelength 【 Anode 】Luminous Sensitivity Typ. 【 Anode 】Radiant Sensitivity Typ. 【 Anode 】Gain Typ. 【 Time Response 】Rise Time Typical Value
STN1012-1 Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 165nm 900nm / 2500A/lm / 1 x 107 2.2ns
STN1012-2 Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 165nm 900nm / 2000A/lm / 8 x 106 2.2ns
STN1012-3 Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 165nm 900nm / 500A/lm / 3.3 x 106 2.2ns
STN1013-1 Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 160nm 650nm / 400A/lm / 6.7 x 106 /
STNN1013-2A Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 160nm 650nm / 1500A/lm / 2 x 107 /
STN1013-2B Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 290nm 650nm / 1500A/lm / 2 x 107 /
STN1013-3A Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 160nm 650nm / 400A/lm / 7.5 x 106 /
STN1013-3B Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 290nm 650nm / 400A/lm / 7.5 x 106 /
STN1013-4 Photomultiplier tube Dia.1 1/8'' Square 8 x 24 mm2 160nm 650nm / 400A/lm / 1 x 107 /






Photomultipliers Tube Side On(Tube Only) – STN1012 Series

This STN1012 series is side-on type photomultiplier tube with 1 1/8" diameter and 9 stages. It features high gain and wide spectral response range form 165nm to 900nm.





Feature

  • Wide spectral response
  • High gain

Application

  • Environment monitoring
  • Semiconductor detection,bioluminescence detection





Product Specifications and Brochures

Product Brochure Link:

 Parameter Description
 Type Side-on Type
 Diameter 1 1/8"
 Window Material Quartz glass
 Photocathode Material Multi-alkali
 Proportion of Cathode 8 x 24 mm2
 Dynode Structure Circular
 Stage 9
Model STN1012-1 STN1012-2 STN1012-3 Unit
Cathode Parameters  Spectral Response Range 165-900 nm
 Supply Voltage 1250 V
 Product Performance Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. /
 Photocathode Luminous Sensitivity 140 250 / 140 250 / 80 150 / μA/lm
Anode Parameters  Anode Luminous Sensitivity 1400 2500 / 1500 2000 / 300 500 / A/lm
 Anode Dark Current(30min later) / 3 50 / 3 50 　 3 50 nA
 Gain 1 x 107 8 x 106 3.3 x 106 /
Time Response  Rise time 2.2 ns
 TTS 1.2 ns
 Operating Ambient Temperature -30~+50 ℃
 Storage Temperature -50~+50 ℃

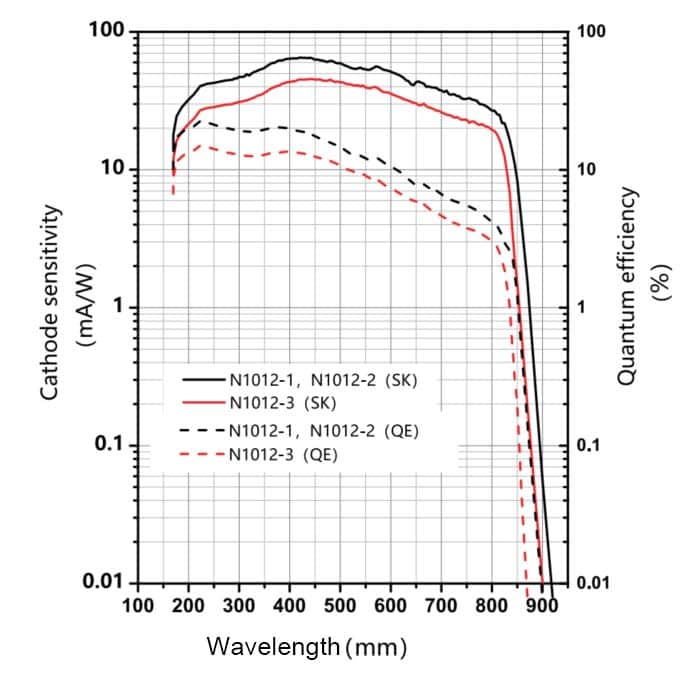

 Typical Spectral Response Curve

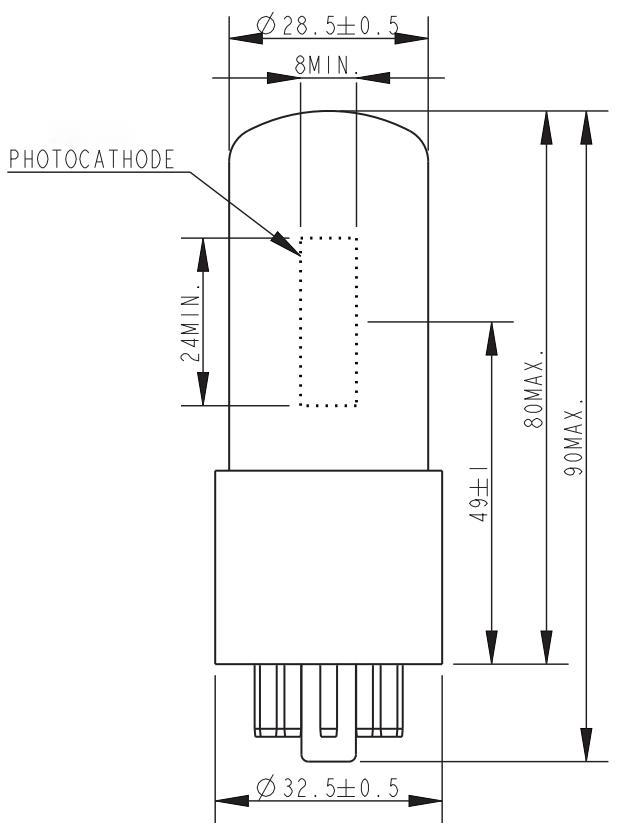

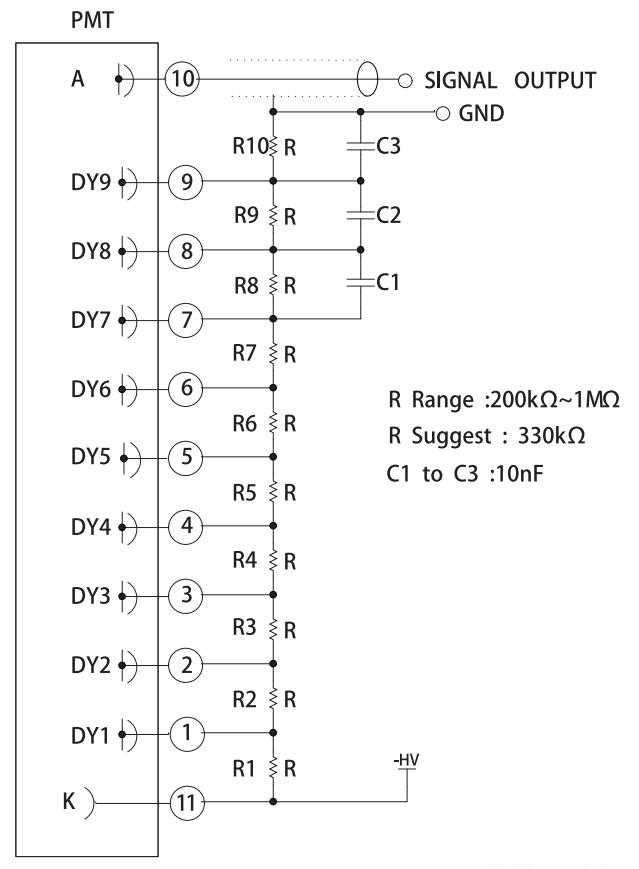

Voltage Distribution Ratio Dimension














Photomultipliers Tube Side On(Tube Only) – STN1013 Series

This STN1013 series is side-on type photomultiplier tube with 1 1/8" diameter and 9 stages. It features high gain, high cathode sensitivity and wide spectral response ranges (160nm -650nm, 290nm -650nm).





Feature

  • Wide spectral response
  • High gain ,high cathode sensitivity

Application

  • Environment monitoring,semiconductor detection
  • Bioluminescence detection,invitro diagnosis





Product Specifications and Brochures

Product Brochure Link:

Parameter Description
 Type Side-on Type
 Diameter 1 1/8"
 Proportion of Cathode 8 x 24 mm2
 Dynode Structure Circular
 Operating Ambient Temperature -30℃~+50℃
 Storage Temperature -50℃~+50℃
 Stage 9
Model STN1013-1 STN1013-2A STN1013-2B STN1013-3A STN1013-3B STN1013-4
 Window Material Quartz glass Borosilicate glass Quartz glass Borosilicate glass Quartz glass
 Spectral Response（nm） 160-650 290-650 160-650 290-650 160-650
 Product Performance Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max.
 Photocathode Luminous
 Sensitivity（μA/lm）		 40 60 / 40 60 / 40 60 / 25 40 / 25 40 / 25 40 /
 Gain 6.7 x 106 2 x 107 2 x 107 7.5 x 106 7.5 x 106 1 x 107
 Anode Luminous
 Sensitivity （A/lm）		 200 400 / 1000 1500 / 1000 1500 / 200 400 / 200 400 / 200 400 /
 Anode Current（nA） / 0.5 2 / 2 10 / 2 10 / 2 10 / 2 10 / 10 50

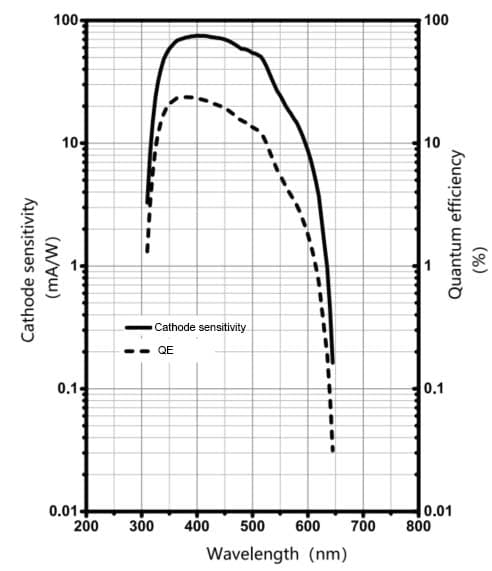

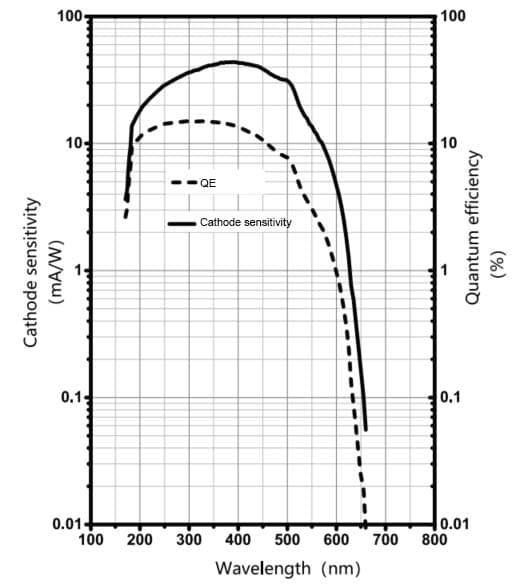

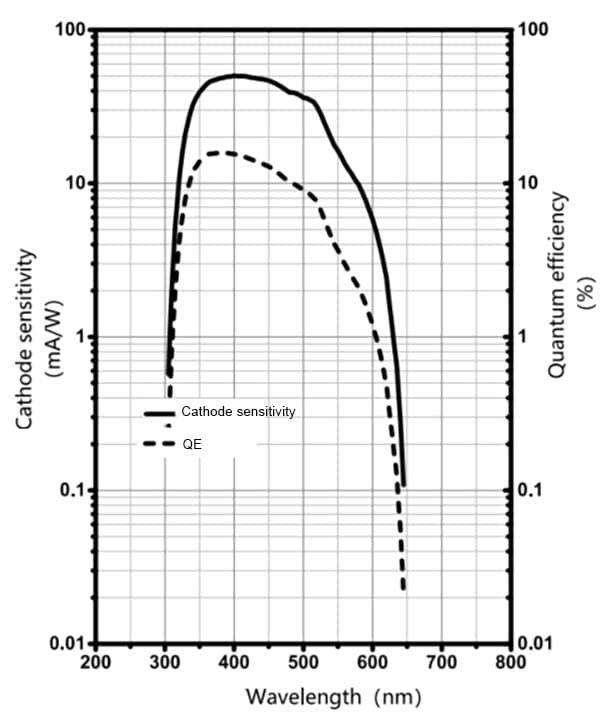

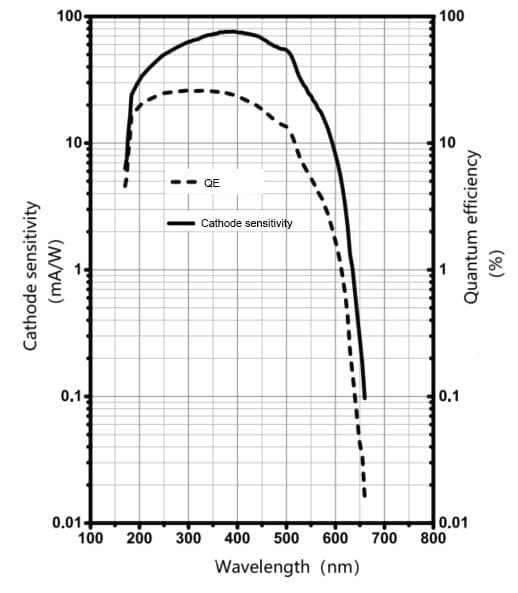

    Typical Spectral Response Curve

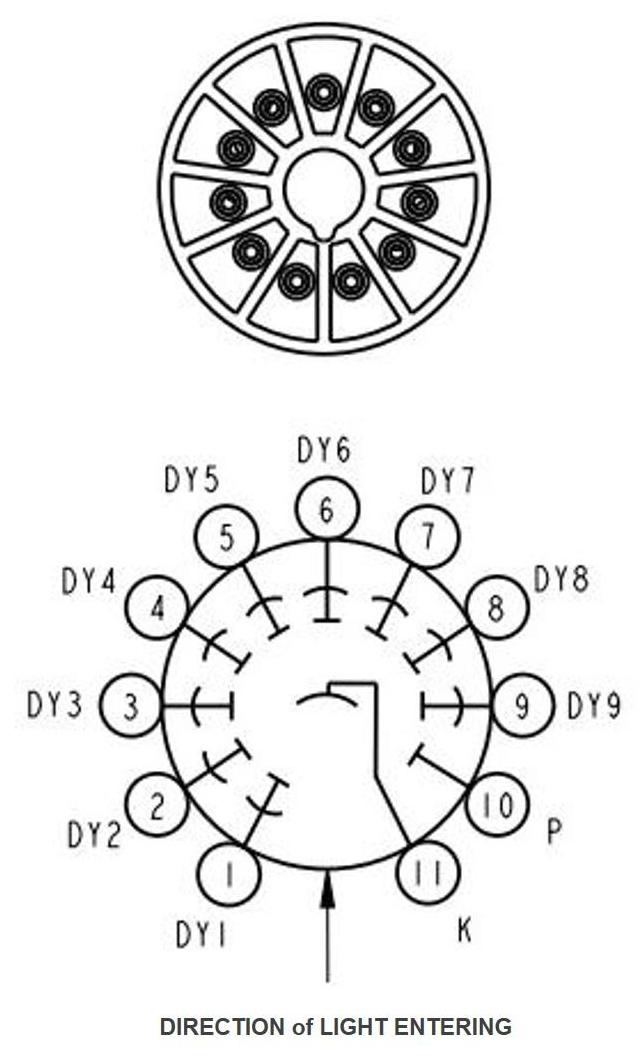

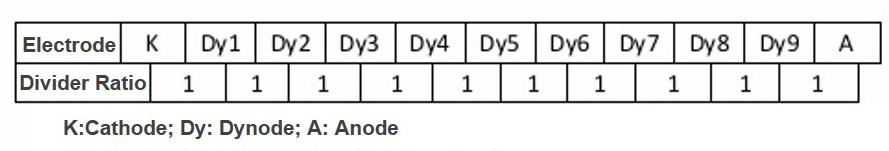

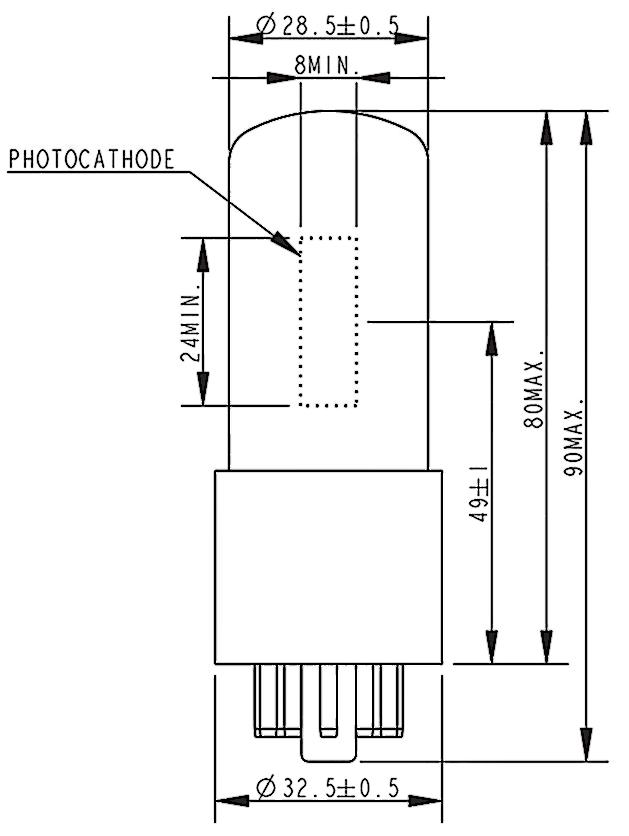

Voltage Distribution Ratio Dimension





Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STN1012-1
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response Range 165-900nm, Supply Voltage 1250V, Photocathode Luminous Sensitivity Typ. 250μA/lm, Anode Luminous Sensitivity Typ.2500A/lm, Anode Dark Current(30min later) Typ. 3nA, Gain 1 x 10^7, Rise time 2.2ns 		6-8 weeks Request for quote
STN1012-2
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response Range 165-900nm, Supply Voltage 1250V, Photocathode Luminous Sensitivity Typ. 250μA/lm, Anode Luminous Sensitivity Typ.2000A/lm, Anode Dark Current(30min later) Typ. 3nA, Gain 8 x 10^6 ,Rise time 2.2ns 		6-8 weeks Request for quote
STN1012-3
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response Range 165-900nm, Supply Voltage 1250V, Photocathode Luminous Sensitivity Typ. 150μA/lm, Anode Luminous Sensitivity Typ.500A/lm, Anode Dark Current(30min later) Typ. 3nA, Gain 3.3 x 10^6, Rise time 2.2ns 		6-8 weeks Request for quote
STN1013-1
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response 160-650nm, Photocathode Luminous Sensitivity Typ. 60 μA/lm, Gain 6.7 x 10^6, Anode Luminous Sensitivity Typ. 400A/lm , Anode Current 0.5 nA 		6-8 weeks Request for quote
STN1013-2A
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response 160-650nm, Photocathode Luminous Sensitivity Typ. 60 μA/lm, Gain 2 x 10^7, Anode Luminous Sensitivity Typ. 1500A/lm , Anode Current 2 nA 		6-8 weeks Request for quote
STN1013-2B
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response 290-650nm, Photocathode Luminous Sensitivity Typ. 60 μA/lm, Gain 2 x 10^7, Anode Luminous Sensitivity Typ. 1500A/lm , Anode Current 2 nA 		6-8 weeks Request for quote
STN1013-3A
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response 160-650nm, Photocathode Luminous Sensitivity Typ. 40 μA/lm, Gain 7.5 x 10^6, Anode Luminous Sensitivity Typ. 400A/lm , Anode Current 2 nA 		6-8 weeks Request for quote
STN1013-3B
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response 290-650nm, Photocathode Luminous Sensitivity Typ. 40 μA/lm, Gain 7.5 x 10^6, Anode Luminous Sensitivity Typ. 400A/lm , Anode Current 2 nA 		6-8 weeks Request for quote
STN1013-4
Photomultipliers Tube Side On(Tube Only), Diameter 1 1/8", Proportion of Cathode 8 x 24 mm^2, Spectral Response 160-650nm, Photocathode Luminous Sensitivity Typ. 40 μA/lm, Gain 1 x 10^7, Anode Luminous Sensitivity Typ. 400A/lm , Anode Current Typ.10nA 		6-8 weeks Request for quote

STN1013-4 - Parameter

STN1013-3B - Parameter

STN1013-3A - Parameter

STN1013-2B - Parameter

STN1013-2A - Parameter

STN1013-1 - Parameter

STN1012-3 - Parameter

STN1012-2 - Parameter

STN1012-1 - Parameter
