Magnet Optical Switch | SIMTRUM Photonics Store

The SIMTRUM Magnet Optical Switch series operates on the Magneto-Optic Effect, enabling microsecond-level ultra-high-speed optical path switching. As an all-solid-state design with no moving parts, it completely eliminates mechanical wear, achieving exceptional reliability and an ultra-long operational lifetime (up to 10 billion cycles). This series utilizes pulse voltage drive instead of continuous power, offering advantages of low energy consumption and minimal heat generation. Its Fail-safe Latching feature ensures the optical path state is maintained after power loss, making it particularly suitable for cutting-edge applications with extreme demands on switching speed, endurance, and stability.

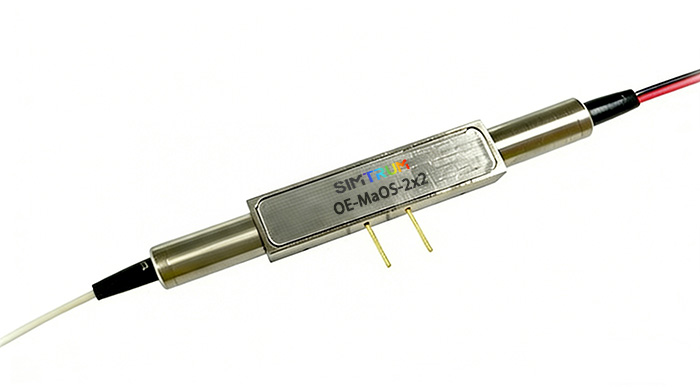

OE-MaOS-2x2

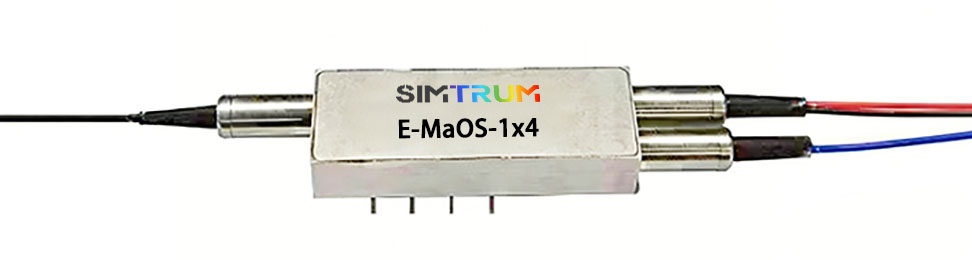

E-MaOS-1x4

Features

Ultra-Fast Switching: Switching time ≤ 100 µs, meeting real-time reconfiguration needs in high-speed optical networks.
Exceptional Reliability: All-solid-state, no moving parts, lifetime ≥ 10 billion cycles.
Excellent Optical Performance: Low insertion loss (≤ 1.2 dB), low Polarization Dependent Loss (PDL ≤ 0.2 dB), and high isolation (≥ 40 dB).
Wide Operating Temperature Range: -5°C to +70°C, suitable for harsh environments.
Compact Package: Available in compact packages like Mx2, Mx4, saving system space.

Applications

High-speed optical communication networks, data center optical interconnects, and protection
Aerospace avionics systems and radar systems
High-precision sensing systems and quantum communication experimental platforms
Industrial control fields requiring extremely fast response and ultra-high reliability

Product Specifications

Parameter	Unit	M1x2 / M2x2	M1x4
Optical Performance
Wavelength Range	nm	1280 ~ 1340 (e.g.) or 1520~1580	1280 ~ 1340
Test Wavelength	nm	1310 or 1550	1310
Insertion Loss (IL)	dB	≤ 1.2
Return Loss (RL)	dB	≥ 50
Crosstalk	dB	≥ 40 (Bidir.) / ≥ 20 (Unidir.)	≥ 40
PDL	dB	≤ 0.20
TDL	dB	≤ 0.30
Repeatability	dB	≤ ±0.01
Electrical & Switching
Switching Time	µs	≤ 100
Pulse Duration	µs	200 ~ 500
Operating Current	mA	≤ 200
Switch Type		Latching (Fail-safe)
Durability	Cycles	≥ 10 Billions
Environmental & Physical
Max. Optical Power	mW	≤ 500
Operating Temp.	°C	-5 ~ +70
Storage Temp.	°C	-40 ~ +85
Dimension (L×W×H)	mm	38.0 × 8.0 × 8.0 ±0.2 (M2x2 e.g.)	30.0 × 20.0 × 8.0 ±0.2
Tube Type	um	900
Fiber Length	m	1
Connector	/	FC/PC

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.

Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
OE-MaOS-M1x2-1280-SM-100 M1x2, Wavelength Range: 1280 ~ 1340 nm, Test Wavelength: 1310 nm, Insertion Loss (IL): ≤ 1.2 dB, Return Loss (RL): ≥ 50 dB, Crosstalk: ≥ 40 dB (Bidir.) / ≥ 20 dB (Unidir.), PDL: ≤ 0.20 dB, TDL: ≤ 0.30 dB, Repeatability: ≤ ±0.01 dB, Switching Time: ≤ 100 µs, Pulse Duration: 200 ~ 500 µs, Operating Current: ≤ 200 mA, Switch Type: Latching (Fail-safe), Durability: ≥ 10 Billions cycles, Max. Optical Power: ≤ 500 mW, Operating Temp.: -5 ~ +70 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 38.0 × 8.0 × 8.0 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC	8-12 Weeks	Request for quote
OE-MaOS-M1x2-1520-SM-100 M1x2, Wavelength Range: 1520 ~ 1580 nm, Test Wavelength: 1550 nm, Insertion Loss (IL): ≤ 1.2 dB, Return Loss (RL): ≥ 50 dB, Crosstalk: ≥ 40 dB (Bidir.) / ≥ 20 dB (Unidir.), PDL: ≤ 0.20 dB, TDL: ≤ 0.30 dB, Repeatability: ≤ ±0.01 dB, Switching Time: ≤ 100 µs, Pulse Duration: 200 ~ 500 µs, Operating Current: ≤ 200 mA, Switch Type: Latching (Fail-safe), Durability: ≥ 10 Billions cycles, Max. Optical Power: ≤ 500 mW, Operating Temp.: -5 ~ +70 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 38.0 × 8.0 × 8.0 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC	8-12 Weeks	Request for quote
OE-MaOS-M2x2-1280-SM-100 M2x2, Wavelength Range: 1280 ~ 1340 nm, Test Wavelength: 1310 nm, Insertion Loss (IL): ≤ 1.2 dB, Return Loss (RL): ≥ 50 dB, Crosstalk: ≥ 40 dB (Bidir.) / ≥ 20 dB (Unidir.), PDL: ≤ 0.20 dB, TDL: ≤ 0.30 dB, Repeatability: ≤ ±0.01 dB, Switching Time: ≤ 100 µs, Pulse Duration: 200 ~ 500 µs, Operating Current: ≤ 200 mA, Switch Type: Latching (Fail-safe), Durability: ≥ 10 Billions cycles, Max. Optical Power: ≤ 500 mW, Operating Temp.: -5 ~ +70 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 38.0 × 8.0 × 8.0 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC	8-12 Weeks	Request for quote
OE-MaOS-M2x2-1520-SM-100 M2x2, Wavelength Range: 1520 ~ 1580 nm, Test Wavelength: 1550 nm, Insertion Loss (IL): ≤ 1.2 dB, Return Loss (RL): ≥ 50 dB, Crosstalk: ≥ 40 dB (Bidir.) / ≥ 20 dB (Unidir.), PDL: ≤ 0.20 dB, TDL: ≤ 0.30 dB, Repeatability: ≤ ±0.01 dB, Switching Time: ≤ 100 µs, Pulse Duration: 200 ~ 500 µs, Operating Current: ≤ 200 mA, Switch Type: Latching (Fail-safe), Durability: ≥ 10 Billions cycles, Max. Optical Power: ≤ 500 mW, Operating Temp.: -5 ~ +70 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 38.0 × 8.0 × 8.0 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC	8-12 Weeks	Request for quote
OE-MaOS-M1x4-1280-SM-100 M1x4, Wavelength Range: 1280 ~ 1340 nm, Test Wavelength: 1310 nm, Insertion Loss (IL): ≤ 1.2 dB, Return Loss (RL): ≥ 50 dB, Crosstalk: ≥ 40 dB, PDL: ≤ 0.20 dB, TDL: ≤ 0.30 dB, Repeatability: ≤ ±0.01 dB, Switching Time: ≤ 100 µs, Pulse Duration: 200 ~ 500 µs, Operating Current: ≤ 200 mA, Switch Type: Latching (Fail-safe), Durability: ≥ 10 Billions cycles, Max. Optical Power: ≤ 500 mW, Operating Temp.: -5 ~ +70 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 30.0 × 20.0 × 8.0 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC	8-12 Weeks	Request for quote
