13mm Linear Stages

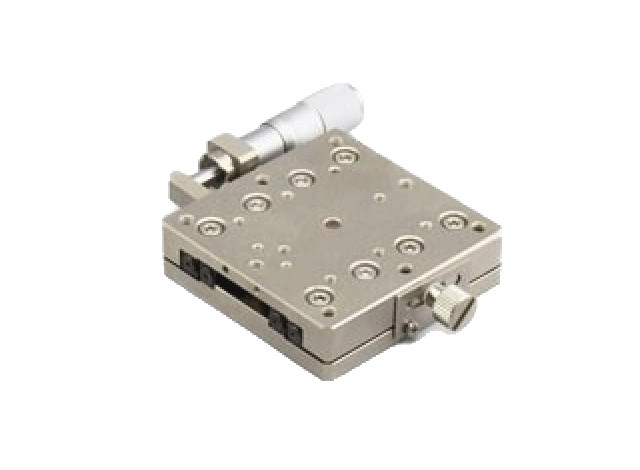

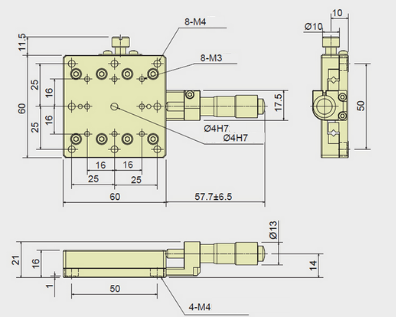

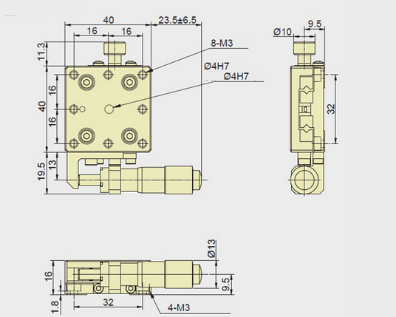

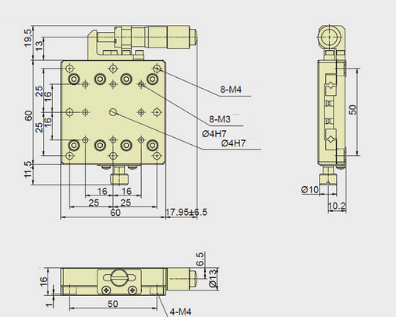

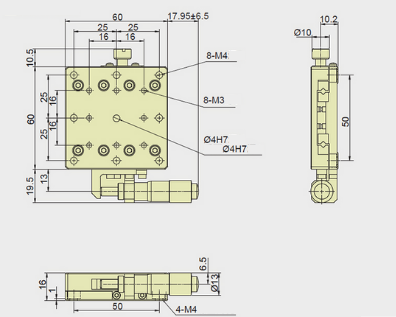

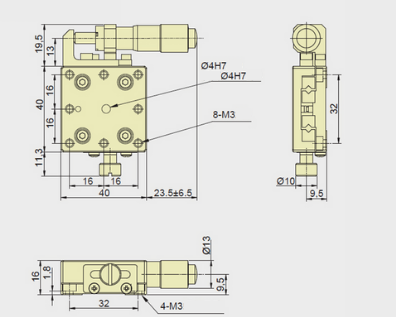

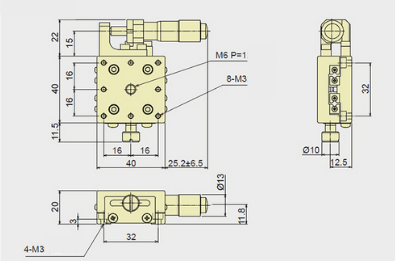

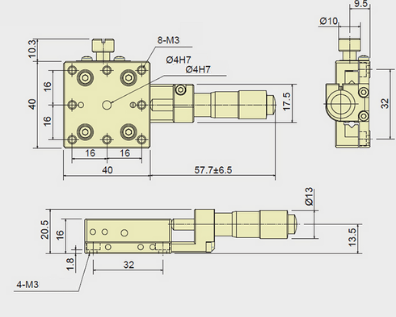

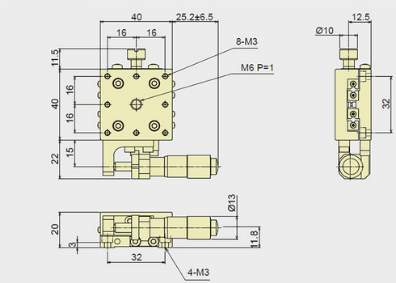

Stainless Steel Stainless Steel Drawing AL AL Drawing Related Products Order Now!











• 13mm travel enabled by micrometers

• Crossed roller guides enable strong load capacity and good wear

  resistance

• Platforms differ based on platform dimensions and micrometer position

• Main material is stainless steel





Selection Guide



Simtrum Part No. Drive Direction  Minimum reading (µm) Platform dimensions (mm) Travel (mm) Bearing Type Maximum Load (N) Straight Line Accuracy (µm) Material
13SSCR4040

Center/

Right

 10 40 x 40 13 Crossed Roller Guide 19.6 3 Stainless Steel
13SSCL4040

Center/

Left

 10 40 x 40 13 Crossed Roller Guide 19.6 3 Stainless Steel
13SSR4040 Right  10 40 x 40 13 Crossed Roller Guide 19.6 3 Stainless Steel
13SSL4040 Left  10 40 x 40 13 Crossed Roller Guide 19.6 3 Stainless Steel
13SSCR6060

Center/

Right

 10 60 x 60 13 Crossed Roller Guide 49 3 Stainless Steel
13SSCL6060

Center/

Left

 10 60 x 60 13 Crossed Roller Guide 49 3 Stainless Steel
13SSR6060 Right  10 60 x 60 13 Crossed Roller Guide 49 3 Stainless Steel
13SSL6060 Left  10 60 x 60 13 Crossed Roller Guide 49 3 Stainless Steel

 The information in the chart above is a general guide to choosing the suitable 13mm crossed roller bearing stainless steel stage for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

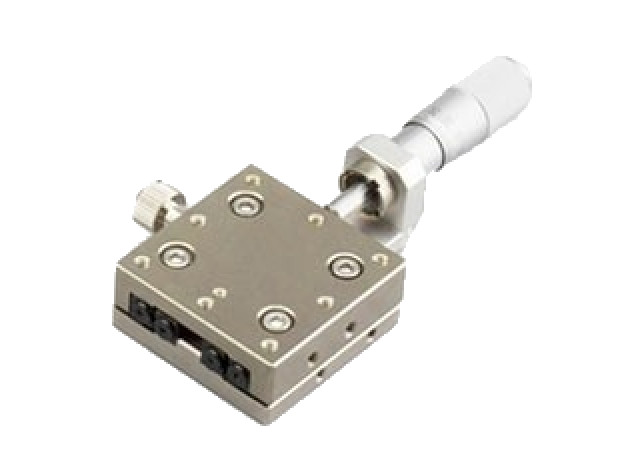

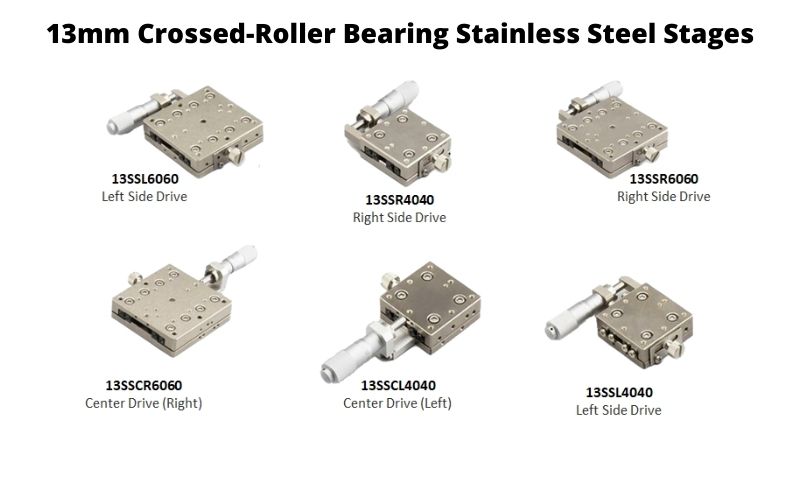

13SSCR4040

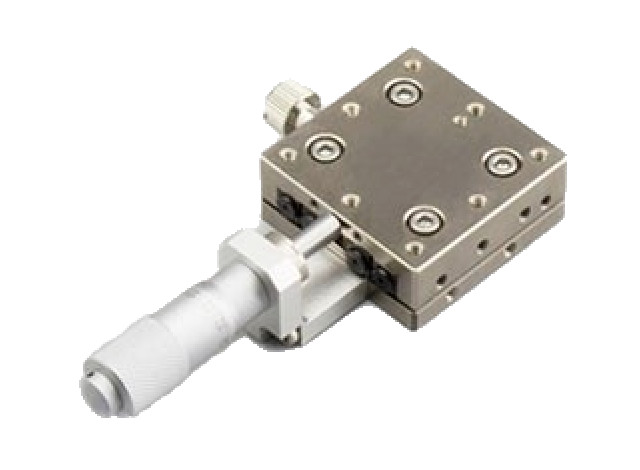

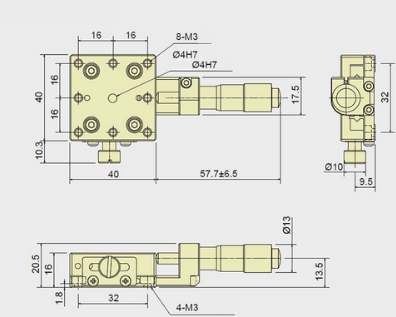

13SSCL4040

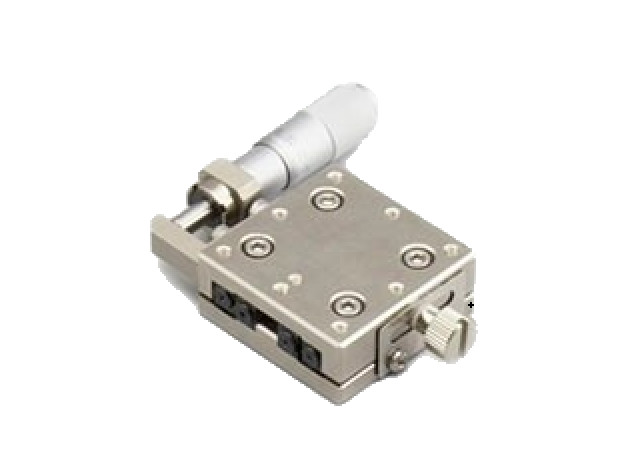

13SSR4040





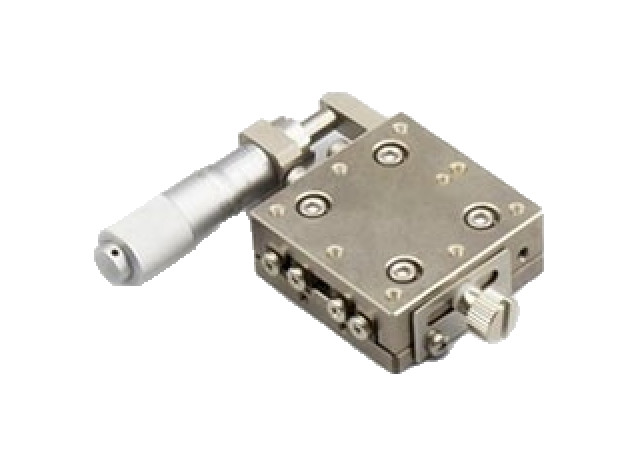

13SSL4040

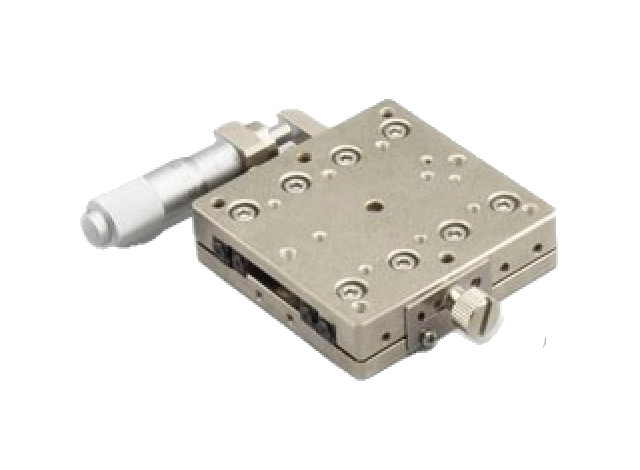

13SSCR6060





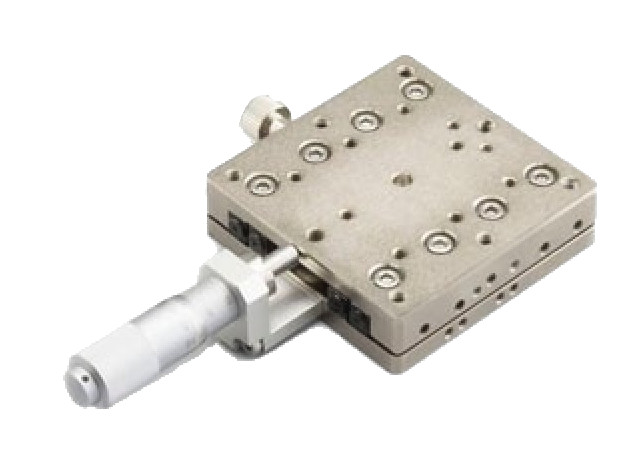

13SSCL6060





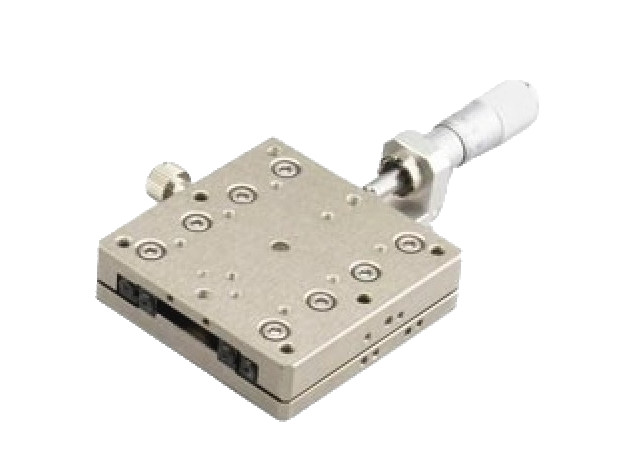

13SSR6060

13SSR6060 (1).jpg

13SSL6060









• 13mm travel enabled by micrometers



• Crossed roller guides enable strong load capacity and good wear resistance



• Single-axis and double-axis version available



• Products differ based on platform dimensions and micrometer position



• Main material is aluminium, which is a lightweight material that does not

rust, corrode easily



Selection Guide

Simtrum

      Part No.

Drive Direction

Hole Type

Platform

 Dimensions

(mm)

Maximum Load (kg)

Straight Line   Accuracy (μm)

Material

Minimum Reading (mm)
13LSCR4040 Center/Right

Top:M3,M6

 Bottom:

Counterbore holes for M3 Cap Screws

 40x40
 9.8 3

Aluminium alloy,

black anodised

 0.01
13LSR4040 Right

Top:M3,M6

 Bottom:

Counterbore holes for M3 Cap Screws

 40x40 9.8 3

Aluminium alloy,

black anodised

 0.01
13LSL4040 Left

Top:M3,M6

 Bottom:

Counterbore holes for M3 Cap Screws

 40x40 9.8 3

Aluminium alloy,

black anodised

 0.01
13LSCR6060
 Center/Right

Top: M3, M4, M16

 Bottom:

 Counterbore holes for M4 Cap Screws

 60x60 19.6 3

Aluminium alloy

black anodised

 0.01
13LSR6060 Right

Top: M3, M4, M16

 Bottom:

Counterbore holes for M4 Cap Screws

 60x60 19.6 3

Aluminium alloy

black anodised

 0.01
13LSL6060 Left

Top: M3, M4, M16

 Bottom:

Counterbore holes for M4 Cap Screws

 60x60 19.6 3

Aluminium alloy

black anodised

 0.01

            The information in the chart above is a general guide to choosing the suitable 13mm crossed roller bearing aluminium stages for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

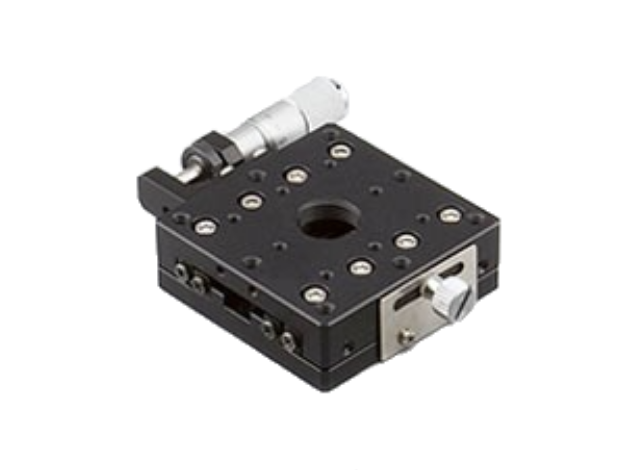

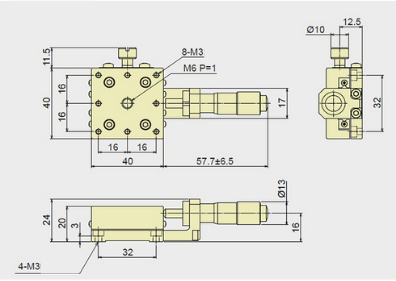

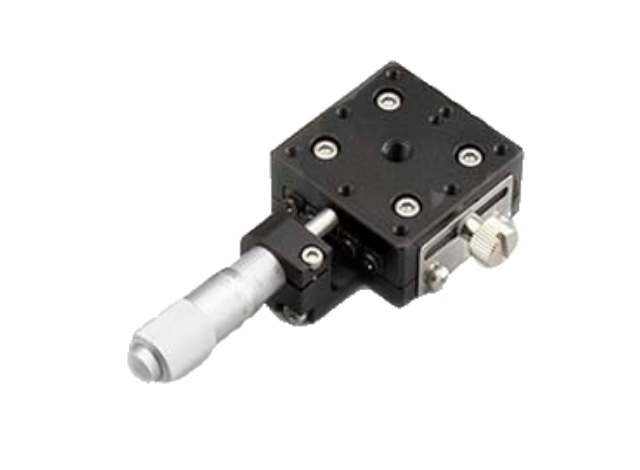

13LSCR4040

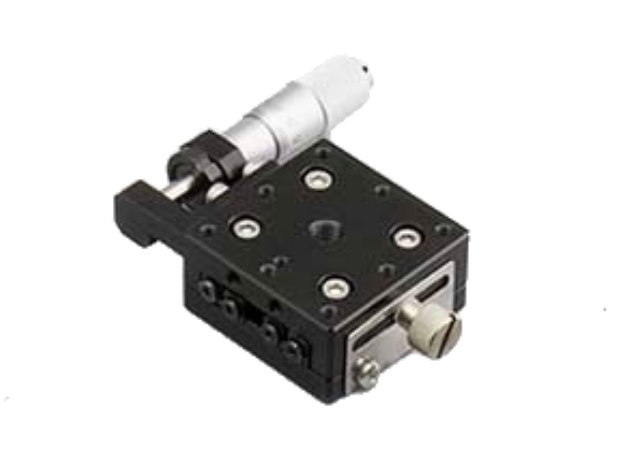

13LSR4040

13LSL4040

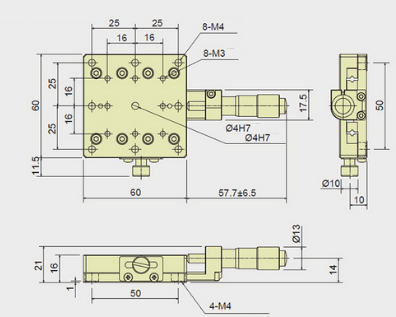

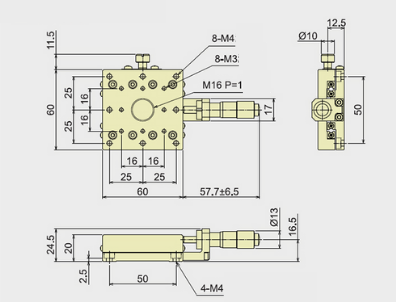

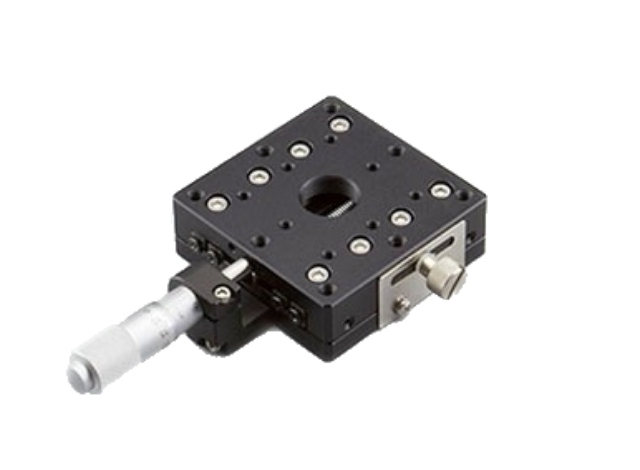

13LSCR6060

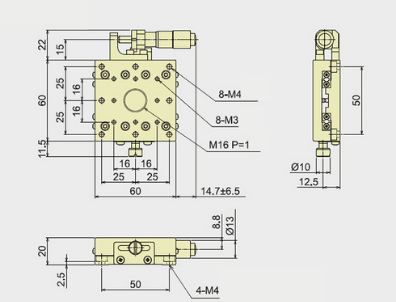

13LSR6060

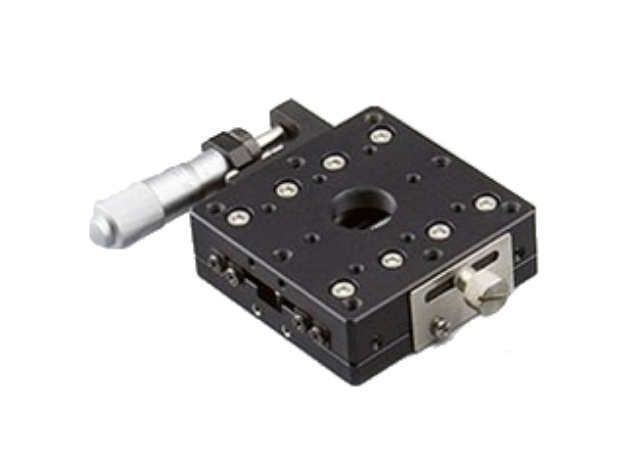

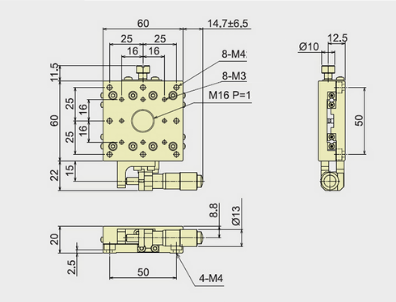

13LSL6060




25mm Linear Stages

Rotation and Tilt Stages

Optomechanics

Vertical Axis Stages




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Travel (mm) Platform dimensions (mm) Drive Direction Maximum Load (N) Availability Reference Price
(USD)
13SSCR4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Center Drive (Right) 		1340 x 40Center19.6 4-6 Weeks $271.04
13SSCL4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Center Drive (Left) 		1340 x 40Center19.6 4-6 Weeks $271.04
13SSR4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Right Side Drive 		1340 x 4019.6 4-6 Weeks $271.04
13SSL4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Left Side Drive 		1340 x 40Left Side19.6 4-6 Weeks $271.04
13SSCR6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Center Drive (Right) 		1360 x 60Center49 4-6 Weeks $308.06
13SSCL6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Center Drive (Left) 		1360 x 60Center49 4-6 Weeks $308.06
13SSR6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Right Side Drive 		1360 x 6049 4-6 Weeks $308.06
13SSL6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Left Side Drive 		1360 x 60Left Side49 4-6 Weeks $308.06

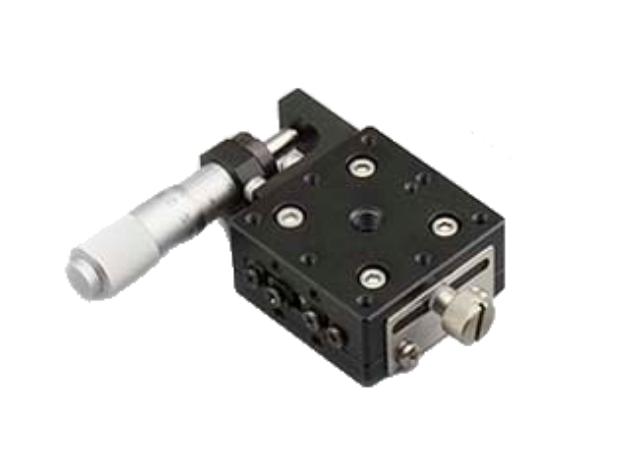

13LSCR4040
13mm Linear Stage, Platform dimensions=40mmx40mm, Center Drive (Right) 		1340x409.8 2-3 Weeks $136.46
13LSR4040
13mm Linear Stage, Platform dimensions=40mmx40mm, Right Side Drive 		1340x40Right9.8 2-3 Weeks $136.46
13LSL4040
13mm Linear Stage, Platform dimensions=40mmx40mm, Left Side Drive 		1340x40Left9.8 2-3 Weeks $136.46
13LSCR6060
13mm Linear Stage, Platform dimensions=60mmx60mm, Center Drive (Right) 		1360x6019.6 2-3 Weeks $144.99
13LSR6060
13mm Linear Stage, Platform dimensions=60mmx60mm, Right Side Drive 		1360x60Right19.6 2-3 Weeks $144.99
13LSL6060
13mm Linear Stage, Platform dimensions=60mmx60mm, Left Side Drive 		1360x60Left19.6 2-3 Weeks $144.99

13LSL6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSR6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSCR6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSL4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom: Counterbore holes for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
9.8

13LSR4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom: Counterbore holes for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
9.8

13LSCR4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom: Counterbore holes for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
9.8

13SSL6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
49

13SSR6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
49

13SSCL6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
49

13SSCR6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
49

13SSL4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
19.6

13SSR4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
19.6

13SSCL4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
19.6

13SSCR4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSL6060 - Download

13LSR6060 - Download

13LSCR6060 - Download

13LSL4040 - Download

13LSR4040 - Download

13LSCR4040 - Download

13SSL6060 - Download

13SSR6060 - Download

13SSCL6060 - Download

13SSCR6060 - Download

13SSL4040 - Download

13SSR4040 - Download

13SSCL4040 - Download

13SSCR4040 - Download
