Micro-Channel Plate (MCP)
Overview Selection Guide Related Products Order Now!

Micro-Channel Plate - MCP



MCP is a two-dimensional electron multiplier array composed of millions of micro-channel electron multipliers, which is a component that multiplies the electron flow in two-dimensional space.





It is the core element of low light level image intensifier. In addition to being a channel electron multiplier with fast time response and two-dimensional spatial resolution, it can also directly detect various high energy particles and rays. NVG produces more than 100,000 MCPs per year, including Φ16mm, Φ25mm, Φ33 mm, Φ36mm standard MCP used in image intensifier and other various special purpose.





Features

  • Core of low light image intensifiers
  • Fast response
  • Precise 2D resolution
  • Detects high-energy particles and rays

Application

  • Image Intensifier
  • MCP-PMT
  • X-ray Image Intensifier
  • Other Photoelectric Detection and Enhancement Devices

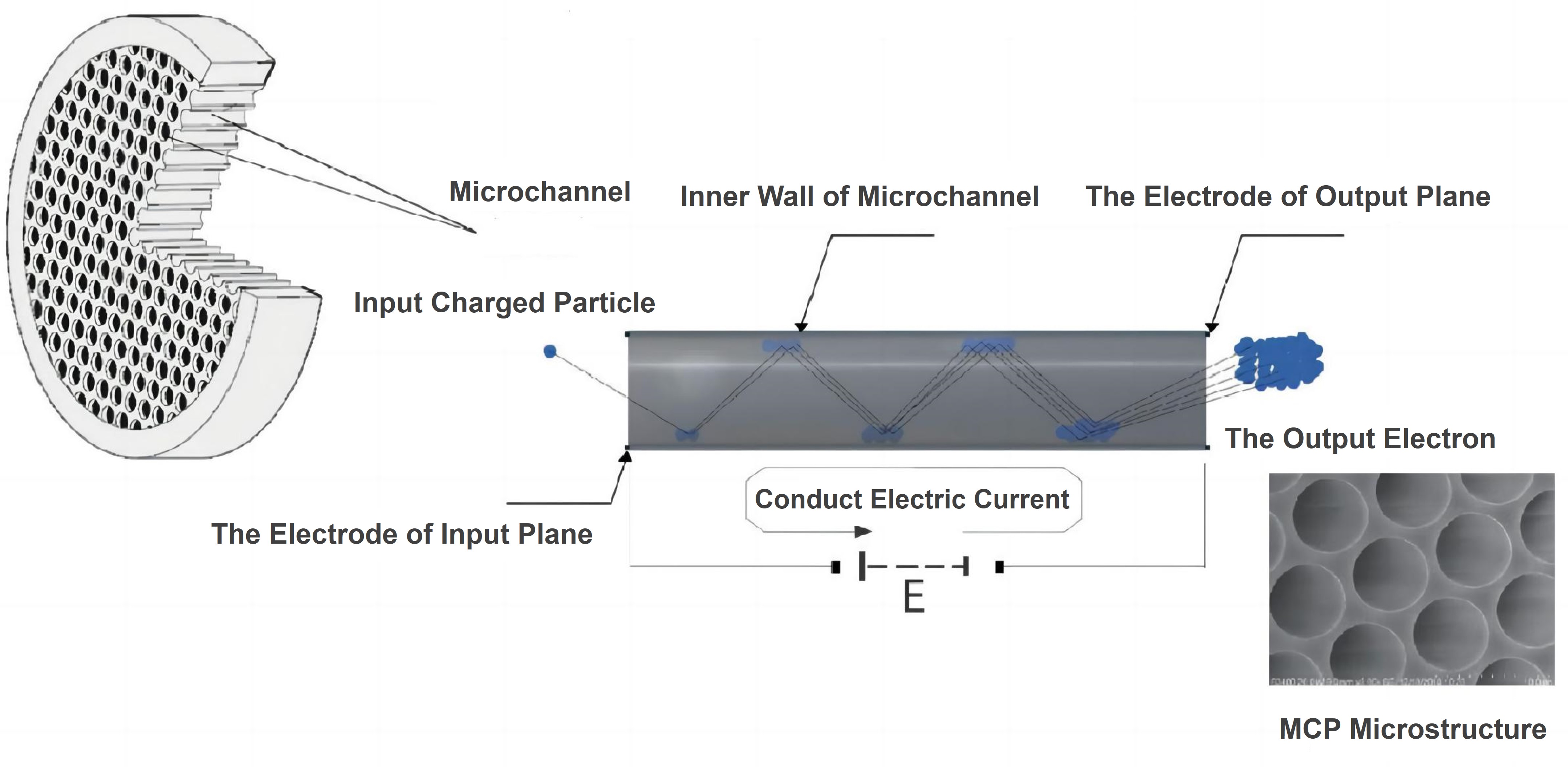

The Working Principle of MCP






Selection Guide for Micro-Channel Plate(MCP)

Code Overall Dia.
(mm)		 Inner Circle Dia. (mm) Useful Area
(mm)		 Channel Dia.
(μm)		 Channel Pitch (μm) Bias Angle Thickness
(mm)

Resistance  @500V(MΩ)

 Gain
ST-Φ16/8MCP-C Φ15.95±0.04 / Φ10.5 8±0.5 10±0.5 6°± 1° 0.38±0.02 90～180 ≥1500(800V)
ST-Φ25/6MCP-C Φ24.8±0.04 / Φ18.8 6±0.5 8±0.5 6°± 1° 0.325±0.025 70～300 ≥1500(800V)
ST-Φ25/10MCP-C Φ24.8±0.05 / Φ18.8 10±0.5 12±0.5 5°± 1° 0.425±0.015 100～300 ≥1500(800V)
ST-Φ33/8MCP-C Φ32.7±0.04 / Φ26 8±0.5 10±0.5 6°± 1° 0.38±0.02 50～400 ≥1500(800V)
ST-Φ33/10MCP-C Φ32.7±0.04 / Φ26 10±0.5 12±0.5 12.0°± 0.25° 0.47±0.02 50～250 ≥2500(800V)
ST-Φ36/12MCP-C Φ35.9±0.04 / Φ31 12±0.5 14±0.5 15.5°± 1° 0.5±0.02 65～185 ≥4000(800V)
ST-Φ50/12MCP-C Φ49.95±0.05 / Φ44 12±0.5 15±0.5 7°± 1° 0.5±0.05 10～100 ≥7000(1000V)
ST-Φ50/8MCP-C Φ49.95±0.05 / Φ44 8±0.5 10±0.5 6°± 1° 0.38±0.02 40～150 ≥1000(800V)
ST-Φ56/12MCP-C Φ55.95±0.05 / Φ50 12±0.5 15±0.5 8°± 1° 0.5±0.05 40～200 ≥7000(1000V)
ST-Φ56/21MCP-C Φ55.95±0.05 / Φ50 21±1 25±1 6°± 1° 0.9±0.05 40～200 ≥7000(1000V)
ST-Φ81/21MCP-C Φ80.95±0.05 / Φ75 21±1 25±1 6°± 1° 1.0±0.05 40～200 ≥7000(1000V)
ST-Φ88/21MCP-C Φ88.0±0.1 / Φ80 21±1 25±1 6°± 1° 1.0±0.05 40～150 ≥7000(1000V)
ST-Φ106/12MCP-C Φ105.9±0.1 / Φ100 12±0.5 14.5±0.5 6°± 1° 0.5±0.05 40～200 ≥7000(1000V)
ST-Φ106/21MCP-C Φ105.9±0.1 / Φ100 21±1 25±1 6°± 1° 1.2±0.05 40～200 ≥7000(1000V)
ST-Φ75/21MCP-A Φ75±0.1 Φ45±0.1 / 21 ± 1 25 ± 1 8°± 1° 1.0±0.05 90～130 ≥5000(1000V)
ST-Φ88/21MCP-A Φ86 ± 0.1 Φ30±0.1 / 21 ± 1 25 ± 1 6°± 1° 1.2±0.05 10～100 ≥10000(1200V)
ST-Φ120/21MCP-A Φ119.95 ± 0.05 Φ32.05±0.05 / 21 ± 1 25 ± 1 6°± 1° 1.0±0.05 30～200 ≥7000(1000V)
ST-Φ84/12MCP-A Φ83.9 ± 0.05 Φ49.9 ±0.05 / 12.5 ± 1 15 ± 1 6°± 1° 1.0±0.05 10～100 ≥10000(1400V)
ST-Φ106/21MCP-CS Φ105.95 ± 0.05 Φ85.95± 0.05 200± 0.5° 21 ± 1 25 ± 1 8°± 1° 1.2±0.05 30～200 ≥7000(1200V)
ST-Φ150/21MCP-SE Φ148 ± 0.2 Φ34 ±0.2 90 ± 0.5° 21 ± 1 25 ± 1 6°± 0.5° 1.2±0.05 30～200 ≥7000(1200V)
Code Length
(mm)		 Width
(mm)		 Useful Area.
(mm)		 Channel Dia.
(μm)		 Channel Pitch (μm) Bias Angle Thickness
(mm)

Resistance  @500V(MΩ)

 Gain
ST-52/21MCP-R 51.95±0.05 51.95±0.05 ≥47mm×47mm 21±1 25±1 6°± 1° 1.2±0.05 100～150 ≥10000(1200V)
ST-50/21MCP-R 99.9±0.1 49.9±0.1 ≥95mm×45mm 21±1 25±1 6°± 0.5° 1.2±0.05 100～200 ≥7000(1200V)

* Operation ambient temperature: -45 to +55°C, Dark current ≤ 5 x 10-12 A/cm2, Operating area ratio ≥ 60%

Note: C= Circular, R= Rectangular, A= Annular, CS= C-shaped, SE= Sector



Customization

  • Coated with a variety of film layers
  • In addition to nickel chromium alloy plating, users can also choose Au, Al₂O₃, MgF₂, KBr, Csl and other different materials of the film layer and different depths to meet the different needs of the film.
  • High gain and long lifetime MCP is optional
  • Improve the gain and lifetime of the MCP through ALD technology
  • Various specifications can be customized：Users can customize different shapes, sizes, effective area, thickness, curved MCP(sphere and cylinder) and other MCP according to the use requirements

Micro-Channel Plate (MCP)

Product Parameter
 Micro-Channel Plate (MCP)  Effective Area: 10.5-100mm | 90-200° | ≥47mm×47mm；Channel Dia.:6-21μm; Thickness:0.325-1.2mm
 Micro-Channel Plate Assembly (MCP)  Diameter:25-50mm; Channel Dia.:6-12mm; Effective Area:18-44mm
 Fiber Optic Plates- FOP  Fiber Center Distance:≤4μm,4-100μm; Theoretical Numerical Aperture:≥1.0; Transmission Ration of Collimating Light:≥65%
 Micro Pore Optics  Aperture:10-100μm(Customizable); Boundary Dimension:≤50mm×50mm | Φ≤60mm; Thickness :1-3mm(Customizable)
 X-Ray Collimators  Aperture:10-100μm(Customizable); Thickness：0.5-5mm(Customizable)





Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ST-Φ16/8MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ15.95±0.04mm, Useful Area Φ10.5mm, Channel Dia. 8±0.5mm, Channel Pitch 10±0.5mm, Bias Angle 6°± 1°, Thickness 0.38±0.02mm, Resistance @500V 90～180MΩ, Gain ≥1500@800V 		6-8 weeks Request for quote
ST-Φ25/6MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ24.8±0.04mm, Useful Area Φ18.8mm, Channel Dia. 6±0.5mm, Channel Pitch 8±0.5mm, Bias Angle 6°± 1° , Thickness 0.325±0.025mm, Resistance @500V 70～300MΩ, Gain ≥1500@800V 		6-8 weeks Request for quote
ST-Φ25/10MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ24.8±0.05mm, Useful Area Φ18.8mm, Channel Dia. 10±0.5mm, Channel Pitch 12±0.5mm, Bias Angle 5°± 1° , Thickness 0.425±0.015mm, Resistance @500V 100～300MΩ, Gain ≥1500@800V 		6-8 weeks Request for quote
ST-Φ33/8MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ32.7±0.04mm, Useful Area Φ26mm, Channel Dia. 8±0.5mm, Channel Pitch 10±0.5mm, Bias Angle 6°± 1° , Thickness 0.38±0.02mm, Resistance @500V 50～400MΩ, Gain ≥1500@800V 		6-8 weeks Request for quote
ST-Φ33/10MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ32.7±0.04mm, Useful Area Φ26mm, Channel Dia.10±0.5mm, Channel Pitch 12±0.5mm, Bias Angle 12.0°± 0.25° , Thickness 0.47±0.02mm, Resistance @500V 50～250MΩ, Gain ≥2500@800V 		6-8 weeks Request for quote
ST-Φ36/12MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ35.9±0.04mm, Useful Area Φ31mm, Channel Dia.12±0.5mm, Channel Pitch 14±0.5mm, Bias Angle 15.5°± 1°, Thickness 0.5±0.02mm, Resistance @500V 65～185 MΩ, Gain ≥4000@800V 		6-8 weeks Request for quote
ST-Φ50/8MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ49.95±0.05mm, Useful Area Φ44mm, Channel Dia. 8±0.5mm, Channel Pitch 10±0.5mm, Bias Angle 6°± 1° , Thickness 0.38±0.02mm, Resistance @500V 40～150MΩ, Gain ≥1000@800V 		6-8 weeks Request for quote
ST-Φ50/12MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ49.95±0.05mm, Useful Area Φ44mm, Channel Dia.12±0.5mm, Channel Pitch 15±0.5mm, Bias Angle 7°± 1°, Thickness 0.5±0.05mm, Resistance @500V 10～100MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ56/21MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ55.95±0.05mm, Useful Area Φ50mm, Channel Dia.21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1°, Thickness 0.9±0.05mm, Resistance @500V 40～200MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ81/21MCP-C
Micro-Channel Plate (MCP), Overall Dia.Φ80.95±0.05 mm, Useful Area Φ75mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1°, Thickness 1.0±0.05mm, Resistance @500V 40～200MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ88/21MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ88.0±0.1mm, Useful Area Φ80mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1° , Thickness 1.0±0.05mm, Resistance @500V 40～150MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ106/12MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ105.9±0.1mm, Useful Area Φ100mm, Channel Dia.12±0.5mm, Channel Pitch 14.5±0.5mm, Bias Angle 6°± 1°, Thickness 0.5±0.05mm, Resistance @500V 40～200MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ106/21MCP-C
Micro-Channel Plate (MCP), Overall Dia. Φ105.9±0.1mm, Useful Area Φ100mm, Channel Dia.21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1°, Thickness 1.2±0.05mm, Resistance @500V 40～200MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ75/21MCP-A
Micro-Channel Plate (MCP), Overall Dia. Φ75±0.1mm, Inner Circle Dia. Φ45±0.1mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 8°± 1°, Thickness 1.0±0.05mm, Resistance @500V 90～130MΩ, Gain ≥5000@1000V 		6-8 weeks Request for quote
ST-Φ88/21MCP-A
Micro-Channel Plate (MCP), Overall Dia. Φ86 ± 0.1mm, Inner Circle Dia. Φ30±0.1mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1° , Thickness 1.2±0.05mm, Resistance @500V 10～100MΩ, Gain ≥≥10000@1200V 		6-8 weeks Request for quote
ST-Φ120/21MCP-A
Micro-Channel Plate (MCP), Overall Dia. Φ119.95 ± 0.05 mm, Inner Circle Dia. Φ32.05±0.05mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1° , Thickness 1.0±0.05mm, Resistance @500V 30～200MΩ, Gain ≥7000@1000V 		6-8 weeks Request for quote
ST-Φ84/12MCP-A
Micro-Channel Plate (MCP), Overall Dia. Φ83.9 ± 0.05mm, Inner Circle Dia. Φ49.9 ±0.05mm, Channel Dia. 12.5±1mm, Channel Pitch 15±1mm, Bias Angle 6°± 1° , Thickness 1.0±0.05mm, Resistance @500V 10～100MΩ, Gain ≥10000@1400V 		6-8 weeks Request for quote
ST-Φ106/21MCP-CS
Micro-Channel Plate (MCP), Overall Dia. Φ105.95±0.05mm, Inner Circle Dia. Φ85.95± 0.05mm, Useful Area 200± 0.5°, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 8°± 1° , Thickness 1.2±0.05mm, Resistance @500V 30～200MΩ, Gain ≥7000@1200V 		6-8 weeks Request for quote
ST-Φ150/21MCP-SE
Micro-Channel Plate (MCP), Overall Dia. Φ148 ± 0.2mm, Inner Circle Dia. Φ34 ±0.2mm, Useful Area 90±0.5°, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 0.5° , Thickness 1.2±0.05mm, Resistance @500V 30～200MΩ, Gain ≥7000@1200V 		6-8 weeks Request for quote
ST-50/21MCP-R
Micro-Channel Plate (MCP), Length 99.9±0.1mm, Width 49.9±0.1mm, Useful Area ≥95mm×45mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm , Bias Angle 6°± 0.5°, Thickness 1.2±0.05mm, Resistance @500V 100～200MΩ, Gain ≥7000@1200V 		6-8 weeks Request for quote
ST-52/21MCP-R
Micro-Channel Plate (MCP), Length 51.95±0.05mm, Width 51.95±0.05mm, Useful Area ≥47mm×47mm, Channel Dia. 21±1mm, Channel Pitch 25±1mm, Bias Angle 6°± 1°, Thickness 1.2±0.05mm, Resistance @500V 100～150MΩ, Gain ≥10000@1200V 		6-8 weeks Request for quote
