SIMTRUM's Macro Telecentric Lens 0.3 - 1X, Max. sensor size 2/3", WD 80 -185 mm. High resolution, low distortion, even brightness, suitable for high precision inspection and measurement.

Feature

Support MP camera with 2/3" sensor
Standard C-mount
Super high cost-efficient
Many magnifications is optional

Application

Can be applied in high precision measurement of large objects and machine vision industry.

Product specifications

Model		STPMS-04ML150	STPMS-05ML130	STPMS-06ML110	STPMS-07ML100	STPMS-1ML80	STPMS-03ML185
Magnification		0.4X	0.5X	0.6X	0.7X	1.0X	0.3X
FOV (mm)(HxV)	1/4"	8.0 x 6.0	9.6 x 7.2	8.0 x 6.0	6.9 x 5.1	4.8 x 3.6	16.0 x 12.0
	1/3"	12.0 x 9.0	12.8 x 9.6	10.7 x 8.0	9.1 x 6.9	6.4 x 4.8	21.3 x 16.0
	1/2.5"	14.4 x 10.8	14.3 x 10.7	11.9 x 8.9	10.2 x 7.7		23.8 x 17.9
	1/2.3"	15.4 x 11.6
	1/2"	16.0 x 12.0				7.1 x 5.4
	1/1.8"	17.9 x 13.4	17.6x 13.2	14.7x11.0	12.6x9.4	8.8x6.6	29.3x22.0
	2/3"	22.0 x 16.5
Working Distance		150 mm	130 mm	110 mm	100 mm	80 mm	185 mm
Resolution (μm)		10.17	8.18	7.29	6.71	6.99	13.98
F.No.		6.2	6.2	6.67	7.1	10.4	5.56
TV Distortion		0.02%	0.02%	0.02%	0.02%	0.02%	0.02%
DOF		3.3mm	1.95mm	1.45mm	1.14mm	0.83mm	5.56mm
Max.Sensor Size		2/3''	2/3''	2/3''	2/3''	2/3''	2/3''
Mount		C-Mount	C-Mount	C-Mount	C-Mount	C-Mount	C-Mount
Lighting		---	---	---	---	---	---
Working Temperature		-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃

Model	Magnification	Working Distance (mm)	Resolution (μm)	Max Sensor Size	Mount
Standard Telecentric Lens	0.5 - 2.0X	9.4 - 230	1.1 - 22.37	1/4",1/3",1/2"1/1.8'',2/3''	C-Mount
High Resolution Telecentric Lens	0.2 - 2.0X	65 - 150	5.59 - 20.14	2/3",1/2",1",1.1"	C-Mount
F Mount Big FOV Telecentric Lens	0.106 - 1X	127 - 468	10.82 - 34.95	35mm Film/4/3''	F-Mount
Macro Telecentric Lens	0.3X-1.0X	80 -185	6.71-13.98	2/3"	C-Mount
Double Magnification Bi-Telecentric Lens	0.16X & 0.7X 0.088X & 0.176X	120	25.81/7.63/30.5	1/1.8'',2/3'',1''	C-Mount

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)

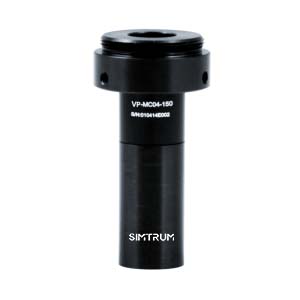

STPMS-04ML150 STPMS-04ML150，Macro Telecentric Lens 0.4X, Max. sensor size 2/3''，Resolution 10.17μm，Working Distance 150 mm	4-6 weeks	Request for quote

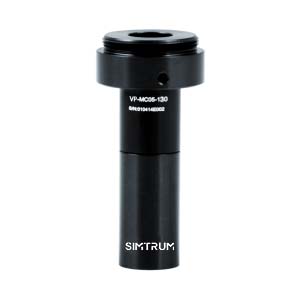

STPMS-05ML130 STPMS-05ML130，Macro Telecentric Lens 0.5X, Max. sensor size 2/3''，Resolution 8.18μm，Working Distance 130mm	4-6 weeks	Request for quote

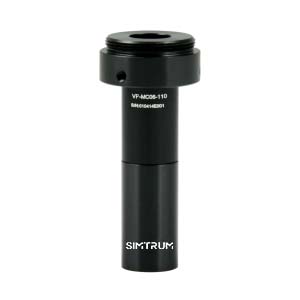

STPMS-06ML110 STPMS-06ML110，Macro Telecentric Lens 0.6X, Max. sensor size 2/3''，Resolution 7.29μm，Working Distance 110 mm	4-6 weeks	Request for quote

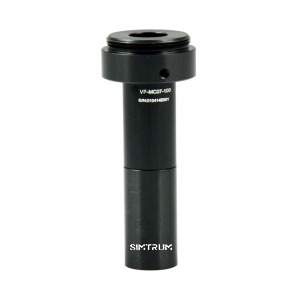

STPMS-07ML110 STPMS-07ML110，Macro Telecentric Lens 0.7X, Max. sensor size 2/3''，Resolution 6.71μm，Working Distance 110 mm	4-6 weeks	Request for quote

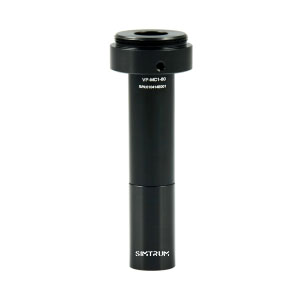

STPMS-1ML80 STPMS-1ML80，Macro Telecentric Lens 1.0 X, Max. sensor size 2/3''，Resolution 6.99 μm，Working Distance 80 mm	4-6 weeks	Request for quote

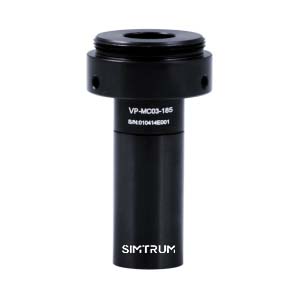

STPMS-03ML185 STPMS-03ML185，Macro Telecentric Lens 0.3X, Max. sensor size 2/3''，Resolution 13.98 μm，Working Distance 185 mm	4-6 weeks	Request for quote
