Products / Optics /Vision Lens /Telecentric Lens Series /H-Resolution Telecentric Lens /

H-Resolution Telecentric Lens

0.2X/0.37X 0.3-1.5 X 2X Dual Telecentric Related Product Order Now!

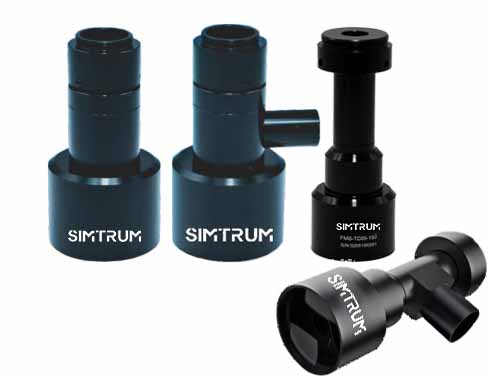

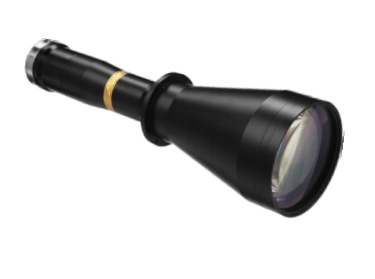

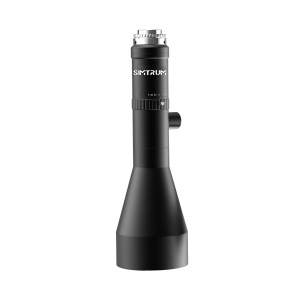

SIMTRUM's High Resolution Telecentric Lens 0.2X/0.37X, Max. sensor size 1" -1.1", WD 150 - 180 mm.With telecentric light design, low distortion, high telecentricity, high DOF, suitable for defects recognition, production auto inspection field.

Feature

All using the object telecentric design, with high depth of field, high resolution, low distortion characteristics.
Support 1 " or 1.1" of the target surface size camera.
Coaxial lightingoptional, uniform lighting.
The standard Cinterface.
Can be used with the steering prism.

Application

Mobile screen
PCB printing industry

Product specifications

Model	STPMS-02HT180	STPMS-02HT180-S	STPMS-037LHD150	STPMS-037LHD150-C
Magnification	0.2X		0.37X
Field of View (1/2")	32.0mm x 24.0mm		17.3mm x 13.0mm
Field of View (1/1.8")	35.7mm x 26.8mm		19.3mm x 14.5mm
Field of View (2/3")	44.0mm x 33.0mm		23.8mm x 17.8mm
Field of View (1")	64.0mm x 48.0mm		34.6mm x 25.6mm
Field of View (1/1.1")			38.1mm x 28.5mm
Working Distance	180 mm		150mm
Resolution (μm)	20.14μm	20.14μm (Adjustable)	11.18μm	11.18μm (Adjustable)
F.No.	6.0	6.0 (Adjustable)	6.0	6(Adjustable)
TV Distortion	0.01%		0.02%
DOF	12.0mm (Adjustable)		0.89mm	3.6mm (Adjustable)
N.A.	0.017 (Adjustable)		0.03	0.03 (Adjustable)
Max. Sensor Size	1"		1.1"
Mount	C-Mount		C-Mount
Lighting	Coaxial		Coaxial
Working Temperature	-10°C ~ +50°C		-10°C ~ +50°C

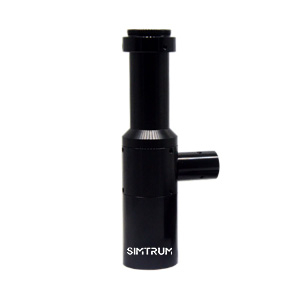

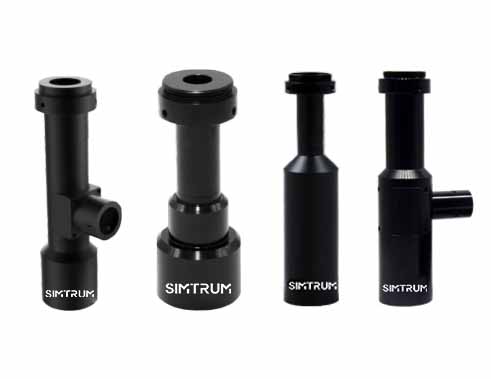

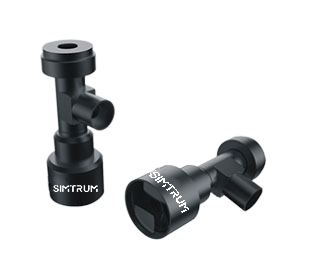

SIMTRUM's High Resolution Telecentric Lens 0.3X-1.5X,WD 110-150 mm. with telecentric optical design, super low distortion, high telecentric and deep DOF, which is suitable for defects recognition, production auto inspection field.

Feature

All using the object telecentric design, with high depth of field, high resolution, low distortion characteristics.
Support2/3' ofthe target surface size camera.
Coaxial lightingoptional, uniform lighting.
The standard Cinterface.
Can be used with the steering prism.

Application

Phone screen
PCB printing industries

Product specifications

Model	STPMS-03HT110	STPMS-03HT110-C	STPMS-05HT110	STPMS-05HT110-C	STPMS-05HT150	STPMS-05HT150-C
Magnification	0.3X		0.5X		0.5X
Field of View (1/4")	N/A		12.8mm x 9.6mm		N/A
Field of View (1/3")	16.0mm x 12.0mm		N/A		N/A
Field of View (1/2.5")	19.2mm x 14.4mm		N/A		N/A
Field of View (1/2.3")	20.5mm x 15.4mm		N/A		N/A
Field of View (1/2")	23.8mm x 17.9mm		14.3mm x 10.7mm		12.8mm x 9.6mm
Field of View (1/1.8")	29.3mm x 22.0mm		17.6mm x 13.2mm		14.3mm x 10.7mm
Field of View (2/3")	N/A		N/A		17.6mm x 13.2mm
Working Distance	110 mm		110 mm		150 mm
Resolution (μm)	11.18		17.66	12.43	17.66	12.43
F.No	4.99		13	9.26	13	9.26
TV Distortion	1.00%		3.00%	1.00%	3.00%	1.00%
DOF	4.44		4.21	2.96	4.21	2.96
N.A.	0.03		0.019	0.027	0.019	0.027
Max. Sensor Size	2/3"		2/3"		2/3"
Mount	C-Mount		C-Mount		C-Mount
Lighting	——	Coaxial	——	Coaxial	——	Coaxial
Working Temperature	-10°C~+50°C		-10°C~+50°C		-10°C~+50°C

Model	STPMS-1HT-110	STPMS-1HT-110-C	STPMS-1.2HT110	STPMS-1.2HT110-C	STPMS-1.5HT110	STPMS-1.5HT110-C
Magnification	1.0X		1.2X		1.5X
Field of View (1/4")	3.2mm x 2.4mm		---		---
Field of View (1/3")	4.8mm x 3.6mm		---	4.0mmx3.0mm	4.8mm x 3.6mm
Field of View (1/2.5")	5.7mm x 4.3mm		---		---
Field of View (1/2.3")	6.2mm x 4.6mm		---		---
Field of View (1/2")	6.4mm x 4.8mm		5.3mm x 4.0mm		4.3mm x 3.2mm
Field of View (1/1.8")	7.1mm x 5.4mm		6.0mm x 4.5mm		4.8mm x 3.6mm
Field of View (2/3")	8.8mm x 6.6mm		7.3mm x 5.5mm		5.9mm x 4.4mm
Working Distance	110mm		110mm		110mm
Resolution (μm)	7.46		6.71		5.59
F.No	11		12		12.5
TV Distortion	0.02%		0.01%		0.01%
DOF	0.89mm		0.67mm	0.27mm	0.44mm
N.A.	0.045		0.05	0.005	0.06
Max. Sensor Size	2/3"		2/3"		2/3"
Mount	C-Mount		C-Mount		C-Mount	C-Mount
Lighting	——	Coaxial	——	Coaxial	——	Coaxial
Working Temperature	-10°C~+50°C		-10°C~+50°C		-10°C~+50°C

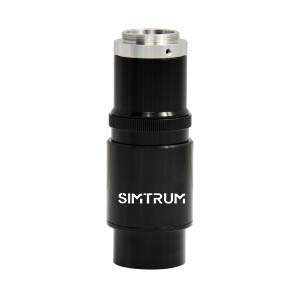

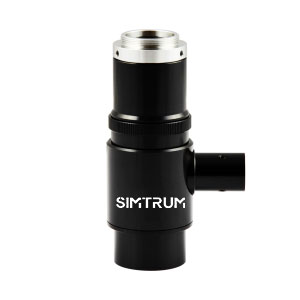

SIMTRUM'S High Resolution Telecentric Lens 2X, with telecentric light design, low distortion, high telecentricity, high DOF, suitable for defects recognition, production auto inspection field.

Feature

All using the object telecentric design, with high depth of field, high resolution, low distortion characteristics.
Support 1/2 '' or 2/3 '' of the target surface size camera.
Coaxial lighting optional, uniform lighting.
The standard C interface.
Can be used with the steering prism.

Application

Mobile phone screen
PCB printing industries

Product specifications

Model	STPMS-2HT65-S	STPMS-2HT65-C-S	STPMS-2HT110	STPMS-2HT110-C
Magnification	2.0X
Field of View (1/2")	3.2mm x 2.4mm		3.2mm x 2.4mm
Field of View (1/1.8")	---		3.6mm x 2.7mm
Field of View (2/3")	---		4.4mm x 3.3mm
Working Distance	65mm		110mm
Resolution (μm)	2.2 (Adjustable)		4.53
F.No	F6.6 (Adjustable)		13.5
TV Distortion	0.0005		0.0003
DOF	0.13mm (Adjustable)		0.27mm
N.A.	0.152 (Adjustable)		0.0074
Max. Sensor Size	1/2"		2/3"
Mount	C-Mount		C-Mount
Lighting		Coaxial		Coaxial
Working Temperature	-10°C~+50°C		-10°C~+50°C

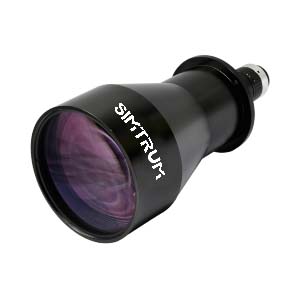

SIMTRUM's High Resolution Telecentric Lens 0.088 - 0.061 X, Max. sensor size 2/3", WD 120 -398 mm. With telecentric light design, low distortion, high telecentricity, high DOF, suitable for defects recognition, production auto inspection field.

Feature

All using the object telecentric design, with high depth ofﬁeld, high resolution, low distortion characteristics.
Support 2/3'' ofthe target surface size camera.
Coaxial lighting optional, uniform lighting.
The standard C interface.
Can be used with the steering prism.

Application

Factory automation
Machine vision industry

Product specifications

Model	STPMS-DTC23100-A	STPMS-DTC23100-D	STPMS-DTC23180
Magnification	0.088X		0.061X
Field of View (1/3")	54.5mm x 40.9mm		78.7mm x 59mm
Field of View (1/2")	72.7mm x 54.5mm		104.9mm x 78.7mm
Field of View (2/3")	Φ100		144.3mm x 108.2mm
Working Distance	120 mm	238 mm	398 mm
Resolution (μm)	45.8		87.99
F.No.	5.6		8.0
TV Distortion	-0.022%		0.01%
DOF	20 mm	16 mm	171.97 mm
N.A.	---		0.0038
Max.Sensor Size	2/3''		2/3''
Mount	C-Mount		C-Mount
Lighting	---		---
Working Temperature	-10℃~+50℃		-10℃~+50℃

Model	Magnification	Working Distance (mm)	Resolution (μm)	Max Sensor Size	Mount
Standard Telecentric Lens	0.5 - 2.0X	9.4 - 230	1.1 - 22.37	1/4",1/3",1/2"1/1.8'',2/3''	C-Mount
High Resolution Telecentric Lens	0.2 - 2.0X	65 - 150	5.59 - 20.14	2/3",1/2",1",1.1"	C-Mount
F Mount Big FOV Telecentric Lens	0.106 - 1X	127 - 468	10.82 - 34.95	35mm Film/4/3''	F-Mount
Macro Telecentric Lens	0.3X-1.0X	80 -185	6.71-13.98	2/3"	C-Mount
Double Magnification Bi-Telecentric Lens	0.16X & 0.7X 0.088X & 0.176X	120	25.81/7.63/30.5	1/1.8'',2/3'',1''	C-Mount

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STPMS-02HT180 STPMS-02HT180，High Resolution Telecentric Lens 0.2X, Max. sensor size 1"，Resolution 20.14 μm，Working Distance 180 mm	4-6 weeks	Request for quote
STPMS-02HT180-S STPMS-02HT180-S，High Resolution Telecentric Lens 0.2X, Max. sensor size 1"，Resolution 20.14μm (Adjustable)，Working Distance 180 mm	4-6 weeks	Request for quote
STPMS-037LHD150 STPMS-037LHD150，High Resolution Telecentric Lens 0.372X, Max. sensor size 1.1，Resolution 11.18 μm，Working Distance 150 mm	4-6 weeks	Request for quote
STPMS-037LHD150-C STPMS-037LHD150-C，High Resolution Telecentric Lens 0.37X, Max. sensor size 1.1，Resolution 11.18μm (Adjustable)，Working Distance 150 mm	4-6 weeks	Request for quote
STPMS-03HT110 STPMS-03HT110，High Resolution Telecentric Lens 0.3X, Max. sensor size 2/3"，Resolution 11.18μm ，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-03HT110-C STPMS-03HT110-C，High Resolution Telecentric Lens 0.3X, Max. sensor size 2/3"，Resolution 11.18μm，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-05HT110 STPMS-05HT110，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 17.66 μm，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-05HT110-C STPMS-05HT110-C，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 12.43 μm，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-05HT150 STPMS-05HT150，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 17.66 μm，Working Distance 150 mm	4-6 weeks	Request for quote
STPMS-05HT150-C STPMS-05HT150-C，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 12.43 μm，Working Distance 150 mm	4-6 weeks	Request for quote
STPMS-1HT-110 STPMS-1HT-110，High Resolution Telecentric Lens 1X, Max. sensor size 2/3"，Resolution 7.46 μm，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-1HT-110-C STPMS-1HT-110-C，High Resolution Telecentric Lens 1X, Max. sensor size 2/3"，Resolution 7.46 μm，Working Distance 110 mm,Lighting Coaxial	4-6 weeks	Request for quote
STPMS-1.2HT110 STPMS-1.2HT110，High Resolution Telecentric Lens 1.2X, Max. sensor size 2/3"，Resolution 6.71 μm，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-1.2HT110-C STPMS-1.2HT110-C，High Resolution Telecentric Lens 1.2X, Max. sensor size 2/3"，Resolution 6.71 μm，Working Distance 110 mm,Lighting Coaxial	4-6 weeks	Request for quote
STPMS-1.5HT110 STPMS-1.5HT110，High Resolution Telecentric Lens 1.5X, Max. sensor size 2/3"，Resolution 5.59 μm，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-1.5HT110-C STPMS-1.5HT110-C，High Resolution Telecentric Lens1.5X, Max. sensor size 2/3"，Resolution 5.59 μm，Working Distance 110 mm,Lighting Coaxial	4-6 weeks	Request for quote
STPMS-2HT65-S STPMS-2HT65-S，High Resolution Telecentric Lens 2.0X, Max. sensor size 1/2"，Resolution 2.2μm (Adjustable)，Working Distance 65mm	4-6 weeks	Request for quote
STPMS-2HT65-C-S STPMS-2HT65-C-S，High Resolution Telecentric Lens 2.0X, Max. sensor size 1/2"，Resolution 2.2μm (Adjustable)，Working Distance 65mm,Lighting Coaxial	4-6 weeks	Request for quote
STPMS-2HT110 STPMS-2HT110，High Resolution Telecentric Lens 2.0 X, Max. sensor size 2/3"，Resolution 4.53 μm ，Working Distance 110 mm	4-6 weeks	Request for quote
STPMS-2HT110-C STPMS-2HT110-C，High Resolution Telecentric Lens 2.0X, Max. sensor size 2/3"，Resolution 4.53μm，Working Distance 110 mm,Lighting Coaxial	4-6 weeks	Request for quote
STPMS-DTC23100-A STPMS-DTC23100-A，High Resolution Telecentric Lens 0.088X, Max. sensor size 2/3"，Resolution 45.8 μm，Working Distance 120 mm	4-6 weeks	Request for quote
STPMS-DTC23100-D STPMS-DTC23100-D，High Resolution Telecentric Lens 0.088X, Max. sensor size 2/3"，Resolution 45.8 μm，Working Distance 238 mm	4-6 weeks	Request for quote
STPMS-DTC23180 STPMS-DTC23180，High Resolution Telecentric Lens 0.061X Max. sensor size 2/3"，Resolution 87.99 μm，Working Distance 398 mm	4-6 weeks	Request for quote
