SIMTRUM's F-mount telecentric lens is specially designed for full frame sensor with 10MP resolution, perfectly suitable for 4K and 8K linear array camera.Designed for full-megapixel full-frame sensor, super big FOV and super low distortion design.

Feature

Super big inspection FOv, high resolution bi-telecentric design,specially design for accuratemeasurement of big FOV objectives.
High telecentricity calibration, test result will bethe same within DOF.
Superlow distortion design, the FOV tolerance issmall (before calibration by software), after increasethe FOv.
Simple and stable mechanical design, suitable forall kinds ofindustryenvironment.

Application

Widely used in a variety of large-size objects of high-precision measurement, such as large-size mobile phone screen
PCB board, flat glass, engine parts, air conditioning compressor parts etc

Product specifications

Model		STPMS-1TF127	STPMS-017TF416	STPMS-0206TF468	STPMS-024TF398	STPMS-05TF179
Magnification		1X	0.17X	0.206X	0.24X	0.5X
FOV (mm)(HxV)	Linear Array-2K (2K×10um)	20.0	120.6	99.5	85.4	41.0
	Linear Array-4K (2K×10um)	28.4	168.8	139.3	119.6	57.4
	Linear Array-8K (2K×10um)	40.0	241.2	199.0	170.8	82.0
	35mm	36.0x24.0	211.8 x 141.2	174.8 x 116.5	150 x 100	72.0 x 48.0
Resolution (μm)		10.82	31.56	21.16	30.76	18.18
F.No.		16	8	6.5	11	13
TV Distortion		0.01%
DOF		1.29mm	22.14mm	12.24mm	15.28mm	4.34mm
Dia./Width		88.5mm	288mm	238mm	203mm	114mm
Max.Sensor Size		35mm Film
Mount		F-Mount
Objective Side Telecentricity		<0.02°
Working Temperature		-10℃~+50℃

Model		STPMS-0106TF468
Magnification		0.106X
FOV (mm)(HxV)	1/3"	45.3 x 30.4
	1/2.5"	54.2 x 40.7
	1/2"	60.4x45.3
	1/1.8"	67.7 x 50.6
	2/3"	83.0 x 62.3
	1"	120.8x90.6
	4/3"	175.1x131.3
Resolution (μm)		34.95
F.No.		5.5
TV Distortion		0.02%
DOF		39.31mm
Dia./Width		238mm
Max.Sensor Size		4/3''
Mount		F-Mount
Objective Side Telecentricity		<0.02°
Working Temperature		-10℃~+50℃

Model	Magnification	Working Distance (mm)	Resolution (μm)	Max Sensor Size	Mount
Standard Telecentric Lens	0.5 - 2.0X	9.4 - 230	1.1 - 22.37	1/4",1/3",1/2"1/1.8'',2/3''	C-Mount
High Resolution Telecentric Lens	0.2 - 2.0X	65 - 150	5.59 - 20.14	2/3",1/2",1",1.1"	C-Mount
F Mount Big FOV Telecentric Lens	0.106 - 1X	127 - 468	10.82 - 34.95	35mm Film/4/3''	F-Mount
Macro Telecentric Lens	0.3X-1.0X	80 -185	6.71-13.98	2/3"	C-Mount
Double Magnification Bi-Telecentric Lens	0.16X & 0.7X 0.088X & 0.176X	120	25.81/7.63/30.5	1/1.8'',2/3'',1''	C-Mount

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)

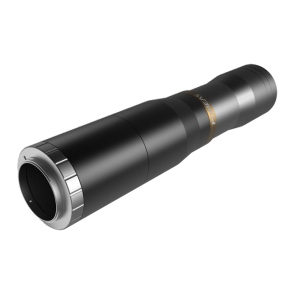

STPMS-1TF127 STPMS-1TF127，F-mount telecentric lens 1X Max. sensor size 35mm Film，Resolution 10.82 μm，Working Distance 127 mm	4-6 weeks	Request for quote

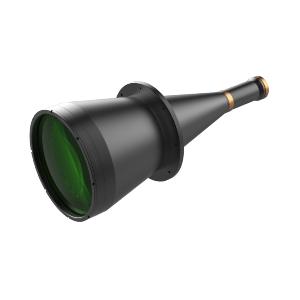

STPMS-017TF416 STPMS-017TF416，F-mount telecentric lens 0.17X, Max. sensor size 35mm Film，Resolution 31.56 μm，Working Distance 416 mm	4-6 weeks	Request for quote

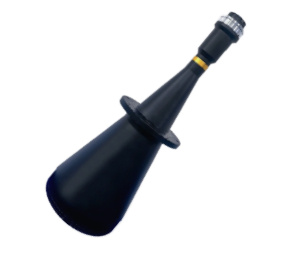

STPMS-0206TF468 STPMS-0206TF468，F-mount telecentric lens 0.206X, Max. sensor size 35mm Film，Resolution 21.16 μm，Working Distance 468 mm	4-6 weeks	Request for quote

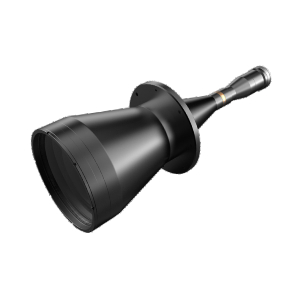

STPMS-024TF398 STPMS-024TF398，Standard Telecentric Lens 0.24X, Max. sensor size 35mm Film，Resolution 30.76 μm，Working Distance 398 mm	4-6 weeks	Request for quote

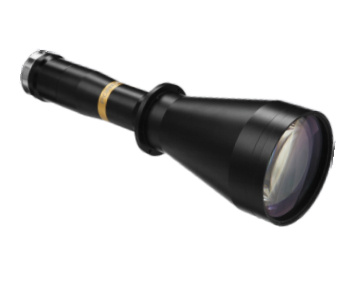

STPMS-05TF179 STPMS-05TF179，F-mount telecentric lens 0.5X, Max. sensor size 35mm Film，Resolution 18.18 μm，Working Distance 179 mm	4-6 weeks	Request for quote

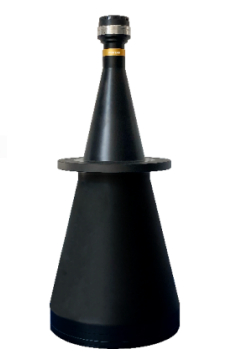

STPMS-0106TF468 STPMS-0106TF468，F-mount telecentric lens 0.106X, Max. sensor size 4/3''，Resolution 34.95 μm，Working Distance 468 mm	4-6 weeks	Request for quote
