Standard Telecentric Lens

1X 1.5X 2X 0.5/0.8/8.0/10 X Related Product Order Now!

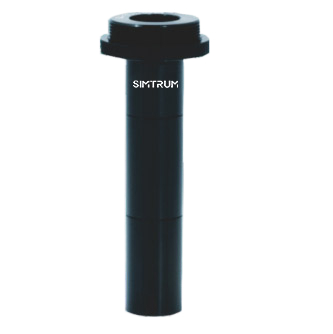

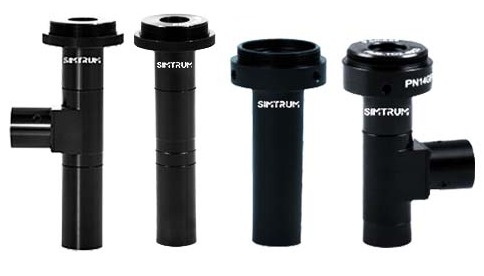

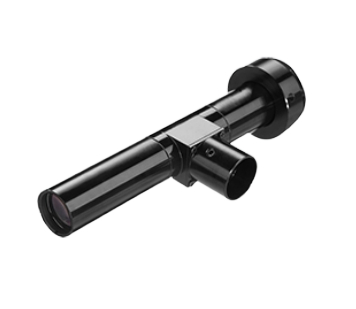

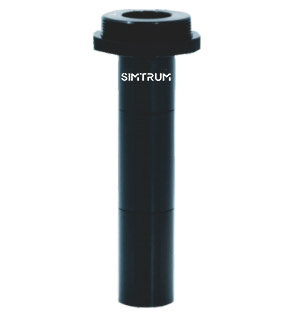

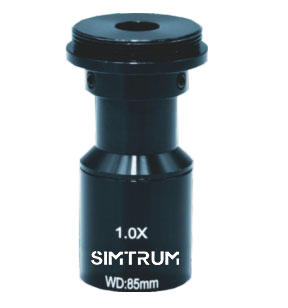

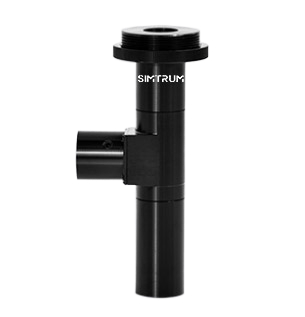

SIMTRUM'S Standard Telecentric Lens 1X, Max. sensor size 1/2" ,2/3", 1/1.8" .WD 65 - 200mm.This series lenses are fixed magnification and working distance. All of them adopt the object-square telecentric design, featuring high depth of field, high resolution and low aberration. It has super high cost performance and supports customized services.

Feature

Support 1MP camera or below
Low distortion, high telecentricity and deep depth of field,more suitable for high precision positioning and measuring
Telecentric design
Support 1/2" 2/3" 1/1.8" sensor
Standard C-Mount

Application

Cell phone screen alignment
PCB printing

Product specifications

Model		STPMS-1ST65/1ST65-C		STPMS-1ST85	STPMS-1ST110	STPMS-1ST110-C	STPMS-1ST200	STPMS-1ST200-C
Magnification		1.0X
Field of View	1/4"	3.2mmx2.4mm	——	3.2mmx2.4mm	3.2mmx2.4mm	——	3.2mmx2.4mm	3.2mmx2.4mm
	1/3"	4.8mmx3.6mm	4.8mmx3.6mm	4.8mmx3.6mm	4.8mmx3.6mm	4.8mmx3.6mm	4.8mmx3.6mm	4.8mmx3.6mm
	1/2.5"	5.7mmx4.3mm	5.7mmx4.3mm	5.7mmx4.3mm	——	5.7mmx4.3mm	——	5.7mmx4.3mm
	1/2.3"	6.2mmx4.6mm	6.2mmx4.6mm	6.2mmx4.6mm	——	6.2mmx4.6mm	——	6.2mmx4.6mm
	1/2"	6.4mmx4.8mm	6.4mmx4.8mm	6.4mmx4.8mm	6.4mmx4.8mm	6.4mmx4.8mm	6.4mmx4.8mm	6.4mmx4.8mm
	1/1.8"	——	——	7.1mmx5.4mm	——	——	7.1mmX5.4mm	7.1mmX5.4mm
	2/3"	——	——	8.8mmx6.6mm	——	——	——	——
Working Distance		65mm		85mm	110mm		200士10mm
Resolution(μm)		10μm	10μm	8.39um	13.42	13.42	22.37μm	22.37μm
F.No.		14.29	14.29	12.4	19.94	19.94	33.18	33.18
TVDistortion		0.01%	0.01%	0.002%	0.02%	0.02%	0.02%	0.02%
DepthofField*1		1.1mm	1.1mm	1.00mm	1.6mm	1.6mm	2.67mm	2.67mm
N.A.		0.0035	0.0035	0.04	0.025	0.025	0.025	0.025
Max.Sensor Size		1/2"		2/3"	1/2"		1/1.8"
Mount		C-Mount
lllumination		——		——	---/Coaxial	Coaxial	Coaxial	Coaxia
WorkingTemperature		-10°C-+50°℃

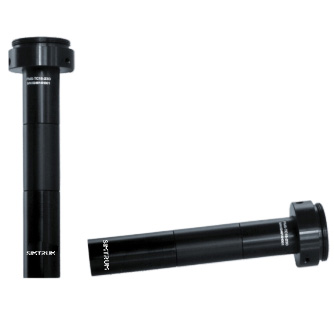

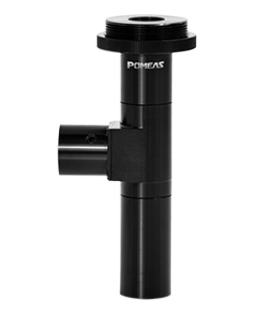

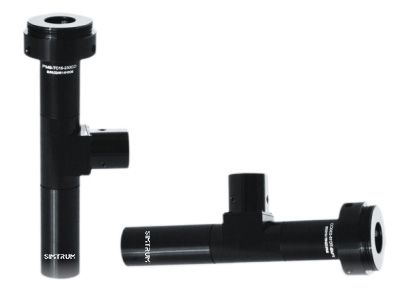

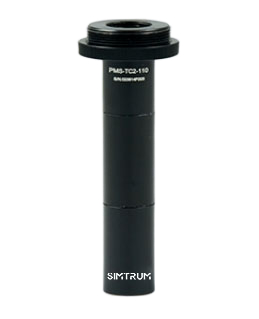

SIMTRUM'S Standard Telecentric Lens 1.5X, Max. sensor size 2/3" or 1/1.8", WD 110 -230 mm.This series telecentric lens have fixed magnification and working distance. High resolution, low distortion, super cost-effective high performance, support custom services.

Feature

This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion.
Support C-mount camera with max sensor size as 2/3",1/1.8"
With fixed magnification and working distance.
Coaxial function is optional, coaxial light is even.
Standard C-mount.
Can work with prism.

Application

Positioning inspection of mobile screen
PCB printing industry

Product specifications

Model		STPMS-1.5ST110/1.5ST110-C	STPMS-1.5ST230/1.5ST230-C
Magnification		1.5X	1.5X
Field of View	1/4"	2.1mmx1.6mm	2.1mmx1.6mm
	1/3"	3.2mmx2.4mm	3.2mmx2.4mm
	1/2.5"	——	3.8mmx2.9mm
	1/2.3"	——	4.1mmX3.1mm
	1/2"	4.3mmx3.2mm	4.3mmX3.2mm
	1/1.8"	4.8mmX3.6mm	4.8mmX3.6mm
	2/3"	5.9mmx4.4mm	——
Working Distance		110mm	230mm
Resolution(μm)		12.43μm	16.78μm
F.No.		27.8	37.5
TVDistortion		0.02%	0.02%
DOF		0.99mm	1.33mm
NA.		0.027	0.02
Max.Sensor Size		2/3"	1/1.8"
Mount		C-Mount
lighting		--/Coaxial	——	--/Coaxial
Working Temperature		-10℃~+50℃

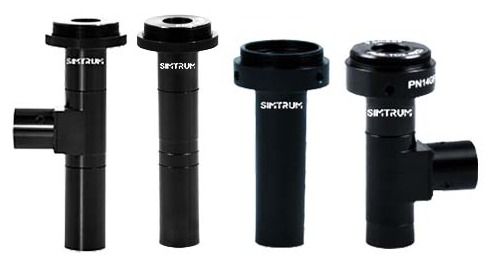

SIMTRUM'S Standard Telecentric Lens 2X, Max. sensor size 1/2" or 2/3", WD 40.4 - 150 mm. This series telecentric lens have fixed magnification and working distance. High resolution, low distortion, super cost-effective high performance, support custom services.

Feature

This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion.
Support C-mount camera with max sensor size as 1/2",2/3".
With fixed magnification and working distance.
Coaxial function is optional, coaxial light is even.
Standard C-mount.
Can work with prism.

Application

Mobile screen
PCB printing industry

Product specifications

Model		STPMS-2ST40	STPMS-2ST40-C	STPMS-2ST110	STPMS-2ST110-C	STPMS-2ST150-C	STPMS-2ST150
Magnification		2.0X
Field of View	1/4"	1.6mm x 1.2mm	——	1.6mm x 1.2mm	——	1.6mm x 1.2mm	——
	1/3"	2.4mm x 1.8mm	2.4mm x 1.8mm	2.4mm x 1.8mm	2.4mm x 1.8mm	2.4mm x 1.8mm	2.4mm x 1.8mm
	1/2.5"	2.9mm x 2.2mm	2.9mm x 2.2mm	2.9mm x 2.2mm	2.9mm x 2.2mm	——	2.9mm x 2.2mm
	1/2.3"	3.1mm x 2.3mm	3.1mm x 2.3mm	3.1mm x 2.3mm	3.1mm x 2.3mm	——	3.1mm x 2.3mm
	1/2"	3.2mm x 2.4mm	3.2mm x 2.4mm	3.2mm x 2.4mm	3.2mm x 2.4mm	3.2mm x 2.4mm	3.2mm x 2.4mm
	1/1.8"	——	——	3.6mm x 2.7mm	3.6mm x 2.7mm	——	——
	2/3"'	——	——	4.4mm x 3.3mm	3.6mm x 2.7mm	——	——
Working Distance		40.4mm		110mm		150+5mm
Resolution (μm)		3μm		8μm		13.42μm
F.No.		10		25		40.1	10
TV Distortion		0.0004		0.0001		0.0003
DOF		0.2mm		0.5mm		0.8mm
N.A.		0.1		0.04 0.04		0.025	0.1
Max. Sensor Size		1/2"		2/3"		1/2"
Mount		C-Mount
Lighting		--	--	--	Coaxial	--	--
Working Temperature		-10°C-+50°℃

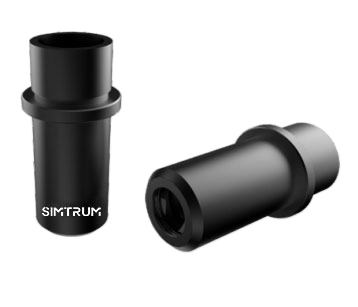

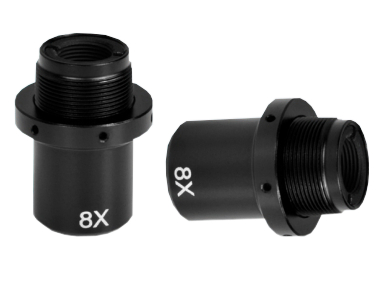

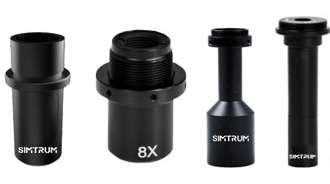

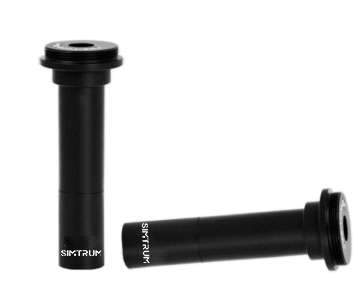

SIMTRUM's series telecentric lens have fixed magnification and working distance. High resolution, low distortion, super cost-effective high performance, support custom services.

Feature

This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion.
Support M12-mount camera with max sensor size as 1/4",1/3",1/2"
With fixed magnification and working distance.
Coaxial function is optional, coaxial light is even.
Can work with prism.

Application

Positioning inspection of mobile screen
PCB printing industry

Product specifications

Model		STPMS-0.5ST40	STPMS-0.8ST90	STPMS-8GX9.5	STPMS-10GX9.54
Magnification		0.5X	0.8X	8.0X	10X
Field of View	1/4"	6.4mm x 4.8mm	4.0mm x 3.2mm	0.4mm x 0.3mm	0.32mm x 0.24mm
	1/3"	9.6mm x 7.2mm	6.0mm x 4.5mm	0.6mm x 0.5mm	-
	1/2.5"	11.5mm x 8.6mm	7.2mm x 5.4mm	-	-
	1/2.3"	12.3mm x 9.2mm	7.7mm x 5.8mm	-	-
	1/2"	12.8mm x 9.6mm	8.0mm x 6.0mm	-	-
Working Distance		40mm	90.5mm	9.5mm	9.4mm
Resolution		6.7μm	8.947μm	1.1μm	1.2μm
F.No.		5	10.67	13.3	17.768
TV Distortion		0.07%	0.02%	0.07%	0.06%
Depth of Field		1.6mm	1.33mm	0.017mm	0.014mm
N.A.		0.05	0.0375	0.3	0.28
Max.Sensor Size		1/2"	1/2"	1/3"	1/4"
Mount		C-Mount	C-Mount	C-Mount	M12
Illumination		--/Coaxial	--	--	--
Working Temperature		-10°C~+50°C

Model	Magnification	Working Distance (mm)	Resolution (μm)	Max Sensor Size	Mount
Standard Telecentric Lens	0.5 - 2.0X	9.4 - 230	1.1 - 22.37	1/4",1/3",1/2"1/1.8'',2/3''	C-Mount
High Resolution Telecentric Lens	0.2 - 2.0X	65 - 150	5.59 - 20.14	2/3",1/2",1",1.1"	C-Mount
F Mount Big FOV Telecentric Lens	0.106 - 1X	127 - 468	10.82 - 34.95	35mm Film/4/3''	F-Mount
Macro Telecentric Lens	0.3X-1.0X	80 -185	6.71-13.98	2/3"	C-Mount
Double Magnification Bi-Telecentric Lens	0.16X & 0.7X 0.088X & 0.176X	120	25.81/7.63/30.5	1/1.8'',2/3'',1''	C-Mount
