Metallographic Upright / Inverted Microscope

Upright STUM Transflective STUMT Inverted STXJP Inverted STDM FAQs Order Now!

The SIMTRUM STUM202i & STUM203i Metallographic Microscopes are designed for detailed material examination. They feature a UCIS optical system for high-resolution imaging and a range of objective lenses for diverse magnification options. These microscopes are equipped with a precise focusing system and a mechanical stage to facilitate the analysis of metallic structures. They are typically used in industrial material inspections, engineering applications, and educational settings for the study of metallography.

Features

UCIS optical system for sharp imaging
Objective lenses: 10X, 20X, 50X, 80X for varied magnification
Mechanical stage for precise sample maneuvering
Focusing system with fine adjustment capabilities

Applications

Industrial material inspection
Metallurgical analysis and research
Engineering and manufacturing quality control
Educational use for metallurgy and materials science studies

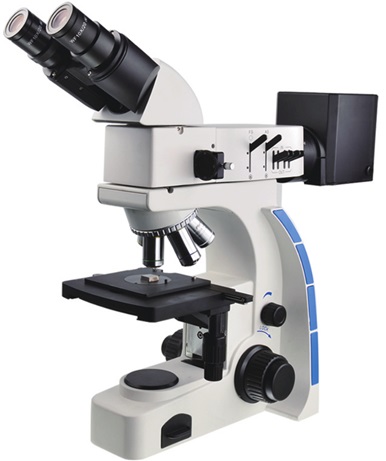

STUM202i

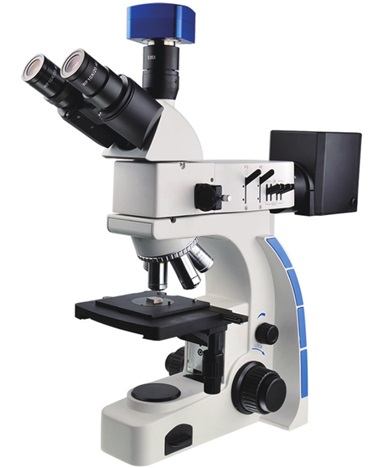

STUM203i

Standard Configuration Technical Parameters

Optical system	UCIS infinite chromatic aberration independently corrected optical system
Observation tube	Hinged binocular/trinocular observation head, interpupillary distance 52~75mm, 30° tilt, 360° rotation, adjustable diopter
Eyepiece	High eye point plan eyepiece 10X/Φ20mm, plan polarizing reticle eyepiece 10X/Φ20mm
Objective lens	Infinity stress-free plan achromatic objective lens 4X, 10X, 40X (S), 60X (S)
Converter	Inward-tilt internal positioning four-hole adjustable center converter with objective lens center adjustment wrench
Focusing mechanism	Low position coarse and fine adjustment coaxial focusing handwheel, fine adjustment accuracy 0.001mm, coarse movement and tightness adjustable, 17mm/revolution, upper limit positioning device of the workbench, maximum stroke 13mm, the position of the coarse and fine focusing handwheel can be adjusted up and down to meet the needs of different users need
Stage	156×138mm, with moving ruler, moving range 76×54mm, accuracy 0.1mm; X, Y-direction low coaxial adjustment handwheel
Polarizing device	Polarizer plug-in, analyzer plug-in
Camera connector	0.65X camera C-port (trinocular)
Lighting system	12V/50W halogen lamp reflective lighting, brightness continuously adjustable

The SIMTRUM STUMT202i & STUMT203i Transflective Metallographic Microscopes are notable for their versatility in both transmitted and reflected light capabilities, which is essential for detailed metallographic analysis. These models stand out for their ability to provide high-quality images of metallic grain structures, inclusions, and other micro-features critical to understanding material properties. The precision mechanics, high numerical aperture, and comprehensive magnification range make these instruments highly recommendable for advanced materials research and industrial quality control.

Features

UCIS Infinity Chromatic Aberration Independent Correction Optical System, Magnification Up to 40-1600X
The helical tooth design of the upper and lower lifting mechanism of the stage can withstand the pressure of 2-5kg without sliding
The condenser aperture diaphragm is equipped with the same mark as the color circle of the objective lens, which can quickly and accurately obtain the appropriate amount of light to achieve the best image resolution
The patented technology of microscope heat dissipation ensures that the microscope host can still maintain a low temperature under 24 working conditions

Applications

Ideal for electronics, metallurgy, chemical, and instrumentation industries.
Observes various materials: transparent, translucent, and opaque.
Useful for inspecting gas springs, manifolds, PCBs, LCD panels, films, fibers, textiles, and coatings.
Applicable in medical, agricultural, forensic, educational, and research sectors.
Perfect for studies in metallurgy, mineralogy, precision engineering, electronics.
Compatible with digital photography and video devices for detailed analysis.

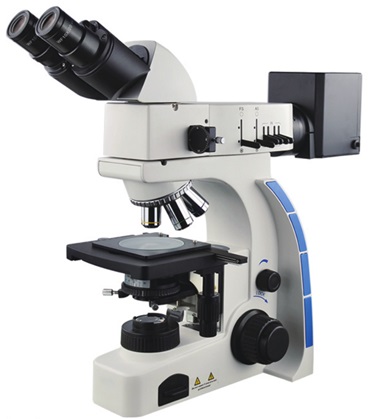

STUMT202i

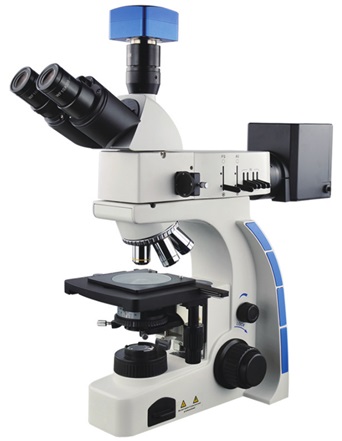

STUMT203i

Standard Configuration Technical Parameters

Optical system	UCIS infinite chromatic aberration independently corrected optical system
Observation tube	Hinged binocular/trinocular observation head, interpupillary distance 52~75mm, 30° tilt, 360° rotation, adjustable diopter
Eyepiece	High eye point plan eyepiece 10X/Φ20mm, flat field reticle eyepiece 10X/Φ20mm, anti-mildew function
Objective lens	Infinity long distance plan objective lens (mildew-proof), 10X, 20X, 50X, 80X
Converter	Internally positioned five-hole converter
Focusing mechanism	Low position coarse and fine adjustment coaxial focusing handwheel, fine adjustment accuracy 0.001mm, coarse movement and tightness adjustable, 17mm/revolution, upper limit positioning device of the workbench, maximum stroke 13mm, the position of the coarse and fine focusing handwheel can be adjusted up and down to meet the needs of different users need
Stage	156×138mm, with moving ruler, moving range 76×54mm, accuracy 0.1mm; X, Y-direction low coaxial adjustment handwheel
Polarizing device	Polarizer plug-in, analyzer plug-in
Camera connector	0.65X camera C-port (trinocular)
Condenser	Abbe condenser NA1.25
Lighting system	12V/50W halogen lamp reflective lighting, brightness continuously adjustable; 6V/20W halogen lamp transmissive lighting, brightness continuously adjustable

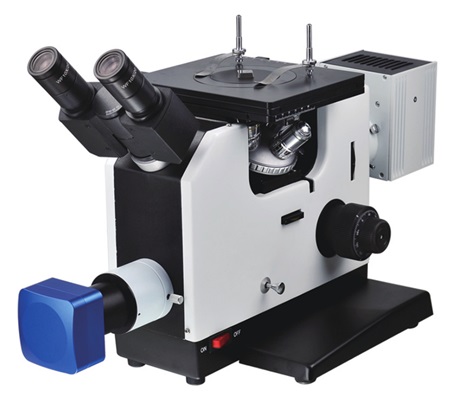

The SIMTRUM STXJP-6A Inverted Metallurgical Microscope is designed for industrial and research applications where detailed analysis of metal structures is required. Its capabilities include a range of objective lenses for various magnification needs, a rotatable stage for comprehensive viewing of specimens, and precise focusing for high-resolution imaging. This microscope is suitable for tasks in metallurgy, material science, and quality control, offering the versatility needed for both reflective and transmitted light observation. It is also adaptable for digital imaging integration, enhancing its utility in detailed material analysis.

Features

Excellent optical system design ensures that the field of view is wide, flat and clear.
Using the ergonomic design concept, the structure is reasonable and reliable, and the operation is very convenient and easy.
The high contrast objective can improve the contrast of objects with low reflective surfaces.
Binocular observation can be synchronized with photography and videography.
Polarization optics are extremely clear for the analysis of metallographic structure, crystal powder and inclusions.

Applications

Identifies and analyzes microstructures of metals, alloys, and non-metallic substances.
Inspects surfaces of integrated circuits, microparticles, wires, fibers, and surface coatings.
Widely utilized in metallurgical, casting, machinery, and shipbuilding industries.
Essential for quality inspection in industrial and educational lab settings.

Standard Configuration Technical Parameters

Frame	The all-metal die-cast body is strong and stable, and the side cover structure is easy to disassemble and maintain.
Observation tube	Hinge-type binocular observation head, observation angle 45°, interpupillary distance 55~75mm
Eyepiece	Anti-mildew function, flat field 10X (broadband film system) eyepiece, field of view (FN=18mm), eye point distance 18mm
Objective lens	Plan achromatic objective lens (anti-mildew function), 10X/0.25, 20X/0.35, 40X/0.65(s), 100X/1.25(s)(oil)
Converter	Four-hole internal positioning converter
Focusing mechanism	Coarse action coaxial focusing handwheel, with elbow rest; micro handwheel 0.2mm/turn, grid value 0.002mm; coarse action tightness adjustable, workbench upper limit device, maximum stroke 5mm (Z direction)
Stage	180X155mm, the moving range is 80X53mm, and it is equipped with three inner hole sizes of slides: Φ16, Φ25, and Φ40, suitable for observing samples of different sizes. The X and Y direction low-position coaxial adjustment handwheels
Concentrating system	Equipped with four color filters (yellow, blue, green, gray) and polarizing plate jack, suitable for observing samples in various ways
Lighting system	Built-in 6V/30W halogen lamp, the brightness can be continuously adjusted, plug-in lamp holder (easy to replace the bulb), 110~240V adaptive power system; the chassis space is large, sufficient heat dissipation space, the light source can work continuously for 24 hours and the chassis still maintains a relatively stable low temperature

The SIMTRUM STDM2000X & STDM5000X Inverted Metallographic Microscopes offer exceptional insights into the structural composition of materials. These inverted metallographic microscopes are engineered for precision, durability, and clarity, enabling detailed analysis of a wide range of metallurgical samples.

Features

UCIS optical system for clear, high-resolution images.
Wide range of objective lenses for various magnifications.
Large mechanical stage for precise sample handling.
High-intensity halogen lighting for bright, consistent illumination.
Coaxial focusing mechanism for sharp, easy adjustments.

Applications

Industrial material inspection and analysis.
Metallurgical research in laboratory settings.
Educational use for studying material properties.
Quality control processes in manufacturing.

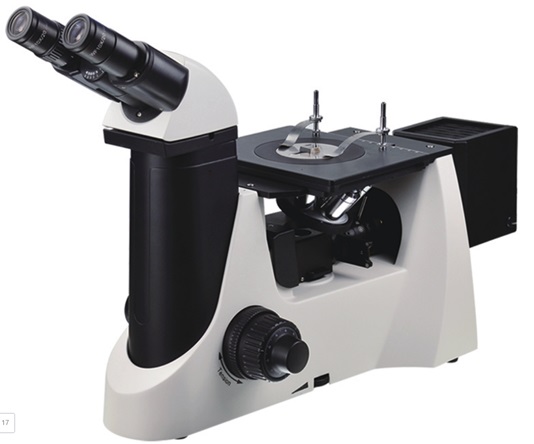

STDM2000X

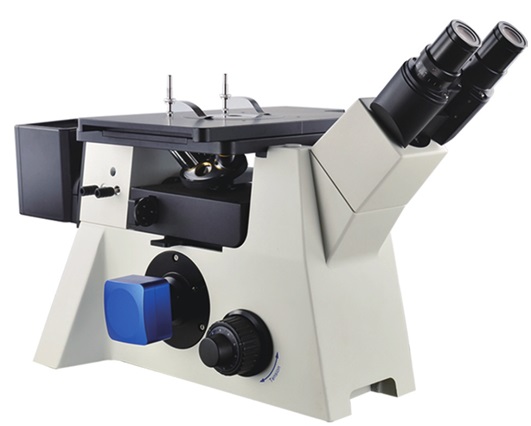

STDM5000X

Standard Configuration Technical Parameters

	STDM2000X	STDM5000X
Optical system	UCIS infinite chromatic aberration independently corrected optical system	UCIS infinite chromatic aberration independently corrected optical system
Observation tube	Hinged binocular/trinocular observation head, interpupillary distance 48~75mm, adjustable diopter	Hinged binocular observation head, 45° tilt angle, interpupillary distance 52~75mm, adjustable diopter
Eyepiece	High eye point plan eyepiece 10X/Φ20mm, plan reticle eyepiece 10X/Φ18mm, adjustable diopter	High eye point plan eyepiece 10X/20mm
Objective lens	Infinity long working distance plan achromatic objective lens 10X, 20X(S), 50X(S), 80X(S)	Infinity long working distance plan achromatic objective lens 10X, 20X(S), 50X(S), 80X(S)
Converter	Internally positioned five-hole converter	Internally positioned five-hole converter
Stage	Mechanical moving stage 180×155mm, moving range 80X50mm; water droplet slide (Φ110); tablet pressing group	Mechanical moving stage, size 350×208mm, moving range 50X50mm; water droplet slide (Φ118); tablet press set
Starting & Analyzing device	Polarizer group, analyzer group	Polarizer group, analyzer group
Color filter	Blue, yellow, green color filter set (Φ32)	Blue, yellow, green color filter set (Φ32)
Camera connector	1X camera C-port	0.5X camera C-port
Lighting system	100W halogen lamp light box, 12V/50WOsram halogen bulb, 12V/50W halogen lamp power pack, metallographic epi-illuminator	12V/100W halogen lamp light box, 12V/50WOsram halogen bulb, 12V/50W halogen lamp power box

Q1: What is a metallographic microscope used for?

A1: It's used to examine the microstructure of metals and materials to study their composition, grain size, and properties.

Q2: Can I analyze non-metallic samples with a metallographic microscope?

A2: Yes, it can be used for a variety of materials, including ceramics and polymers, as long as they are suitably prepared.

Q3: Does the microscope come with different magnification options?

A3: Typically, yes. It should include a range of objective lenses for various magnification needs.

Q4: Is the lighting adjustable on a metallographic microscope?

A4: Most models feature adjustable lighting to enhance the contrast and details of the sample's structure.

Q5: Can I capture and save images using a metallographic microscope?

A5: Many come with built-in cameras or attachments for digital image capture and documentation.

Q6: What kind of sample preparation is required?

A6: Samples usually need to be polished and sometimes etched to reveal the microstructure.

Q7: How do I maintain the microscope?

A7: Regular cleaning and careful handling are important. Follow our instructions for maintenance.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.
