Plan Apochromatic Objective
SIMTRUM provides plan apochromatic objective for imcroscope application,including visible, NIR and NUV objectives.
| Name |
Wavelength |
Magnification |
NA |
WD(MM) |
F(MM) |
R(um) |

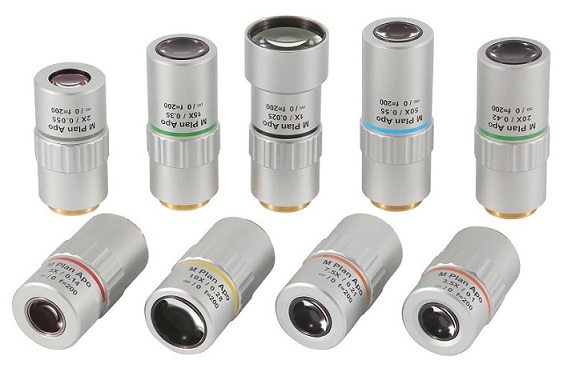

| Plan Apochromatic Objective VIS |
VIS |
1X to 50X |
0.025 to 0.55 |
13 to 41 |
4 to 200 |
0.5 to 11 |
| Plan Apohromatic Objective High Resolution VIS |
VIS |
5X,10X,20X,100X |
0.21, 0.42, 0.6, 0.9 |
9.5, 14, 15, 25 |
2, 10, 20, 40 |
0.3, 0.5, 0.7, 13 |
| Plan Apochromatic Objective Super Long Working Distance VIS |
VIS |
20X,50X,100X |
0.29, 0.42, 0.55 |
13, 20, 30 |
2, 4, 10 |
0.5, 0.7, 0.9 |
| Plan Apochromatic Objective NIR |
NIR |
20X,50X |
0.42, 0.55 |
13, 20 |
4, 10 |
0.5, 0.65 |
| Plan Apochromatic Objective High Resolution NIR |
NIR |
20X,50X |
0.6, 0.67, 0.75 |
0.4, 0.95, 10 |
4, 10 |
0.37, 0.41, 0.46 |
| Liquid Crystal Display Plan Apochromatic Objective NIR |
NIR |
20X,50X |
0.4, 0.45 |
15, 20 |
4, 10 |
0.6, 0.7 |
| Plan Apochromatic Objective NUV |
NUV |
20X |
0.42 |
17 |
10 |
0.65 |
| Plan Apochromatic Objective NUV High Resolution |
NUV |
50X |
0.65 |
10 |
4 |
0.42 |

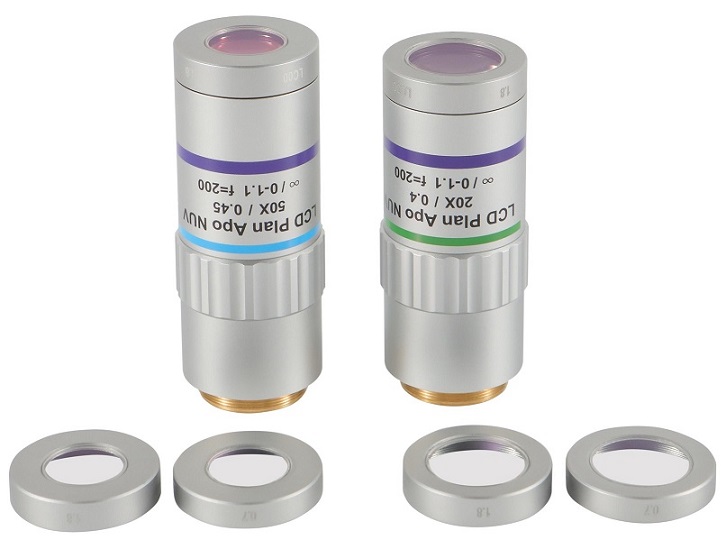

| Liquid Crystal Display Plan Apochromatic Objective NUV |
NUV |
20X,50X |
0.4, 0.45 |
15, 20 |
4, 10 |
0.6, 0.7 |
