EDFA Single Mode C++ Band Gain Flattened
Overview & Specifications Related Products Order Now!

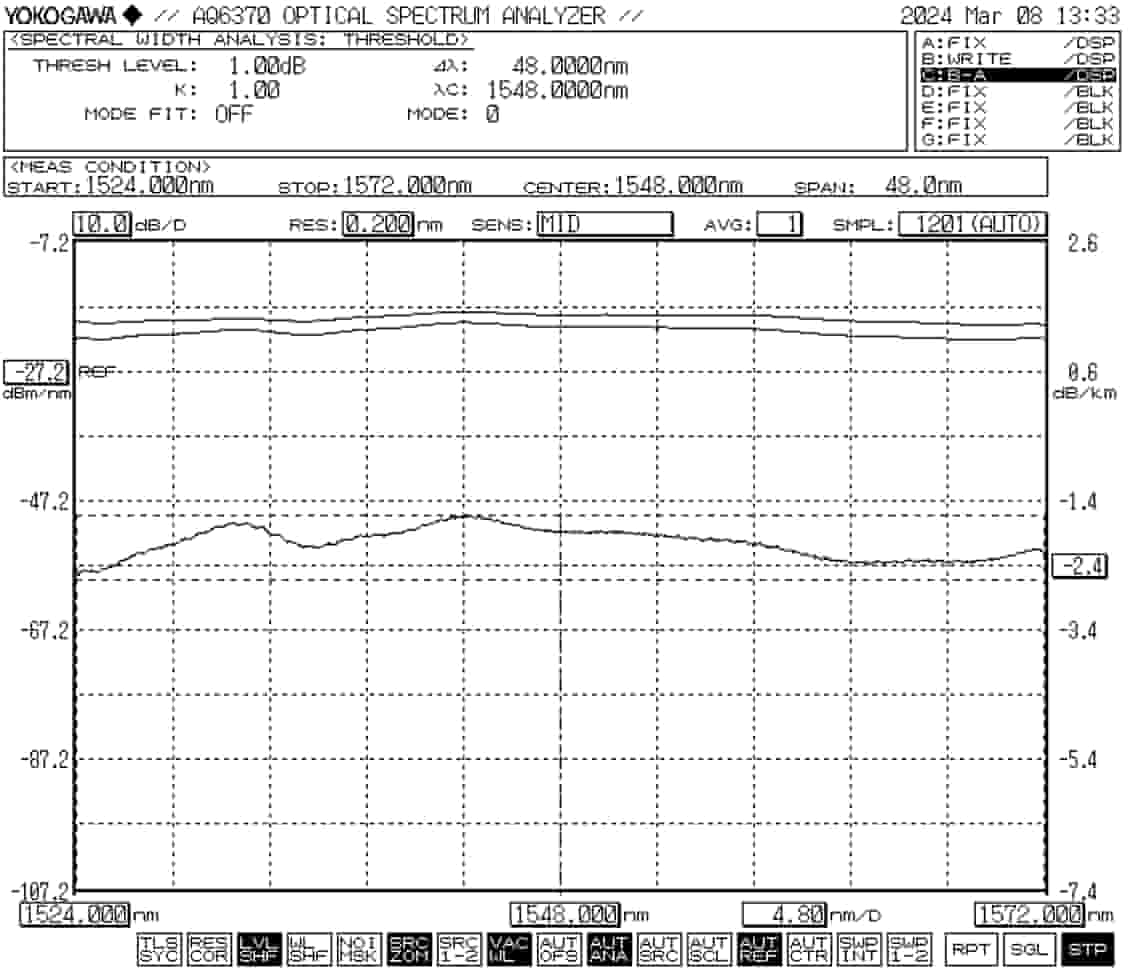

SIMTRUM's Erbium-Doped Fiber Amplifier Single Mode C++ Band Gain-Flattenedis designed for fiber communication systems, capable of simultaneously amplifying multiple wavelengths within the C++ band (1524-1572nm, 190.65~196.675THz). It ensures consistent gain across wavelengths with a gain flatness of ≤1.5 dB. This amplifier features an ultra-wide spectrum, high gain, low noise, and excellent gain flatness.
 793/808/915/976nm_High_Power_Laser

Features

  • High gain coefficient
  • High output power
  • Multi-wavelength gain flatness

Applications

  • Fiber optic communication
  • Fiber optic sensing
  • Fiber optic laser



STEDFA_SM_CPP_1



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF





Optical Parameters Unit Min. Value Typical Value Max. Value Remarks
Wavelength Range nm 1524   1572 C++ band
Total Wavelengths(ITU) -      120 Wavelength interval 50G(0.4nm)
Single Wavelength Input Power dBm -16 3   Single wavelength power
Total Input Power dBm 5 8   Total power of 120 wavelengths
Total Output Power dBm 14 24
Gain Coefficient dB   16   @8dBm total input
Noise Figure dB 4.8   5.5 @Pout=24dBm
Gain Flatness dB 1.5 @8dBm total input
Polarization Mode Gain dB <0.3
Polarization Mode Dispersion ps 0.5
Input/Output Isolation dB >35
Optical Power Monitoring  - Output power monitoring
Fiber Type and Connector - SMF-28 FC/APC
Control Mode -  ACC/ APC/AGC



General Parameters Benchtop Module
Control Function Touch screen/ RS232 serial communication RS232 serial communication
Remote Control Port DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/ Product Code
Series Wavelength(nm) Amplifier Type Saturated Output Power (dBm) Fiber Packaging
STEDFA C++ = C++ band BA-GF = Gain Flattened Booster Amplifier 20/24 SM =SMF-28 M - Module
B - Desktop






Type Wavelength Input Output
C-Band EDFA - PA/BA 1530 - 1565 nm -45 dBm to -25dBm
-6dBm to +3dBm		 45@-45dBm
15/17/20/23/25/26 dBm
C-Band EDFA - LA 1530 - 1565 nm -25 dBm to -3 dBm 13/17/20/25/26 dBm
C-Band Gain Flattened EDFA 1530 - 1565 nm -45dBm to +3 dBm 14/20/23/25/26 dBm
C-Band High Power EDFA 1535 - 1565 nm - 6 dBm to +10dBm  27/30/33/35/37/40 dBm
C-Band Polarization Maintaining EDFA - Standard / High Power

1530 - 1565 nm

1535 - 1565 nm

 - 45 dBm to +3 dBm
-6 dBm to +10 dBm

30/35/45dB；17/20/23/25/26dBm

27/30/33/35/37/40 dBm
C-Band Pulsed EDFA 1530 - 1565 nm 1-10mw 100/200/500/1000W
L-Band EDFA - Low Power / Standard / High Power

1570 - 1603 nm

1570 - 1605 nm

1570 - 1605 nm

 -45dBm to -25dBm
- 6 dBm to +3 dBm
- 6 dBm to +10 dBm 		 45dB@-45dBm
15/17/20/23/25/26 dBm
27/30/33/35/37/40 dBm
L-Band Polarization Maintaining EDFA - High Power 1570 - 1605 nm  - 6 dBm to +10 dBm  27/30/33/35/37/40 dBm
C+L Band Single Mode EDFA - BA 1528 - 1603 nm -6 dBm to +3 dBm 15/17/20/23/25/26 dBm
C++Band Gain Flattened EDFA 1524 - 1572nm (190.65-196.675THz) 5 dBm to 8 dBm 20/24 dBm
Gain Flatten Filter As filter Spec C/Lband nm ≥50 dB ≥50 dB
C-Band EDFA - BA micro Module
1530 - 1565 nm
-6 dBm to +3 dBm
10/13/17/20/23 dBm
L+-Band Gain Flattened EDFA
1568 - 1608 nm
-16 dBm to +3 dBm
15/17/20 dBm
Single-frequency pulsed EDFA
1540 - 1560 nm
10 - 50 mW
50/100 W
EDFA/Raman amplifier hybrid integrated module
1530 - 1565 nm
-6 dBm - +3 dBm
20/23dBm
