EDFA Single Mode C+L Band Booster
Overview & Specifications Related Products Order Now!

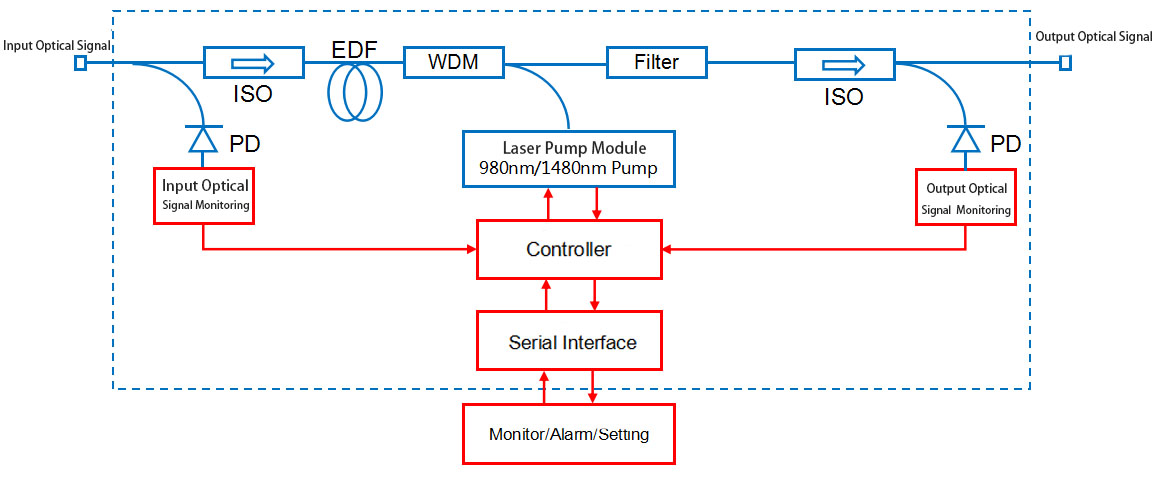

EDFA Single Mode C+L Band Booster

EDFA Single Mode C+L Band Booster is a highly efficient fiber amplifier that can amplify optical signals in the power range from -6 DBM to +3dBm or higher.

Its maximum saturation output power can reach 25dBm, which is widely used to improve the transmission power of laser light source.

With excellent performance such as wide wavelength range, high output power and low noise, the product can provide customers with high-quality and stable optical amplification solutions.

Key Features

•Wide Wavelength Range
•High Output Power

•Low Noise



Applications

•Optical Fiber Communication
•Optical Fiber Sensing

•Fiber Lase
















Product Specifications and Brochures

Product Brochure Link:



Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1563 C-band
1570~1603 L-band
Input Power dBm -6~+3
Saturation Output Power dBm  17/20/23/25 @-3dBm Input

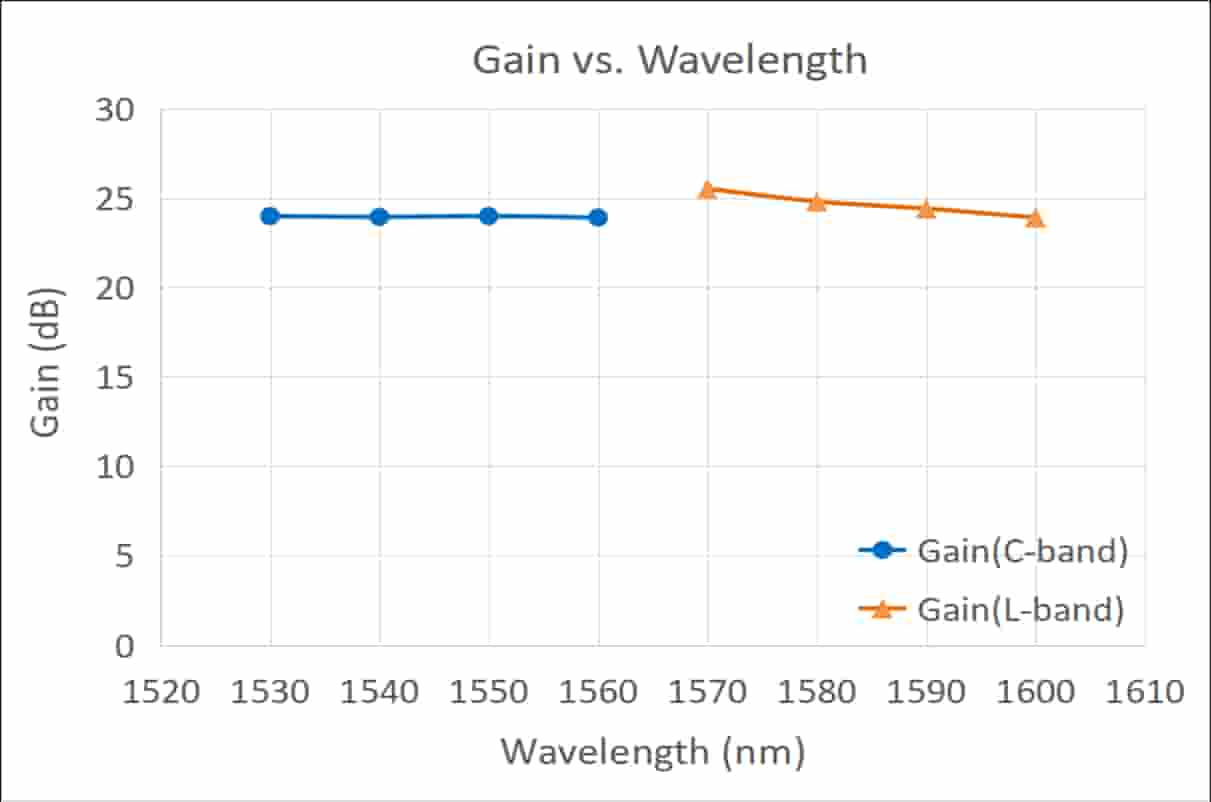

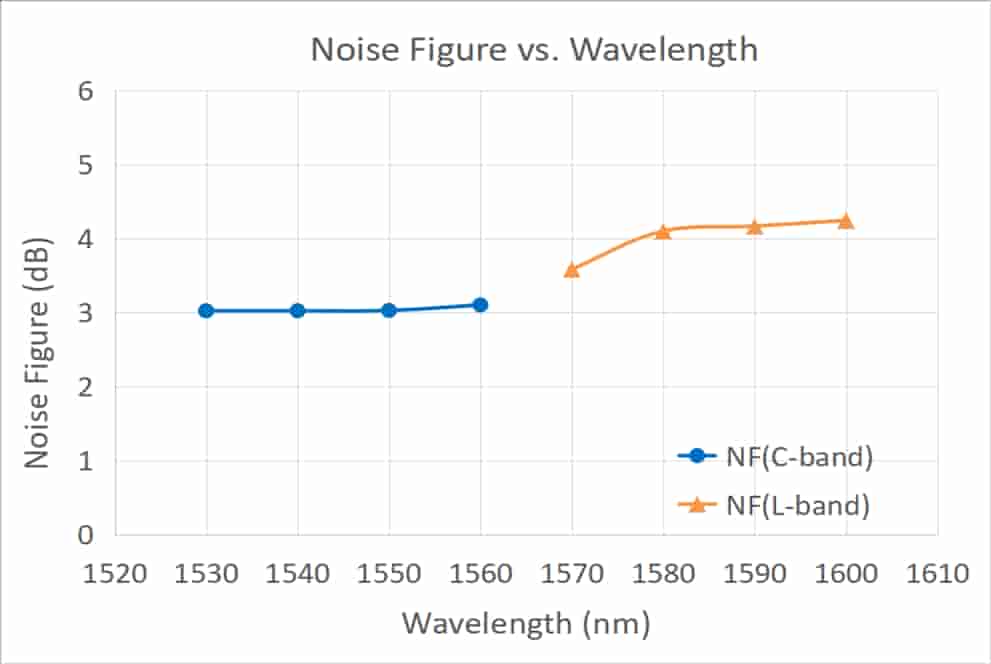

Noise Index dB ≤5.0 @-3dBm Input
Polarization Dependent Gain dB <0.3
Polarization Mode Dispersion ps 0.5
Input/Output Isolation dB >35
Optical Power Monitoring — Output Optical Power Monitoring
Optical Fiber — SMF-28
Fiber Connector — FC/APC
Working Mode   ACC/APC



General Parameters Desktop Module Module
Control Function Keystroke RS232 Serial Port Communication
Remote Control Port DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <20W
Dimensions 260(W)×280(D)×120(H)mm BA17~BA23: 125(W)×150(D)×20(H)mm
BA25：125(W)×150(D)×40(H)mm
Operating Temperature  -5~+35°C
Operating Humidity 0~70%



Ordering Information/Product Code
EDFA Wavelength Amplifier Type Saturation Output power (dBm) Fiber Type Packaging
  CL=C+L band BA= Power Amplifier 17/20/23/25 SM= Single Mode Fiber M=Module
B=Table Model

Type Wavelength Input Output
EDFA Single Mode C-Band - Standard/ Booster 1530 - 1565 nm -45 dBm to -25dBm
-6dBm to +3dBm		 35@-35dBm / 45@-45dBm
15/17/20/23/25/26 dBm
EDFA Single Mode C-Band In-Line 1530 - 1565 nm -25 dBm to +3 dBm 13/17/23/25/26 dBm
EDFA Single Mode C-Band Gain Flattened 1530 - 1565 nm -32 dBm to -10 dBm 14/17/20/23 dBm
EDFA Single Mode C-Band High Power 1530 - 1565 nm - 6 dBm to +10dBm  27/30/33/35/37/40 dBm
EDFA Polarization Maintaining C-Band PM - Low Power / High Power 1530 - 1565 nm -30 dBm to +3 dBm
- 6 dBm to +10 dBm		 14/17/20/23/26 dBm
30/33/37/40 dBm
EDFA Single Mode C-Band Pulsed 1530 - 1565 nm 1-10mw 1-1000W
EDFA Single Mode L-Band High Power 1530 - 1603 nm - 6 dBm to +10 dBm  27/30/33/37 dBm
EDFA Polarization Maintaining L-Band Low Power / High Power  1530 - 1603 nm - 6 dBm to +3 dBm
 - 6 dBm to +10 dBm 		 15/17/20/23/25 dBm
27/30/33/37 dBm
EDFA Single Mode C+L Band Booster
 1528 -1563 nm
1570 - 1603 nm
 - 6 dBm to +3 dBm
 17/20/23/25 dBm
YDFA Ytterbium Doped Fiber Amplifier
 1030 - 1100 nm 0 dBm to 10 dBm 17/20/23/25/26/27/30/33/37/40  @0dBm
TDFA
 1920 - 2020 nm -10 to 10 dBm 20/23/25/26/27/30 dBm
Fiber Raman Amplifier 1st Order
 1528 - 1565 nm Pump Wavelenth
1425 - 1465 nm		 Total Pump Power
300/500/1000/1400 mW
Fiber Raman Amplifier 2nd Order
 1425 - 1465 nm
 Pump Wavelenth
1340 -1360 nm		 Total Pump Power
300/500/1000/1400 mW




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
EDFA-CL-BA-SM-17
EDFA Single Mode C+L Band Booster, wavelength range 1528-1563nm/1570-1603nm, input power -6~+3dBm. saturation output power 17 dBm 		4-6 Weeks Request for quote
EDFA-CL-BA-SM-20
EDFA Single Mode C+L Band Booster,wavelength range1528-1563nm/1570-1603nm,input power -6-+3dBm,saturation output power 20 dBm 		4-6 Weeks Request for quote
EDFA-CL-BA-SM-23
EDFA Single Mode C+L Band Booster,wavelength range 1528-1563 nm/1570-1603 nm,input power -6-+3 dBm,saturation output power 23 dBm 		4-6 Weeks Request for quote
EDFA-CL-BA-SM-25
EDFA Single Mode C+L Band Booster,wavelength range1528-1563nm/1570-1603nm,input power -6-+3 dBm,saturation output power 25 dBm 		4-6 Weeks Request for quote

EDFA-CL-BA-SM-25 - Parameter

EDFA-CL-BA-SM-23 - Parameter

EDFA-CL-BA-SM-20 - Parameter

EDFA-CL-BA-SM-17 - Parameter

EDFA-CL-BA-SM-25 - Download

EDFA-CL-BA-SM-23 - Download

EDFA-CL-BA-SM-20 - Download

EDFA-CL-BA-SM-17 - Download
