Quartz Multi-Order Quarter Waveplates | SIMTRUM Photonics Store

Products / Optics /Polarization Components /Waveplates /Multi-Order Waveplates /Quartz Multi-Order Quarter Waveplates /
Quartz Multi-Order Quarter Waveplates
Overview Specifications and Graphs Order Now!

Quartz Multi Order Quarter Waveplates are made of crystalline quartz and exhibit a retardation value of λ/4. Multi Order would also mean that the incoming light beam undergoes its wavelength shifts giving rise to different orders ‘m’. They are economical amongst waveplates and sensitive to wavelength and temperature fluctuation.


Quartz are excellent birefringent crystals. Due to its high UV, VIS, and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in the retardation plate. Quartz can exhibit circular birefringence allowing the ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.


General Specifications

Type

Quartz Multi-Order Quarter Waveplate

Material

Crystalline Quartz

Retardation

λ/4

Retardation Tolerance

λ/100

Diameter Tolerance(mm)

±0.15

Thickness Tolerance(mm)

±0.1

Parallelism(arcmin)

<3

Clear Aperture

>90%

Surface Quality

60/40



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset

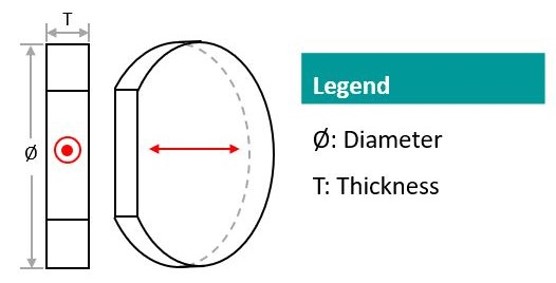

Compare Model Drawings & Specs Design Wavelength (nm) Retardation Diameter (mm) Availability Reference Price
(USD)
MQWP-12.7-1064
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=12.7, Thickness=0.5-2mm, Design Wavelength:1064nm, Uncoated 		1064λ/412.7 2-3 Weeks Request for quote
MQWP-12.7-488
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=12.7, Thickness=0.5-2mm, Design Wavelength:488nm, Uncoated 		488λ/412.7 2-3 Weeks Request for quote
MQWP-12.7-514.5
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=12.7, Thickness=0.5-2mm, Design Wavelength:514.5nm, Uncoated 		514.5λ/412.7 2-3 Weeks Request for quote
MQWP-12.7-532
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=12.7, Thickness=0.5-2mm, Design Wavelength:532nm, Uncoated 		532λ/412.7 2-3 Weeks Request for quote
MQWP-12.7-632.8
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=12.7, Thickness=0.5-2mm, Design Wavelength:632.8nm, Uncoated 		632.8λ/412.7 2-3 Weeks Request for quote
MQWP-12.7-780
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=12.7, Thickness=0.5-2mm, Design Wavelength:780nm, Uncoated 		780λ/412.7 2-3 Weeks Request for quote
MQWP-25.4-1064
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:1064nm, Uncoated 		1064λ/412.7 2-3 Weeks Request for quote
MQWP-25.4-1310
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:1310nm, Uncoated 		1310λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-1550
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:1550nm, Uncoated 		1550λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-441.6
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:441.6nm, Uncoated 		λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-488
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:488nm, Uncoated 		488λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-514.5
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:514.5nm, Uncoated 		514.5λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-532
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:532nm, Uncoated 		532λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-632.8
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:632.8nm, Uncoated 		632.8λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-650
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:650nm, Uncoated 		λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-670
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:670nm, Uncoated 		λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-780
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:780nm, Uncoated 		780λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-800
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:800nm, Uncoated 		800λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-808
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:808nm, Uncoated 		808λ/425.4 2-3 Weeks Request for quote
MQWP-25.4-830
Crystalline Quartz, Multi-Order Quarter Waveplates, Ø=25.4, Thickness=0.5-2mm, Design Wavelength:830nm, Uncoated 		λ/425.4 2-3 Weeks Request for quote

MQWP-25.4-830 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-808 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
808

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-800 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
800

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-780 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
780

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-670 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-650 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-632.8 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
632.8

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-532 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
532

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-514.5 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
514.5

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-488 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
488

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-441.6 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-1550 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
1550

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-1310 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
25.4

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
1310

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-1064 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
1064

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-12.7-780 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
780

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-12.7-632.8 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
632.8

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-12.7-532 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
532

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-12.7-514.5 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
514.5

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-12.7-488 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
488

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-12.7-1064 - Parameter

Type
Quartz Multi-Order Quarter Waveplate

Material
Crystalline Quartz

Coating
Uncoated

Diameter (mm)
12.7

Diameter Tolerance (mm)
± 0.15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
1064

Surface Quality
60/40

Clear Aperture
>90%

Thickness (mm)
0.5-2

Parallelism (arcmin)
<3

Retardation
λ/4

Retardation Tolerance
λ/100

MQWP-25.4-830 - Download

Download

Download

Download

Download

MQWP-25.4-808 - Download

Download

Download

Download

Download

MQWP-25.4-800 - Download

Download

Download

Download

Download

MQWP-25.4-780 - Download

Download

Download

Download

Download

MQWP-25.4-670 - Download

Download

Download

Download

Download

MQWP-25.4-650 - Download

Download

Download

Download

Download

MQWP-25.4-632.8 - Download

Download

Download

Download

Download

MQWP-25.4-532 - Download

Download

Download

Download

Download

MQWP-25.4-514.5 - Download

Download

Download

Download

Download

MQWP-25.4-488 - Download

Download

Download

Download

Download

MQWP-25.4-441.6 - Download

Download

Download

Download

Download

MQWP-25.4-1550 - Download

Download

Download

Download

Download

MQWP-25.4-1310 - Download

Download

Download

Download

Download

MQWP-25.4-1064 - Download

Download

Download

Download

Download

MQWP-12.7-780 - Download

Download

Download

Download

Download

MQWP-12.7-632.8 - Download

Download

Download

Download

Download

MQWP-12.7-532 - Download

Download

Download

Download

Download

MQWP-12.7-514.5 - Download

Download

Download

Download

Download

MQWP-12.7-488 - Download

Download

Download

Download

Download

MQWP-12.7-1064 - Download

Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
