CW Single Channel Multi-mode Lasers (365-1570 nm) | SIMTRUM Photonics Store

Products / Lasers/Light /DPSS / Diode Lasers /CW Single Channel Lasers (365-1570 nm) /CW Single Channel Multi-mode Lasers (365-1570 nm) /
CW Single Channel Multi-mode Lasers (365-1570 nm)
Overview Selection Guide Applications Related Products Order Now
SIMTRUM offers continuous-wave (CW) single channel multi-mode lasers with wavelength ranging from 365 to 1570 nm.
Our product integrates laser diodes, laser cavities, fiber-coupled optics, laser power supplies, and LD current control into a single unit.
Features
  • Multiple Wavelength Options
    Wavelength range covers 365–1550 nm, suitable for diverse experimental needs involving the observation and analysis of fluorescence signals from multiple markers or samples.
  • High spectral quality
    The laser has a narrow spectral width and high spectral quality, which is conducive to reducing the interference of stray light from the light source, providing clear images and accurate signals.
  •  High mode quality
    The laser is divided into single mode and multi-mode fiber output, with good mode quality and beam quality. Ideal for high resolution imaging, high precision measurement and other applications requiring high beam quality.
  • High power stability
    High power output and excellent power stability.
  • The power is adjustable
    Avoid sample damage or overexposure while obtaining the best image quality and signal strength.

Application
Multicolor fluorescence imaging

  • A 405nm laser is commonly used to excite ultraviolet dyes.
  • The 488nm laser is used for fluorescein and green fluorescent protein.
  • The 525/561nm laser is used for yellow fluorescent proteins and red fluorescent dyes.
  • The 640nm laser is used for fluorescent proteins and infrared dyes.
  • Cell imaging and localization
  • Histopathological analysis
  • Fluorescence co-expression studies
  • Drug screening and evaluation
  • Neuronal activity imaging

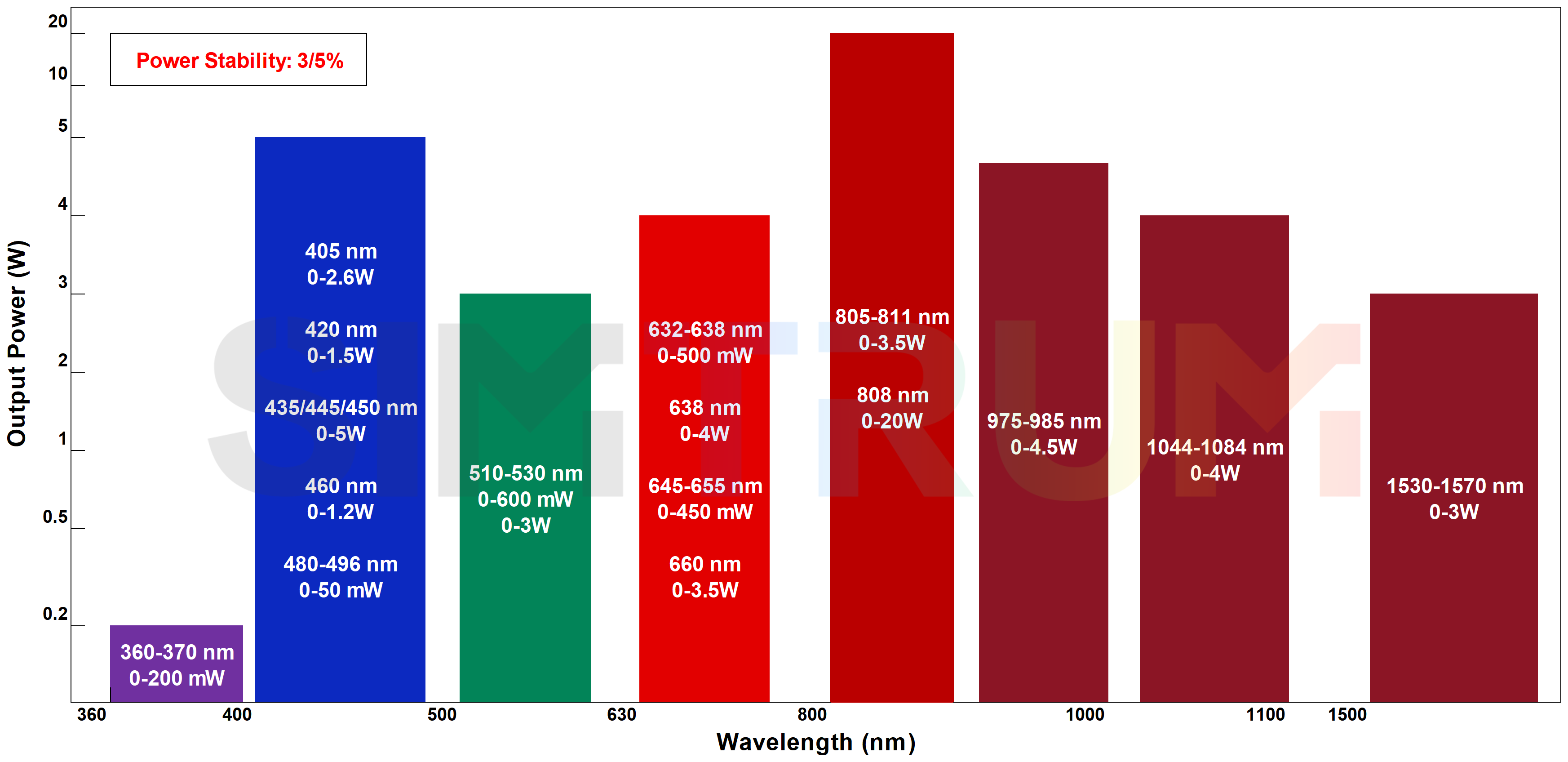

Ordering Information/ Product Number
Series Wavelength (nm) Output Power (mW) Wavelength (nm) Output Power (mW)
LL-MML 365 200 635 150/250/350/450
405 2600 638 500/1000/1500/3000/4000
420 1500 650 150/250/350/450
435 5000 660 500/1000/2000/2500/3500
445 5000 808 500/1000/2000/3000/3500/4000/7000/10000/15000/20000
450 1000/2000/3000/5000 980 500/1500/2500/3500/4500
460 1200 1064 1000/2000/3000/4000
488 10/20/30/50 1550 1000/2000/3000
520 150/250/350/450/600/2000/3000
Remarks For additional detailed specifications and test data, switch to the “Specifications” tab.
*Model Selection Example: LL-MML-638-500 (Multi-Mode, 638 nm, 500 mW）



Specification

*This table displays only a selection of popular models. For specific requirements regarding wavelength, power, fiber or other parameters, please contact SIMTRUM for assistance.

Wavelength

Output Power

Power Adjustment Range

Power Stability

Modulation

Fiber Parameter

Fiber Core Diameter

Cooling

Dimension

450±5 nm

1/2/3W

0-100%

5%@2 hours

TTL modulation

SMA 905,
Fiber Length
1 m (Customizable)

105 μm

Air-cooling
+TEC

390*260*149mm

488±8 nm

10/20/30 mW

3%@2 hours

105 μm

520±10 nm

150/250/350/450 mW

3%@2 hours

105 μm

2/3 W

5%@2 hours

400 μm

635±3 nm

150/250/350/450 mW

3%@2 hours

105 μm

638 nm

0.5/1/1.5/3/4 W

5%

105 μm

650±5 nm

150/250/350/450 mW

3%@2 hours

105 μm

660 nm

0.5/1/2/2.5/3.5 W

5%

105 μm

808±3 nm

0.5/1/2/3/3.5 W

3%@2 hours

200 μm

808 nm

4/7/10/15/20 W

5%

200 μm

980±5 nm

0.5/1.5/2.5/3.5/4.5 W

3%@2 hours

200 μm

1064±20 nm

1/2/3/4 W

3%@2 hours

SMA/FC-PC 905,
Fiber Length 1 m
(Customizable)

105 μm

149.6*77.9*176mm

1550±20 nm

1/2/3 W

3%@2 hours

200 μm

390*260*149mm



Ordering Information/ Product Number

Series

Wavelength (nm)

Output Power (mW)

Wavelength (nm)

Output Power (mW)

LL-MML

365

200

635

150/250/350/450

405

2600

638

500/1000/1500/3000/4000

420

1500

650

150/250/350/450

435

5000

660

500/1000/2000/2500/3500

445

5000

808

500/1000/2000/3000/3500/4000/7000/10000/15000/20000

450

1000/2000/3000/5000

980

500/1500/2500/3500/4500

460

1200

1064

1000/2000/3000/4000

488

10/20/30/50

1550

1000/2000/3000

520

150/250/350/450/600/2000/3000




*Model Selection Example: LL-MML-638-500 (Multi-Mode, 638 nm, 500 mW）

Confocal System built with a Multi-channel Integrated Laser
Application Effects in Biological Research
FISH (Fluorescence In Situ Hybridization)-60X-1.2 NA-Confocal
Glioma Stem Cells-40X-0.95 NA-Confocal


Type

Wavelength Choice

Power Range

Spinning Disk Confocal Microscope

405/445/488/525/561/640 nm Customizable

/

Four-channel Single-mode /Multi-mode laser（375-808 nm）

375-808 nm(number of channels customizable)

Single-mode＞20mW,
Multi-mode＞500mW

Multi-channel high-power UV lasers (375-435 nm)

3 channels: 378/405/435 nm;4 channels: 375/382/405/425 nm

3-150W

Triple-channel Multi-mode Laser (488/525/638 nm)

488/525/638 nm

≥90mW

Triplex (RGB) fiber-coupled white light lasers（445/520/635 nm）

445/520/635 nm

10mW-1W

Single Channel High Power UV Fiber-coupled LED Light Source (365/385/405/435 nm)

365/385/405/435 nm

3-16W

Dual-Channel High Power UV Fiber-coupled LED Light Source (365/385 nm)

365/385 nm

3-11W

Single Wavelength Liquid Light guide (LLG) LED Light Source (365-730 nm)

365-730 nm/White

0.2W-2.3W

Multi-Wavelength Liquid Light guide (LLG) LED Light Source (360-730 nm)

360-660 nm（4 channels);360-730nm（6 channels）

≥3.5W/≥4.5W

High Power Liquid Light guide (LLG) LED Light Source (365-730 nm)

365-730nm/ 3000-6500K

7W-80W

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark

Application







Laser Type



/

Multi-mode/Single Mode

Channel



/

Multi-mode: 1-8 channels;Single Mode: 1-4 channels

Wavelength



nm

Customizable

Maximum Output Power



mW

Customizable

Digital Modulation



/

If required, please provide the speed requirements.

Analog Modulation



/

If required, please provide the speed requirements.

Power Stability



%

1%/2%/3% optional

Spot Removal Function



/

For Multi-mode Laser, please specify if needed.

Fiber Length



m

Customizable



We are here for you!



Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information?
 Click Here for the professional Customized System/ Solutions.



Don't have time to search the products one by one?No worries.
you can download the full range of SIMTRUM Product Line Cards.
Click it now.



Want to stay closer to the Market Dynamics and Technological Developments?Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.
(Sign in button on the top right of the screen).


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-MML-365-200
Wavelength: 365±5 nm, Output Power: 0-200 mW adjustable 		Contact us Request for quote
LL-MML-405-2600
Wavelength: 405 nm, Output Power: 2.6 W 		Contact us Request for quote
LL-MML-420-1500
Wavelength: 420 nm, Output Power: 1.5 W 		Contact us Request for quote
LL-MML-435-5000
Wavelength: 435 nm, Output Power: 5 W 		Contact us Request for quote
LL-MML-445-5000
Wavelength: 445 nm, Output Power: 5 W 		Contact us Request for quote
LL-MML-450-1000
Wavelength: 450±5 nm, Output Power: 0-1 W adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
LL-MML-450-2000
Wavelength: 450±5 nm, Output Power: 0-2 W adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
LL-MML-450-2000
Wavelength: 450±5 nm, Output Power: 0-2 W adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
LL-MML-450-3000
Wavelength: 450±5 nm, Output Power: 0-3 W adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
LL-MML-450-5000
Wavelength: 450 nm, Output Power: 5 W 		Contact us Request for quote
LL-MML-460-1200
Wavelength: 460 nm, Output Power: 1.2 W 		Contact us Request for quote
LL-MML-488-10
Wavelength: 488±8 nm, Output Power: 0-10 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-488-20
Wavelength: 488±8 nm, Output Power: 0-20 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-488-30
Wavelength: 488±8 nm, Output Power: 0-30 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-488-50
Wavelength: 488 nm, Output Power: 50 mW 		Contact us Request for quote
LL-MML-520-150
Wavelength: 520±10 nm, Output Power: 0-150 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-520-250
Wavelength: 520±10 nm, Output Power: 0-250 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-520-350
Wavelength: 520±10 nm, Output Power: 0-350 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-520-450
Wavelength: 520±10 nm, Output Power: 0-450 mW adjustable, Power Stability: 3%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: DC12V 		Contact us Request for quote
LL-MML-520-600
Wavelength: 520±10 nm, Output Power: 0-600 mW adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 105 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
LL-MML-520-2000
Wavelength: 520±10 nm, Output Power: 0-2000 mW adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 400 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
LL-MML-520-3000
Wavelength: 520±10 nm, Output Power: 0-3000 mW adjustable, Power Stability: 5%@2 hours, Modulation: TTL modulation, Fiber Parameter: SMA 905, Fiber Length 1 m (Customizable), Fiber Core Diameter: 400 μm, Cooling: Air-cooling+TEC, Dimension: 390*260*149 mm, Power Supply: 220V 		Contact us Request for quote
