Single Wavelength Liquid Light guide (LLG) LED Light Source (365-730 nm) | SIMTRUM Photonics Store

Products / Lasers/Light /Incoherent Light Sources /Microscopic Imaging LED Light Sources (360-780 nm) /Single Wavelength Liquid Light guide (LLG) LED Light Source (365-730 nm) /
Single Wavelength Liquid Light guide (LLG) LED Light Source (365-730 nm)
Overview Specifications Accessories Related Products Order Now!
SIMTRUM has introduced a monochromatic light source and white light source based on Liquid Light Guide (LLG) technology. With an output light guie diameter of 3 mm and the brightness that matches microscope arc lamps, this product is a cost-effective light source that is compatible with various microscopes and optical systems. It can effectively reduce exposure time of samples to improve image quality and production rate in most applications. Each channel is capable of individually setting the light intensity in 1% increments, providing excellent control, flexibility, and uniform and stable light output. Featuring high brightness, broad spectral coverage, long lifespan, and quiet operation, it is suited for a wide range of applications such as fluorescence imaging, and is widely used in a variety of fields of life sciences, material sciences, and industrial inspection.

Features

  • High Output Power
  • High Brightness
  • Flexible Range of Spectral Options
  • Long Lifespan
  • Silent Operation

Application

  • Microscopic Imaging
  • Spectral Analysis
  • Industrial Inspection




Model Options

UV-BLUE (365-480 nm)

Part Number LL-CC01-SLE-I-365 LL-CC01-SLE-I-385 LL-CC01-SLE-I-405 LL-CC01-SLE-I-440 LL-CC01-SLE-I-460 LL-CC01-SLE-I-470 LL-CC01-SLE-I-480
Channel 1
Wavelength 365 nm 385 nm 405 nm 440 nm 460 nm 470 nm 480 nm
Output Power (Customized) 1W 1.9W 2W 1W 2.3W 1.3W 0.4W
Operating Mode Continuous Output, Default TTL Modulation (Analog Modulation Optional)
Modulation Frequency 10K
Optical Transmission 3mm diameter Liquid Light Guide (LLG), NA = 0.59
Operating Temperature 10~35℃
Power Input DC12V-8.5A
Control Mode Support RS232 host computer control
Control Options Individual control of light intensity in 1% intensity increments
Cooled Method Fan Cooled
Size 171mm×114mm×100mm
Optional Accessories Collimator, compatible with Microscopes such as Zeiss, Nikon, Leica, Olympus, etc.


Green-Yellow (525-590 nm)

Part Number LL-CC01-SLE-I-525 LL-CC01-SLE-I-527 LL-CC01-SLE-I-555 LL-CC01-SLE-I-579 LL-CC01-SLE-I-590
Channel 1
Wavelength 525 nm 527 nm 555 nm 579 nm 590 nm
Output Power (Customized) 1.1W 0.4W 0.8W 1W 0.6W
Operating Mode Continuous Output, Default TTL Modulation (Analog Modulation Optional)
Modulation Frequency 10K
Optical Transmission 3mm diameter Liquid Light Guide (LLG), NA = 0.59
Operating Temperature 10~35℃
Power Input DC12V-8.5A
Control Mode Support RS232 host computer control
Control Options Individual control of light intensity in 1% intensity increments
Cooled Method Fan Cooled
Size 171mm×114mm×100mm
Optional Accessories Collimator, compatible with Microscopes such as Zeiss, Nikon, Leica, Olympus, etc.

Red (630-738 nm) & White
Part Number LL-CC01-SLE-I-630 LL-CC01-SLE-I-650 LL-CC01-SLE-I-738 LL-CC01-SLE-I-001
Channel 1
Wavelength 630 nm 650 nm 738 nm White
Output Power (Customized) 0.6W 1W 0.2W 1.3W
Operating Mode Continuous Output, Default TTL Modulation (Analog Modulation Optional)
Modulation Frequency 10K
Optical Transmission 3mm diameter Liquid Light Guide (LLG), NA = 0.59
Operating Temperature 10~35℃
Power Input DC12V-8.5A
Control Mode Support RS232 host computer control
Control Options Individual control of light intensity in 1% intensity increments
Cooled Method Fan Cooled
Size 171mm×114mm×100mm
Optional Accessories Collimator, compatible with Microscopes such as Zeiss, Nikon, Leica, Olympus, etc.
Typical Spectra

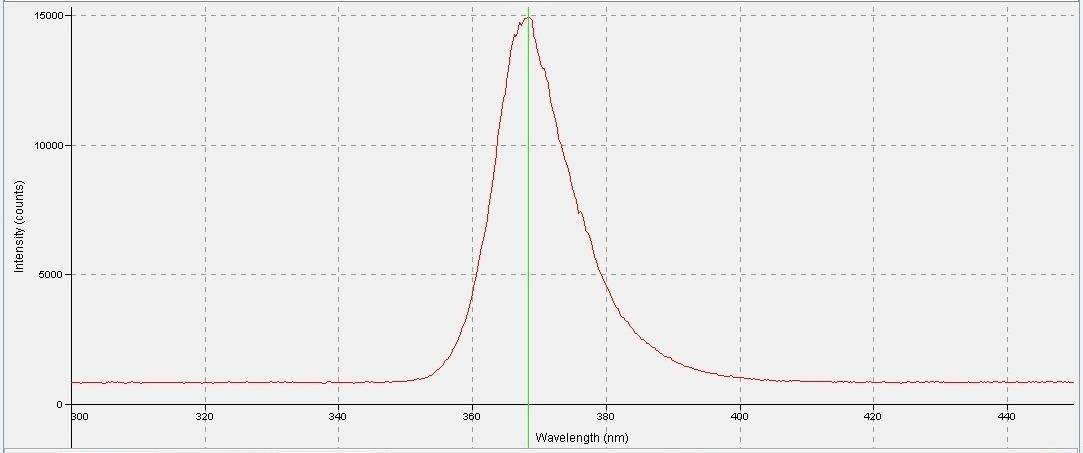

365nm

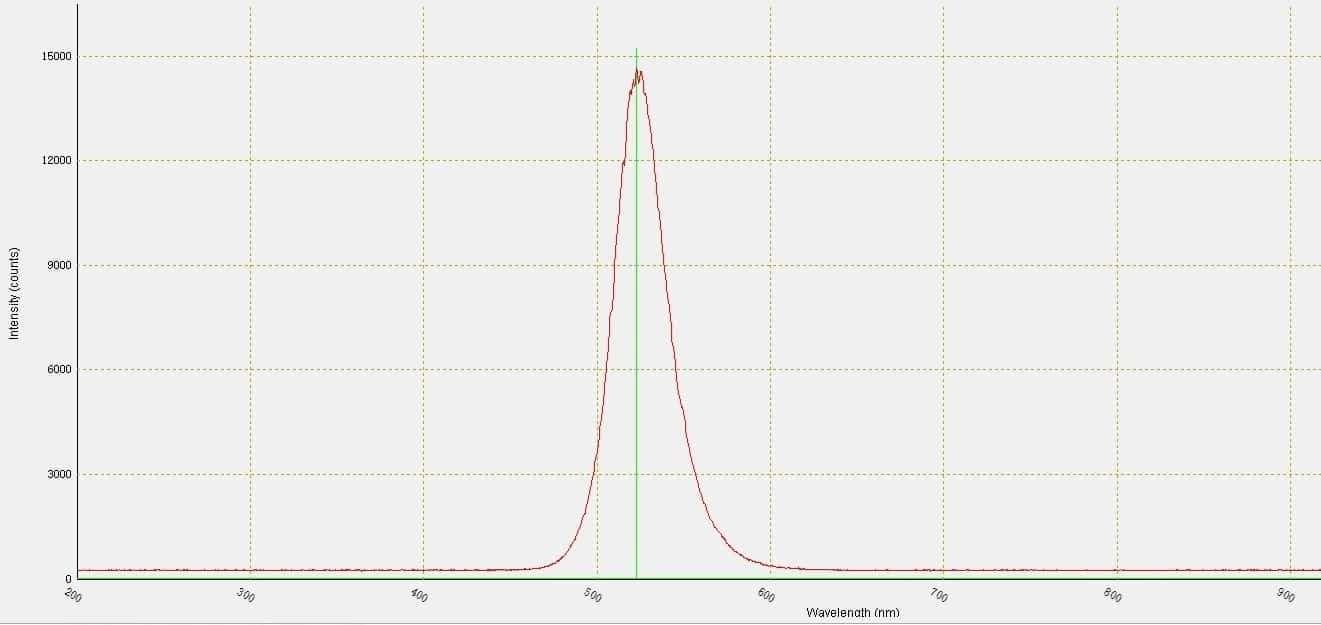

527nm

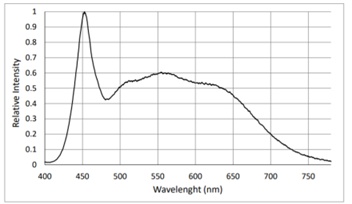

White

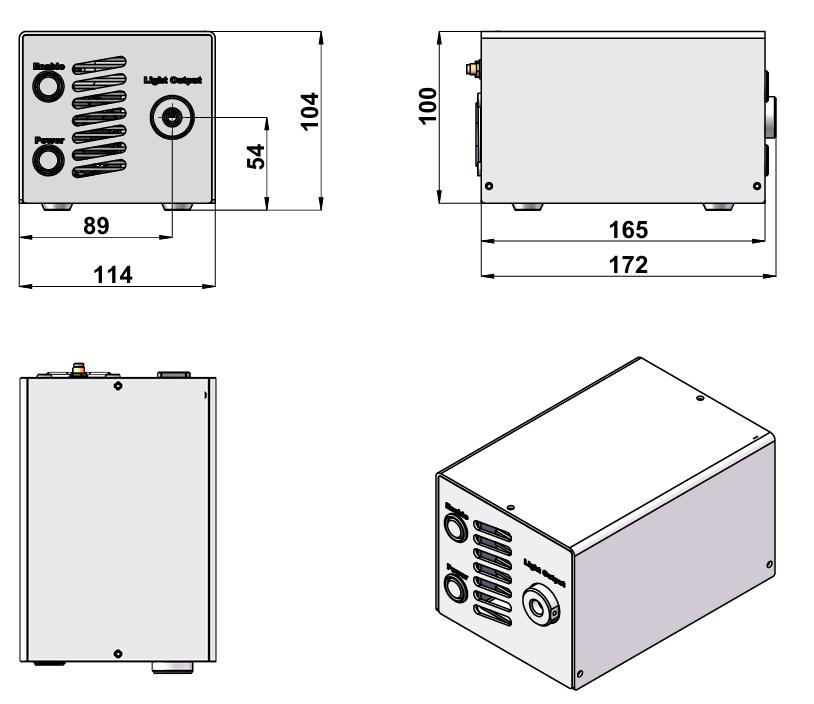

Dimensional Schematic


SIMTRUM offers collimators that have a collimating effect on the output light and are compatible with Zeiss, Nikon, Leica, Olympus and other microscopes.

Specifications

Model LL-CC01-SLE-MZ Picture
Matching liquid core fiber core diameter Φ3mm


Outlet Spot 33mm
Near-field Divergence Angle 62mrad
Power Loss < 20%



Dimension


Model Wavelength Options Power Range Light Transmission
Single Wavelength Liquid Light guide (LLG)
LED Light Source (365-730 nm)		 365 nm/ 385 nm/ 405 nm/ 440 nm/ 460 nm/ 470 nm/ 480 nm/ 525 nm/ 527 nm/ 555 nm/ 579 nm/ 590 nm/ 630 nm/ 650 nm/ 738 nm/ White 0.2W-2.3W 3 mm diameter LLG
Multi-Wavelength Liquid Light guide (LLG)
LED Light Source (360-730 nm)		 360-660 nm（4 channels）/ 360-730nm（6 channels） ≥3.5W/≥4.5W 3 mm diameter LLG
High Power Liquid Light guide (LLG)
LED Light Source (365-730 nm)		 365 nm/ 385 nm/405 nm/ 470 nm/ 505 nm/ 525 nm/ 530 nm/ 560nm/ 617 nm/ 625 nm/ 730nm/ 3000K/ 5500K/ 6500K 7W-80W 3-8 mm diameter LLG

 If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark
Application
Wavelength   nm Customizable
Channel   / Customizable
Output Power   W Customizable
Output Options   / Single-channel Output/Combined Light Output
Power Stability   %
Output Mode   / Free Space/ Fiber Output





We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-CC01-SLE-I-365
Wavelength: 365 nm Output Power: 1W Optical Transmission: 3 mm diameter LLG Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-385
Wavelength: 385 nm Output Power: 1.9W Optical Transmission: 3 mm diameter LLG Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-405
Wavelength: 405 nm ;Output Power: 2W ;Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-440
Wavelength: 440 nm ;Output Power: 1W ;Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-460
Wavelength: 460 nm ;Output Power: 2.3W; Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-470
Wavelength: 470 nm; Output Power: 1.3W; Optical Transmission: 3 mm diameter LLG; Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-480
Wavelength: 480 nm; Output Power: 0.4W ;Optical Transmission: 3 mm diameter LLG; Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-525
Wavelength: 525 nm ;Output Power: 1.1W; Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-527
Wavelength: 527 nm ;Output Power: 0.4W; Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-555
Wavelength: 555 nm ;Output Power: 0.8W; Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-579
Wavelength: 579 nm ;Output Power: 1W ;Optical Transmission: 3 mm diameter LLG; Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-590
Wavelength: 590 nm ;Output Power: 0.6W; Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-630
Wavelength: 630 nm ;Output Power: 0.6W; Optical Transmission: 3 mm diameter LLG; Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-650
Wavelength: 650 nm; Output Power: 1W ;Optical Transmission: 3 mm diameter LLG; Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-738
Wavelength: 738 nm ;Output Power: 0.2W ;Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote
LL-CC01-SLE-I-001
Wavelength: White; Output Power: 1.3W; Optical Transmission: 3 mm diameter LLG ;Operating Mode: Continuous Output, Default TTL Modulation (Analog Modulation Optional) 		4~6 weeks Request for quote

LL-CC01-SLE-MZ - Parameter

LL-CC01-SLE-I-001 - Parameter

LL-CC01-SLE-I-738 - Parameter

LL-CC01-SLE-I-650 - Parameter

LL-CC01-SLE-I-630 - Parameter

LL-CC01-SLE-I-590 - Parameter

LL-CC01-SLE-I-579 - Parameter

LL-CC01-SLE-I-555 - Parameter

LL-CC01-SLE-I-527 - Parameter

LL-CC01-SLE-I-525 - Parameter

LL-CC01-SLE-I-480 - Parameter

LL-CC01-SLE-I-470 - Parameter

LL-CC01-SLE-I-460 - Parameter

LL-CC01-SLE-I-440 - Parameter

LL-CC01-SLE-I-405 - Parameter

LL-CC01-SLE-I-385 - Parameter

LL-CC01-SLE-I-365 - Parameter

LL-CC01-SLE-MZ - Download

LL-CC01-SLE-I-001 - Download

LL-CC01-SLE-I-738 - Download

LL-CC01-SLE-I-650 - Download

LL-CC01-SLE-I-630 - Download

LL-CC01-SLE-I-590 - Download

LL-CC01-SLE-I-579 - Download

LL-CC01-SLE-I-555 - Download

LL-CC01-SLE-I-527 - Download

LL-CC01-SLE-I-525 - Download

LL-CC01-SLE-I-480 - Download

LL-CC01-SLE-I-470 - Download

LL-CC01-SLE-I-460 - Download

LL-CC01-SLE-I-440 - Download

LL-CC01-SLE-I-405 - Download

LL-CC01-SLE-I-385 - Download

LL-CC01-SLE-I-365 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-CC01-SLE-MZ
Matching liquid core fiber core diameter: Φ3mm; Outlet Spot: 33mm; Near-field Divergence Angle: 62mrad; Power Loss: < 20% 		4~6 weeks Request for quote
