CW Single Channel Single-mode Lasers (375-1565 nm)

Overview Selection Guide Applications Related Products Order Now

SIMTRUM offers continuous-wave (CW) single channel single-mode lasers with wavelength ranging from 375 to 1565 nm.
Our product integrates laser diodes, laser cavities, fiber-coupled optics, laser power supplies, and LD current control into a single unit.

Features

Multiple Wavelength Options
Wavelength range covers 375–1565 nm, suitable for diverse experimental needs involving the observation and analysis of fluorescence signals from multiple markers or samples.
High spectral quality
The laser has a narrow spectral width and high spectral quality, which is conducive to reducing the interference of stray light from the light source, providing clear images and accurate signals.
High mode quality
The laser is divided into single mode and multi-mode fiber output, with good mode quality and beam quality. Ideal for high resolution imaging, high precision measurement and other applications requiring high beam quality.
High power stability
High power output and excellent power stability.
The power is adjustable
Avoid sample damage or overexposure while obtaining the best image quality and signal strength.

Application
Multicolor fluorescence imaging

A 405nm laser is commonly used to excite ultraviolet dyes.
The 488nm laser is used for fluorescein and green fluorescent protein.
The 525/561nm laser is used for yellow fluorescent proteins and red fluorescent dyes.
The 640nm laser is used for fluorescent proteins and infrared dyes.

Cell imaging and localization
Histopathological analysis
Fluorescence co-expression studies
Drug screening and evaluation
Neuronal activity imaging

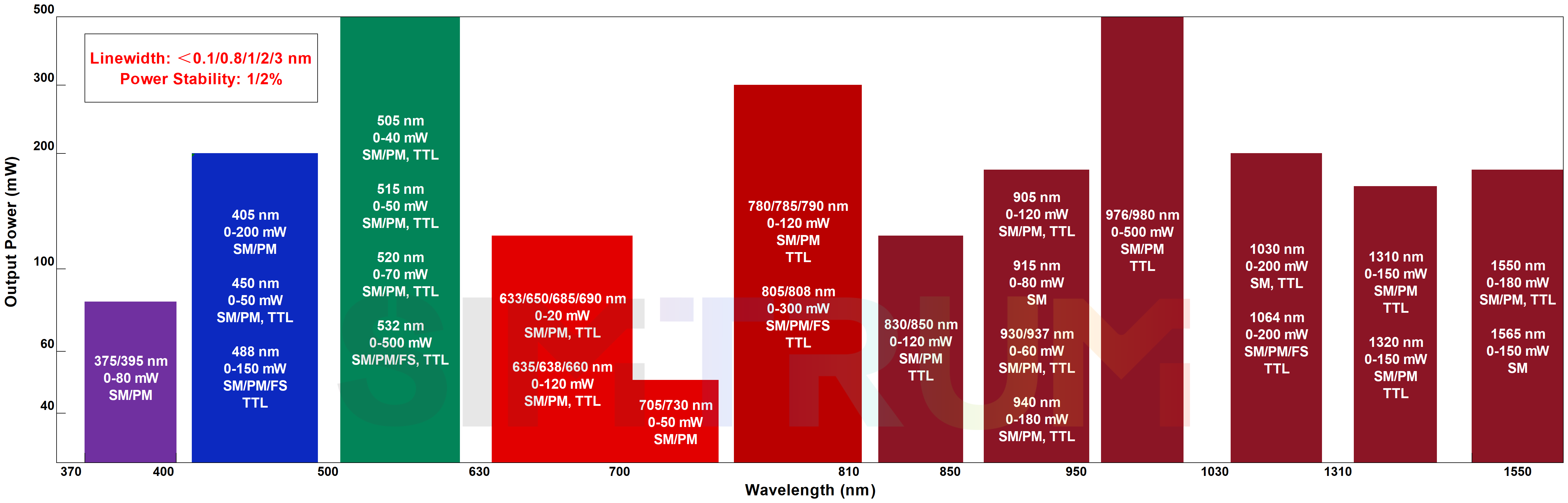

Ordering Information/ Product Number
Series	Wavelength (nm)	Output Power (mW)	Output Type	Wavelength (nm)	Output Power (mW)	Output Type
LL-SML	375	30	SM/PM	785	40/50/80/120	SM/PM
	395	80	SM/PM	790	120	SM/PM
	405	200	SM/PM	805	300	FS
	450	40/50	SM/PM	808	50/70/80/200	SM/PM
	488	30/150	SM/PM (30 mW); FS (150 mW)	830	80/100/110	SM/PM
	505	30/40	SM/PM	850	100/110/120	SM/PM
	515	40/50	SM/PM (50 mW)	905	80/100/120	SM/PM (100/120 mW)
	520	25/40/50/60/70	SM/PM (25/50/60 mW)	915	80	SM
	532	100/300/500	SM/PM (100/500 mW) /FS (300 mW)	930	60	SM/PM
	633	20	SM/PM	940	20/80/120/150/180	SM/PM
	635	20/100/120	SM/PM (20/100 mW)	976	100/500	SM/PM (100 mW)
	638	20/60/110/120	SM/PM (20/60/110 mW)	980	50/60/70/500	SM/PM (50/60/70 mW)
	650	20	SM/PM	1030	200	SM
	660	20/60/110/120	SM/PM (20/60/110 mW)	1064	12/15/20/100/200/500	SM/PM/FS (200 mW)
	685	12/30	SM/PM	1310	15/100/150	SM/PM (15/100 mW)
	690	20	SM/PM	1320	150	SM/PM
	705	50	SM/PM	1550	10/60/80/100/150/180	SM/PM (10/60/80/100 mW)
	730	50	SM/PM	1565	150	SM
	780	80/120	SM/PM
Remarks	For additional detailed specifications and test data, switch to the “Specifications” tab. *Model Selection Example: LL-SML-785-40-PM (Single Mode, 785 nm, 40 mW, PMF）
Remarks

Specification (375-780 nm)

*This table displays only a selection of popular models. For specific requirements regarding wavelength, linewidth, power, or other parameters, please contact SIMTRUM for assistance.

Product Number	Wavelength	Spectral Linewidth	Output Power	Power Stability	Digital Modulation	Output Type
LL-SML-450-40-SM/PM	450 nm	＜3 nm	40 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-450-45-SM	450 nm	＜3 nm	45 mW	1%	TTL on/off 10kHz	SMF
LL-SML-488-30-SM/PM	488 nm	＜3 nm	30 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-488-150-FS	488 nm	＜0.8 nm	150 mW	2%	/	Free Space
LL-SML-505-30-SM/PM	505 nm	＜3 nm	30 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-505-40-SM/PM	505 nm	＜3 nm	40 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-515-40-SM/PM	515 nm	＜3 nm	40 mW	1%	TTL on/off 10kHz	SMF/PMF
L-SML-515-50-SM	515 nm	＜3 nm	50 mW	1%	TTL on/off 10kHz	SMF
LL-SML-520-25-SM/PM	520 nm	＜3 nm	25 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-520-40-SM		＜3 nm	40 mW	1%	TTL on/off 10kHz	SMF
LL-SML-520-60-SM/PM		＜3 nm	60 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-520-70-SM		＜3 nm	70 mW	1%	TTL on/off 10kHz	SMF
LL-SML-532-100-PM	532 nm	2 nm	100 mW	1%	TTL on/off 1kHz	PMF
LL-SML-532-300-FS	532 nm	＜3 nm	300 mW	1%	/	Free Space
LL-SML-635-100-SM/PM	635 nm	＜3 nm	100 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-635-120-SM	635 nm	＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF
LL-SML-638-60-SM/PM	638 nm	＜3 nm	60 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-638-110-SM/PM		＜3 nm	110 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-638-120-SM		＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF
LL-SML-660-60-SM/PM	660 nm	＜3 nm	60 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-660-110-SM/PM		＜3 nm	110 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-660-120-SM		＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF
LL-SML-685-12-SM/PM	685 nm	＜3 nm	12 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-685-30-SM/PM	685 nm	＜3 nm	30 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-780-120-SM/PM	780 nm	＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF/PMF

Specification (785-1565 nm)

*This table displays only a selection of popular models. For specific requirements regarding wavelength, linewidth, power, or other parameters, please contact SIMTRUM for assistance.

Product Number	Wavelength	Spectral Linewidth	Output Power	Power Stability	Digital Modulation	Output Type
LL-SML-785-40-SM/PM	785 nm	＜3 nm	40 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-785-50-SM/PM		＜3 nm	50 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-785-120-SM/PM		＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-790-120-SM/PM	790 nm	＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-805-300-FS	805 nm	＜3 nm	300 mW	3%	TTL on/off 1kHz	Free Space
LL-SML-808-50-SM/PM	808 nm	3 nm	50 mW	2%	TTL on/off	SMF/PMF
LL-SML-808-70-SM/PM		＜3 nm	70 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-808-80-SM/PM		＜3 nm	80 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-830-100-SM/PM	830 nm	＜3 nm	100 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-830-110-SM/PM	830 nm	＜3 nm	110 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-850-110-SM/PM	850 nm	＜3 nm	110 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-850-120-SM/PM	850 nm	＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-905-100-SM/PM	905 nm	＜3 nm	100 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-905-120-SM/PM	905 nm	＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-930-60-SM/PM	930 nm	＜3 nm	60 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-937-50-SM	937 nm	0.8 nm	50 mW	1%	TTL on/off 1kHz	SMF
LL-SML-940-20-SM/PM	940 nm	＜3 nm	20 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-940-120-SM/PM		＜3 nm	120 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-940-150-SM/PM		＜3 nm	150 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-940-180-SM/PM		＜3 nm	180 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-976-100-SM/PM	976 nm	2 nm	100 mW	2%	TTL on/off	SMF/PMF
LL-SML-980-50-SM/PM	980 nm	＜3 nm	50 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-980-60-SM/PM		＜3 nm	60 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-980-70-SM/PM		＜3 nm	70 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1030-200-SM	1030 nm	0.8 nm	200 mW	1%	TTL on/off 1kHz	SMF
LL-SML-1064-12-SM/PM	1064 nm	＜3 nm	12 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1064-15-SM/PM		＜3 nm	15 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1064-20-SM/PM		＜3 nm	20 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1064-100-SM/PM		0.1 nm	100 mW	2%	TTL on/off	SMF/PMF
LL-SML-1064-200-SM/PM		0.1 nm	200 mW	2%	TTL on/off	SMF/PMF
LL-SML-1064-200-FS		0.8 nm	200 mW	1%	TTL on/off 1kHz	Free Space
LL-SML-1310-15-SM/PM	1310 nm	＜3 nm	15 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1550-10-SM/PM	1550 nm	＜3 nm	10 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1550-60-SM/PM		＜3 nm	60 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1550-80-SM/PM		＜3 nm	80 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1550-100-SM/PM		＜3 nm	100 mW	1%	TTL on/off 10kHz	SMF/PMF
LL-SML-1550-180-SM		1 nm	180 mW	1%	TTL on/off 1kHz	SMF

Confocal System built with a Multi-channel Integrated Laser

Application Effects in Biological Research


FISH (Fluorescence In Situ Hybridization)-60X-1.2 NA-Confocal	Glioma Stem Cells-40X-0.95 NA-Confocal

Type	Wavelength Choice	Power Range
Spinning Disk Confocal Microscope	405/445/488/525/561/640 nm Customizable	/
Four-channel Single-mode /Multi-mode laser（375-808 nm）	375-808 nm(number of channels customizable)	Single-mode＞20mW, Multi-mode＞500mW
Multi-channel high-power UV lasers (375-435 nm)	3 channels: 378/405/435 nm;4 channels: 375/382/405/425 nm	3-150W
Triple-channel Multi-mode Laser (488/525/638 nm)	488/525/638 nm	≥90mW
Triplex (RGB) fiber-coupled white light lasers（445/520/635 nm）	445/520/635 nm	10mW-1W
Single Channel High Power UV Fiber-coupled LED Light Source (365/385/405/435 nm)	365/385/405/435 nm	3-16W
Dual-Channel High Power UV Fiber-coupled LED Light Source (365/385 nm)	365/385 nm	3-11W
Single Wavelength Liquid Light guide (LLG) LED Light Source (365-730 nm)	365-730 nm/White	0.2W-2.3W
Multi-Wavelength Liquid Light guide (LLG) LED Light Source (360-730 nm)	360-660 nm（4 channels);360-730nm（6 channels）	≥3.5W/≥4.5W
High Power Liquid Light guide (LLG) LED Light Source (365-730 nm)	365-730nm/ 3000-6500K	7W-80W

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Laser Type		/	Multi-mode/Single Mode
Channel		/	Multi-mode: 1-8 channels;Single Mode: 1-4 channels
Wavelength		nm	Customizable
Maximum Output Power		mW	Customizable
Digital Modulation		/	If required, please provide the speed requirements.
Analog Modulation		/	If required, please provide the speed requirements.
Power Stability		%	1%/2%/3% optional
Spot Removal Function		/	For Multi-mode Laser, please specify if needed.
Fiber Length		m	Customizable

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.

Don't have time to search the products one by one?No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments?Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
LL-SML-375-30-SM/PM Wavelength: 375 nm, Linewidth: ＜3 nm, Output Power: 30 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-395-80-SM/PM Wavelength: 395 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-405-200-SM/PM Wavelength: 405 nm, Linewidth: ＜3 nm, Output Power: 200 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-450-40-SM/PM Wavelength: 450 nm, Linewidth: ＜3 nm, Output Power: 40 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-450-45-SM Wavelength: 450 nm, Linewidth: ＜3 nm, Output Power: 45 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-450-50-SM/PM Wavelength: 450 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-488-30-SM/PM Wavelength: 488 nm, Linewidth: ＜3 nm, Output Power: 30 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-488-150-FS Wavelength: 488 nm, Linewidth: 0.8 nm, Output Power: 150 mW, Output Type: Free Space Power Stability: 2%	Contact us	Request for quote
LL-SML-505-30-SM/PM Wavelength: 505 nm, Linewidth: ＜3 nm, Output Power: 30 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-505-40-SM/PM Wavelength: 505 nm, Linewidth: ＜3 nm, Output Power: 40 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-515-50-SM Wavelength: 515 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-515-40-SM/PM Wavelength: 515 nm, Linewidth: ＜3 nm, Output Power: 40 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-520-25-SM/PM Wavelength: 520 nm, Linewidth: ＜3 nm, Output Power: 25 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-520-40-SM Wavelength: 520 nm, Linewidth: ＜3 nm, Output Power: 40 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-520-50-SM/PM Wavelength: 520 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-520-60-SM/PM Wavelength: 520 nm, Linewidth: ＜3 nm, Output Power: 60 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-520-70-SM Wavelength: 520 nm, Linewidth: ＜3 nm, Output Power: 70 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-532-100-PM Wavelength: 532 nm, Linewidth: 2 nm, Output Power: 100 mW, Output Type: PMF Power Stability: 1% Digital Modulation: TTL on/off 1kHz	Contact us	Request for quote
LL-SML-532-300-FS Wavelength: 532 nm, Linewidth: ＜3 nm, Output Power: 300 mW, Output Type: Free Space Power Stability: 1%	Contact us	Request for quote
LL-SML-532-500-SM/PM Wavelength: 532 nm, Linewidth: ＜3 nm, Output Power: 500 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-633-20-SM/PM Wavelength: 633 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-635-20-SM/PM Wavelength: 635 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-635-100-SM/PM Wavelength: 635 nm, Linewidth: ＜3 nm, Output Power: 100 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-635-120-SM Wavelength: 635 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-638-20-SM/PM Wavelength: 638 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-638-60-SM/PM Wavelength: 638 nm, Linewidth: ＜3 nm, Output Power: 60 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-638-110-SM/PM Wavelength: 638 nm, Linewidth: ＜3 nm, Output Power: 110 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-638-120-SM Wavelength: 638 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-650-20-SM/PM Wavelength: 650 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-660-20-SM/PM Wavelength: 660 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-660-60-SM/PM Wavelength: 660 nm, Linewidth: ＜3 nm, Output Power: 60 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-660-110-SM/PM Wavelength: 660 nm, Linewidth: ＜3 nm, Output Power: 110 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-660-120-SM Wavelength: 660 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-685-12-SM/PM Wavelength: 685 nm, Linewidth: ＜3 nm, Output Power: 12 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-685-30-SM/PM Wavelength: 685 nm, Linewidth: ＜3 nm, Output Power: 30 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-690-20-SM/PM Wavelength: 690 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-705-50-SM/PM Wavelength: 705 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-730-50-SM/PM Wavelength: 730 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-780-80-SM/PM Wavelength: 780 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-780-120-SM/PM Wavelength: 780 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-785-40-SM/PM Wavelength: 785 nm, Linewidth: ＜3 nm, Output Power: 40 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-785-50-SM/PM Wavelength: 785 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-785-80-SM/PM Wavelength: 785 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-785-120-SM/PM Wavelength: 785 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-790-120-SM/PM Wavelength: 790 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-805-300-FS Wavelength: 805 nm, Linewidth: ＜3 nm, Output Power: 300 mW, Output Type: Free Space Power Stability: 3% Digital Modulation: TTL on/off 1kHz	Contact us	Request for quote
LL-SML-808-50-SM/PM Wavelength: 808 nm, Linewidth: 3 nm, Output Power: 50 mW, Output Type: SMF/PMF Power Stability: 2% Digital Modulation: TTL on/off	Contact us	Request for quote
LL-SML-808-70-SM/PM Wavelength: 808 nm, Linewidth: ＜3 nm, Output Power: 70 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-808-80-SM/PM Wavelength: 808 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-808-200-SM/PM Wavelength: 808 nm, Linewidth: ＜3 nm, Output Power: 200 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-830-80-SM/PM Wavelength: 830 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-830-100-SM/PM Wavelength: 830 nm, Linewidth: ＜3 nm, Output Power: 100 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-830-110-SM/PM Wavelength: 830 nm, Linewidth: ＜3 nm, Output Power: 110 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-850-100-SM/PM Wavelength: 850 nm, Linewidth: ＜3 nm, Output Power: 100 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-850-110-SM/PM Wavelength: 850 nm, Linewidth: ＜3 nm, Output Power: 110 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-850-120-SM/PM Wavelength: 850 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-905-80-SM Wavelength: 905 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF	Contact us	Request for quote
LL-SML-905-100-SM/PM Wavelength: 905 nm, Linewidth: ＜3 nm, Output Power: 100 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-905-120-SM/PM Wavelength: 905 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-915-80-SM Wavelength: 915 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF	Contact us	Request for quote
LL-SML-930-60-SM/PM Wavelength: 930 nm, Linewidth: ＜3 nm, Output Power: 60 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-937-50-SM Wavelength: 937 nm, Linewidth: 0.8 nm, Output Power: 50 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 1kHz	Contact us	Request for quote
LL-SML-940-20-SM/PM Wavelength: 940 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-940-80-SM/PM Wavelength: 940 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-940-120-SM/PM Wavelength: 940 nm, Linewidth: ＜3 nm, Output Power: 120 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-940-150-SM/PM Wavelength: 940 nm, Linewidth: ＜3 nm, Output Power: 150 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-940-180-SM/PM Wavelength: 940 nm, Linewidth: ＜3 nm, Output Power: 180 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-976-100-SM/PM Wavelength: 976 nm, Linewidth: 2 nm, Output Power: 100 mW, Output Type: SMF/PMF Power Stability: 2% Digital Modulation: TTL on/off	Contact us	Request for quote
LL-SML-976-500-SM Wavelength: 976 nm, Linewidth: ＜3 nm, Output Power: 500 mW, Output Type: SMF	Contact us	Request for quote
LL-SML-980-50-SM/PM Wavelength: 980 nm, Linewidth: ＜3 nm, Output Power: 50 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-980-60-SM/PM Wavelength: 980 nm, Linewidth: ＜3 nm, Output Power: 60 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-980-70-SM/PM Wavelength: 980 nm, Linewidth: ＜3 nm, Output Power: 70 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-980-500-SM Wavelength: 980 nm, Linewidth: ＜3 nm, Output Power: 500 mW, Output Type: SMF	Contact us	Request for quote
LL-SML-1030-200-SM Wavelength: 1030 nm, Linewidth: 0.8 nm, Output Power: 200 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 1kHz	Contact us	Request for quote
LL-SML-1064-12-SM/PM Wavelength: 1064 nm, Linewidth: ＜3 nm, Output Power: 12 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1064-15-SM/PM Wavelength: 1064 nm, Linewidth: ＜3 nm, Output Power: 15 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1064-20-SM/PM Wavelength: 1064 nm, Linewidth: ＜3 nm, Output Power: 20 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1064-100-SM/PM Wavelength: 1064 nm, Linewidth: 0.1 nm, Output Power: 100 mW, Output Type: SMF/PMF Power Stability: 2% Digital Modulation: TTL on/off	Contact us	Request for quote
LL-SML-1064-200-SM/PM Wavelength: 1064 nm, Linewidth: 0.1 nm, Output Power: 200 mW, Output Type: SMF/PMF Power Stability: 2% Digital Modulation: TTL on/off	Contact us	Request for quote
LL-SML-1064-200-FS Wavelength: 1064 nm, Linewidth: 0.8 nm, Output Power: 200 mW, Output Type: Free Space Power Stability: 1% Digital Modulation: TTL on/off 1kHz	Contact us	Request for quote
LL-SML-1064-500-SM/PM Wavelength: 1064 nm, Linewidth: ＜3 nm, Output Power: 500 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-1310-15-SM/PM Wavelength: 1310 nm, Linewidth: ＜3 nm, Output Power: 15 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1310-100-PM Wavelength: 1310 nm, Linewidth: ＜3 nm, Output Power: 100 mW, Output Type: PMF	Contact us	Request for quote
LL-SML-1310-150-SM Wavelength: 1310 nm, Linewidth: ＜3 nm, Output Power: 150 mW, Output Type: SMF	Contact us	Request for quote
LL-SML-1320-150-SM/PM Wavelength: 1320 nm, Linewidth: ＜3 nm, Output Power: 150 mW, Output Type: SMF/PMF	Contact us	Request for quote
LL-SML-1550-10-SM/PM Wavelength: 1550 nm, Linewidth: ＜3 nm, Output Power: 10 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1550-60-SM/PM Wavelength: 1550 nm, Linewidth: ＜3 nm, Output Power: 60 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1550-80-SM/PM Wavelength: 1550 nm, Linewidth: ＜3 nm, Output Power: 80 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1550-100-SM/PM Wavelength: 1550 nm, Linewidth: ＜3 nm, Output Power: 100 mW, Output Type: SMF/PMF Power Stability: 1% Digital Modulation: TTL on/off 10kHz	Contact us	Request for quote
LL-SML-1550-150-SM Wavelength: 1550 nm, Linewidth: ＜3 nm, Output Power: 150 mW, Output Type: SMF Power Stability: 1%	Contact us	Request for quote
LL-SML-1550-180-SM Wavelength: 1550 nm, Linewidth: 1 nm, Output Power: 180 mW, Output Type: SMF Power Stability: 1% Digital Modulation: TTL on/off 1kHz	Contact us	Request for quote
LL-SML-1565-150-SM Wavelength: 1565 nm, Linewidth: ＜3 nm, Output Power: 150 mW, Output Type: SMF	Contact us	Request for quote

LL-SML-1565-150-SM - Parameter

LL-SML-1550-180-SM - Parameter

LL-SML-1550-150-SM - Parameter

LL-SML-1550-100-SM/PM - Parameter

LL-SML-1550-80-SM/PM - Parameter

LL-SML-1550-60-SM/PM - Parameter

LL-SML-1550-10-SM/PM - Parameter

LL-SML-1320-150-SM/PM - Parameter

LL-SML-1310-150-SM - Parameter

LL-SML-1310-100-PM - Parameter

LL-SML-1310-15-SM/PM - Parameter

LL-SML-1064-500-SM/PM - Parameter

LL-SML-1064-200-FS - Parameter

LL-SML-1064-200-SM/PM - Parameter

LL-SML-1064-100-SM/PM - Parameter

LL-SML-1064-20-SM/PM - Parameter

LL-SML-1064-15-SM/PM - Parameter

LL-SML-1064-12-SM/PM - Parameter

LL-SML-1030-200-SM - Parameter

LL-SML-980-500-SM - Parameter

LL-SML-980-70-SM/PM - Parameter

LL-SML-980-60-SM/PM - Parameter

LL-SML-980-50-SM/PM - Parameter

LL-SML-976-500-SM - Parameter

LL-SML-976-100-SM/PM - Parameter

LL-SML-940-180-SM/PM - Parameter

LL-SML-940-150-SM/PM - Parameter

LL-SML-940-120-SM/PM - Parameter

LL-SML-940-80-SM/PM - Parameter

LL-SML-940-20-SM/PM - Parameter

LL-SML-937-50-SM - Parameter

LL-SML-930-60-SM/PM - Parameter

LL-SML-915-80-SM - Parameter

LL-SML-905-120-SM/PM - Parameter

LL-SML-905-100-SM/PM - Parameter

LL-SML-905-80-SM - Parameter

LL-SML-850-120-SM/PM - Parameter

LL-SML-850-110-SM/PM - Parameter

LL-SML-850-100-SM/PM - Parameter

LL-SML-830-110-SM/PM - Parameter

LL-SML-830-100-SM/PM - Parameter

LL-SML-830-80-SM/PM - Parameter

LL-SML-808-200-SM/PM - Parameter

LL-SML-808-80-SM/PM - Parameter

LL-SML-808-70-SM/PM - Parameter

LL-SML-808-50-SM/PM - Parameter

LL-SML-805-300-FS - Parameter

LL-SML-790-120-SM/PM - Parameter

LL-SML-785-120-SM/PM - Parameter

LL-SML-785-80-SM/PM - Parameter

LL-SML-785-50-SM/PM - Parameter

LL-SML-785-40-SM/PM - Parameter

LL-SML-780-120-SM/PM - Parameter

LL-SML-780-80-SM/PM - Parameter

LL-SML-730-50-SM/PM - Parameter

LL-SML-705-50-SM/PM - Parameter

LL-SML-690-20-SM/PM - Parameter

LL-SML-685-30-SM/PM - Parameter

LL-SML-685-12-SM/PM - Parameter

LL-SML-660-120-SM - Parameter

LL-SML-660-110-SM/PM - Parameter

LL-SML-660-60-SM/PM - Parameter

LL-SML-660-20-SM/PM - Parameter

LL-SML-650-20-SM/PM - Parameter

LL-SML-638-120-SM - Parameter

LL-SML-638-110-SM/PM - Parameter

LL-SML-638-60-SM/PM - Parameter

LL-SML-638-20-SM/PM - Parameter

LL-SML-635-120-SM - Parameter

LL-SML-635-100-SM/PM - Parameter

LL-SML-635-20-SM/PM - Parameter

LL-SML-633-20-SM/PM - Parameter

LL-SML-532-500-SM/PM - Parameter

LL-SML-532-300-FS - Parameter

LL-SML-532-100-PM - Parameter

LL-SML-520-70-SM - Parameter

LL-SML-520-60-SM/PM - Parameter

LL-SML-520-50-SM/PM - Parameter

LL-SML-520-40-SM - Parameter

LL-SML-520-25-SM/PM - Parameter

LL-SML-515-40-SM/PM - Parameter

LL-SML-515-50-SM - Parameter

LL-SML-505-40-SM/PM - Parameter

LL-SML-505-30-SM/PM - Parameter

LL-SML-488-150-FS - Parameter

LL-SML-488-30-SM/PM - Parameter

LL-SML-450-50-SM/PM - Parameter

LL-SML-450-45-SM - Parameter

LL-SML-450-40-SM/PM - Parameter

LL-SML-405-200-SM/PM - Parameter

LL-SML-395-80-SM/PM - Parameter

LL-SML-375-30-SM/PM - Parameter

LL-SML-1565-150-SM - Download

LL-SML-1550-180-SM - Download

LL-SML-1550-150-SM - Download

LL-SML-1550-100-SM/PM - Download

LL-SML-1550-80-SM/PM - Download

LL-SML-1550-60-SM/PM - Download

LL-SML-1550-10-SM/PM - Download

LL-SML-1320-150-SM/PM - Download

LL-SML-1310-150-SM - Download

LL-SML-1310-100-PM - Download

LL-SML-1310-15-SM/PM - Download

LL-SML-1064-500-SM/PM - Download

LL-SML-1064-200-FS - Download

LL-SML-1064-200-SM/PM - Download

LL-SML-1064-100-SM/PM - Download

LL-SML-1064-20-SM/PM - Download

LL-SML-1064-15-SM/PM - Download

LL-SML-1064-12-SM/PM - Download

LL-SML-1030-200-SM - Download

LL-SML-980-500-SM - Download

LL-SML-980-70-SM/PM - Download

LL-SML-980-60-SM/PM - Download

LL-SML-980-50-SM/PM - Download

LL-SML-976-500-SM - Download

LL-SML-976-100-SM/PM - Download

LL-SML-940-180-SM/PM - Download

LL-SML-940-150-SM/PM - Download

LL-SML-940-120-SM/PM - Download

LL-SML-940-80-SM/PM - Download

LL-SML-940-20-SM/PM - Download

LL-SML-937-50-SM - Download

LL-SML-930-60-SM/PM - Download

LL-SML-915-80-SM - Download

LL-SML-905-120-SM/PM - Download

LL-SML-905-100-SM/PM - Download

LL-SML-905-80-SM - Download

LL-SML-850-120-SM/PM - Download

LL-SML-850-110-SM/PM - Download

LL-SML-850-100-SM/PM - Download

LL-SML-830-110-SM/PM - Download

LL-SML-830-100-SM/PM - Download

LL-SML-830-80-SM/PM - Download

LL-SML-808-200-SM/PM - Download

LL-SML-808-80-SM/PM - Download

LL-SML-808-70-SM/PM - Download

LL-SML-808-50-SM/PM - Download

LL-SML-805-300-FS - Download

LL-SML-790-120-SM/PM - Download

LL-SML-785-120-SM/PM - Download

LL-SML-785-80-SM/PM - Download

LL-SML-785-50-SM/PM - Download

LL-SML-785-40-SM/PM - Download

LL-SML-780-120-SM/PM - Download

LL-SML-780-80-SM/PM - Download

LL-SML-730-50-SM/PM - Download

LL-SML-705-50-SM/PM - Download

LL-SML-690-20-SM/PM - Download

LL-SML-685-30-SM/PM - Download

LL-SML-685-12-SM/PM - Download

LL-SML-660-120-SM - Download

LL-SML-660-110-SM/PM - Download

LL-SML-660-60-SM/PM - Download

LL-SML-660-20-SM/PM - Download

LL-SML-650-20-SM/PM - Download

LL-SML-638-120-SM - Download

LL-SML-638-110-SM/PM - Download

LL-SML-638-60-SM/PM - Download

LL-SML-638-20-SM/PM - Download

LL-SML-635-120-SM - Download

LL-SML-635-100-SM/PM - Download

LL-SML-635-20-SM/PM - Download

LL-SML-633-20-SM/PM - Download

LL-SML-532-500-SM/PM - Download

LL-SML-532-300-FS - Download

LL-SML-532-100-PM - Download

LL-SML-520-70-SM - Download

LL-SML-520-60-SM/PM - Download

LL-SML-520-50-SM/PM - Download

LL-SML-520-40-SM - Download

LL-SML-520-25-SM/PM - Download

LL-SML-515-40-SM/PM - Download

LL-SML-515-50-SM - Download

LL-SML-505-40-SM/PM - Download

LL-SML-505-30-SM/PM - Download

LL-SML-488-150-FS - Download

LL-SML-488-30-SM/PM - Download

LL-SML-450-50-SM/PM - Download

LL-SML-450-45-SM - Download

LL-SML-450-40-SM/PM - Download

LL-SML-405-200-SM/PM - Download

LL-SML-395-80-SM/PM - Download

LL-SML-375-30-SM/PM - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)

Company
About us Contact us Worldwide Location
Light Analysis
Spectrometers Hyperspectral Camera Power meters Beam Profiler
Microscope
Confocal Microscope Raman Microscope Microscopy Stages TCSPC Solution
Light Sources
Fiber lasers Fiber Amplifier Diode Lasers Incoherent Light
Imaging
sCMOS Camera SW/MW/LW IR Cameras Infrared Pyrometer Microscope Cameras
Optics
Nonlinear Crystals Thz Components Waveplate Objective Lens
