1/1.8" Machine Vision FA Lens
10MP 1/1.8" Related Product Order Now!

SIMTRUM’s 10 Mega Pixels 1/1.8” FA/Machine Vision Lens features high resolution, multi-layer coating for high transmittance and effective suppression of stray light.

Its compact structure and small shape make it more suitable for integrated applications, with anti-vibration and anti-impact functions.

Feature

  • Support 10 MP 1/1.8" camera
  • High resolution
  • Multi layer coating, high transmittance, effective suppression of stray light
  • Compact structure, small shape; more suitable for integrated application
  • Anti vibration and anti impact function

Application

  • Machine Vision
  • Automatic Production
  • Electronic Communication Field



Product specifications and Brochures

Product Brochure Link:



Model STPM-16JC10M(H) STPM-25JC10M(H) STPM-35JC10M(H) STPM-45JC10M
Sensor Size 1.8"(9mm)
Focal Length 16mm 25mm 35mm 4.5mm
Interface C-Mount
Iris F2.8-16
FOV  (Diagonal,Horizontal, Vertical) 1/1.8" 31.0°x27.5°x15.7° 20.4°x17.8°x10.0° 14.7°x12.6°x7.29 89.0°x81.9°x52.39
1/2” 28.3°x24.7x14.0° 18.1°x15.9°x8.9° 13°x11.4x6.4° 89°x81.9x52.3°
Back Focal Length (In Air) 13mm 12.2mm 11mm 8.4mm
Operation Mode Focus Manual
lris Manual
Distortion 1/1.8" -0.5%@y=4.5mm -0.1%@y=4.5mm -0.09%@y=4.5mm -1.2%@y=4.5mm
1/2” -0.48%@y=4.0mm -0.08%@y=4.0mm -0.08%@y=4.0mm 1.08%@y=4.0mm
Focus Range 0.1m~∞ 0.2m~∞ 0.2m~∞ 0.1m~∞
Filter Thread Diameter M25.5xP0.5 -　
Working Temperature -20°C~+60°C

Product Code Resolution (MP) Sensor (inch)  FocalLength (mm) lris Range Back Focal Length (mm)
2/3" Machine Vision FA Lens MC 1.5/5/10  2/3 12-75  F1.4/1.8/2.0/2.8-C/F22/16 8.43-18.93
1" Machine Vision FA Lens LC 5/8 1 12-50   F1.4/1.6/1.8/2.0-F22/close      11.2-21.35
1.1" Machine Vision FA Lens UC 20/20M-H 1.1 12-50  F2.8/F2.8-F22 10.6-21.3
4/3" Machine Vision FA Lens XC 10/12 4/3 12-50  F2.0-F22 18-22.43
1/1.8" Machine Vision FA Lens JC 10/10-H  1/1.8 4.5-35  F2.8-16 8.4-13

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)

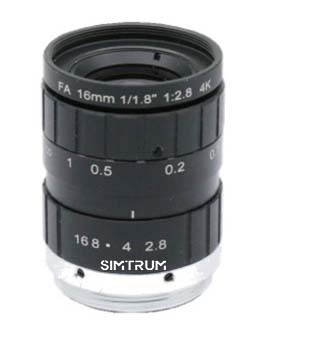

STPM-16JC10M(H)
STPM-16JC10M(H),Sensor Size 1.8" (9mm),Focal Length 16mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote

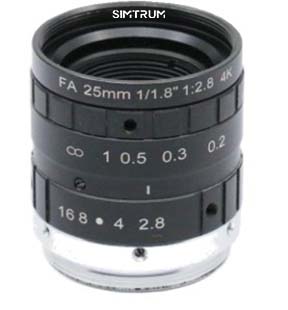

STPM-25JC10M(H)
STPM-25JC10M(H),Sensor Size 1.8" (9mm),Focal Length 25 mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote

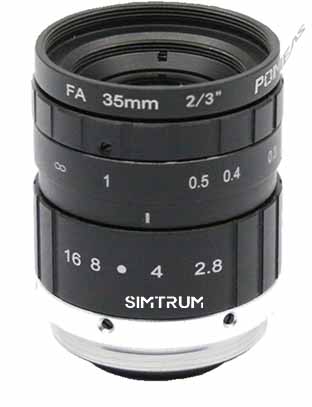

STPM-35JC10M(H)
STPM-35JC10M(H),Sensor Size 1.8" (9mm),Focal Length 35 mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote
STPM-45JC10M
STPM-45JC10M,Sensor Size 1.8" (9mm),Focal Length 4.5 mm,Iris F2.8-16,Interface C-Mount 		4-6 Weeks Request for quote

STPM-45JC10M - Parameter

STPM-35JC10M(H) - Parameter

STPM-25JC10M(H) - Parameter

STPM-16JC10M(H) - Parameter

STPM-45JC10M - Download

STPM-35JC10M(H) - Download

STPM-25JC10M(H) - Download

STPM-16JC10M(H) - Download
