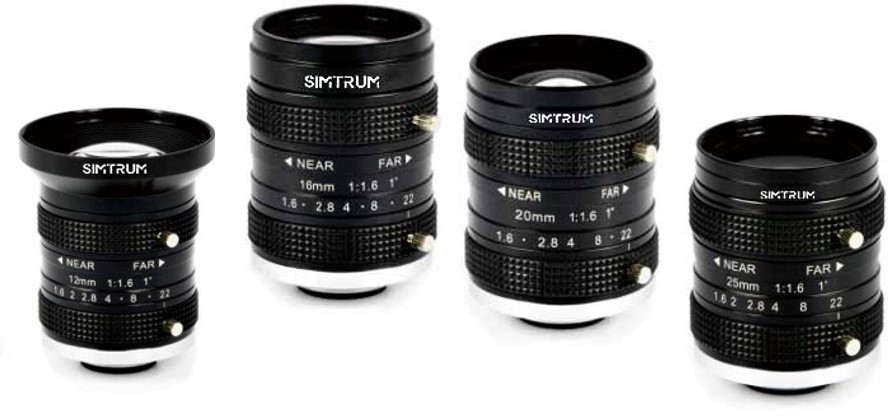

SIMTRUM’s 5 Mega Pixels 1” FA/Machine Vision Lens is designed to support a 5 MP 1" camera, with a focus and iris locking screw ensuring stable focusing.

It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

Support 5 MP 1" camera
Focus and iris locking, screw to ensure stable focusing
Low distortion sharp image
Compact structure, excellent optical performance

Application

Machine Vision
Automatic Production
Electronic Communication Field

Product specifications and Brochures

Product Brochure Link:

Parameter		STPM-12LC5M	STPM-16LC5M	STPM-20LC5M	STPM-25LC5M
Resolution		5 MP;160 lp/mm (center) 100 lp/mm (corner)
Focal Length (mm)		12	16	20	25
lris Range		F1.6-F22
Max.Sensor Size		1"(12.8mmX9.6mm Ø16mm)
Field of View (Diagonal x Horizontal x Verticle)	1"	68.8°x 57.1°x44.1°	54.3°x 44.2°x33.5°	44.4°x 35.8°x27.2°	36.2°x29.0°x21.8°
	2/3”	50.0°x 40.6°x30.9°	38.3°x 30.8°x23.2°	31.0°x 25.0°x18.8°	25.0°x20.0*x15.0°
Control	FocuS	Manual
	lris	Manual
Distortion(mm)	1"	-2.88%@y=8.0	-3.73%@y=8.0	-1.82%@y=8.0	-2.06%@y=8.0
	2/3”	-1.79%@y=5.5	-1.98%@y=5.5	-0.79%@y=5.5	0.98%@y=5.5
Effective lmage Dimension		16mm
Back Focal Length(in air) mm		13.54	12.17	13.08	12.69
Mount		C-mount
Filter Thread（mm)		M52.0x0.75	M37.5x0.5
Working Temperature		-10℃~+50℃

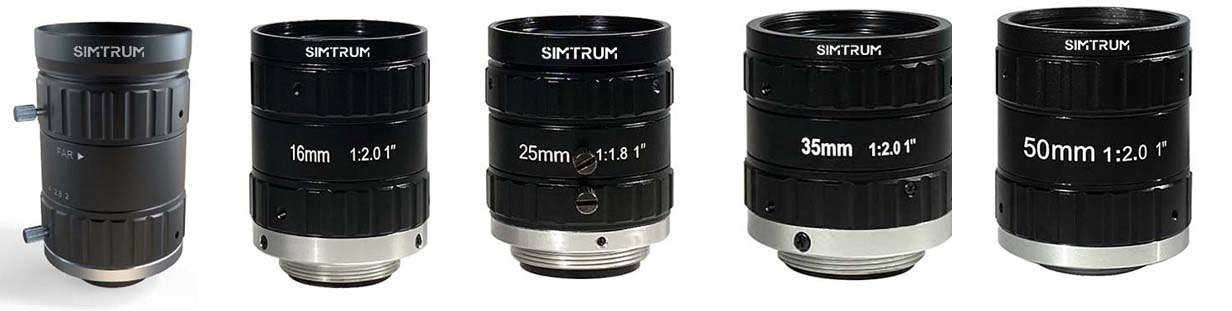

SIMTRUM’s 8 Mega Pixels 1” FA/Machine Vision Lens is designed to support a 8 MP 1" camera, with a focus and iris locking screw ensuring stable focusing.

It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

Support 8 MP 1" camera
Focus and iris locking, screw to ensure stable focusing
Low distortion sharp image
Compact structure, excellent optical performance

Application

Machine Vision
Automatic Production
Other Industries

Product specifications and Brochures

Product Brochure Link:

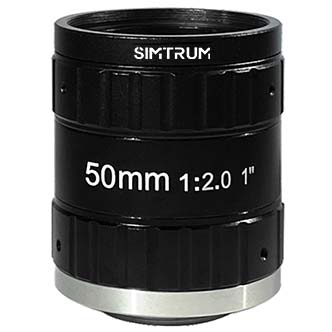

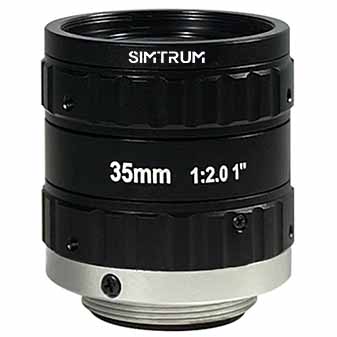

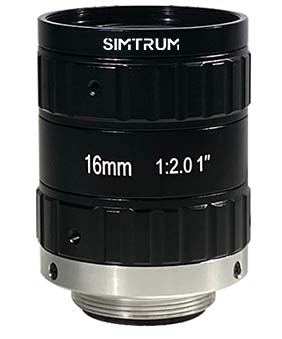

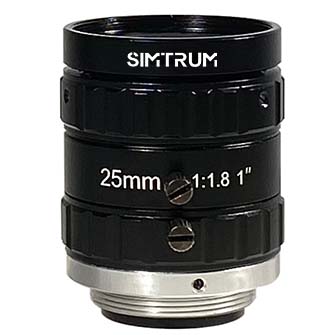

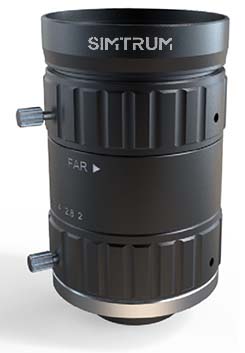

Parameter		STPM-12LC8M	STPM-16LC8M	STPM-25LC8M	STPM-35LC8M	STPM-50LC8M
Resolution		8MP
Focal Length (mm)		12	16	25	35	50
Corresponding Wavelength			420-1000nm
lris Range		F2.0-C	F2.0-close	F1.8-close	F2.0-close	F2.0-close
Max.Sensor Size		1"(16mm)
Imaging Range		0.1m~∞	0.1m~∞	0.15m~∞	0.2m~∞	0.25m~∞
Field of View (Diagonal x Horizontal x Verticle)	1"	69.63°×60.71°×40.33°	53.94°x43.92°x33.45°	36.21°x29.08°x21.86°	26.10°x20.83°x15.72	18.38°x14.70°x10.98°
	1/2''	37.32°×30.11°×22.74°	28.23°x22.62°x16.97°	18.45°x14.72°x11.08°	13.28°x10.65°x7.94°	9.34°x7.42°x5.5°
	1/3''	-	21.24°x16.98°x12.94°	13.81°x11.08°x8.34°	9.92”x7.92°x6.00°	6.96°x5.53x4.16°
Control	Focus	Manual
Control	lris	Manual	M-lris
Object Size (mm)	1"	155.01×130.05×90.3	112.75x89.28x66.33	92.4x73.3x54.6	81.10x64.88x48.66	72.50x57.94x43.34
	1/2''	74.93×59.76×44.73	55.09x43.96x32.82	45.5x36.4x27.2	40.52x32.42x24.31	36.18x28.76x21.66
	1/3''		41.19x33.32x24.58	34.2x27.3x20.5	30.42x24.34x18.25	27.26x21.74x16.34
Distortion (mm)	1"	-1.27%@y=4.0	-2.02%@y=8	-1.41%@y=8	0.28%@y=8	-0.013%@y=8.0
	1/2''	-4.1%@y=8	-0.68%@y=4.0	-0.32%@y=4.0	0.07%@y=4.0	0.010%@y=4.0
	1/3''		-0.39%@y=3.0	-0.18%@y=3.0	0.04%@y=3.0	0.04%@y=3.0
Effective lmage Dimension		16	-	-	-	-
Back Focal Length(in air) mm		15.07	11.20	12.68	12.96	21.35
Mount		C-mount
Filter Thread (mm)		M35.5×0.5	M34x0.5	M30.5x0.5	M30.5x0.5	M37x0.5
Working Temperature		-20℃～+60℃
Weight		-	101.25g	73.65g	70.35g	105.25g

Product	Code	Resolution (MP)	Sensor (inch)	FocalLength (mm)	lris Range	Back Focal Length (mm)
2/3" Machine Vision FA Lens	MC	1.5/5/10	2/3	12-75	F1.4/1.8/2.0/2.8-C/F22/16	8.43-18.93
1" Machine Vision FA Lens	LC	5/8	1	12-50	F1.4/1.6/1.8/2.0-F22/close	11.2-21.35
1.1" Machine Vision FA Lens	UC	20/20M-H	1.1	12-50	F2.8/F2.8-F22	10.6-21.3
4/3" Machine Vision FA Lens	XC	10/12	4/3	12-50	F2.0-F22	18-22.43
1/1.8" Machine Vision FA Lens	JC	10/10-H	1/1.8	4.5-35	F2.8-16	8.4-13

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STPM-12LC5M STPM-12LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)	4-6 Weeks	Request for quote
STPM-16LC5M STPM-16LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 16 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)	4-6 Weeks	Request for quote
STPM-20LC5M STPM-20LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 20 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)	4-6 Weeks	Request for quote
STPM-25LC5M STPM-25LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 25 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)	4-6 Weeks	Request for quote
STPM-12LC8M STPM-12LC8M, Resolution 8 MP,Focal Length 12 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-C,Max.Sensor Size 1"(16mm)	4-6 Weeks	Request for quote
STPM-16LC8M STPM-16LC8M, Resolution 8 MP,Focal Length 16 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)	4-6 Weeks	Request for quote
STPM-25LC8M STPM-25LC8M, Resolution 8 MP,Focal Length 25 mm,Corresponding Wavelength 420-1000nm,lris Range F1.8-close,Max.Sensor Size 1"(16mm)	4-6 Weeks	Request for quote
STPM-35LC8M STPM-35LC8M, Resolution 8 MP,Focal Length 35 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)	4-6 Weeks	Request for quote
STPM-50LC8M STPM-50LC8M, Resolution 8 MP,Focal Length 50 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)	4-6 Weeks	Request for quote
