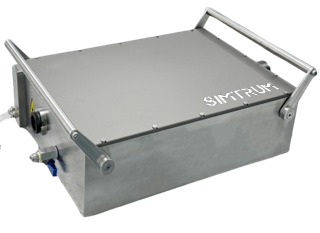

In the STHY-G series, a pulse compressor based on nonlinear techniques, the pulse width of input laser pulses can be further compressed by spectral broadening. The STHY-G compressor features an advanced cavity design and utilizes high-quality femtosecond optical components to minimize transmission efficiency losses.

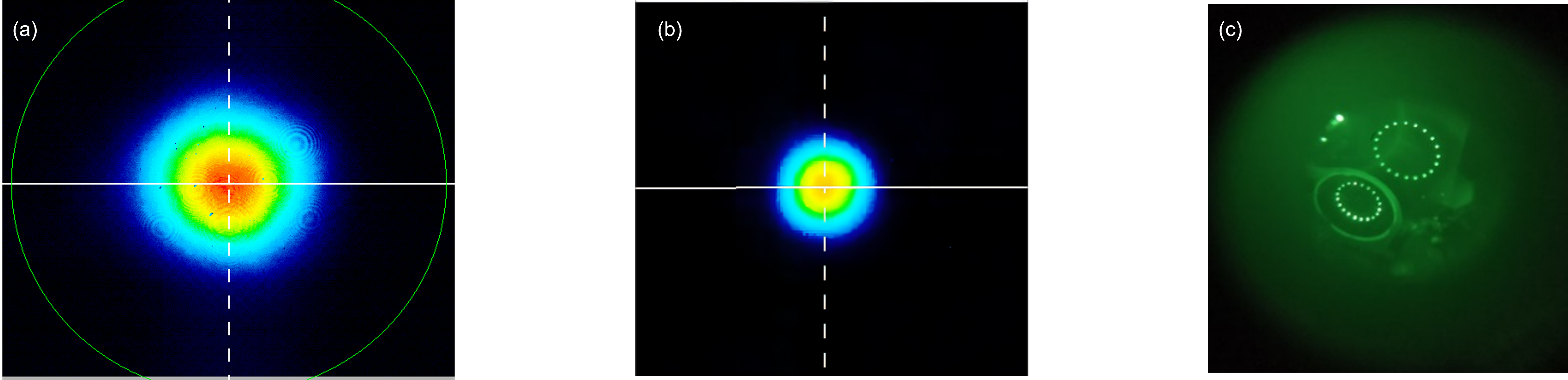

It incorporates an advanced automatic monitoring system that can real-time monitor the beam quality of laser pulses in the near and far fields, ensuring the stability of the output laser pulses' quality.In addition, this series of pulse compressors also exhibit excellent interference resistance and long lifespan, meeting the demands of customers for long-term use.

The device can provide a 5-10 times pulse compression effect, making STHY-G highly suitable for pulse compression in Yb ultrafast laser systems with high single-pulse energy.Special customization based on customer requirements for parameters such as wavelength and pulse width could be customized.

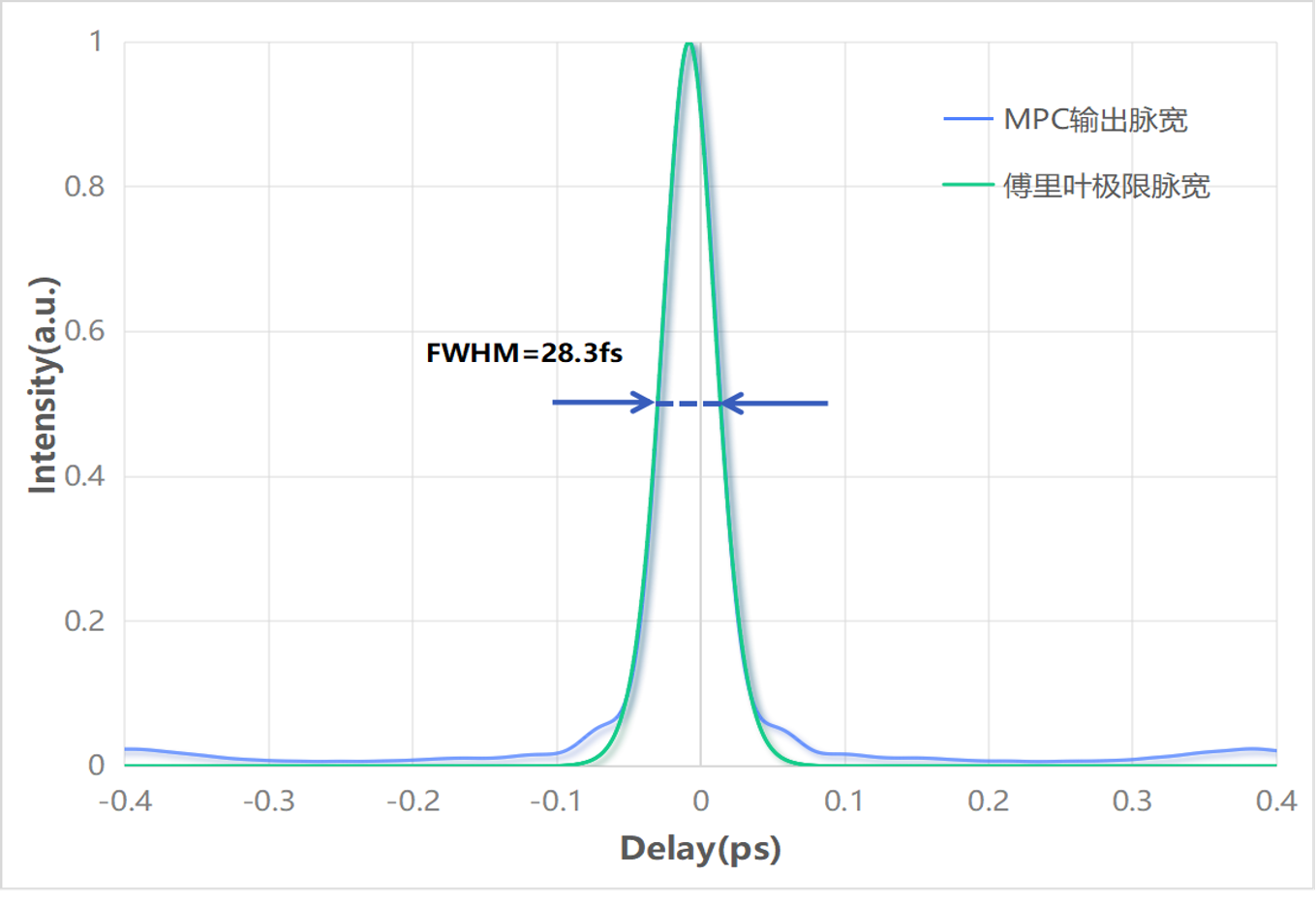

The typical pulse width of the output after compression by STHY-G is FWHM=28.3fs

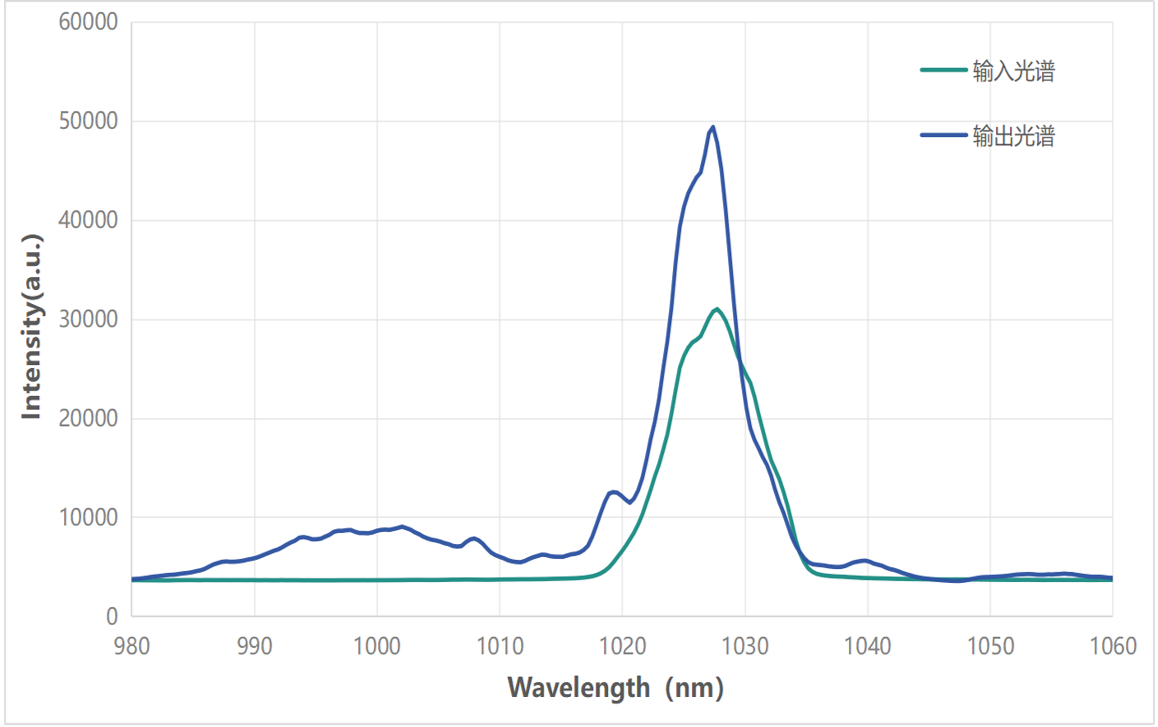

Typical input/output spectra of STHY-G
