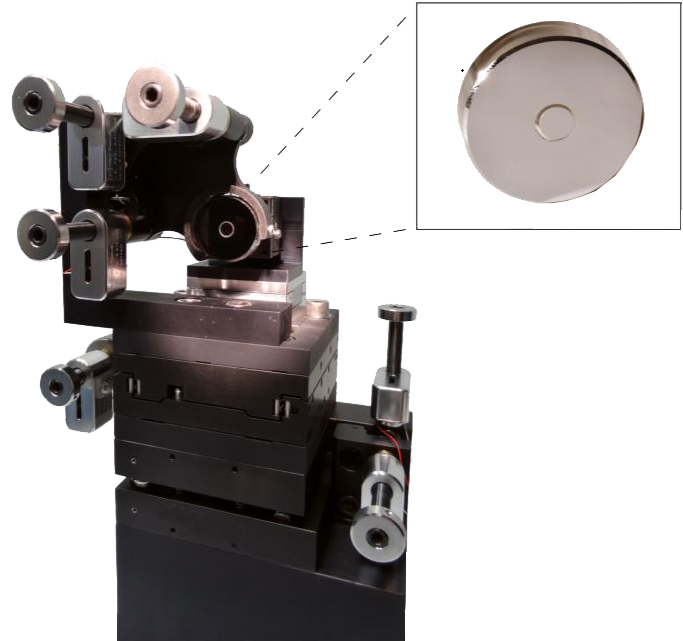

XUV/IR Pulse Delay Unit

XUV / IR – Pulse Delay Unit

Our pulse delay unit makes use of our XUV/soft X-ray multilayer double mirrors and combines

them with our profound knowledge in pump-probe experimental setups. The two-segment

mirror facilitates focusing IR pulses and lower divergent XUV/soft X-ray pulses onto a common

focus with an interferometrically precisely adjustable time delay. This allows temporal resolved

experiments with pumping systems of interest either with the XUV/soft X-ray pulse and probe it

with the IR or vice-versa. Based on the nature of e.g. attosecond pulses generated in the XUV/

soft X-ray range by high-harmonic generation (HHG) this offers state-of-the-art highest temporal

resolution for your experiments. The mirror coating can be customized according to the center

energy and bandwidth.

Key Product Features:

 Temporal resolution: 3 attoseconds

 Scan range: 300 fs

 Adjustment with 5 degrees of freedom

 Customized energy range and bandwidth

 Vacuum combability: <10-6 mbar

 Travel range actuator: ≈ 100 µm (software limits the range from 0-95 µm)

 Resolution actuator: 2 nm

 Travel range: 25 mm

 Step size: < 30 nm


Working Principle:

Our pulse delay unit makes use of the different divergence of both beams. The outer mirror ring shapes and focuses the high divergent IR pulses whereas the core

is responsible for shaping and focusing the low divergent XUV/soft X-ray pulses [1]. The lower divergence of the XUV/soft X-ray pulses is attributed to the higher

photon energy. Our system offers adjustment of 5 degrees of freedom to ensure a perfect spatial and temporal overlap of both pulses in the focus.


  Working principle of the delay unit. The time delay is introduced by changing the

  core position(reflecting the XU V/soft X-ray pulses) in respect to the ring

  (reflecting the IR pulses). Adjustment of 5 degrees of freedom offers perfect

  control for spatial and temporal overlap in the focus.


  Attosecond photoelectron streaking experiments performed with our XUV/IR

  pulse delay unit at MPQ (Garching, Germany) are shown above. The top

  figure depicts the measurement performed with a short 80 as pulse and a

  3.3 fs streaking IR pulse (its vector potential is shown in dashed white) [2].

  The bottom results from a 250 as pulse and a 4.3 fs IR pulse. Both

  demonstrate the high achievable temporal resolution with our device, the

  key to innovation and success in ultrafast experiments.
