Multi-Wavelength Fiber-Coupled LED (365-980nm)

Overview Specifications and Model Guide Order Now!

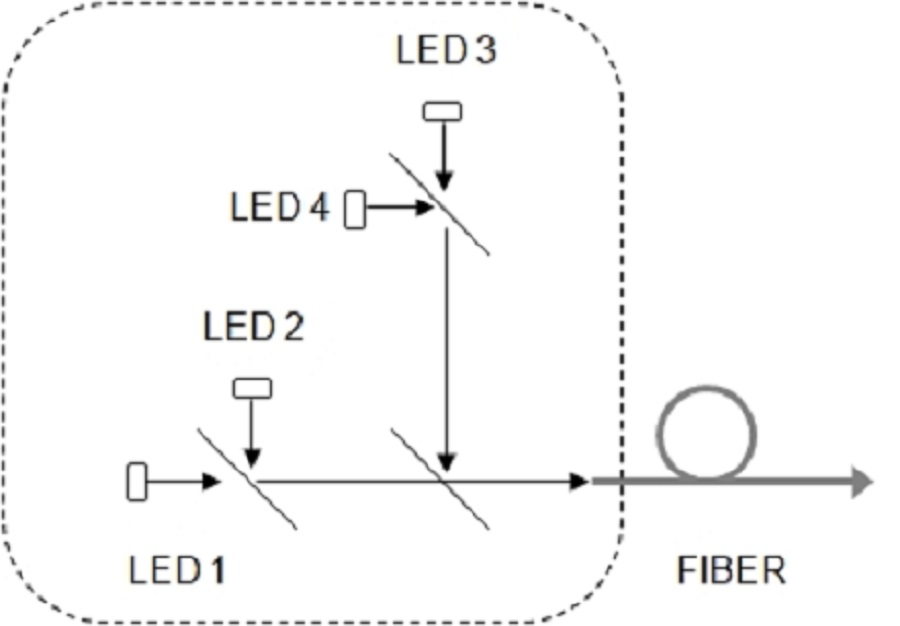

The light sources are offered in two configurations: the standard configuration and the high-power configuration. Neutral beam combiners are used in the standard configuration. The standard configuration has the advantage of low cost and the most flexible wavelength plans. Any wavelength and white color may be combined in the standard configuration. For applications that require the highest possible output power, however, one should choose the high-power configuration where high-efficiency dichroic beam splitters are used to combine different wavelengths.

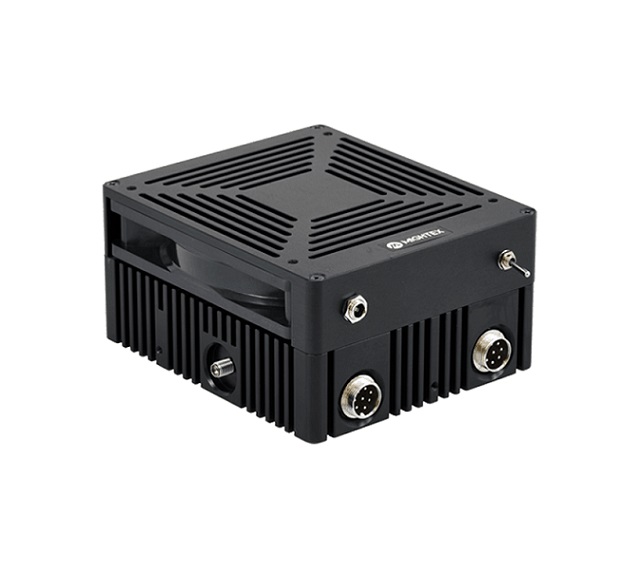

A 4-channel light source includes a 5-ft electrical cable, and an 8-channel source includes two such cables. Each cable has an 8-pin locking connector on one end to be plugged into the light source, and four pairs of bare-wire terminals at the other end. Each pair of terminals should be connected to a separate channel of a LED controller. Users can drive the installed LEDs individually or simultaneously using a multi-channel LED controller or other constant current sources. A cooling fan with heat sink is built into the light source. When two or more wavelengths are running at full power, the fan should be turned on to maintain low temperature of the LED junctions, in order to prevent LED damage due to over-heating. A separate power supply is included for driving the cooling fan.

Features:

· Combine 2, 4, 6 or 8 LEDs into a single fiber output

· No moving parts in optical path

· Interchangeable and simultaneous control of the LEDs

· High efficiency dichroic beam containers

· Wide range of available wavelengths: UV/VIS/NIR and White

· Cooling fan for maximum intensity stability

· Optional multi-channel LED controller

Applications:

· Optogenetics

· General purpose light source

· Microscope illuminator

· Fast spectrum tuning

LED Wavelength

Product Brochure: Fiber-Coupled Multi-Wavelength LED

High Power Configuration

Wavelength Code	Wavelength (nm)	Iop(mA)	Vop(V)	Typical Radiant Flux (mW) (1)
Wavelength Code	Wavelength (nm)	Iop(mA)	Vop(V)	2-wavelength	4-wavelength	6 or 8 wavelength
365	365	1000	3.65	3.6 (7.2)	3.2 (6.4)	2.9 (5.8)
380	380	1000	3.2	2.3 (4.6)	1.9 (3.8)	1.7 (3.4)
385	385	1000	3.65	4.8 (9.6)	4.3 (8.6)	3.9 (7.8)
390	390	1000	3.1	4.8 (9.6)	4.3 (8.6)	3.9 (7.8)
395	395	1000	3.1	5.1 (10.2)	4.1 (8.2)	3.7 (7.4)
400	400	1000	3.8	4.4 (8.8)	4.0 (8.0)	2.0 (4.0)
405	405	1000	3	6.2 (12.4)	5.0 (10.0)	4.5 (9.0)
410	410	1000	3	6.2 (12.4)	5.0 (10.0)	4.5 (9.0)
415	415	1000	3	6.1 (12.2)	4.9 (9.8)	4.4 (8.8)
425	425	1000	3	5.3 (10.6)	4.3 (8.6)	3.8 (7.6)
455	455	1000	3.9	5.6 (11.2)	5.1 (10.2)	4.5 (9.0)
470	470	1000	3.9	6.0 (12.0)	5.4 (10.8)	4.9 (9.8)
490	490	700	3.7	2.2 (4.4)	1.8 (3.6)	1.5 (3.0)
505	505	1000	3.9	2.8 (5.6)	2.2 (2.2)	1.7 (3.4)
530	530	1000	3.9	2.4 (4.8)	2.2 (4.4)	1.9 (3.8)
560	560	700	3.9	1.5 (3.0)	1.3 (2.6)	1.0 (2.0)
590	590	1000	3.9	1.3 (2.6)	1.2 (2.4)	1.1 (2.2)
617	617	1000	3.9	5.2 (10.4)	4.7 (9.4)	4.2 (8.4)
625	625	1000	3.9	6.1 (12.2)	5.5 (11.0)	5.0 (10.0)
656	656	1000	2.7	5.2 (10.4)	4.7 (9.4)	4.2 (8.4)
680	680	600	2.7	1.0 (2.0)	0.8 (1.6)	0.5 (1.0)
700	700	500	2.1	0.4 (0.8)	0.2 (0.4)	90µW (180µW)
720	720	600	2.2	0.6 (1.2)	0.4 (0.8)	0.2 (0.4)
740	740	1000	2.9	2.4 (4.8)	2.2 (4.4)	1.9 (3.8)
780	780	800	2.5	1.6 (3.2)	1.1 (2.2)	0.7 (1.4)
810	810	800	2.2	1.0 (2.0)	0.8 (1.6)	0.5 (1.0)
850	850	1000	2.1	3.2 (6.4)	2.9 (5.8)	2.6 (5.2)
870	870	700	2	2.4 (4.8)	2.2 (4.4)	1.9 (3.8)
940	940	1000	2.1	3.2 (6.4)	2.9 (5.8)	2.6 (5.2)
980	980	500	1.4	0.3 (0.6)	0.1 (0.2)	80µW (160µW)
6500	glacier white 6,500K	1000	3.6	-	-	-
5500	cool white 5,500K	1000	3.9	-	-	-
4000	warm white 4,000K	1000	3.9	-	-	-

Standard Configuration

Wavelength Code	Wavelength (nm)	Iop(mA)	Vop(V)	Radiant Flux 1 (mW)
Wavelength Code	Wavelength (nm)	Iop(mA)	Vop(V)	2-wavelength	4-wavelength
365	365	1000	3.65	1.7	0.8
380	380	1000	3.2	1.1	0.4
385	385	1000	3.65	2.3	1.1
390	390	1000	3.1	2.1	0.8
395	395	1000	3.1	2.3	1.1
400	400	1000	3.8	1.1	0.5
405	405	1000	3	2.8	1
410	410	1000	3	2.8	1
415	415	1000	3	2.7	0.9
420	420	1000	3.8	1.8	0.5
425	425	1000	3	2.4	0.9
455	455	1000	3.9	2.7	1.3
470	470	1000	3.9	2.9	1.4
490	490	700	3.7	1	0.3
505	505	1000	3.9	1.4	0.6
530	530	1000	3.9	0.8	0.4
560	560	700	3.9	0.7	0.3
590	590	1000	3.9	0.6	0.3
617	617	1000	3.9	2.5	1.2
625	625	1000	3.9	2.5	1.2
656	656	1000	2.7	2.5	1.2
680	680	600	2.7	0.5	0.2
700	700	500	2.1	0.2	90µW
720	720	600	2.2	0.3	0.1
740	740	1000	2.9	1.2	0.7
780	780	800	2.5	0.7	0.3
810	810	800	2.2	0.5	0.2
850	850	1000	2.1	1.5	0.7
870	870	700	2	1.1	0.5
940	940	1000	2.1	1.5	0.7
980	980	500	1.4	0.1	70µW
6500	glacier white 6,500K	1000	3.6	1.2	0.6
5500	cool white 5,500K	1000	3.9	1.2	0.6
4000	warm white 4,000K	1000	3.9	1.2	0.6
