Near Edge X-ray Absorption NEXAFS (0.2-1.2keV)

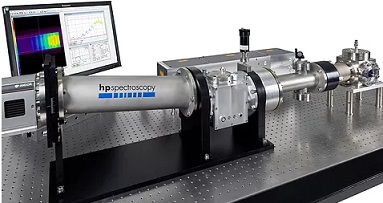

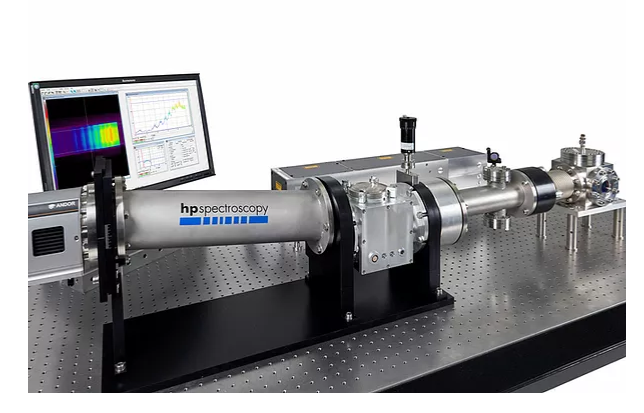

 proXAS

 table-top NEXAFS

 proXAS is the first system on the market to offer NEXAFS  measurements in a

 laboratory.

 Fingerprinting for element analysis is now possible in-house with fast and

 accurate  results.

 It combines a highly-reliable laser-based XUV source and a customized

 spectrometer with an extremely high resolving power of 1900.

 The energy range 200-1200eV allows for measurements at the K-edge of

 elements such as C, N, O, Ca, K, Ti.


Features

Integrated NEXAFS  system

 First integrated table-top NEXAFS spectroscopy solution

 No need to apply and wait for beamtime

 Chemical state analysis for geology, biology, materials

    research

 Fast polychromatic acquisition

Synchrotron-quality spectra

 Energy range 200 to 1200eV

 High resolving power of 1900

 Extremely high surface sensitivity

 Information on molecular orbitals, oxidation

    state, coordination number

 Software suite for spectra analysis

Applications

 Analysis of organic materials, e.g.

    lipid membranes, humic acids,polymer

    films, especially at carbon K-absorption

    edge

 Surface-sensitive chemical analysis of C, N,

    O, Ca, K, Ti

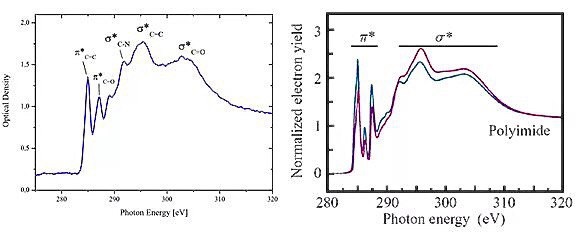

     NEXAFS spectrum at the carbon K-edge of a polyimide film

        (t=200nm), measured with tabletop system, averaged over

        60 pulses.

     Insert, NEXAFS spectrum recorded at a synchrotron for comparison.

     XUV light source using a highly-reliable laser produced plasma.

     Energy range  200-1200eV.

     Repetition rate 25Hz


    Results


   NEXAFS spectrum at the carbon K-edge of a polyimide film (t=200nm).

   (1) measured with the table-top system, averaging over 60 pulses.

   (2) NEXAFS spectrum recorded at a synchrotron for comparison


  Application

   Surface science

   Chemical state analysis in geochemistry

   Electronic structure and oxidation state analysis




Please check the table below for individual specifications

Product Brochure English:Near Edge X-ray Absorption Fine Structure

 Specifications
 Source debris-free laser-produced plasma XUV source
 Energy range 200-1200eV / 1-6nm
 Repetition rate 25Hz

 Source power stability

 ±1.5%
 Spectrometer aberration-corrected flat-field spectrometer
 Resolving power 1900
 Sample mount turret mount for multiple samples
 Footprint 1.5m x 1.0m
 Software suite integrated system control, variety of spectra calibration and analysis functions



Related UV Camera Options



maxCAM

easyCAM
 Sensor

 back-illuminated CCD from e2v (grade 1),

 enhanced process, uncoated

front-illuminated CCD from e2v (grade 1),

enhanced process

Wavelength1-100nm( Best QE)50-300nm
 Pixels 1024 x 255 *
 Pixel size 26 x 26 um
 Image area 26.7 x 6.7 mm
 Spectral rates 200/s full vertical bin, 1000/s crop mode
 Minimum temperature -60° C air cooled
 Well depth

 500 000 e- active area,  1 000 000 eregister

 Read noise 12.5 etyp. at 500kHz
 Dark current 0.004 e- /px/s at -60°C
 Linearity >99%
 Vacuum compatibility 10-8mbar

Related Spectrometer Product

Product ModelWavelength (nm)DispersionResolution
maxLIGHT Pro (XUV)5 to 800.5 to   1.3nm/mm<0.028nm at 40nm
easyLIGHT (XUV)30 to 250~2.0nm/mm<0.1nm
highLIGHT(XUV)1 to 100-<0.1nm
maxLIGHT (VUV)40 to 2000.9 to   1.6nm/mm<0.05nm at 120nm
easyLIGHT (VUV)80 to  300~2.5nm/mm<0.1nm
X-Ray Spectroscopy
2-4 keV
0.3eV
Extended X-ray Spectroscopy5-12keV

Near Edge X-ray absorption
200 - 1200eV
