XUV/VUV CCD Cameras (1-350nm) | SIMTRUM Photonics Store

Products / Light Analysis /Spectrometers /X-Ray/XUV/VUV Spectrometers (1-300nm) /XUV/VUV CCD Cameras (1-350nm) /
XUV/VUV CCD Cameras (1-350nm)
maxCAM 1-100nm easyCAM 50-300nm Specification Sheet Related Product Order Now!

XUV Cameras Wavelength 1-100 nm (Best QE)

This cameras were specifically developed with VUV/XUV/X-ray spectroscopy and imaging

applications in mind. They excel in low-light environments where photons are precious.

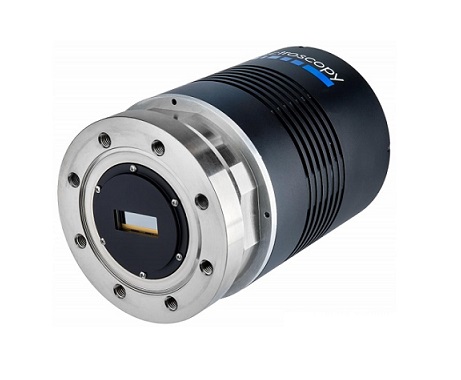

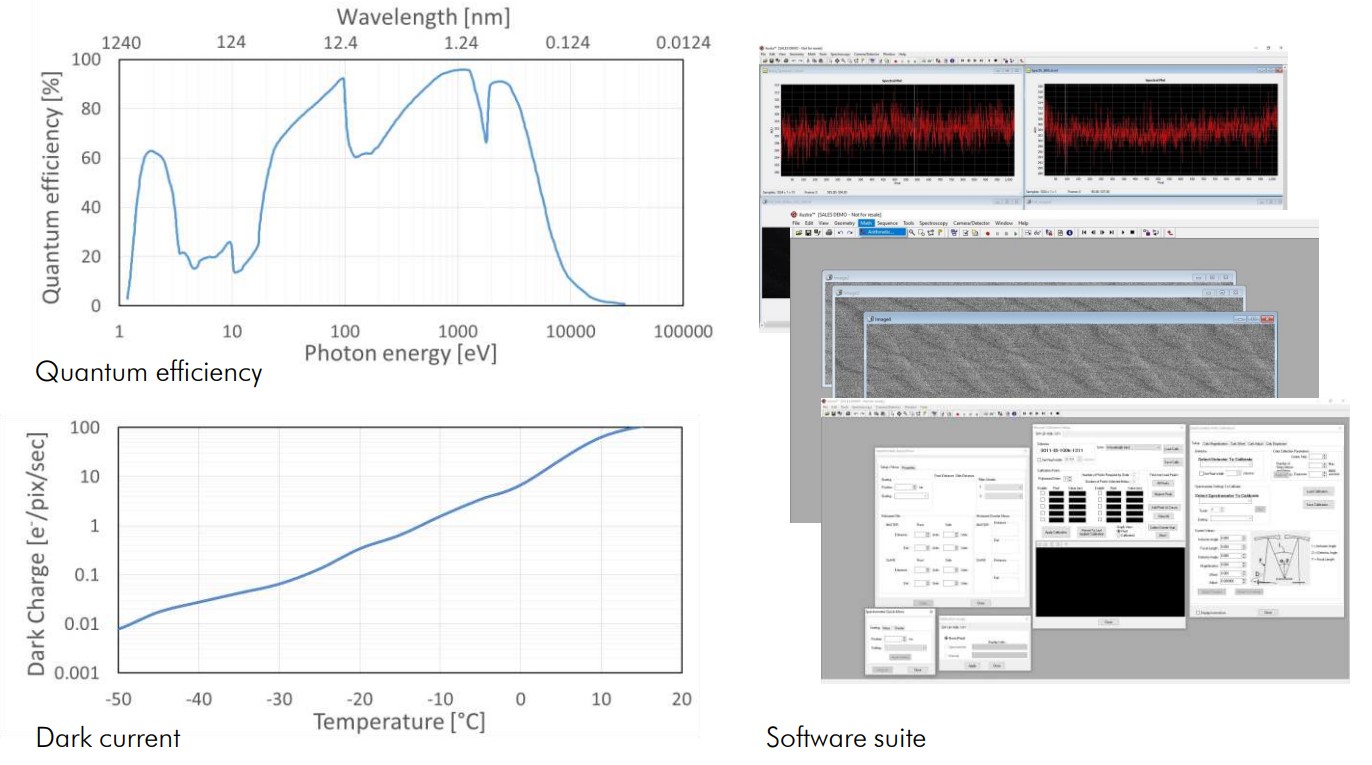

In the maxCAM, a back-illuminated sensor from e2v delivers high quantum efficiency of up to 95%, while

low-noise electronics and TE-cooling to 80°C below ambient ensure negligible dark counts.

The easyCAM delivers a record quantum efficiency of 40% in the spectral range 100 to 300nm, where

conventional XUV cameras have a minimum. For both, plug-and-play connectivity is provided via USB and

native Ethernet. The powerful software suite and SDKs in Labview, C/C++, Visual Basic, and Matlab give

full control over the camera functions.




Features

Industry-leading sensor

 back-illuminated sensor from e2v with quantum efficiency of >95%

 TE cooling to 80°C below ambient

 low-noise electronics for excellent performance in low-light conditions

 standard sensor format 1024x256 pixels, other sensor formats available

   on request

Connectivity

 USB and native Ethernet interface for robust communication

 intuitive software package with sophisticated spectroscopy functionalities

 powerful high-level programming language for automation of imaging tasks

 SDK for seamless setup integration

 full control of HP and other spectrometer brands integrated into software suite




VUV CAMERA Wavelength 50-300nm

This cameras were specifically developed with VUV/XUV/X-ray spectroscopy and imaging

applications in mind. They excel in low-light environments where photons are precious.

In the maxCAM, a back-illuminated sensor from e2v delivers high quantum efficiency of up to 95%, while

low-noise electronics and TE-cooling to 80°C below ambient ensure negligible dark counts.

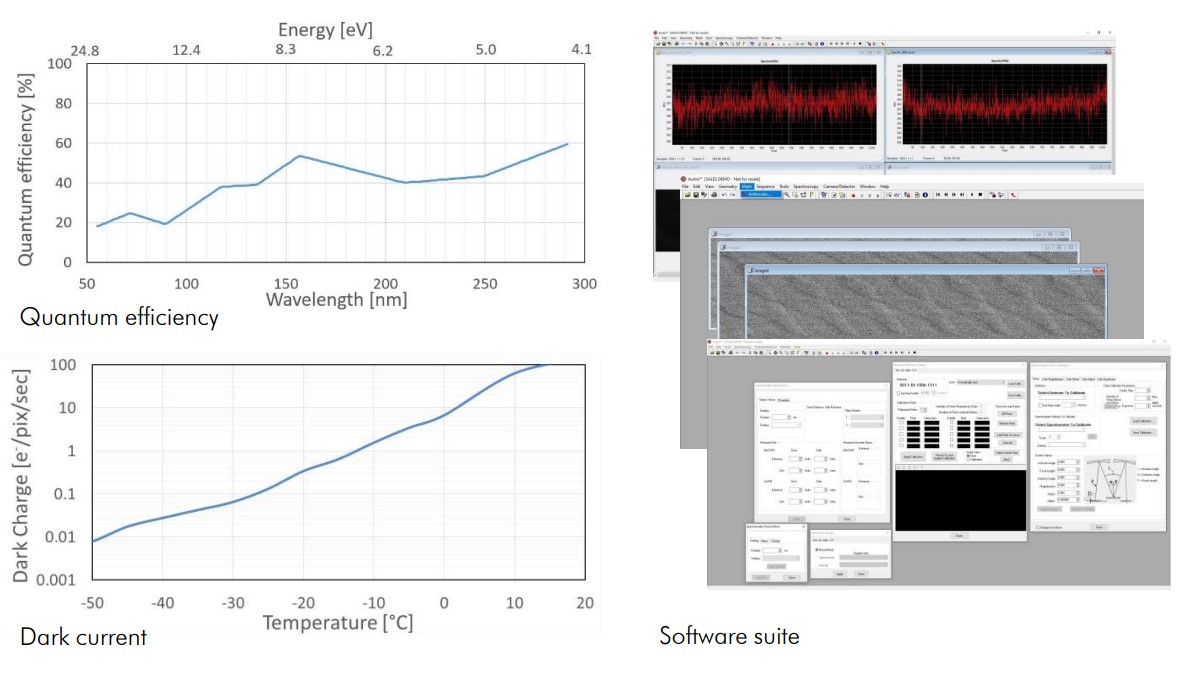

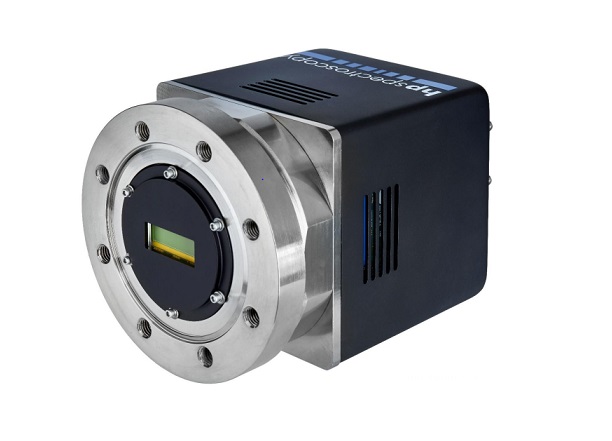

The easyCAM delivers a record quantum efficiency of 40% in the spectral range 100 to 300nm, where

conventional XUV cameras have a minimum. For both, plug-and-play connectivity is provided via USB and

native Ethernet. The powerful software suite and SDKs in Labview, C/C++, Visual Basic, and Matlab give

full control over the camera functions.


Features

Industry-leading sensor

 front-illuminated sensor from e2v with quantum

   efficiency of >50% at 150nm

 TE cooling to -80°C below ambient

 low-noise electronics for excellent performance in

    low-light conditions

 standard sensor format 1024x256 pixels, other

   sensor formats available on request

Connectivity

 USB and native Ethernet interface for robust communication

 intuitive software package with sophisticated spectroscopy

    functionalities

 powerful high-level programming language for automation

    of imaging tasks



 SDK for seamless setup integration

 full control of HP and other spectrometer brands

    integrated into software suite



XUV/VUV Cameras (1-350nm)

Product Brochure: maxCam | easyCam


maxCAM
easyCAM
 Sensor back-illuminated CCD from e2v (grade 1), enhanced process, uncoatedfront-illuminated CCD from e2v (grade 1), enhanced process
Wavelength1-100nm( Best QE)50-300nm
 Pixels 1024 x 255 *
 Pixel size 26 x 26 um
 Image area 26.7 x 6.7 mm
 Spectral rates 200/s full vertical bin, 1000/s crop mode
 Minimum temperature -60° C air cooled
 Well depth

 500 000 e- active area,

 1 000 000 eregister

 Read noise 12.5 etyp. at 500kHz
 Dark current 0.004 e- /px/s at -60°C
 Linearity >99%
 Digitization 16bit
 Interface flange DN63CF / 4.5” or DN100CF / 6”
 Vacuum compatibility 10-8mbar
 Communication interface USB or Ethernet 10/100
 Software Development Kit Matlab, Labview, Visual Basic, C/C++


 Related VUV & XUV Spectrometer Options


Product Model

maxLIGHT Pro (XUV)

easyLIGHT (XUV)

maxLIGHT Pro (VUV)easyLIGHT (VUV)

Wavelength (nm)

5 to 80

30 to 250

40 to 20080 to 300

Dispersion

0.5 to 1.3nm/mm

~2.0nm/mm

0.9 to 1.6nm/mm~2.5nm/mm

Resolution

<0.028nm   at 40nm

<0.1nm

<0.05nm at 120nm<0.1nm

Deviation Angle

-

94°


64°

Detector

CCD or MCP/CMOS



Related Spectrometer Product

Product ModelWavelength (nm)DispersionResolution
maxLIGHT Pro (XUV)5 to 800.5 to   1.3nm/mm<0.028nm at 40nm
easyLIGHT (XUV)30 to 250~2.0nm/mm<0.1nm
highLIGHT(XUV)1 to 100-<0.1nm
maxLIGHT (VUV)40 to 2000.9 to   1.6nm/mm<0.05nm at 120nm
easyLIGHT (VUV)80 to  300~2.5nm/mm<0.1nm
X-Ray Spectroscopy
2-4 keV
0.3eV
Extended X-ray Spectroscopy5-12keV

Near Edge X-ray absorption
200 - 1200eV



Microscop Cameras

Camera CategoryResolutionPixel SizeFPSWavelengthNote
Microscope  TE-Cooling USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Microscope  USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera24MP and 61MP5.94um and 3.76umup to 190FPS380nm -650nmUV extended available
TE-Cooling USB3.0 CMOS Camera10MP to 45MP4.63um to 2.31umup to 96FPS380nm - 650nmIR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger0.5MP / 0.5MP6.9um / 9um20FPS380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera0.5MP to 45MP
6.9um to 1.55umupto 520FPS380nm - 650nmIR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced1.3MP to 10MP9.7um to 4.6umupto 86FPS200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP1.5MP to 45MP
3.4um to 1.2umupto 165FPS380nm - 650nmIR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera5MP2um30FPS380nm - 650nmIR Cut filter
HDMI Color CMOS Camera2MP to 8MP
60FPS380 - 1100nm

UV & NIR Enhanced CMOS Camera4.2/8MP,  2.1/4.1MP

upto 200FPS200-1100nmUV or NIR Enhance


Scientific Cameras

TypeModelWavelengthSensor   TypeResolutionPixel sizeFrame RateQE
X-RAY sCMOS Camera XF9580-1000eVBSI sCMOS2048 x 204822.5um or 13.3um 48~100% full range
XUV/VUV CameramaxCam1-300nm BSI/FSI CCD 1024 x 25526um
Refer to brochures
High Speed sCMOS CameraDhyana 2100200-1100nmFSI CMOS / Mono5220(H) x 4096(V)4.5um x 4.5um450fps@8bit63%@520nm
Dhyana 9KTDI200-1100nmBSI sCMOS TDI/Mono90725um x 5um510kHZ@8bit82%@550nm,
Cooled High Sensitivity sCMOS Camera95V2200-1100nmBSI sCMOS/Mono2048(H) x 2048(V)11μm x 11μm48fps@12bit STD95%@560nm
400BSI V2200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm74fps@CL, 40fps@USB3.095%@600nm
400BSI V3200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm100fps@CL, 40fps@USB3.095%@600nm
400D200-1100nmFSI   sCMOS/Mono2048(H) x 2040(V)6.5μm x 6.5μm35fps@16bit72%@595nm
400DC200-1100nmFSI   sCMOS/Color2048(H) x 2044(V)6.5μm x 6.5μm22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras6060BSI200-1100nmBSI sCMOS/Mono6144(H) x 6144(V)10μm x 10μm26.4fps@12-bit STD95%@580nm
4040BSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.090%@550nm
6060FSI200-1100nmFSI sCMOS/Mono6144(H) x   6144(V)10μm x 10μm44fps@12-bit STD72%@550nm
4040FSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.074%@600nm
Compact Industry sCMOS Camera401D  200-1100nmFSI sCMOS/Mono2048(H) x 2048(V)6.5μm x 6.5μm40fps@16bit, 45fps@8bit72%@595nm
401A-G200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
401A-U200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
201D200-1100nm2048(H) x 1152(V)6.5μm x 6.5μm70fps@16bit, 80fps@8bit72%@595nm


Intensified CMOS Cameras

TypeTime-Resolved iCMOSHigh-speed Gated iCMOS CameraHigh-speed Fluorescence iCMOS Camera
540M/S1000M/SFLUO (1000 FPS)FLUO (2000 FPS)
Product Image

TRiCAM_Specifications 1.jpeg

Framerate 162 fps540 fps1000 fps1000 fps - 7500 fps2000 fps - 6400 fps
Sensor Resolution1920 x 1200 pixels1696 x 1710 pixels1280 x 1024 pixels1280 x 1024 pixels1920 x 1080 pixels*
Pixel size5.86 x 5.86  µm 8 x 8 µm6.6   x 6.6 µm6.6 x 6.6 µm10 x 10 µm
Photon gain (max.)50000 lm/m^2/lx 11000 lm/m^2/lx11000 lm/m^2/lx36000 lm/m^2/lx36000 lm/m^2/lx
Gating repetition rate100 or 300Khz100khz100khz100khz100khz
Intensifier18mm intensifier Dual-stage   intensifierDual-stage intensifierSingle-stage intensifier  Single-stage intensifier
Bit Depth10 bit and 12 bit8 bit8 and 12 bit8 and 12 bit8 bit
Minimum exposure time40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)


Imaging Intensified Tube

TypeTime-Resolved Image IntensifierHigh-speed Image Intensifier
Model 18Model 25Model 18Model 25
Product Image

Input diameter18mm25mm18mm25mm
Effective areaGen II: ø 17.5 mm, Gen III: 13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mmGen II: ø 17.5 mm, Gen III:   13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition 100 kHz, 300 kHz or 1 MHz100 kHz, 300 kHz or 1 MHz100khz Or 300khz ,  2.5 MHz  burst mode100khz Or 300khz,  2.5 MHz burst mode
Min. gate width< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)
Frame RateUp to 500 fpsUp to 500 fpsup to 1,000,000 fpsup to 1,000,000 fps
Photon Gain

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000


Short-wave, Mid-wave, Long-wave Infrared Cameras

ProductSpectral RangeRsolutionCoolingFeature
SWIR Camera400-1700nm1.3MP, 0.3MPuncooled
MIR CameraMid Infrared Detector3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Mid Infrared Camera3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Duel Band Detector3.7 to 4.8um|7.7 to 9.5um320*256px Cooled
LWIR CameraCooled LWIR Detector7.7um to 9.4um0.08MP, 0.3MPCooled
Cooled LWIR Camera7.7um to 9.4um0.3MPCooled
LWIR Thermography Camera 8 to 14um0.08MP, 0.3MP,1.5MPUncooledBroad Temperature Range
Thermography Camera for Skin Screening8 to 14um320*256px UncooledBody Temperature
Thermal Imaging Cameras for Phone8 to 14um256*192pxUncooledFor Smart Phone
Compact Thermal Imaging Camera8 to 14um0.08MP, 0.3MPUncooledFor CCTV , Drone



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
easyCAM FSI 1024x256
BSI CCD, Pixel 1024x256, Wavelength 50-300nm, Pixel size 26*26um 		8-12 Weeks Request for quote
maxCAM BSI 1024x512
BSI CCD, Pixel 1024x512, Wavelength 1-100nm, Pixel size 26*26um 		8-12 Weeks Request for quote
maxCAM BSI 1024x256
BSI CCD, Pixel 1024x256, Wavelength 1-100nm, Pixel size 26*26um 		8-12 Weeks Request for quote
