| Model |
Wavelength Range |
Resolution |
SNR |
Detector |

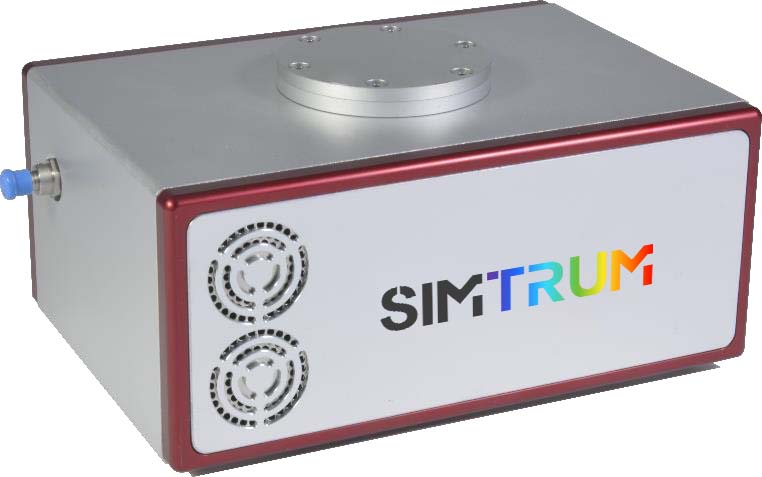

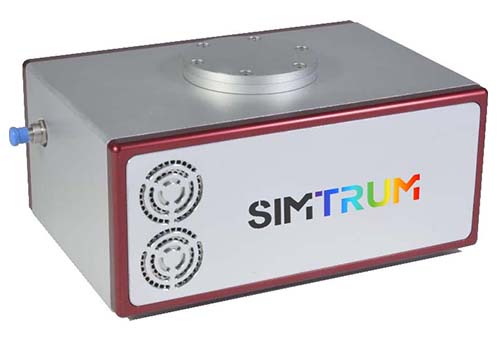

| FIT-NIR spectrometer |
900-2500 nm |
2/4/8 cm-1(user selectable) |
/ |
Extended type InGaAs PIN photodiode, 2TE cooled |

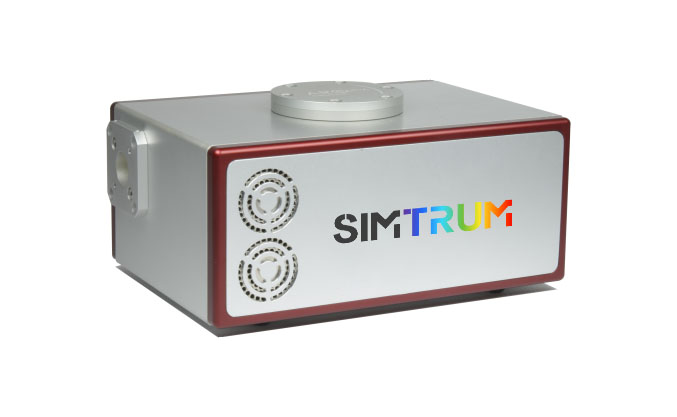

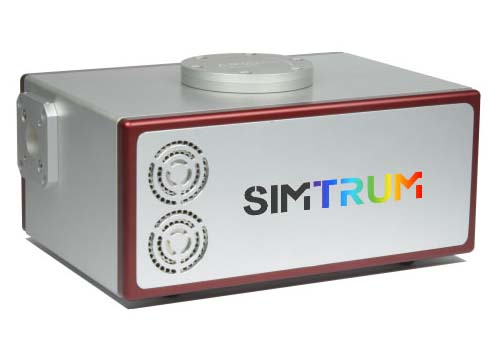

| FIT-MIR spectrometer |
2000-16000 nm |
0.5/2/4/8cm-1(user selectable) |
/ |
MCT (4-TE cooled)
MCT (LN2 cooled)
DLATGS |
|
|

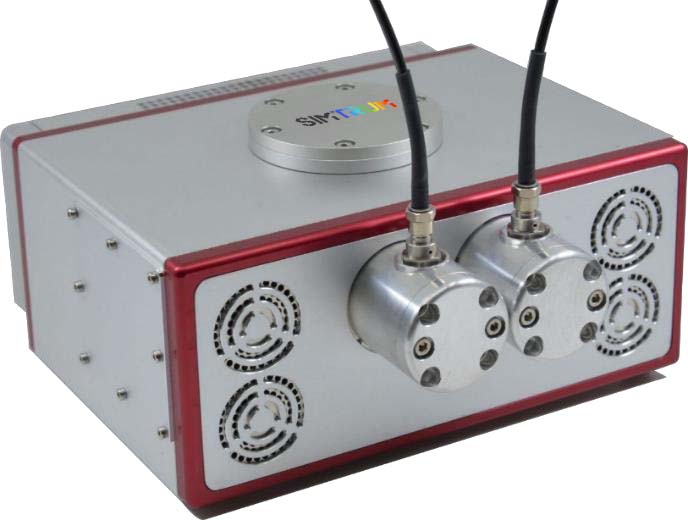

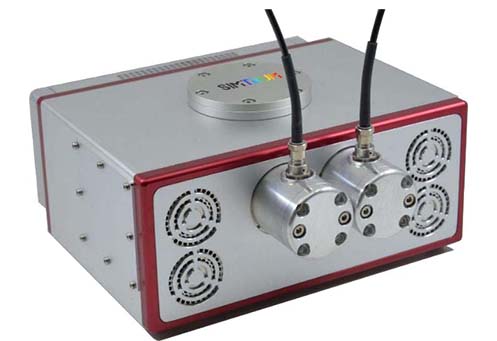

| Fiber coupled FT-IR |
2000-16000 nm |
2/4/ 8cm-1 (user selectable) |
/ |
InGaAs (2-TE cooled)
MCT (4-TE cooled)
MCT (LN2 cooled) |
|
|

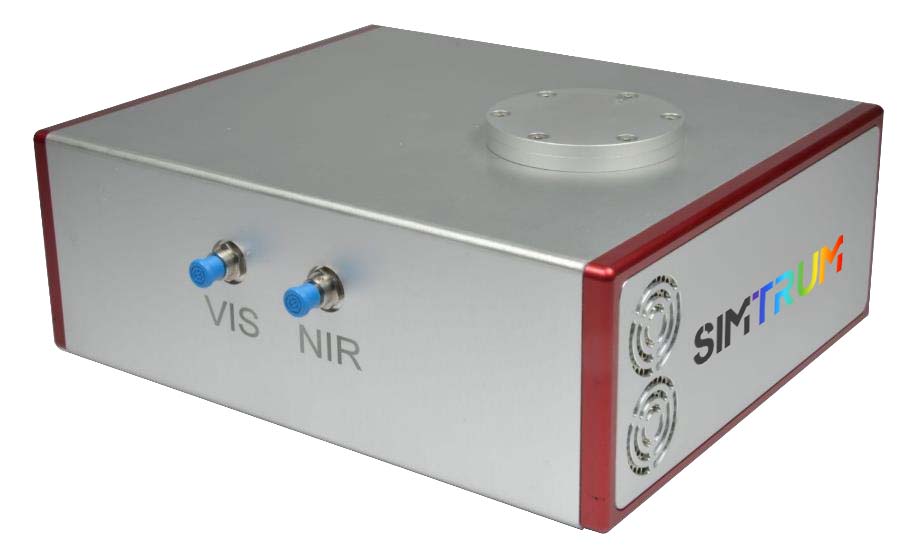

| VIS-NIR-FIB spectrometer |
350-2500 nm |
<1.5 nm |
>1’000:1 (VIS) @ 600nm
>10'000:1 (NIR) @ 2000nm |
silicon array detector (3648 pixels) 16-bit ADC.
extended range InGaAs photodiode, 2TE cooled, 24-bit ADC. |
|

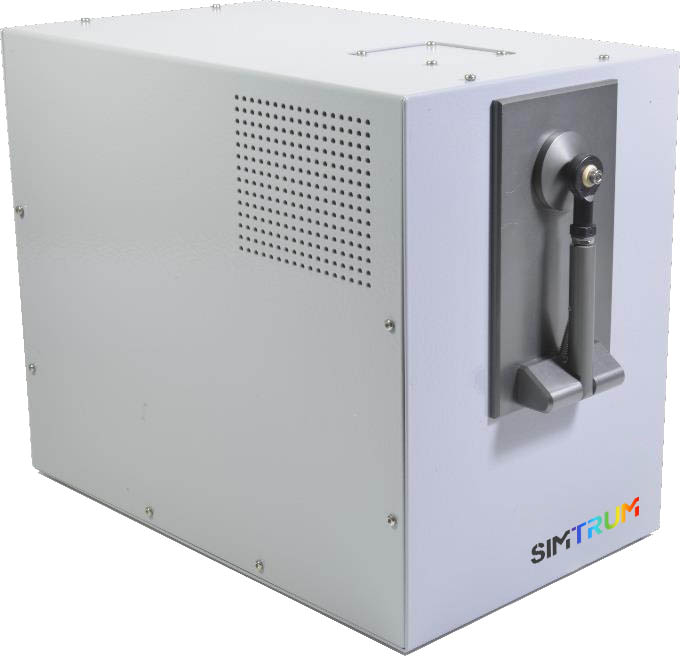

| VIS-NIR-DR spectrometer |
360-2500 nm |
5 nm |
>1000:1 |
Extended range InGaAs detector |
