Extended X-ray Absorption EXAFS (5-12keV)

INTEGRATED XAFS SOLUTION

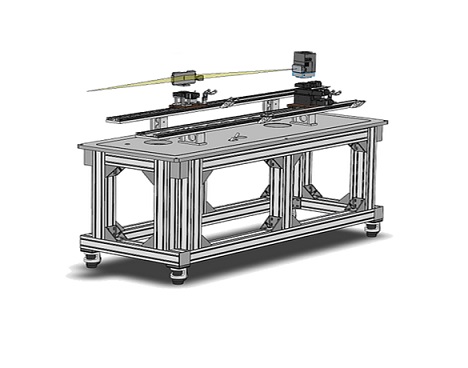

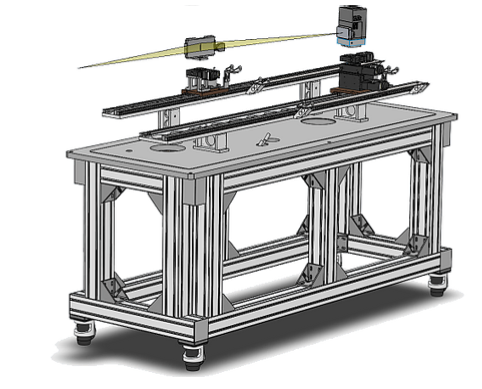

A complete lab-based solution for Extended X-ray Absorption Fine Structure (EXAFS) and X-ray

Absorption Near Edge Structure (XANES) measurements.

In a compact footprint, it integrates x-ray tube source, high-resolution spectrometer, and hybrid

detector together with a software suite to control instrument functions and analyze data. Spectra

quality is on par with synchrotron measurements hence beamtime application is not required.

The x-ray tube source and spectrometer cover the energy range 5 to 12 keV, thus including the K

absorption edges of 3d-transition metals. The optimized HAPG von Hamos architecture of the

spectrometer yields an extremely high signal-to-noise ratio.This results in the analyte

concentration being weighted lowly at few percentage.The instrument combines high efficiency

with high spectral resolving power of up to E/ΔE = 4000, constant over the range of the covered

absorption edges.



Features

Table-top XAFS system

Synchrotron-quality spectra

Applications

 First integrated lab-based EXAFS and XANES solution

 Beamtime does not require appliction

 Fast polychromatic acquisition

 Energy range 5 to 12keV

 High resolving power of 4000

 Wide bandpass of up to 1keV

 Chemical state analysis for geology, biology, materials research

 Information on atomic distances, oxidation state, coordination

    number

 Analysis of K-absorption edges of 3d-transition metals

Element Range

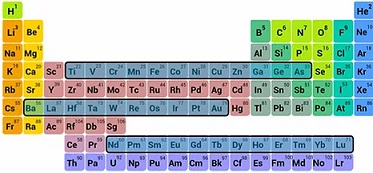

 Range of elements accessible to  hiXAS for EXAFS and XANES

    measurements.

 Even diluted samples with analyte concentrations of only a few

    weight percent can be measured in a time frame of several

    minutes.

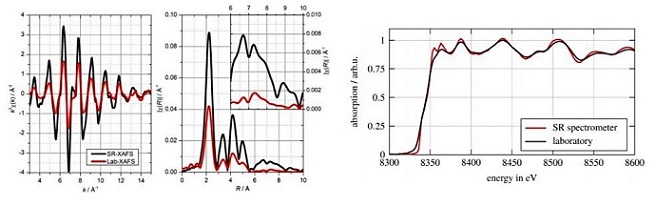

 Sample XAFS measurement of a 10um Cu foil, comparing lab-based (red)

     and synchrotron (black) results.

 EXAFS oscillations (left) and corresponding Fourier transformation (right).

 Acquisition time: 3min with sample, 1.5min without sample.

 X-ray absorption spectrum of a 6um-thick Ni foil. Comparison

    to the spectrum.

 Obtained at a synchrotron (NSLS, resolving power E/ΔE = 5000)

 Shows the high quality results of the tabletop instrument.

 All relevant spectral features are present, allowing for the

   determination of chemical compounds

 Application

  Chemical speciation and concentration ratios

  Compound research

  Short range order and bond length determination

  Catalyst analysis



Please check the table below for individual specifications

Product Brochure English: Extended X-ray Absorption Fine Structure
   Specifications
   Topology   X-ray tube source von Hamos HAPG spectrometer hybrid detector
   Energy range   5-12keV
   Analyte concentration   Own to a few wt%
   Sample mount   Turret mount for multiple samples
   Footprint   2.0m x 1.0m
   Software suite   Integrated system control, variety of spectra calibration and analysis functions



   EXAFS mode   XANES mode
   Resolving power   1800   4000
   Energy bandpass   1000eV   300eV
   Acquisition time   3min   8min

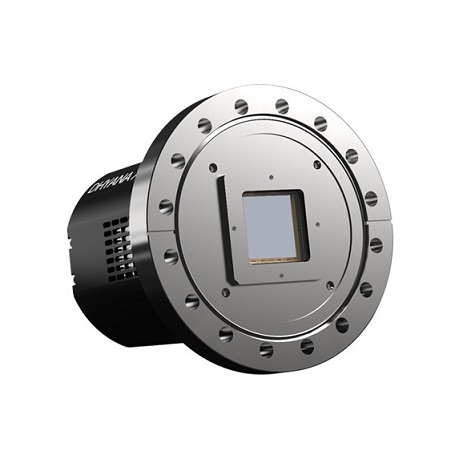

Related UV Camera Options

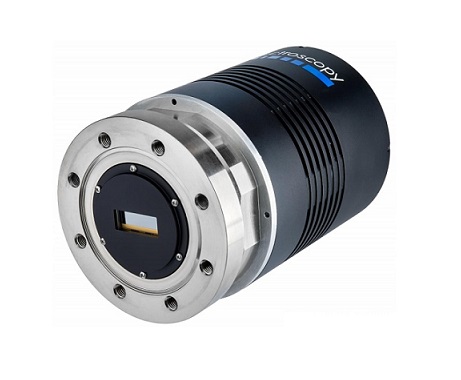

maxCAM

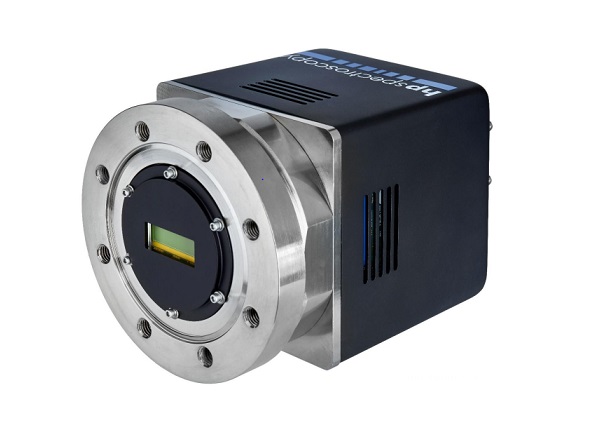

easyCAM
