3-Axis Stages | SIMTRUM Photonics Store

• Three Degrees of Freedom: Translation in X,Y,Z axis

• Crossed Roller Bearings for Superior Angular Deviation

• Combination of XY Translation Stages and Vertical Z-Axis Stages

Selection Guide

Simtrum Part No.	Description	Combination
XYZ40	XYZ Translation Stage, Platform dimensions= 40mmx40mm	13LX(C/L/R)4040	+	Z(L/C/R)134040
XYZ60	XYZ Translation Stage, Platform dimensions= 60mmx60mm	13LX(C/R/L)6060	+	Z(L/C/R)136060
XYZ80	XYZ Translation Stage, Platform dimensions= 80mmx80mm	25LX(C/R/L)8080	+	Z(L/C/R)258080
The information in the chart above is a general guide to choosing the suitable XYZ ( Vertical Z Stage) stages for your motion setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

Related Products

Crossed Roller Bearing Z-Axis

Vertical Stages

High Precision Crossed Roller Bearing Z-Axis

Vertical Stages

Optomechanics

• Three Degrees of Freedom: Translation in X,Y,Z axis

• Crossed Roller Bearings for Superior Angular Deviation

• Combination of XY Translation Stages and Z-Axis Horizontal Stages

Selection Guide

Simtrum Part No.	Description	Combination
XYZH100	XYZ Translation Stage, Z-Axis Horizontal Stage, Platform dimensions=100mmx100mm	25LX(C/R/L)100100	+	ZH10100
XYZH125	XYZ Translation Stage, Z-Axis Horizontal Stage, Platform dimensions=125mmx125mm	25LX(R/L)125125	+	ZH08125
The information in the chart above is a general guide to choosing the suitable 25mm crossed roller bearing aluminium stages for your motion setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

Related Products

Crossed Roller Bearing Z-Axis Horizontal Stages

Optomechanics

• Three Degrees of Freedom: Translation in X,Y axis and rotation in Z axis

• Combination of XY Translation Stages and Rotation Stages/ Goniometer

Selection Guide

Simtrum Part No.	Description	Combination
XYRS100	XY Translation Stage with Z-Axis Rotating Platform, Platform diameter=100mm	+	RS100534
XYRS125	XY Translation Stage with Z-Axis Rotating Platform, Platform diameter=125mm	+	RS125532
XYGNV125	XY Translation Stage with Goniometer, Vertical Axis of Rotation, Platform dimensions= 125mmx125mm	+	GNV1005
The information in the chart above is a general guide to choosing the suitable XY Translation Stage with XYθZ stages for your motion setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

Related Products

Manual Rotation Stages

Manual Goniometric Stages

Optomechanics

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)

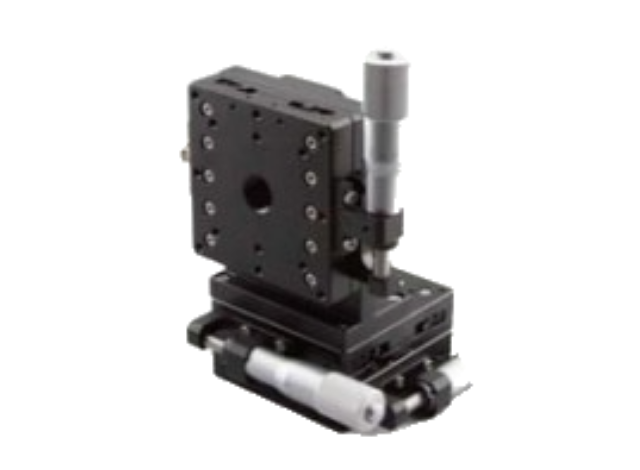

XYZ80 XYZ Translation Stage, Platform dimensions= 80mmx80mm	4-6 Weeks	$591.75

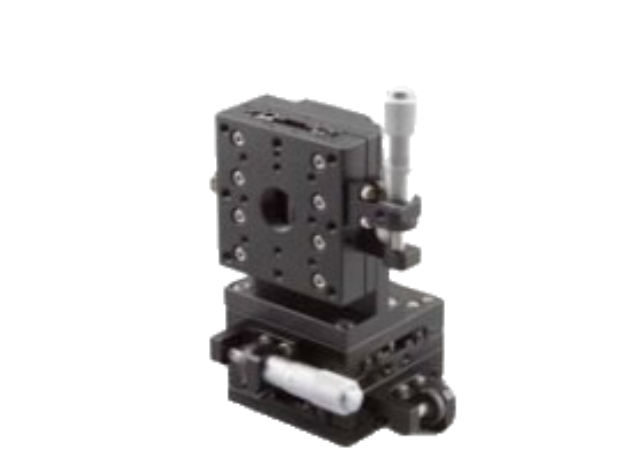

XYZ60 XYZ Translation Stage, Platform dimensions= 60mmx60mm	4-6 Weeks	$454.66

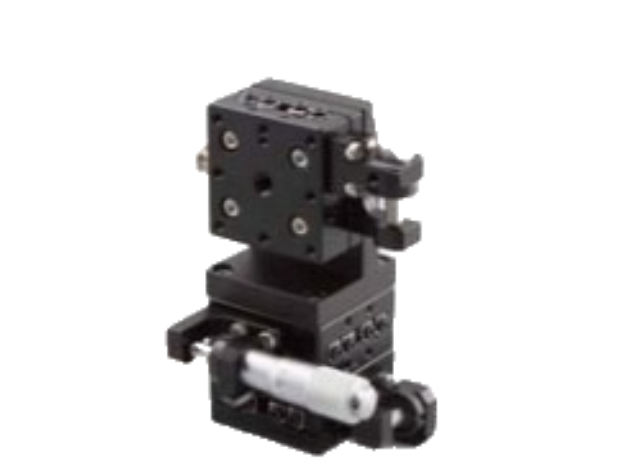

XYZ40 XYZ Translation Stage, Platform dimensions= 40mmx40mm	4-6 Weeks	$403.16

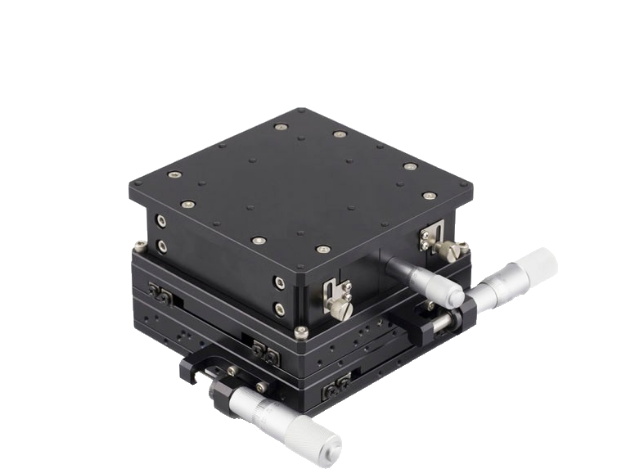

XYZH125 XYZ Translation Stage, Z-Axis Horizontal Stage, Platform dimensions=125mmx125mm	4-6 Weeks	$726.67

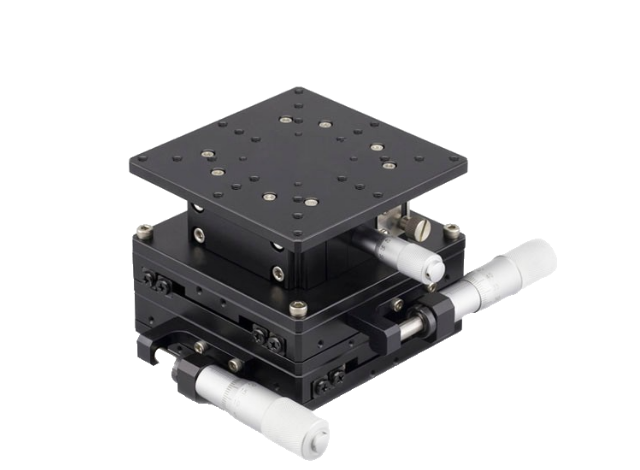

XYZH100 XYZ Translation Stage, Z-Axis Horizontal Stage, Platform dimensions=100mmx100mm	4-6 Weeks	$686.37

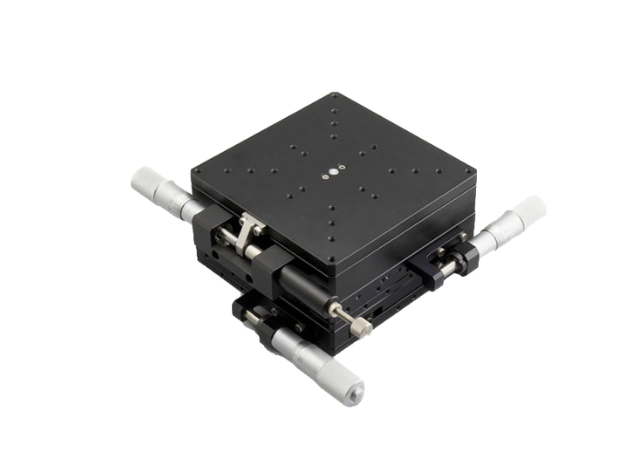

XYGNV125 XY Translation Stage with Goniometer, Vertical Axis of Rotation, Platform dimensions= 125mmx125mm	4-6 Weeks	$616.08

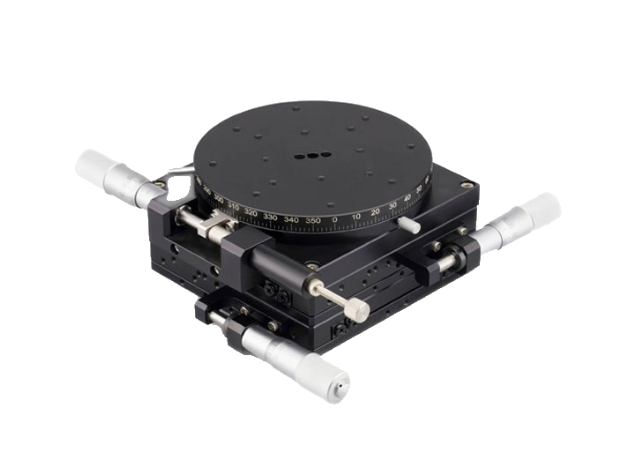

XYRS125 XY Translation Stage with Z-Axis Rotating Platform, Platform diameter=125mm	4-6 Weeks	$722.89

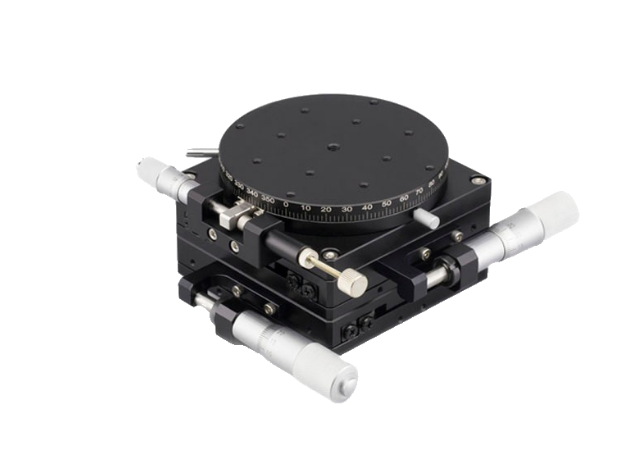

XYRS100 XY Translation Stage with Z-Axis Rotating Platform, Platform diameter=100mm	4-6 Weeks	$658.15
