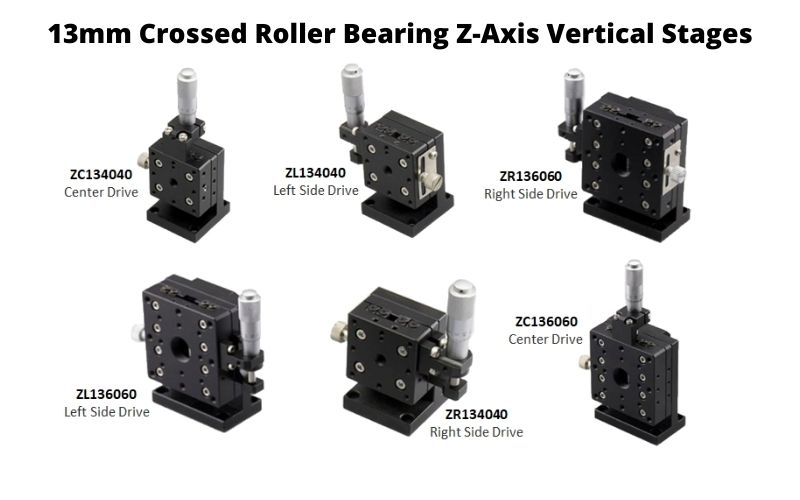

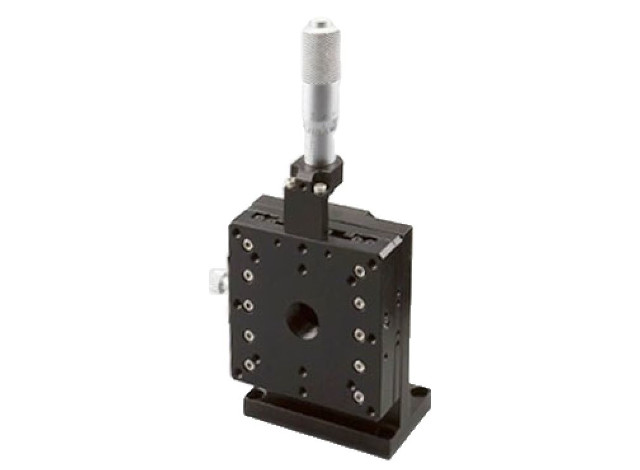

Crossed Roller Bearing Z-Axis Vertical Stages

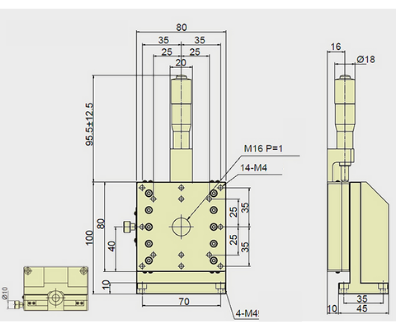

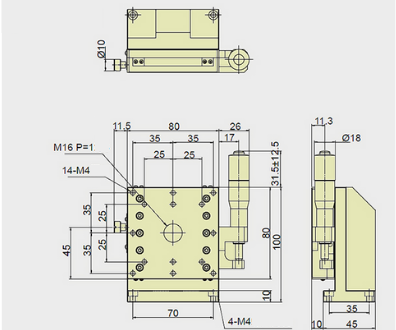

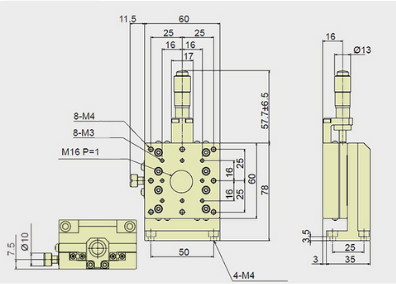

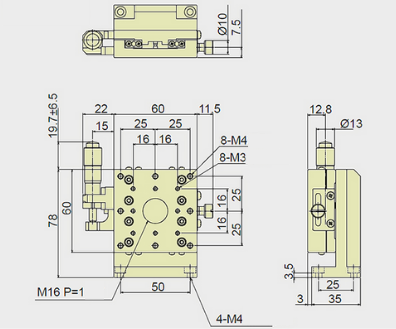

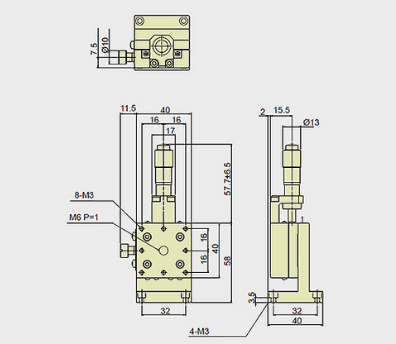

13mm 13mm Drawings 25mm 25mm Drawings Related Products Order Now!









• 13mm vertical travel enabled by micrometers

• High accuracy and rigidity

• Compatible with XY linear stages to enable translation in the X,Y, Z direction



Selection Guide

Simtrum

Part No.

 Bearing Type Drive Direction Travel(mm) Hole Type Platform dimensions(mm) Maximum load(N) Straight Line Accuracy(μm) Material Minimum reading(μm)
ZL134040 Crossed Roller Guide Left 13

Platform:

M6,M3

  Base:

 Counterbore

 for M3 Cap

 Screws

 40x40 9.8 3 Aluminium 10
ZC134040 Crossed Roller Guide Center 13

Platform:

 M6,M3

Base:

Counterbore

for M3 Cap

Screws

 40x40 9.8 3 Aluminium 10
ZR134040 Crossed Roller Guide Right 13

Platform:

 M6,M3

Base:

Counterbore

for M3 Cap

Screws

 40x40 9.8 3 Aluminium 10
ZC136060 Crossed Roller Guide Center 13

Platform:

M16, M4,M3

 Base:

Counterbore

for M4 Cap

 Screws

 60x60 19.6 3 Aluminium 10
ZR136060 Crossed Roller Guide Right 13

Platform:

M16, M4, M3

 Base:

 Counterbore

 for M4 Cap

Screws

 60x60 19.6 3 Aluminium 10
ZL136060 Crossed Roller Guide Left 13

Platform:

M16, M4,M3

 Base:

 Counterbore

for M4 Cap

Screws

 60x60 19.6 3 Aluminium 10

The information in the chart above is a general guide to choosing the suitable 13mm Crossed Roller Bearing Z-Axis Vertical Stages for your optomechanical setup.

 Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

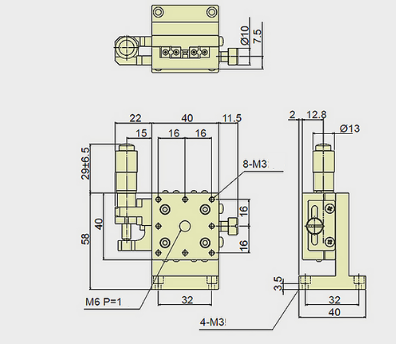

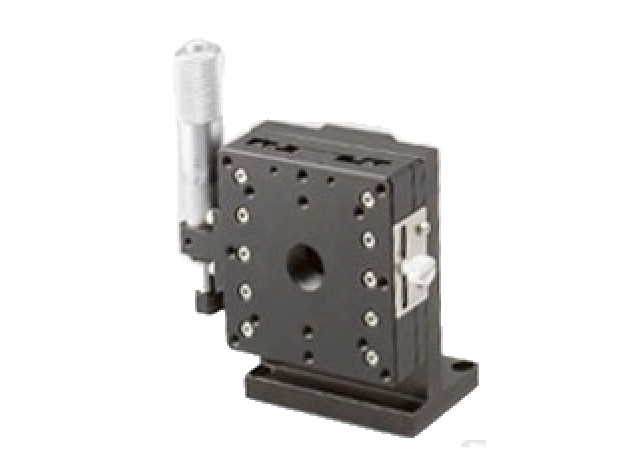

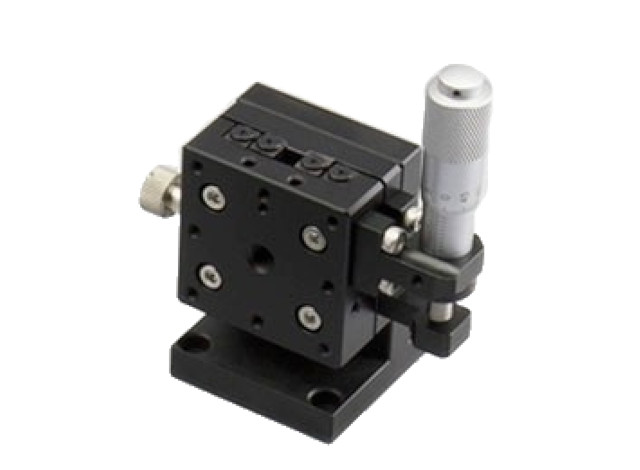

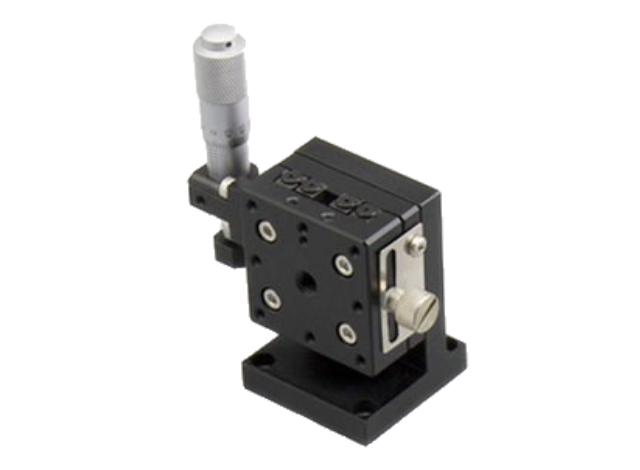

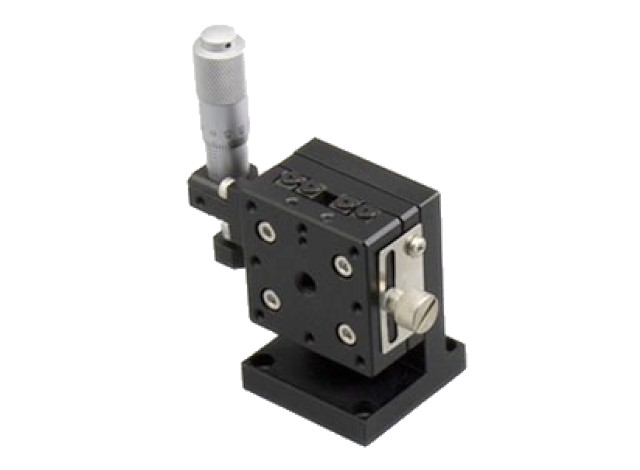

ZL134040

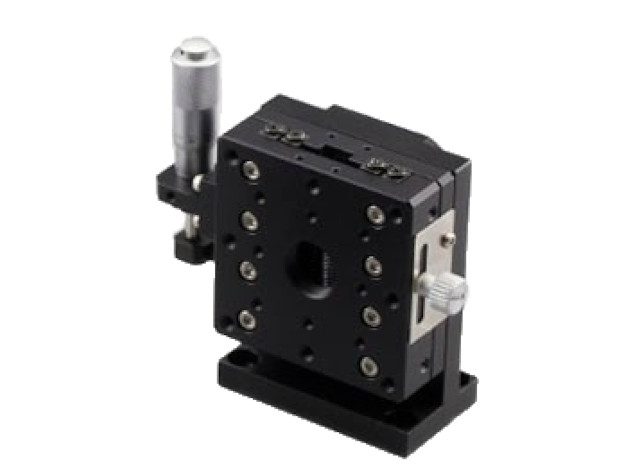

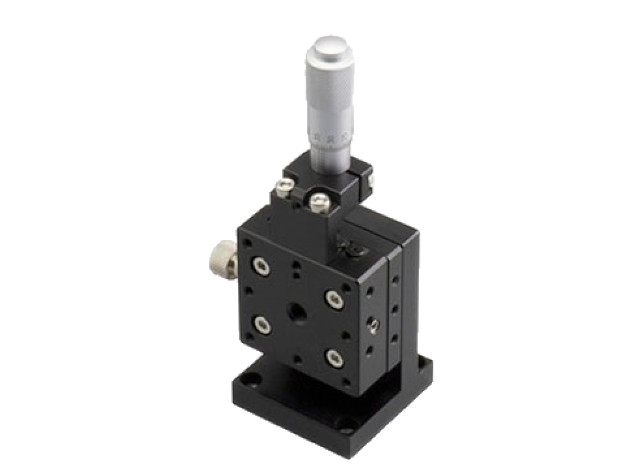

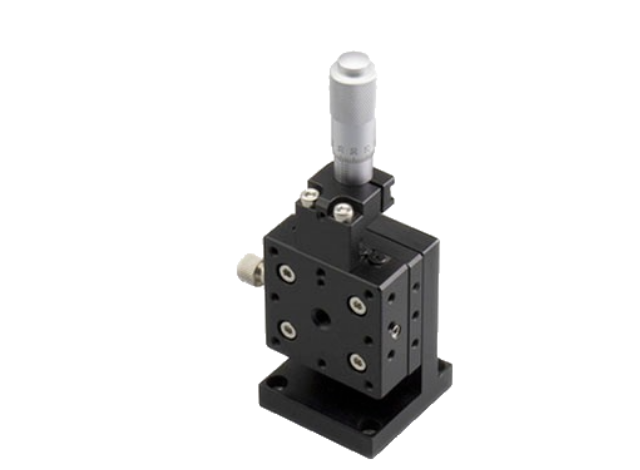

ZC134040

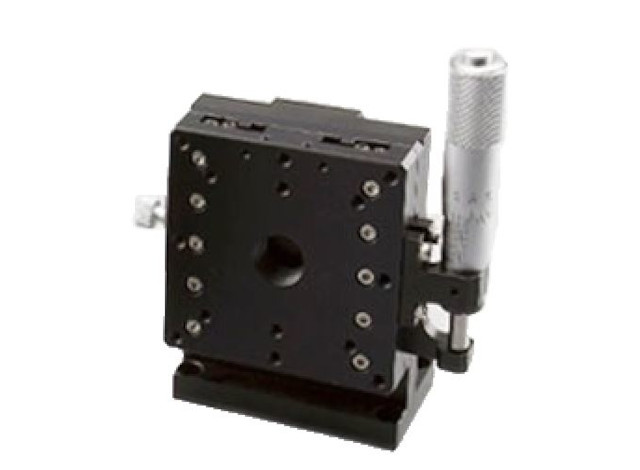

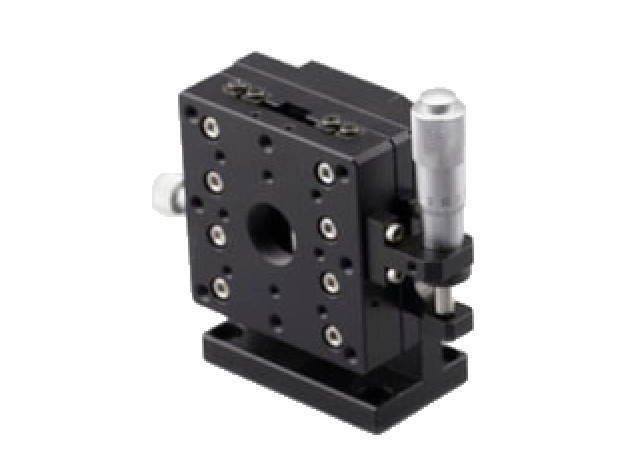

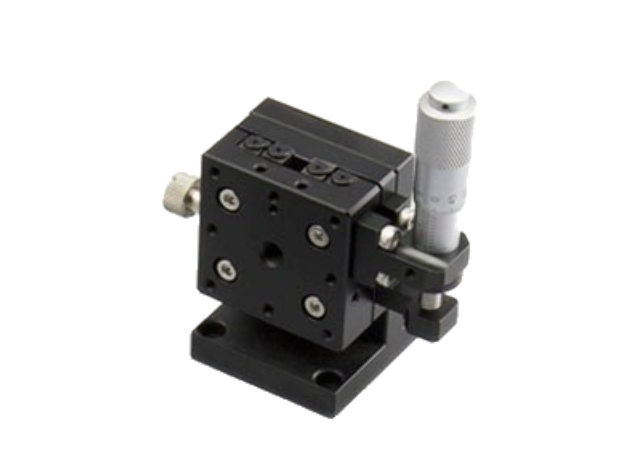

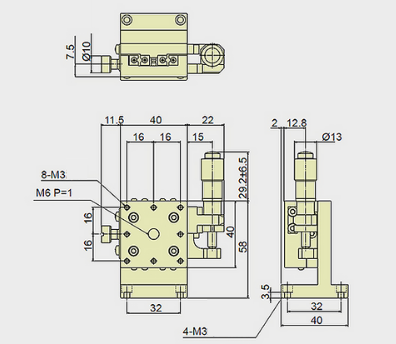

ZR134040

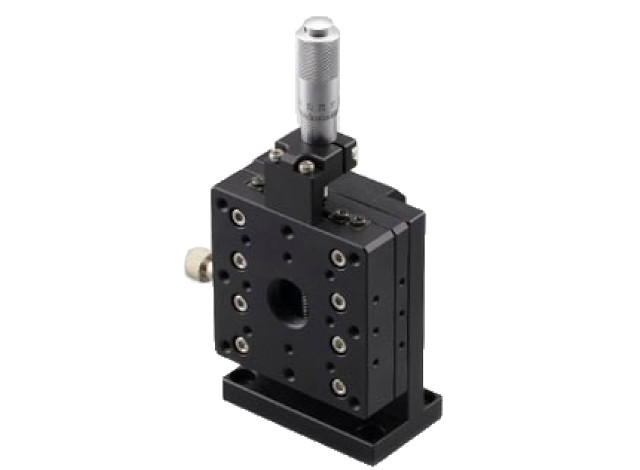

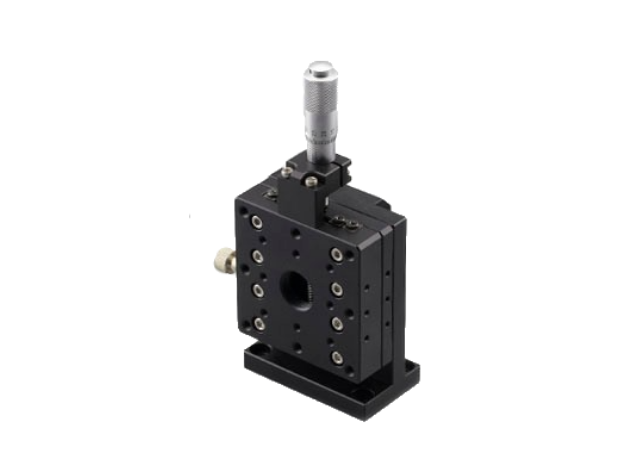

ZC136060

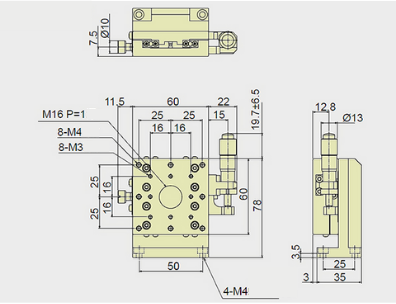

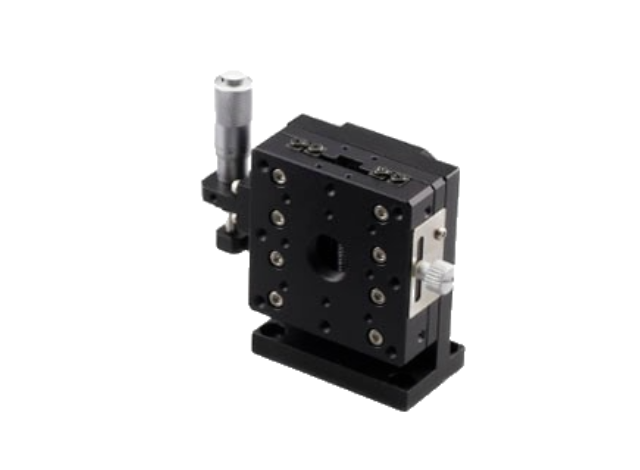

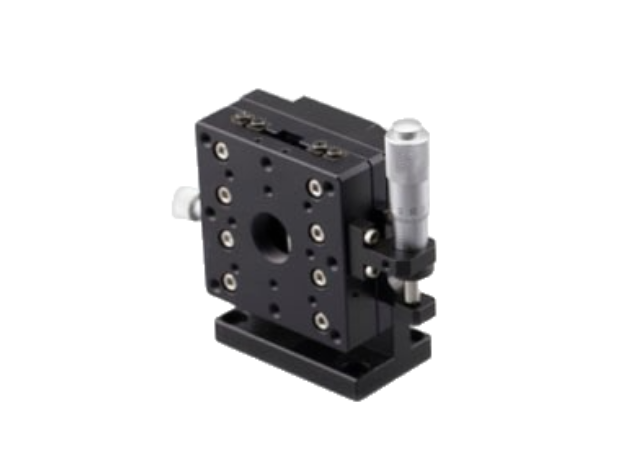

ZR136060

WB ZL136060.png

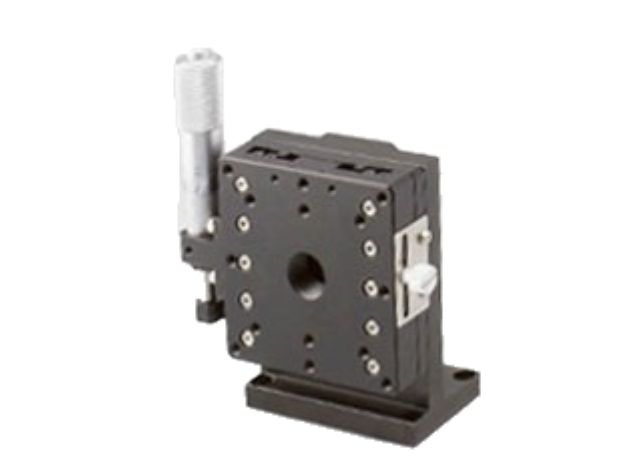

ZL136060












• 25mm vertical travel enabled by micrometers

• High accuracy and rigidity

• Compatible with XY linear stages to enable translation in the X,Y, Z  direction





Selection Guide



Simtrum Part No. Bearing Type Drive Position Travel(mm) Hole Type Platform dimensions(mm) Maximum load(N) Straight Line Accuracy(μm) Material Minimum   reading(μm)
ZL258080 Crossed Roller Guide Left 25

Platform:

 M16, M4

 Base:

Counterbore for M4 Cap Screws

 80x80 49 3 Aluminium 10
ZC258080 Crossed Roller Guide Center 25

Platform:

M16, M4

 Base:

Counterbore for M4 Cap Screws

 80x80 49 3 Aluminium 10
ZR258080 Crossed Roller Guide Right 25

Platform:

M16, M4

Base:

Counterbore for M4 Cap Screws

 80x80 49 3 Aluminium 10

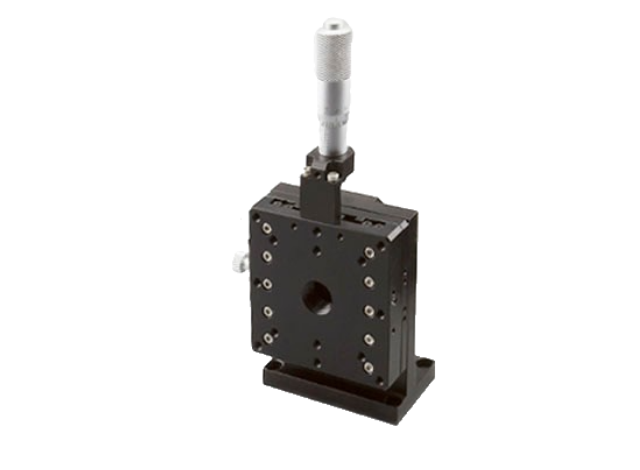

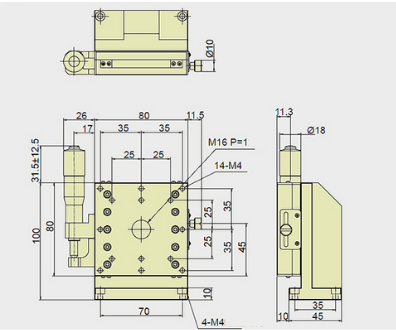

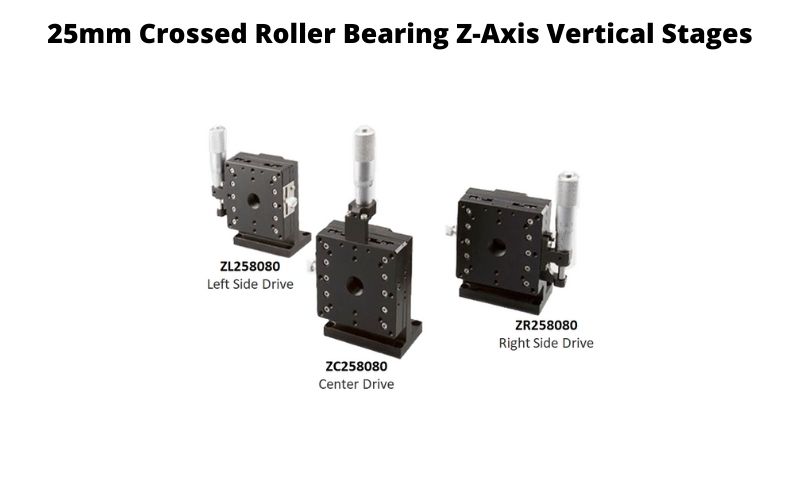

ZL258080

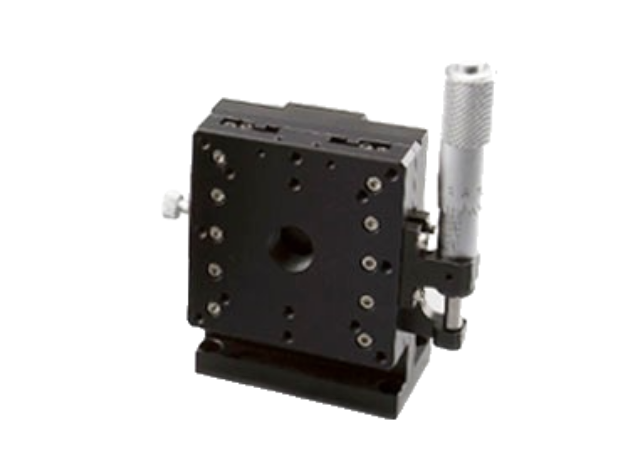

ZR258080

ZC258080




Manual Stages

 Rotation and Tilt Stages Optomechanics












We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Bearing Type Travel (mm) Platform dimensions (mm) Hole Type Drive Direction Maximum Load (N) Availability Reference Price
(USD)
ZL134040
13mm Crossed Roller Guide Z-axis Vertical Stage, Left Side Drive, Platform dimensions=40x40mm 		Crossed Roller Guide1340x40Platform: M6,M3 Base: Counterbore for M3 Cap ScrewsLeft9.8 4-6 Weeks $185.57
ZC134040
13mm Crossed Roller Guide Z-axis Vertical Stage, Center Drive, Platform dimensions=40x40mm 		Crossed Roller Guide1340x40Platform: M6,M3 Base: Counterbore for M3 Cap ScrewsCenter9.8 4-6 Weeks $185.57
ZR134040
13mm Crossed Roller Guide Z-axis Vertical Stage, Right Side Drive, Platform dimensions=40x40mm 		Crossed Roller Guide1340x40Platform: M6,M3 Base: Counterbore for M3 Cap ScrewsRight9.8 4-6 Weeks $185.57
ZC136060
13mm Z-axis Vertical Stage, Center Drive, Platform dimensions=60x60mm 		Crossed Roller Guide1360x60Platform: M16, M4,M3 Base: Counterbore for M4 Cap ScrewsCenter19.6 4-6 Weeks $224.86
ZR136060
13mm Z-axis Vertical Stage, Right Side Drive, Platform dimensions=60x60mm 		Crossed Roller Guide1360x60Platform: M16, M4,M3 Base: Counterbore for M4 Cap ScrewsRight19.6 4-6 Weeks $224.86
ZL136060
13mm Z-axis Vertical Stage, Left Side Drive, Platform dimensions=60x60mm 		Crossed Roller Guide1360x60Platform: M16, M4,M3 Base: Counterbore for M4 Cap ScrewsLeft19.6 4-6 Weeks $224.86
ZL258080
25mm Crossed Roller Guide Z-axis Vertical Stage, Left Side Drive, Platform dimensions=80x80mm 		Crossed Roller Guide2580x80Platform: M16, M4 Base: Counterbore for M4 Cap Screws49 4-6 Weeks $258.71
ZC258080
25mm Crossed Roller Guide Z-axis Vertical Stage, Center Drive, Platform dimensions=80x80mm 		Crossed Roller Guide2580x80Platform: M16, M4 Base: Counterbore for M4 Cap Screws49 4-6 Weeks $258.71
ZR258080
25mm Crossed Roller Guide Z-axis Vertical Stage, Right Side Drive, Platform dimensions=80x80mm 		Crossed Roller Guide2580x80Platform: M16, M4 Base: Counterbore for M4 Cap Screws49 4-6 Weeks $258.71

ZR258080 - Parameter
