Products / Optomechanics /Manual Stage /Rotation and Tilt Stages /Manual Rotation Stages /
Manual Rotation Stages
Optic Rotation Mounts Without Micrometer With Micrometer Related Products Order Now!

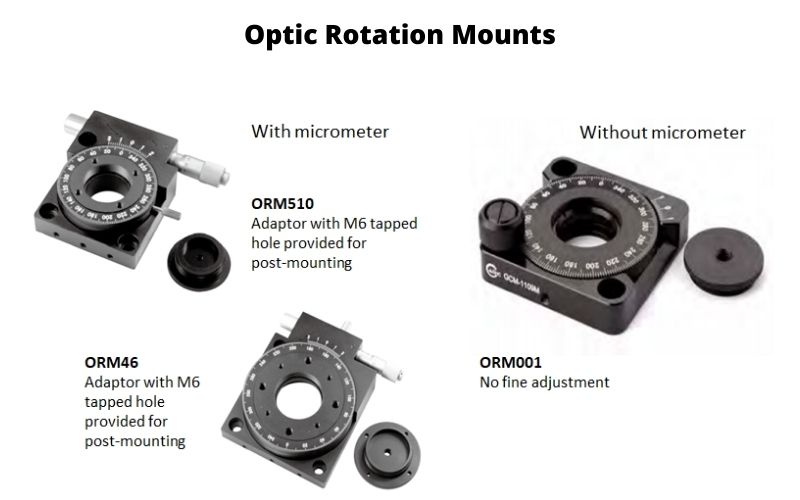

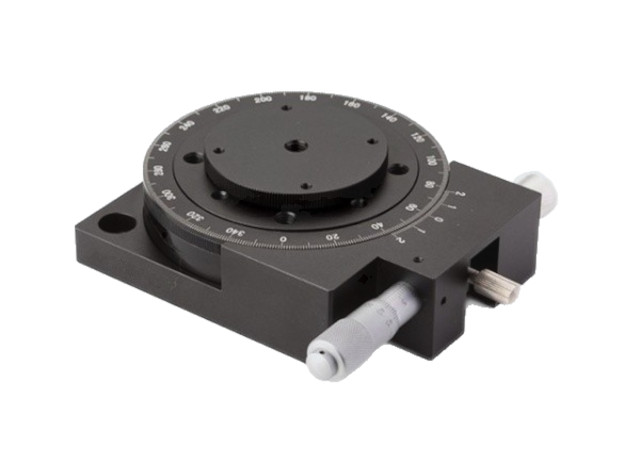

Optic Rotation Mounts.jpg



• 360° of continuous coarse rotation

• Micrometer driven mounts enable both coarse and fine travel

• Fine travel is enabled when rotating stage is locked

• Compatible with lens tubes

• Bottom-located M4 internally threaded tapped holes for mounting to optical posts





Selection Guide

Simtrum Part No. Coarse Travel(°) Fine Travel(°)

Resolution

(arcmin)

 Hole Type Height(mm) Maximum load(kg) Material Presence of micrometer
ORM510 360 5 10 M4 30.6 4 Aluminium Yes
ORM46 360 4 6 M4 28.6 4 Aluminium Yes
ORM001 360 - - M4 14 2 Aluminium No



The information in the chart above is a general guide to choosing the suitable optic rotation mounts for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.





Drawings

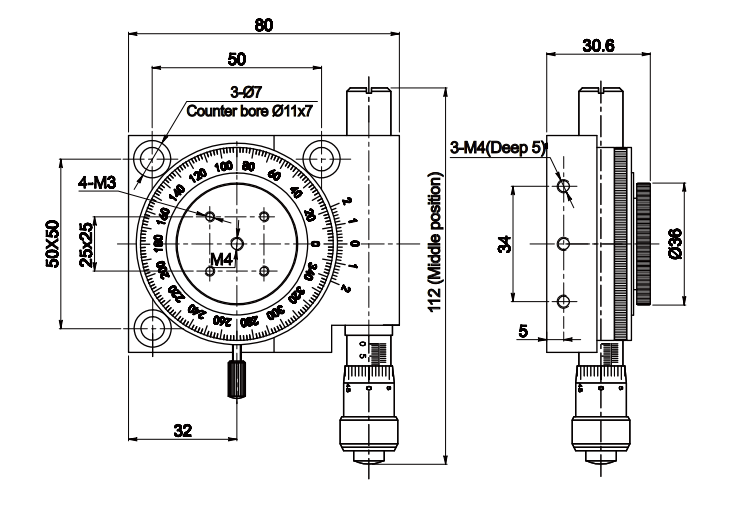

ORM510

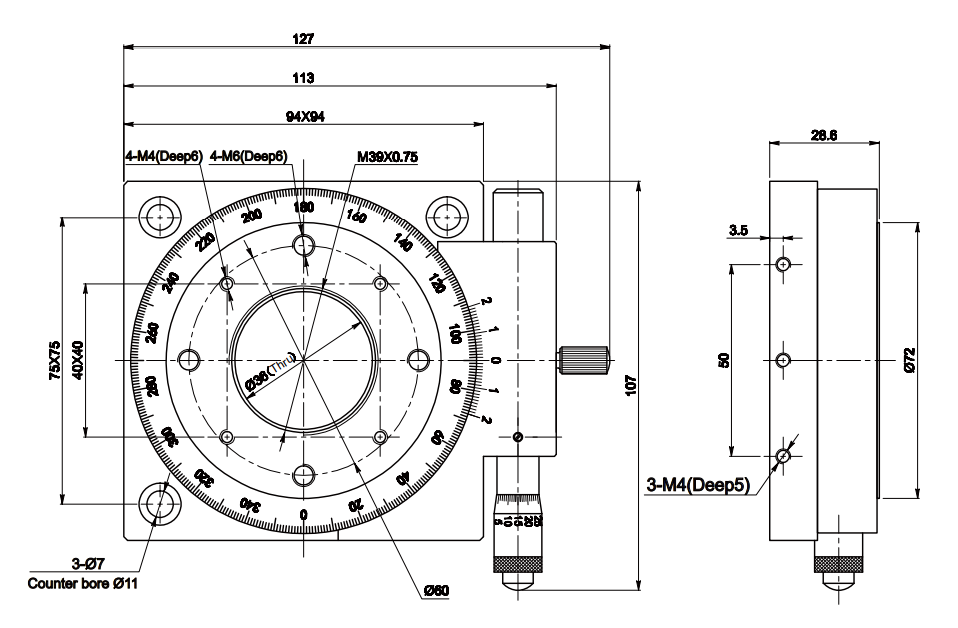

ORM46

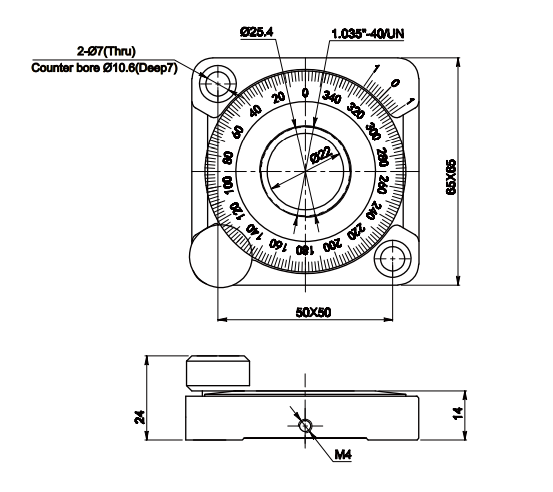

ORM001

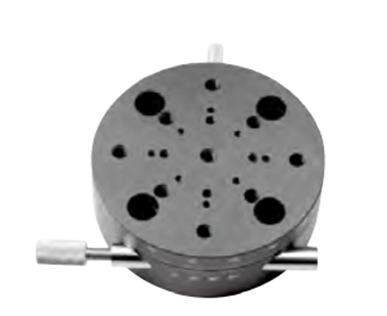

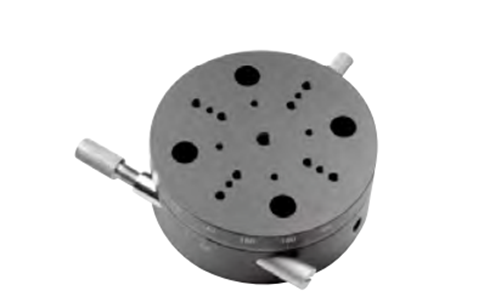

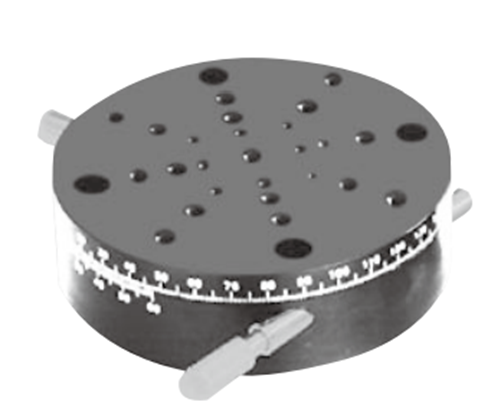

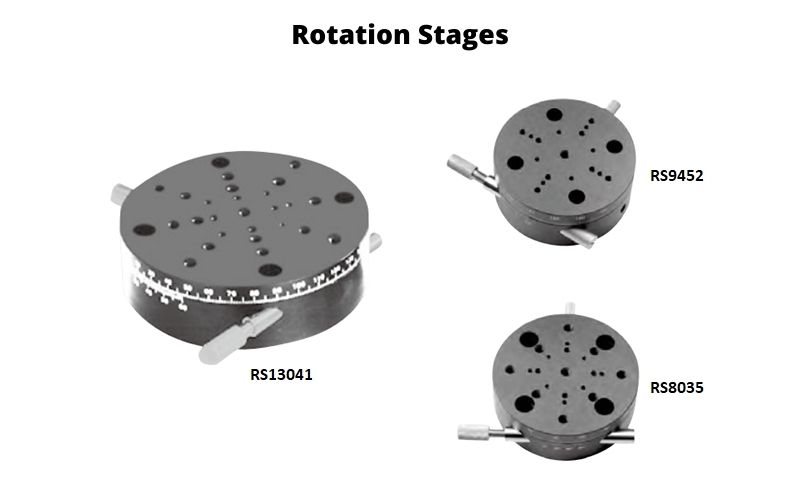

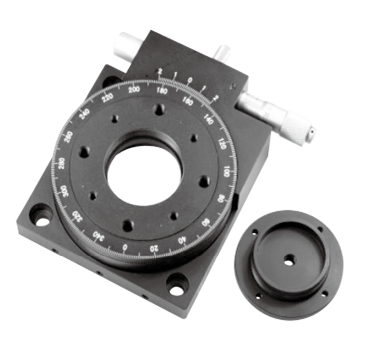

Rotation Stages.jpg





• 360° of continuous coarse rotation

• Clutch knob enables continuous free rotation

• Lockable coarse and fine travel





Selection Guide

Simtrum Part No. Coarse Travel(°) Fine Travel(°) Resolution ( arcmin) Hole Type Diameter (mm) Height(mm) Maximum load(kg) Material
RS13041 360 4 1

Top: M6,M3

Bottom:

 ⌀11mm counterbore ⌀7mm

 130 38.2 5 Aluminium
RS9452 360 5 2

Top; M6, M4, M3

Bottom:

 ⌀11.5mm counterbore ⌀6.8mm

 94 33.2 4 Aluminium
RS8035 360 3 5

Top: M6,M4, M3

Bottom:

 ⌀8.5mm counterbore ⌀4.8mm

 80 33.2 4 Aluminium



The information in the chart above is a general guide to choosing the suitable rotation stages for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.





Drawings

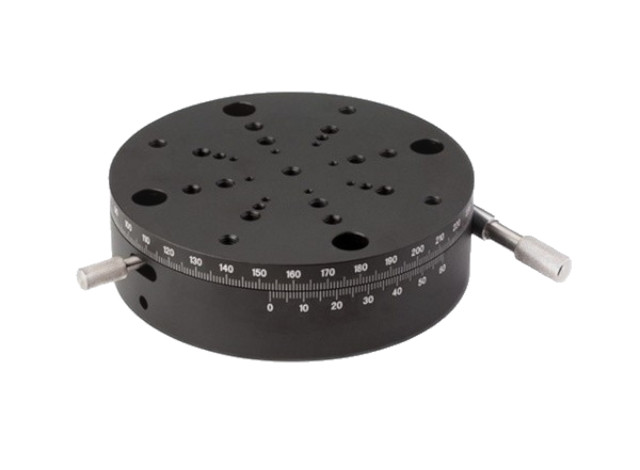

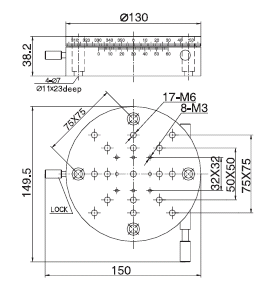

RS13041

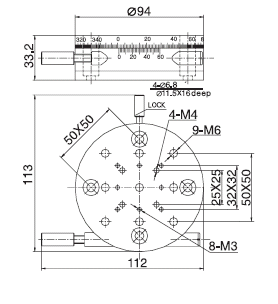

RS9452

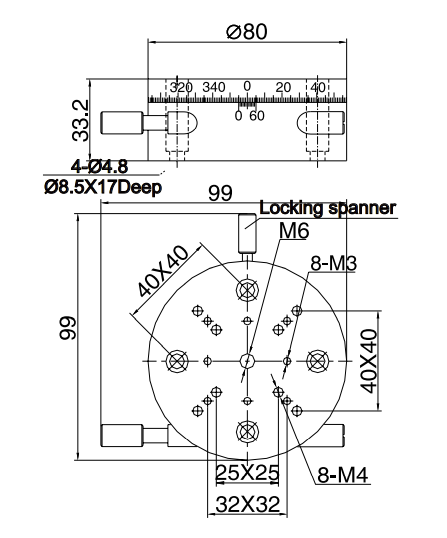

RS8035

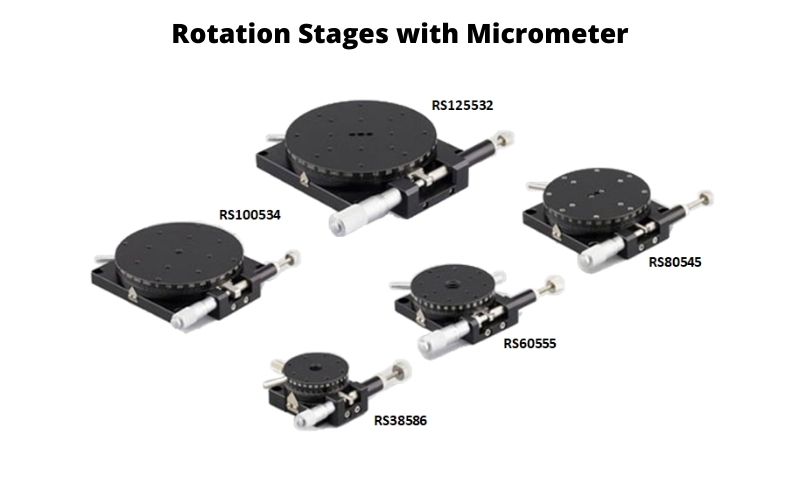

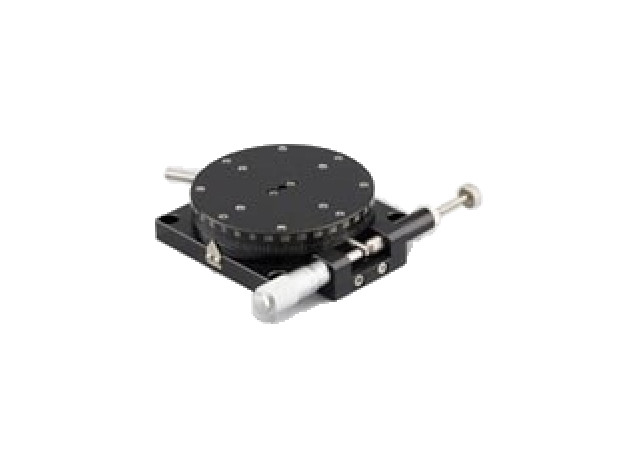

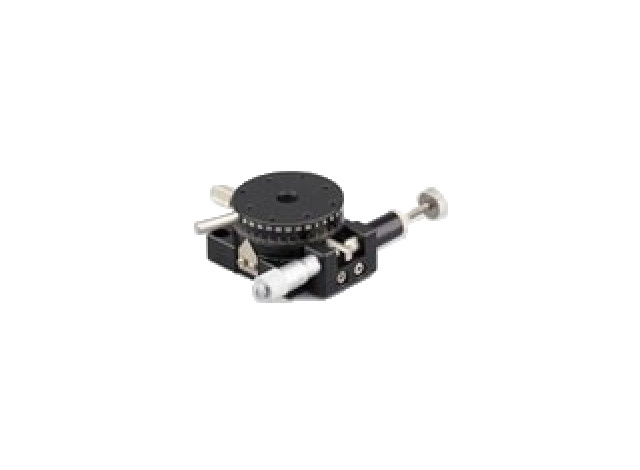

• 360° of manual coarse rotation of platform enabled when not locked

• Locking of platform through clutch knob

• Fine travel controlled by micrometer, possible once platform is locked





Selection Guide

Simtrum Part No. Coarse Travel (°) Fine Travel(°) Hole Type Platform diameter(mm) Maximum Load(N) Material Minimum reading(arcsec)
RS38586 360 ±5

Top: M6, M2.5

Bottom:

Counterbore holes

for M3 cap screws

 38 9.8 Aluminium 86
RS60555 360 ±5

Top: M16, M4, M3

Bottom:

Counterbore holes

for M4 cap screws

 60 29.4 Aluminium 55
RS80545 360 ±5

Top: M4

Bottom:

Counterbore holes

for M4 caps screws

 80 39.2 Aluminium 45
RS100534 360 ±5

Top: M6,M4

 Bottom:

Counterbore holes

for M4 cap screws

 100 49 Aluminium 34
RS125532 360 ±5

Top: M4

 Bottom:

Counterbore holes

for M4 cap screws

 125 49 Aluminium 32
The information in the chart above is a general guide to choosing the suitable rotation stages with micrometers for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.





Drawings

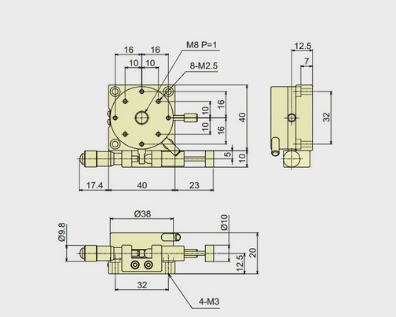

RS38586

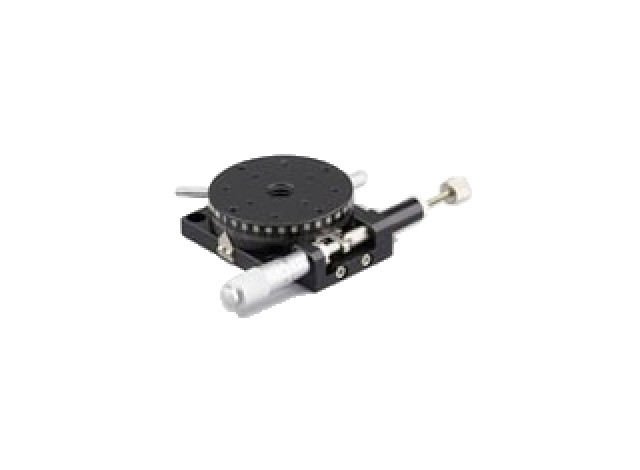

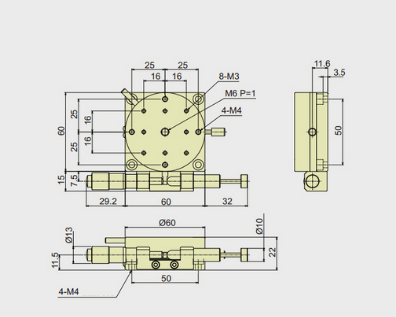

RS60555

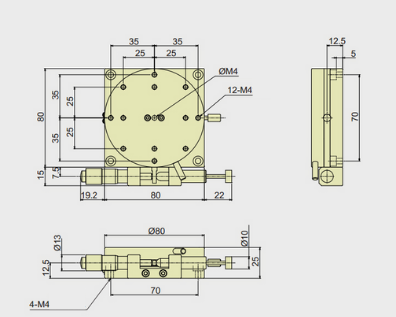

RS80545

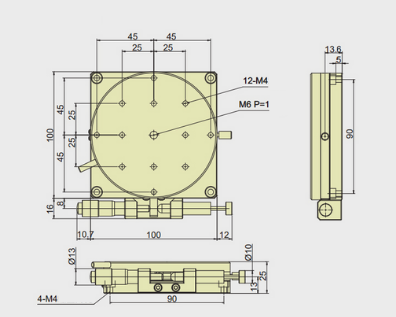

RS100534

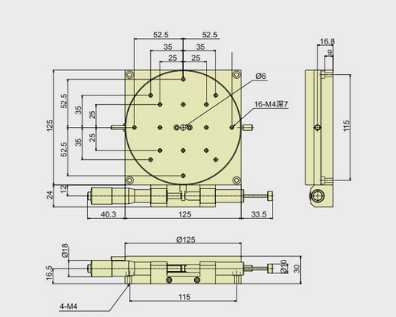

RS125532














































                                                        Lens Tube System Optomechanics          Manual Stages
Lens Tube System.jpg Optomechanics.jpg




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Height (mm) Fine Travel (°) Availability Reference Price
(USD)

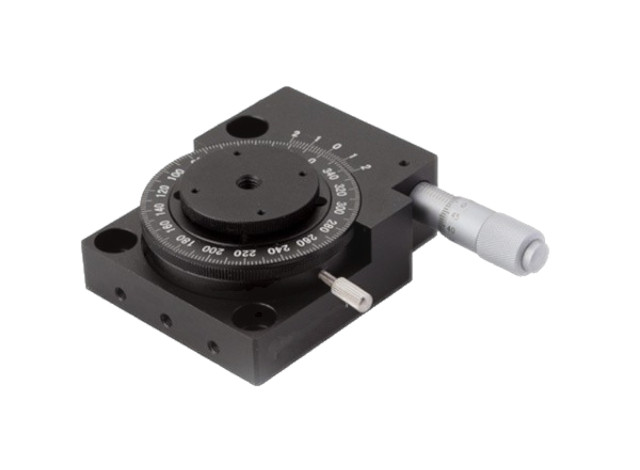

ORM510
Optical Rotation Mount, Fine Travel=5°, Resolution-10arcmin 		5 4-6 Weeks $182.84

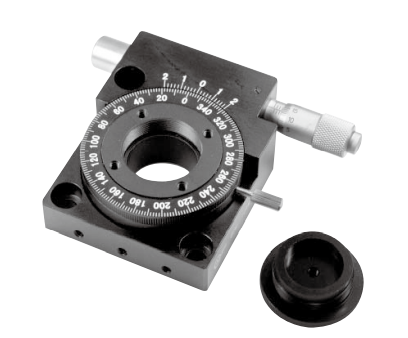

ORM46
Optical Rotation Mount, Fine Travel=4°, Resolution=6arcmin 		4 4-6 Weeks $207.92

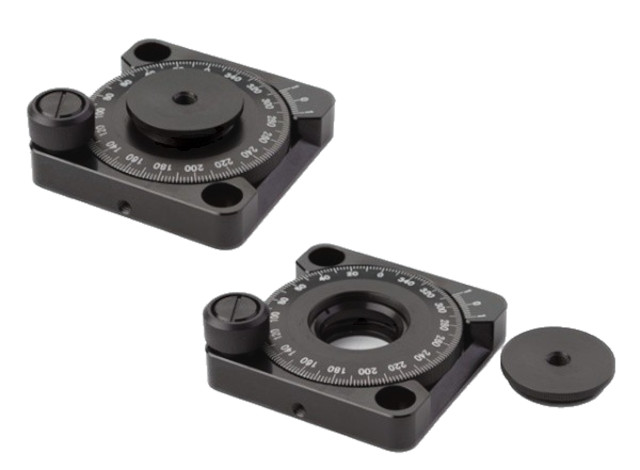

ORM001
Optical Rotation Mount, No micrometer 		14- 4-6 Weeks $108.66
RS13041
⌀130mm Rotation Stage, Coarse Travel=360° , Fine Travel=4°, Resolution=1 arcmin 		4 4-6 Weeks $280.78

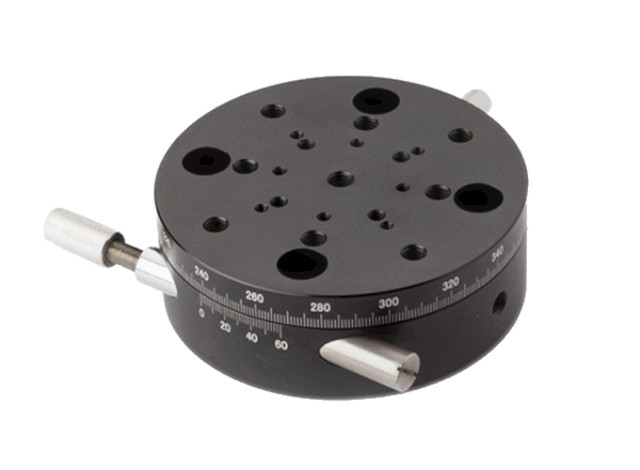

RS9452
⌀94mm Rotation Stage, Coarse Travel=360° , Fine Travel=5°, Resolution=2 arcmin 		5 4-6 Weeks $190.68

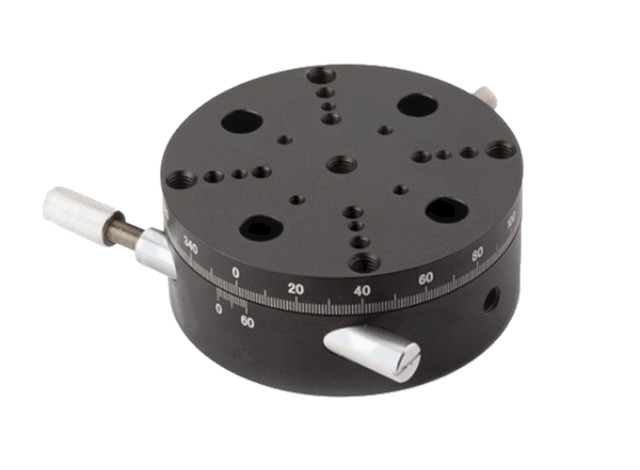

RS8035
⌀80mm Rotation Stage, Coarse Travel=360° , Fine Travel=3°, Resolution=5 arcmin 		3 4-6 Weeks $176.30
RS38586
⌀38mm Rotation Stage, Coarse Travel= 360°, Fine Travel= ±5°, Minimum reading (arcsec)=86 arcsec 		±5 4-6 Weeks $147.26
RS60555
⌀60mm Rotation Stage, Coarse Travel= 360°, Fine Travel= ±5°, Minimum reading (arcsec)=55 arcsec 		±5 4-6 Weeks $195.52
RS80545
⌀80mm Rotation Stage, Coarse Travel= 360°, Fine Travel= ±5°, Minimum reading (arcsec)=45 arcsec 		±5 4-6 Weeks $213.43

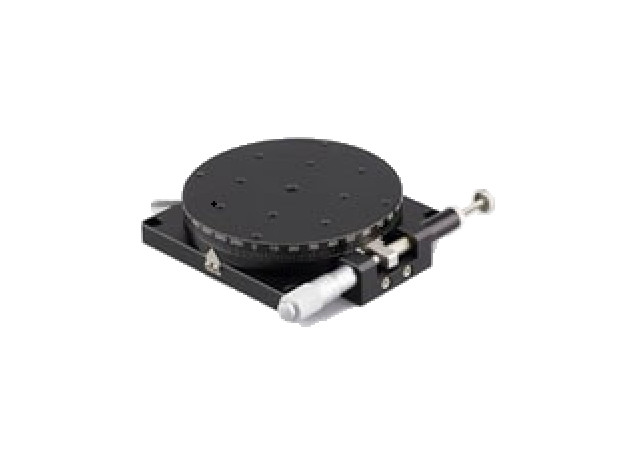

RS100534
⌀100mm Rotation Stage, Coarse Travel= 360°, Fine Travel= ±5°, Minimum reading (arcsec)=34 arcsec 		±5 4-6 Weeks $242.79

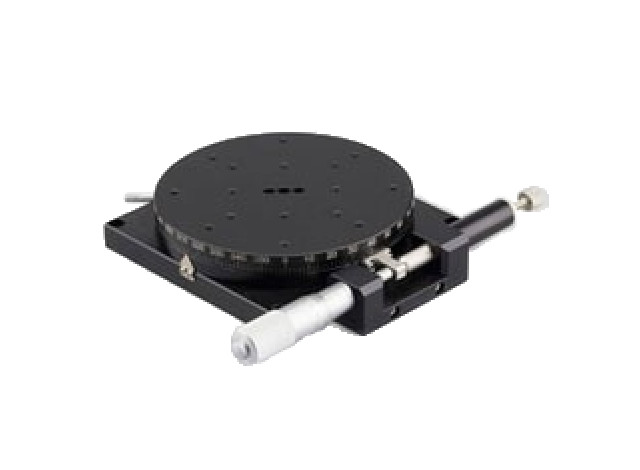

RS125532
⌀125mm Rotation Stage, Coarse Travel= 360°, Fine Travel= ±5°, Minimum reading (arcsec)=32arcsec 		±5 4-6 Weeks $291.54

RS125532 - Parameter

Material
Aluminium

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Fine Travel (°)
±5

Maximum Load (N)
49

Minimum reading (arcsec)

RS100534 - Parameter

Material
Aluminium

Hole Type
Top: M6, M4 Bottom: Counterbore holes for M4 cap screws

Fine Travel (°)
±5

Maximum Load (N)
49

Minimum reading (arcsec)

RS80545 - Parameter

Material
Aluminium

Hole Type
Top: M4 Bottom: Counterbore holes for M4 caps screws

Fine Travel (°)
±5

Maximum Load (N)
39.2

Minimum reading (arcsec)
45

RS60555 - Parameter

Material
Aluminium

Hole Type
Top: M16, M4, M3 Bottom: Counterbore holes for M4 cap screws

Fine Travel (°)
±5

Maximum Load (N)

Minimum reading (arcsec)

RS38586 - Parameter

Material
Aluminium

Hole Type
Top: M6, M2.5 Bottom: Counterbore holes for M3 cap screws

Fine Travel (°)
±5

Maximum Load (N)
9.8

Minimum reading (arcsec)

RS8035 - Parameter

Material
Aluminium

Diameter (mm)

Height (mm)

Hole Type
Top: M6,M4, M3 Bottom: ⌀8.5mm counterbore⌀4.8mm

Maximum load (kg)
4

Fine Travel (°)
3

RS9452 - Parameter

Material
Aluminium

Diameter (mm)

Height (mm)

Hole Type
Top; M6, M4, M3 Bottom: ⌀11.5mm counterbore⌀6.8mm

Maximum load (kg)
4

Fine Travel (°)
5

RS13041 - Parameter

Material
Aluminium

Diameter (mm)

Height (mm)

Hole Type
Top: M6,M3 Bottom: ⌀11mm counterbore⌀7mm

Maximum load (kg)
5

Fine Travel (°)
4

ORM001 - Parameter

Material
Aluminium

Height (mm)
14

Hole Type
M4

Maximum load (kg)
2

Fine Travel (°)
-

ORM46 - Parameter

Material
Aluminium

Height (mm)

Hole Type
M4

Maximum load (kg)
4

Fine Travel (°)
4

ORM510 - Parameter

Material
Aluminium

Height (mm)

Hole Type
M4

Maximum load (kg)
4

Fine Travel (°)
5
