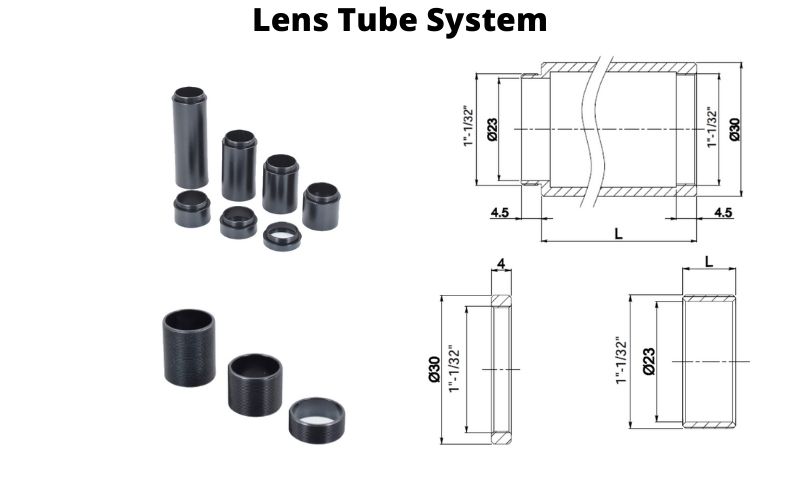

Lens Tube System | SIMTRUM Photonics Store

• Consists of c-mount lens tubes, lens tube locking rings and connection ring

• Accepts ⌀25.4mm optics

Lens

Filters

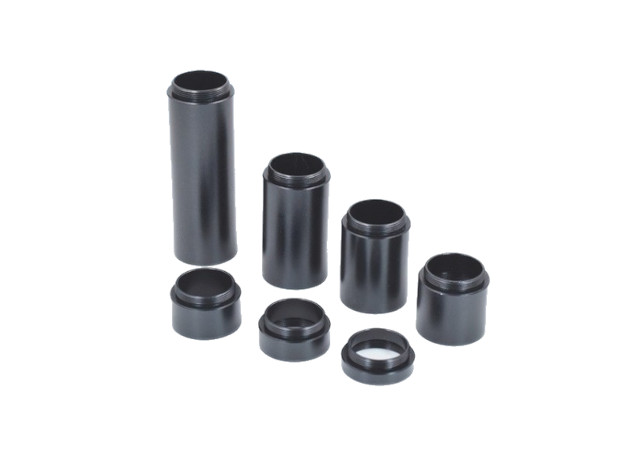

Lens Tube

Simtrum Part No.	Optic Diameter (mm)	L (mm)	Internal Thread Depth(mm)	External Thread Depth(mm)	Pack Deal (Pack of 5)
LT-25.4-6-4.5	25.4	6	4.5	4.5	No
LT-25.4-10-4.5	25.4	10	4.5	4.5	No
LT-25.4-15-4.5	25.4	15	4.5	4.5	No
LT-25.4-25-4.5	25.4	25	4.5	4.5	No
LT-25.4-37.5-4.5	25.4	37.5	4.5	4.5	No
LT-25.4-50-4.5	25.4	50	4.5	4.5	No
LT-25.4-80-4.5	25.4	80	4.5	4.5	No
The information in the chart above is a general guide to choosing the suitable c-mount lens tube for your optomechanical setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

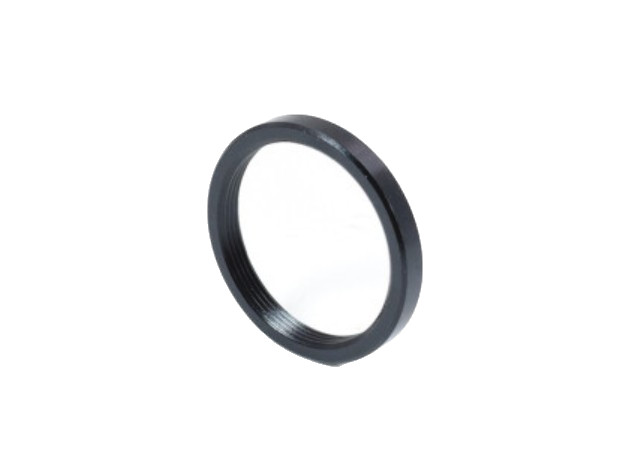

Lens Tube Locking Ring

Simtrum Part No.

Optic Diameter

(mm)

L

(mm)

Internal Thread Depth(mm)

External Thread Depth(mm)

Pack Deal

(Pack of 5)

LTLR-25.4-4

25.4

4

-

No

The information in the chart above is a general guide to choosing the suitable c-mount lens tube locking ring for your optomechanical setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

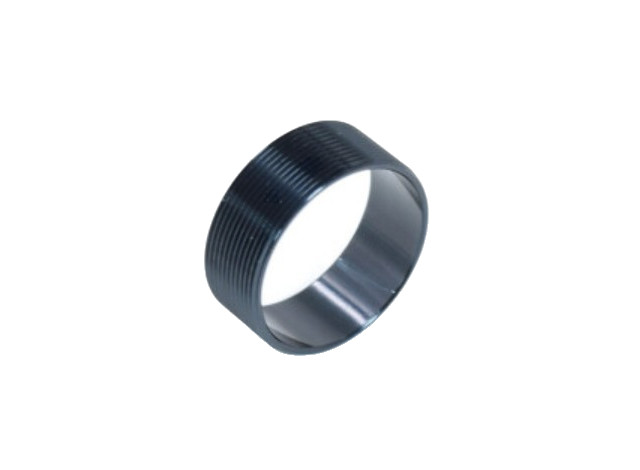

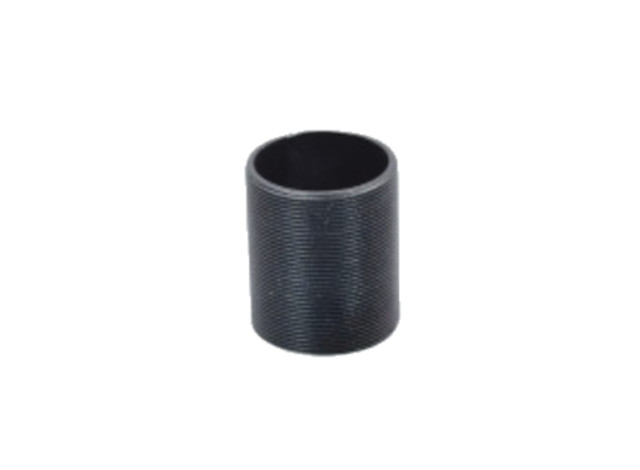

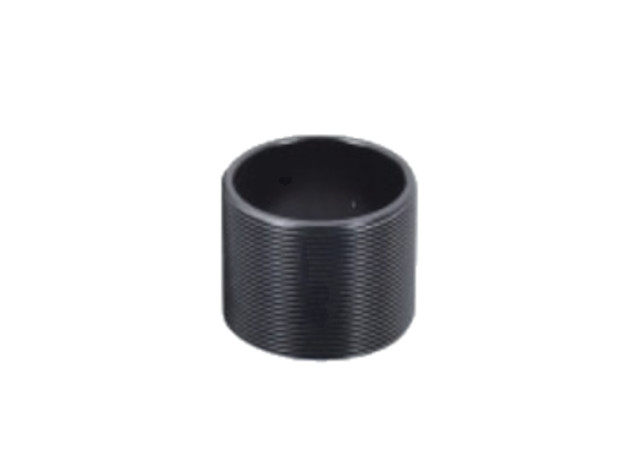

C-mount lens tube connection ring

Simtrum Part No.	Optic Diameter (mm)	L (mm)	Internal Thread Depth(mm)	External Thread Depth(mm)	Pack Deal (Pack of 5)
LTCR-25.4-10	25.4	10	-	10	No
LTCR-25.4-20	25.4	20	-	20	No
LTCR-25.4-30	25.4	30	-	30	No
The information in the chart above is a general guide to choosing the suitable c-mount lens tube locking ring for your optomechanical setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Optic Diameter (mm)	Internal Thread Depth (mm)	External Thread Depth (mm)	Availability	Reference Price (USD)
LT-25.4-6-4.5 Ø25.4mm C-Mount Lens Tube, L=6mm,4.5mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$13.00
LT-25.4-10-4.5 Ø25.4mm C-Mount Lens Tube, L=10mm, 4.5mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$13.00
LT-25.4-15-4.5 Ø25.4mm C-Mount Lens Tube, L=15mm, 4.5mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$13.50
LT-25.4-25-4.5 Ø25.4mm C-Mount Lens Tube, L=25mm, 4.5 mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$15.00
LT-25.4-37.5-4.5 Ø25.4mm C-Mount Lens Tube, L=37.5mm, 4.5mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$16.50
LT-25.4-50-4.5 Ø25.4mm C-Mount Lens Tube, L=50mm, 4.5mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$18.00
LT-25.4-80-4.5 Ø25.4mm C-Mount Lens Tube, L=80mm, 4.5mm Thread Depth	25.4	4.5	4.5	4-6 Weeks	$24.00
LTLR-25.4-4 Ø25.4mmC-Mount Lens Tube Locking Ring, L=4mm	25.4			4-6 Weeks	$6.80
LTCR-25.4-10 Ø25.4mm C-Mount Lens Tube Connection Ring, L=10mm	25.4	-		4-6 Weeks	$6.80
LTCR-25.4-20 Ø25.4mm C-Mount Lens Tube Connection Ring, L=20mm	25.4	-		4-6 Weeks	$8.50
LTCR-25.4-30 Ø25.4mm C-Mount Lens Tube Connection Ring, L=30mm	25.4	-		4-6 Weeks	$11.00
