Zero Order Dual Wavelength Waveplates | SIMTRUM Photonics Store

Products / Optics /Polarization Components /Waveplates /Zero Order Waveplates /Zero Order Dual Wavelength Waveplates /
Zero Order Dual Wavelength Waveplates
Overview Specifications and Graphs Order Now!

image.pngQuartz are excellent birefringent crystals. Due to its high UV, VIS, and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in the retardation plate. Quartz can exhibit circular birefringence allowing the ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.


Zero Order Dual Wavelength Waveplate can provide the retardance at two wavelengths (the fundamental wavelength and the second harmonic wavelength). While at the same time, it is widely used in femtosecond lasers.




Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset

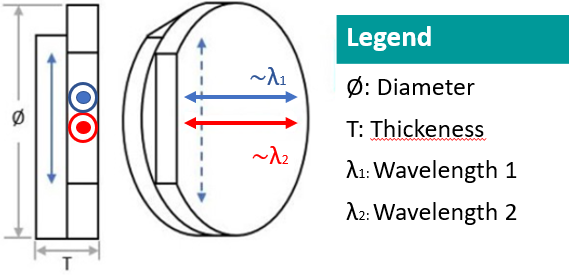

Compare Model Drawings & Specs Availability Reference Price
(USD)
Q-ZDWWP-R12-12.7-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ@1064nm+λ/2@532nm, Ø= 12.7mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R12-20-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ@1064nm+λ/2@532nm, Ø= 20mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R12-25.4-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ@1064nm+λ/2@532nm, Ø= 25.4mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R21-12.7-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/2@1064nm+λ@532nm, Ø= 12.7mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R21-20-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/2@1064nm+λ@532nm, Ø= 20mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R21-25.4-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/2@1064nm+λ@532nm, Ø= 25.4mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R24-12.7-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/2@1064nm+λ/4@532nm, Ø= 12.7mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R24-20-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/2@1064nm+λ/4@532nm, Ø= 20mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R24-25.4-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/2@1064nm+λ/4@532nm, Ø= 25.4mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R41-12.7-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/4@1064nm+λ@532nm, Ø= 12.7mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R41-20-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/4@1064nm+λ@532nm, Ø= 20mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R41-25.4-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/4@1064nm+λ@532nm, Ø= 25.4mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R42-12.7-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/4@1064nm+λ/2@532nm, Ø= 12.7mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R42-20-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/4@1064nm+λ/2@532nm, Ø= 20mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote
Q-ZDWWP-R42-25.4-1064-SHM
Quartz, Zero Order Dual Wavelength Waveplate, Retardation= λ/4@1064nm+λ/2@532nm, Ø= 25.4mm, AR Coating: R<0.5%@532+1064nm 		2-3 Weeks Request for quote

Q-ZDWWP-R42-25.4-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4@1064nm+λ/2@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R42-20-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4@1064nm+λ/2@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R42-12.7-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4@1064nm+λ/2@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R41-25.4-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4@1064nm+λ@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R41-20-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4@1064nm+λ@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R41-12.7-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4@1064nm+λ@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R24-25.4-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2@1064nm+λ/4@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R24-20-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2@1064nm+λ/4@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R24-12.7-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2@1064nm+λ/4@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R21-25.4-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2@1064nm+λ@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R21-20-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2@1064nm+λ@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R21-12.7-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2@1064nm+λ@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R12-25.4-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ@1064nm+λ/2@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R12-20-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ@1064nm+λ/2@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R12-12.7-1064-SHM - Parameter

Type
Zero Order Dual Wavelength Waveplate

Material
Quartz

Coating
R<0.5%@532+1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532+1064

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ@1064nm+λ/2@532nm

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Q-ZDWWP-R42-25.4-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R42-20-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R42-12.7-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R41-25.4-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R41-20-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R41-12.7-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R24-25.4-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R24-20-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R24-12.7-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R21-25.4-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R21-20-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R21-12.7-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R12-25.4-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R12-20-1064-SHM - Download

Download

Download

Download

Download

Q-ZDWWP-R12-12.7-1064-SHM - Download

Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
