Single Plate High Power Half Waveplates

Overview Specifications and Graphs Order Now!

Quartz are excellent birefringent crystals. Due to its high UV, VIS and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in retardation plate. Quartz can exhibit circular birefringence allowing ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.

General Specifications
Type	Single Plate High Power Half Waveplate
Material	Quartz
Retardation	λ/2
Retardation Tolerance	<λ/300
Dimensional Tolerance (mm)	+0/-0.2
Acceptance Angle	10°
Parallelism(arcmin)	<1
Clear Aperture	18mm
Surface Quality	20/10
Wavefront Distortion	<λ/8@633nm
Damage Threshold(pulsed)	>10J/cm²(20ns 20Hz 1064nm)

Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Design Wavelength (nm)

Search Reset

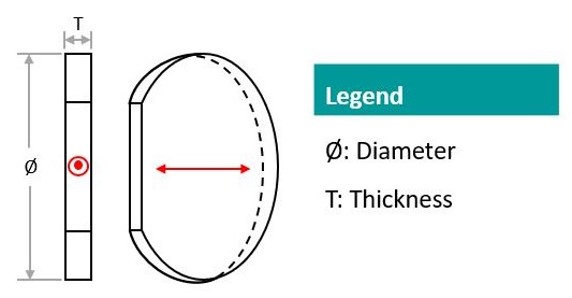

Compare	Model		Drawings & Specs	Coating	Design Wavelength (nm)	Availability	Reference Price (USD)
		Q-SHPHWP-18-1030 Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@1030nm		R<0.25%@1030nm	1030	2-3 Weeks	Request for quote
		Q-SHPHWP-18-1030-M Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@1030nm		R<0.25%@1030nm	1030	2-3 Weeks	Request for quote
		Q-SHPHWP-18-1064 Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@1064nm		R<0.25%@1064nm	1064	2-3 Weeks	Request for quote
		Q-SHPHWP-18-1064-M Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@1064nm		R<0.25%@1064nm	1064	2-3 Weeks	Request for quote
		Q-SHPHWP-18-355 Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@355nm		R<0.25%@355nm	355	2-3 Weeks	Request for quote
		Q-SHPHWP-18-355-M Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@355nm		R<0.25%@355nm	355	2-3 Weeks	Request for quote
		Q-SHPHWP-18-532 Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@532nm		R<0.25%@532nm	532	2-3 Weeks	Request for quote
		Q-SHPHWP-18-532-M Quartz, Single Plate High Power Half Waveplate, Retardation= λ/2, CA= 18mm, AR Coating: R<0.25%@532nm		R<0.25%@532nm	532	2-3 Weeks	Request for quote

Q-SHPHWP-18-532-M - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@532nm

Design Wavelength (nm)

532

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

0.029

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

25.4

Mount Thickness (mm)

6

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

Acceptance Angle

10°

Q-SHPHWP-18-532 - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@532nm

Design Wavelength (nm)

532

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

0.029

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

-

Mount Thickness (mm)

-

Mount Diameter Tolerance (mm)

-

Mount Thickness Tolerance (mm)

-

Acceptance Angle

10°

Q-SHPHWP-18-355-M - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@355nm

Design Wavelength (nm)

355

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

25.4

Mount Thickness (mm)

6

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

Acceptance Angle

10°

Q-SHPHWP-18-355 - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@355nm

Design Wavelength (nm)

355

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

-

Mount Thickness (mm)

-

Mount Diameter Tolerance (mm)

-

Mount Thickness Tolerance (mm)

-

Acceptance Angle

10°

Q-SHPHWP-18-1064-M - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@1064nm

Design Wavelength (nm)

1064

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

25.4

Mount Thickness (mm)

6

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

Acceptance Angle

10°

Q-SHPHWP-18-1064 - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@1064nm

Design Wavelength (nm)

1064

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

-

Mount Thickness (mm)

-

Mount Diameter Tolerance (mm)

-

Mount Thickness Tolerance (mm)

-

Acceptance Angle

10°

Q-SHPHWP-18-1030-M - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@1030nm

Design Wavelength (nm)

1030

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

25.4

Mount Thickness (mm)

6

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

Acceptance Angle

10°

Q-SHPHWP-18-1030 - Parameter

Type

Single Plate High Power Half Waveplate

Material

Quartz

Coating

R<0.25%@1030nm

Design Wavelength (nm)

1030

Surface Quality

20/10

Clear Aperture

18mm

Damage Threshold (pulsed)

>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/8@633nm

Parallelism (arcsec)

<1

Retardation

λ/2

Retardation Tolerance

<λ/300

Mount Diameter (mm)

-

Mount Thickness (mm)

-

Mount Diameter Tolerance (mm)

-

Mount Thickness Tolerance (mm)

-

Acceptance Angle

10°

Q-SHPHWP-18-532-M - Download

Q-SHPHWP-18-532 - Download

Q-SHPHWP-18-355-M - Download

Q-SHPHWP-18-355 - Download

Q-SHPHWP-18-1064-M - Download

Q-SHPHWP-18-1064 - Download

Q-SHPHWP-18-1030-M - Download

Q-SHPHWP-18-1030 - Download
