Cemented True Zero Order Half Waveplates | SIMTRUM Photonics Store

Products / Cemented True Zero Order Half Waveplates /
Cemented True Zero Order Half Waveplates
Overview Specifications and Graphs Order Now!

Polymer Zero Order Half Waveplates are built using birefringent polymer film cemented between two glass. They are designed as True Zero Half Waveplates which allow stable retardation due to shifts in wavelength or angle of incidence. Due to the two glasses being cemented, they have a low tolerance for high damage threshold and temperature.

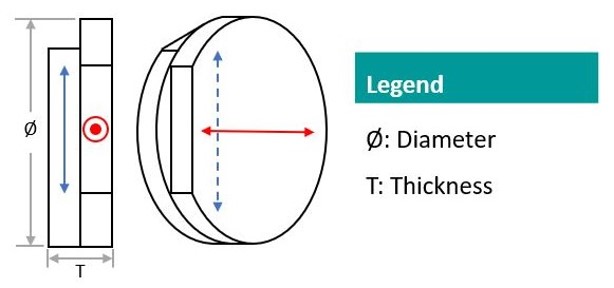

Cemented Zero Order Half Waveplates have their two components bonded together through cementing. They have a smaller temperature range as the cement could be damaged by a high-powered laser. The beam deviation is relatively around an arc minutes range with a lower transmitted wavefront tolerance. However, this is still useful in low power situations and is economical.


General Specifications

Type

Cemented Zero Order Half Waveplate

Material

Quartz/BK7

Retardation

λ/2

Retardation Tolerance

<λ/300

Dimensional Tolerance(mm)

+0/-0.2

Parallelism(arcsec)

<1

Clear Aperture

>80%

Surface Quality

20/10

Wavefront Distortion

<λ/8@633nm

Damage Threshold(pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Diameter (mm) Mount Diameter (mm) Availability Reference Price
(USD)
QB-CTZHWP-10-1310-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @1310nm, Mount Ø=25.4mm 		13101025.4 In Stock Request for quote
QB-CTZHWP-10-1550-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @1550nm, Mount Ø=25.4mm 		15501025.4 In Stock Request for quote
QB-CTZHWP-10-633-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @633nm, Mount Ø=25.4mm 		6331025.4 In Stock Request for quote
QB-CTZHWP-10-780-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @780nm, Mount Ø=25.4mm 		7801025.4 In Stock Request for quote
QB-CTZHWP-10-795-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @795nm, Mount Ø=25.4mm 		7951025.4 In Stock Request for quote
QB-CTZHWP-10-852-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @852nm, Mount Ø=25.4mm 		8521025.4 In Stock Request for quote
QB-CTZHWP-10-894-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 10mm, AR Coating: R<0.25% @894nm, Mount Ø=25.4mm 		8941025.4 In Stock Request for quote
QB-CTZHWP-12.7-1310-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @1310nm, Mount Ø=25.4mm 		131012.725.4 In Stock Request for quote
QB-CTZHWP-12.7-1550-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @1550nm, Mount Ø=25.4mm 		155012.725.4 In Stock Request for quote
QB-CTZHWP-12.7-633-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @633nm, Mount Ø=25.4mm 		63312.725.4 In Stock Request for quote
QB-CTZHWP-12.7-780-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @780nm, Mount Ø=25.4mm 		78012.725.4 In Stock Request for quote
QB-CTZHWP-12.7-795-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @795nm, Mount Ø=25.4mm 		79512.725.4 In Stock Request for quote
QB-CTZHWP-12.7-852-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @852nm, Mount Ø=25.4mm 		85212.725.4 In Stock Request for quote
QB-CTZHWP-12.7-894-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 12.7mm, AR Coating: R<0.25% @894nm, Mount Ø=25.4mm 		89412.725.4 In Stock Request for quote
QB-CTZHWP-20-1310-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @1310nm, Mount Ø=25.4mm 		13102025.4 In Stock Request for quote
QB-CTZHWP-20-1550-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @1550nm, Mount Ø=25.4mm 		15502025.4 In Stock Request for quote
QB-CTZHWP-20-633-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @633nm, Mount Ø=25.4mm 		6332025.4 In Stock Request for quote
QB-CTZHWP-20-780-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @780nm, Mount Ø=25.4mm 		7802025.4 In Stock Request for quote
QB-CTZHWP-20-795-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @795nm, Mount Ø=25.4mm 		7952025.4 In Stock Request for quote
QB-CTZHWP-20-852-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @852nm, Mount Ø=25.4mm 		8522025.4 In Stock Request for quote
QB-CTZHWP-20-894-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 20mm, AR Coating: R<0.25% @894nm, Mount Ø=25.4mm 		8942025.4 In Stock Request for quote
QB-CTZHWP-25.4-1310-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @1310nm, Mount Ø=30mm 		131025.430 In Stock Request for quote
QB-CTZHWP-25.4-1550-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @1550nm, Mount Ø=30mm 		155025.430 2-3 Weeks Request for quote
QB-CTZHWP-25.4-633-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @633nm, Mount Ø=30mm 		63325.430 2-3 Weeks Request for quote
QB-CTZHWP-25.4-780-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @780nm, Mount Ø=30mm 		78025.430 2-3 Weeks Request for quote
QB-CTZHWP-25.4-795-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @795nm, Mount Ø=30mm 		79525.430 2-3 Weeks Request for quote
QB-CTZHWP-25.4-852-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @852nm, Mount Ø=30mm 		85225.430 2-3 Weeks Request for quote
QB-CTZHWP-25.4-894-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 25.4mm, AR Coating: R<0.25% @894nm, Mount Ø=30mm 		89425.430 2-3 Weeks Request for quote
QB-CTZHWP-38.1-1310-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @1310nm, Mount Ø=50.8mm 		131038.150.8 2-3 Weeks Request for quote
QB-CTZHWP-38.1-1550-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @1550nm, Mount Ø=50.8mm 		155038.150.8 2-3 Weeks Request for quote
QB-CTZHWP-38.1-633-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @633nm, Mount Ø=50.8mm 		63338.150.8 2-3 Weeks Request for quote
QB-CTZHWP-38.1-780-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @780nm, Mount Ø=50.8mm 		78038.150.8 2-3 Weeks Request for quote
QB-CTZHWP-38.1-795-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @795nm, Mount Ø=50.8mm 		79538.150.8 2-3 Weeks Request for quote
QB-CTZHWP-38.1-852-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @852nm, Mount Ø=50.8mm 		85238.150.8 2-3 Weeks Request for quote
QB-CTZHWP-38.1-894-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 38.1mm, AR Coating: R<0.25% @894nm, Mount Ø=50.8mm 		89438.150.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-1310-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @1310nm, Mount Ø=50.8mm 		131050.850.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-1550-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @1550nm, Mount Ø=50.8mm 		155050.850.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-633-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @633nm, Mount Ø=50.8mm 		63350.850.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-780-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @780nm, Mount Ø=50.8mm 		78050.850.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-795-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @795nm, Mount Ø=50.8mm 		79550.850.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-852-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @852nm, Mount Ø=50.8mm 		85250.850.8 2-3 Weeks Request for quote
QB-CTZHWP-50.8-894-M
Quartz/BK7, Cemented True Zero Order Half Waveplate, Ø= 50.8mm, AR Coating: R<0.25% @894nm, Mount Ø=50.8mm 		89450.850.8 2-3 Weeks Request for quote

QB-CTZHWP-50.8-894-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @894nm

Diameter (mm)
50.8

Design Wavelength (nm)
894

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-852-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @852nm

Diameter (mm)
50.8

Design Wavelength (nm)
852

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-795-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @795nm

Diameter (mm)
50.8

Design Wavelength (nm)
795

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-780-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @780nm

Diameter (mm)
50.8

Design Wavelength (nm)
780

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-633-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @633nm

Diameter (mm)
50.8

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-1550-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1550nm

Diameter (mm)
50.8

Design Wavelength (nm)
1550

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-1310-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1310nm

Diameter (mm)
50.8

Design Wavelength (nm)
1310

Surface Quality
20/10

Clear Aperture
>45mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-894-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @894nm

Diameter (mm)
38.1

Design Wavelength (nm)
894

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-852-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @852nm

Diameter (mm)
38.1

Design Wavelength (nm)
852

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-795-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @795nm

Diameter (mm)
38.1

Design Wavelength (nm)
795

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-780-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @780nm

Diameter (mm)
38.1

Design Wavelength (nm)
780

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-633-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @633nm

Diameter (mm)
38.1

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-1550-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1550nm

Diameter (mm)
38.1

Design Wavelength (nm)
1550

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-38.1-1310-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1310nm

Diameter (mm)
38.1

Design Wavelength (nm)
1310

Surface Quality
20/10

Clear Aperture
>35mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
50.8

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-894-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @894nm

Diameter (mm)
25.4

Design Wavelength (nm)
894

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-852-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @852nm

Diameter (mm)
25.4

Design Wavelength (nm)
852

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-795-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @795nm

Diameter (mm)
25.4

Design Wavelength (nm)
795

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-780-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @780nm

Diameter (mm)
25.4

Design Wavelength (nm)
780

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-633-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @633nm

Diameter (mm)
25.4

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-1550-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1550nm

Diameter (mm)
25.4

Design Wavelength (nm)
1550

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-25.4-1310-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1310nm

Diameter (mm)
25.4

Design Wavelength (nm)
1310

Surface Quality
20/10

Clear Aperture
>22.9mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-894-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @894nm

Diameter (mm)
20

Design Wavelength (nm)
894

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-852-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @852nm

Diameter (mm)
20

Design Wavelength (nm)
852

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-795-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @795nm

Diameter (mm)
20

Design Wavelength (nm)
795

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-780-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @780nm

Diameter (mm)
20

Design Wavelength (nm)
780

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-633-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @633nm

Diameter (mm)
20

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-1550-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1550nm

Diameter (mm)
20

Design Wavelength (nm)
1550

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-20-1310-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1310nm

Diameter (mm)
20

Design Wavelength (nm)
1310

Surface Quality
20/10

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-894-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @894nm

Diameter (mm)
12.7

Design Wavelength (nm)
894

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-852-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @852nm

Diameter (mm)
12.7

Design Wavelength (nm)
852

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-795-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @795nm

Diameter (mm)
12.7

Design Wavelength (nm)
795

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-780-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @780nm

Diameter (mm)
12.7

Design Wavelength (nm)
780

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-633-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @633nm

Diameter (mm)
12.7

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-1550-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1550nm

Diameter (mm)
12.7

Design Wavelength (nm)
1550

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-12.7-1310-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1310nm

Diameter (mm)
12.7

Design Wavelength (nm)
1310

Surface Quality
20/10

Clear Aperture
>11.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-894-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @894nm

Diameter (mm)
10

Design Wavelength (nm)
894

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-852-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @852nm

Diameter (mm)
10

Design Wavelength (nm)
852

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-795-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @795nm

Diameter (mm)
10

Design Wavelength (nm)
795

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-780-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @780nm

Diameter (mm)
10

Design Wavelength (nm)
780

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-633-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @633nm

Diameter (mm)
10

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-1550-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1550nm

Diameter (mm)
10

Design Wavelength (nm)
1550

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-10-1310-M - Parameter

Type
Cemented Quartz Zero Order Half Waveplate

Material
Quartz/BK7

Coating
R<0.25% @1310nm

Diameter (mm)
10

Design Wavelength (nm)
1310

Surface Quality
20/10

Clear Aperture
>8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/2

Retardation Tolerance
λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QB-CTZHWP-50.8-894-M - Download

Download

Download

Download

Download

QB-CTZHWP-50.8-852-M - Download

Download

Download

Download

Download

QB-CTZHWP-50.8-795-M - Download

Download

Download

Download

Download

QB-CTZHWP-50.8-780-M - Download

Download

Download

Download

Download

QB-CTZHWP-50.8-633-M - Download

Download

Download

Download

Download

QB-CTZHWP-50.8-1550-M - Download

Download

Download

Download

Download

QB-CTZHWP-50.8-1310-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-894-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-852-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-795-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-780-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-633-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-1550-M - Download

Download

Download

Download

Download

QB-CTZHWP-38.1-1310-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-894-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-852-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-795-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-780-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-633-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-1550-M - Download

Download

Download

Download

Download

QB-CTZHWP-25.4-1310-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-894-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-852-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-795-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-780-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-633-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-1550-M - Download

Download

Download

Download

Download

QB-CTZHWP-20-1310-M - Download

Download

Download

Download

Download

QB-CTZHWP-12.7-894-M - Download

Download

Download

Download

Download

QB-CTZHWP-12.7-852-M - Download

Download

Download

Download

Download

QB-CTZHWP-12.7-795-M - Download

Download

Download

Download

Download

QB-CTZHWP-12.7-780-M - Download

Download

Download

Download

Download

QB-CTZHWP-12.7-633-M - Download

Download

Download

Download

Download

QB-CTZHWP-12.7-1550-M - Download

Download

Download

Download

QB-CTZHWP-12.7-1310-M - Download

Download

Download

Download

QB-CTZHWP-10-894-M - Download

Download

Download

Download

QB-CTZHWP-10-852-M - Download

Download

Download

Download

QB-CTZHWP-10-795-M - Download

Download

Download

Download

Download

QB-CTZHWP-10-780-M - Download

Download

Download

Download

Download

QB-CTZHWP-10-633-M - Download

Download

Download

Download

QB-CTZHWP-10-1550-M - Download

Download

Download

Download

QB-CTZHWP-10-1310-M - Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
