Variable Size Lens Mounts | SIMTRUM Photonics Store

Products / Optomechanics /Optical Mounts /Lens Mounts /Variable Size Lens Mounts /
Variable Size Lens Mounts
Overview Related Products Selection Guide Order Now!

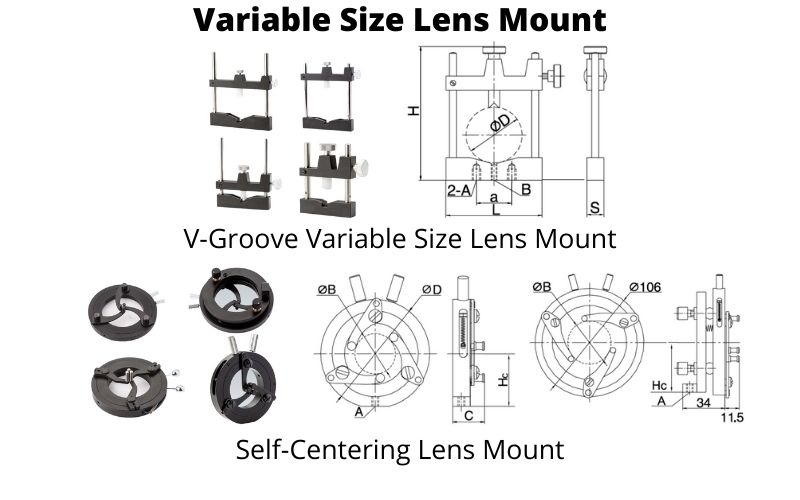

Variable Size Lens Mount.jpg


• Includes V-grooved clamps and self-centering lens mounts

• A single mount can hold a range of optic diameters



Lens



12.7mm Optical Post Holders

12.7mm Optical Post Holders.jpg




V-grooved clamp

Simtrum Part No. HmaxDmaxSAB

Pack Deal

(Pack of 5)

VGC-73-30733010-M4No
VGC-110-5011050122-M6M4No
VGC-140-7514075142-M6M6No
VGC-175-100175100142-M6M6No


The information in the chart above is a general guide to choosing the suitable v-grooved clamp for your optomechanical setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

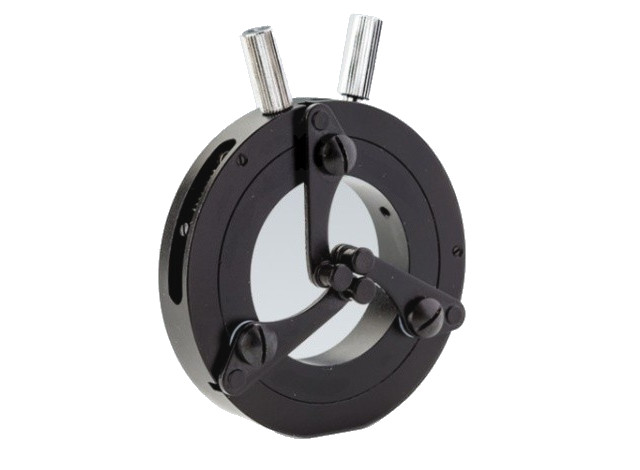

Self-centering lens mount


Simtrum Part No. Hole SizeØDMin Optic DiameterMax Optic DiameterC

Pack Deal

(Pack of 5)

SCLM-62-4-35M46243518No
SCLM-106-7-64M410676423.5No
SCLM-150-5-80M615058052No
SCLM-106-7-64M610676445.5No


The information in the chart above is a general guide to choosing the suitable self-centering lens mount for your optomechanical setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Hole size (mm) Availability Reference Price
(USD)

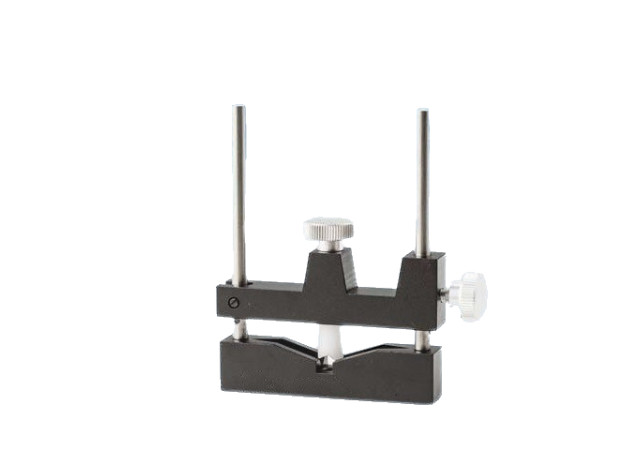

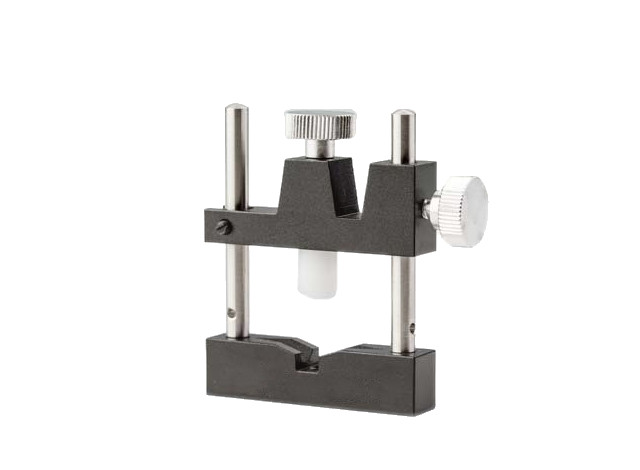

VGC-73-30
Adjustable Height, V-grooved Clamp, Hmax=73mm, ØDmax=30mm 		4-6 Weeks $41.50

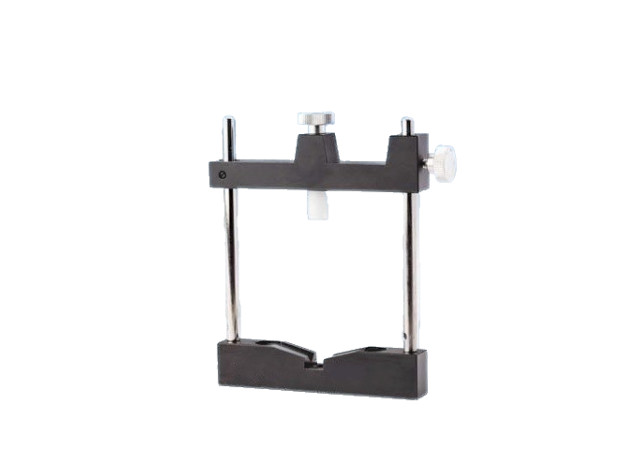

VGC-110-50
Adjustable Height, V-grooved Clamp, Hmax=110mm, ØDmax=50mm 		4-6 Weeks $46.50

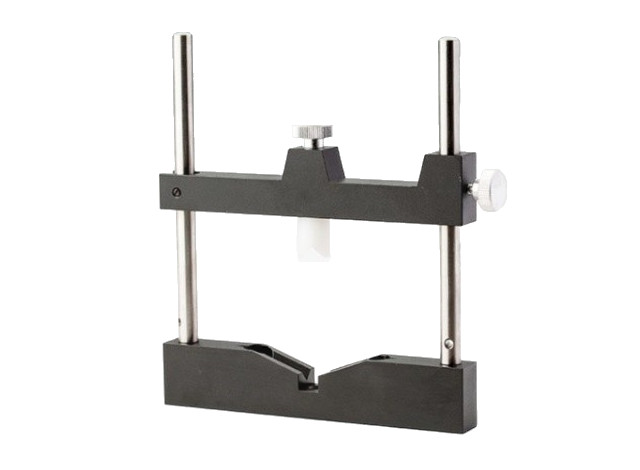

VGC-140-75
Adjustable Height, V-grooved Clamp, Hmax=140mm, ØDmax=75mm 		4-6 Weeks $55.50
VGC-175-100
Adjustable Height, V-grooved Clamp, Hmax=175mm, ØDmax=100mm 		4-6 Weeks $62.00

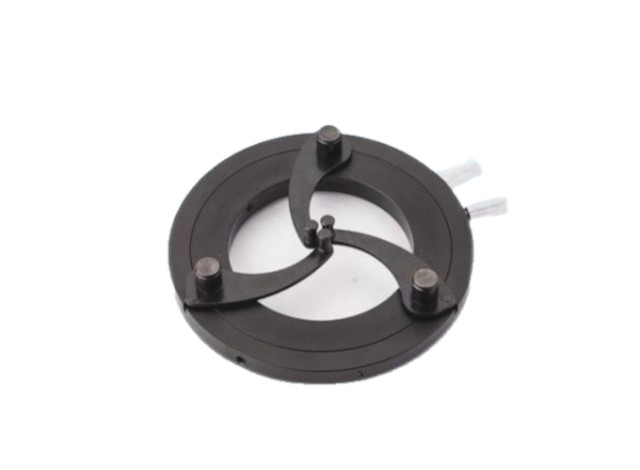

SCLM-62-4-35
Self-Centering Lens Mount, Max Optic Size=35mm,Min Optic Size=4mm 		M4 4-6 Weeks $52.50

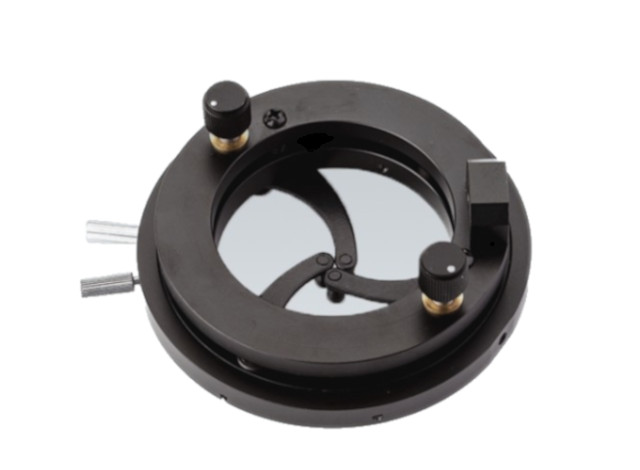

SCLM-106-7-64
Self-Centering Lens Mount, Max Optic Size=35mm,Min Optic Size=4mm 		M4 4-6 Weeks $63.50

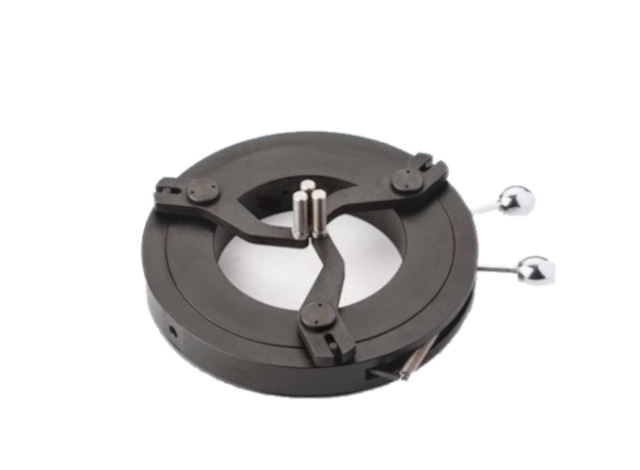

SCLM-150-5-80
Self-Centering Lens Mount, Max Optic Size=80mm, Min Optic Size=5mm 		M6 4-6 Weeks $170.00
SCLM-106-7-64
Self-Centering Lens Mount, Max Optic Size=64mm, Min Optic Size=7mm 		M6 4-6 Weeks $102.50

SCLM-106-7-64 - Parameter

Weight (g)

Hole size (mm)
M6

SCLM-150-5-80 - Parameter

Weight (g)
450

Hole size (mm)
M6

SCLM-106-7-64 - Parameter

Weight (g)

Hole size (mm)
M4

SCLM-62-4-35 - Parameter

Weight (g)

Hole size (mm)
M4

VGC-175-100 - Parameter

Weight (g)

VGC-140-75 - Parameter

Weight (g)

VGC-110-50 - Parameter

Weight (g)

VGC-73-30 - Parameter

Weight (g)

SCLM-106-7-64 - Download

SCLM-150-5-80 - Download

SCLM-106-7-64 - Download

SCLM-62-4-35 - Download

VGC-175-100 - Download

VGC-140-75 - Download

VGC-110-50 - Download

VGC-73-30 - Download
