Adjustable Lens Mounts

Overview Related Products Selection Guide Order Now!

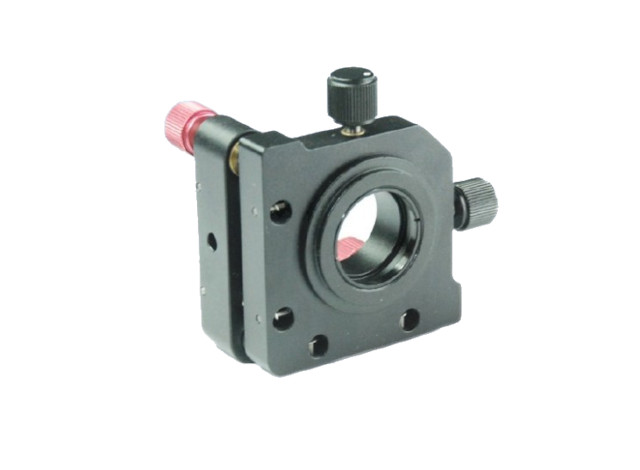

• Kinematic mounts for ⌀20mm, ⌀25.4mm optics

• Four fine threads for horizontal adjustments in X and Y direction, as well as angular adjustments along Y and Z direction

Lens	Clamps/Bases/Accessories

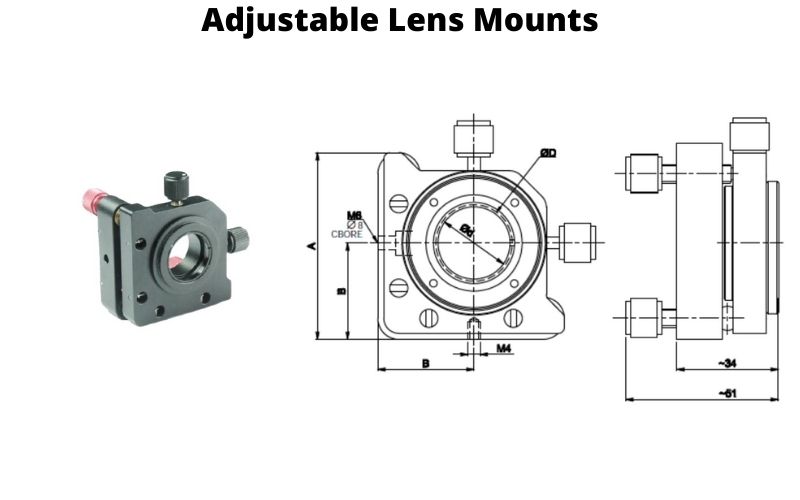

Simtrum Part No.	Optic Diameter (mm)	Clear Aperture (mm)	B (mm)	A (mm)	Hole Size	Adjustments	Angular Range	Travel,X (mm)	Travel,Y (mm)	Weight (g)
4AKM-25.4	25.4	24	32	62	1-M4, 1-M6	XY θYθZ	±2°	±2	±2	177
4AKM-20	20	18.5	32	62	1-M4, 1-M6	XY θYθZ	±2°	±2	±2	177
The information in the chart above is a general guide to choosing the suitable 12.7mm optical posts for your optomechanical setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.
