BaF2

Overview Specification Order Now!

LBO Nonlinear Optical Crystal.jpg

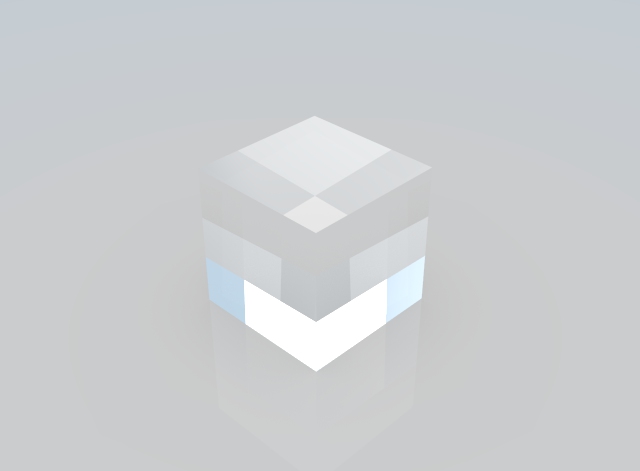

BaF₂(Barium Fluoride) is a crystal that has good transmittance over a wide spectrum range of 150nm-12.5um. It is transparent from the UV to Infrared, from 150-200nm to 11-11.5um. It has been used for functions in windows for infrared spectroscopy such as fuel oil analysis, lenses, prisms and especially UV transmittance. High grade BaF₂ can even be used for scintillation crystals, where it is one of the fastest for the detection of x-ray, gamma-rays, and high energy particles.

Of note, BaF₂ is used for cross-polarized wave generation (XPW) with Z[001] or holographic [011] crystallographic orientation. XPW generation is a non-linear 3^rd order process where the generated wave has the same frequency as the incident wave but is perpendicularly polarized. Other applications of BaF₂ is the detection of 511keV gamma photons in positron emission tomography (PET), preopacifying agent in enamel and glazing frits production and as welding agents.

General Specifications
Material	BaF2
Dimension Tolerance(mm)	±0.1
Surface Quality	10/5
Flatness	<λ/6@633nm
Wavefront Distortion	λ/8
Parallelism(arcsec)	20
Damage Threshold(pulsed)	27500 MW/cm² @ 3.8μm

Physical Properties
Crystal type	cubic
Density, g/cm³	5.27
Melting point, °C	1525
Refractive index	@ 0.265 µm, n = 1.51217 @ 10.3 µm, n = 1.39636
Transmission range, µm	0.135 – 15
