Quartz Polarization Rotator | SIMTRUM Photonics Store

Products / Optics /Polarization Components /Optical Polarizers /Quartz Polarization Rotator /

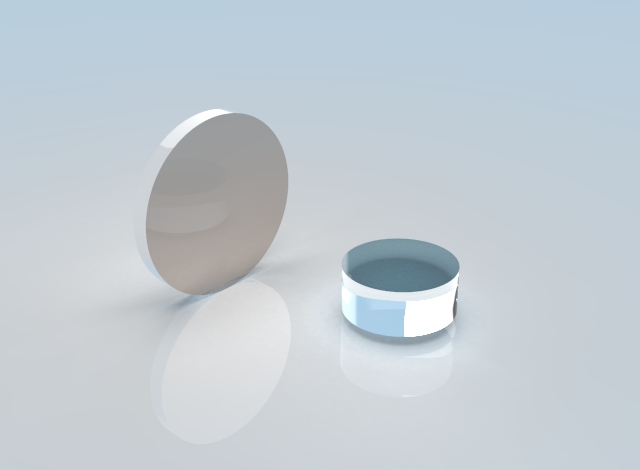

Quartz Polarization Rotator
Overview Specifications and Graphs Order Now!

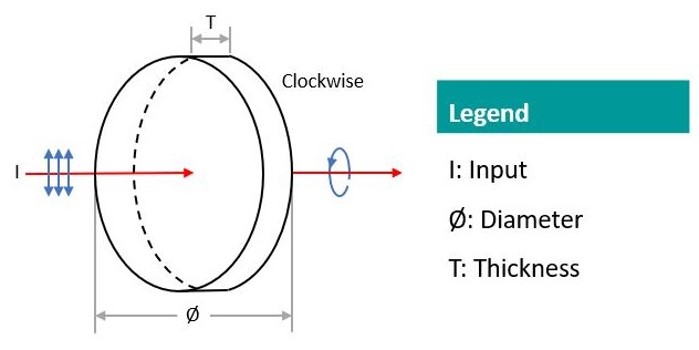

Quartz Polarization Rotator makes use of natural rotation activity within quartz and allows incoming light beam to be rotated at a special angle. The angle is determined by the thickness of the quartz crystal. The direction of rotation is customisable and dependent on your needs.


Quartz are excellent birefringent crystals. Due to its high UV, VIS, and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in the retardation plate. Quartz can exhibit circular birefringence allowing the ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.


General Specifications

Type

Quartz Polarization Rotator

Material

Quartz

Dimensional Tolerance (mm)

+0/-0.2

Thickness Tolerance(mm)

±0.2

Parallelism(arcsec)

<10

Clear Aperture

>90%

Surface Quality

20/10

Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>5J/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Coating Design Wavelength (nm) Diameter (mm) Availability Reference Price
(USD)
Q-QPR-12.7-1053-45
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @1053nm, Rotation Angle= 45° Clockwise 		R<0.25% @1053nm105312.7 2-3 Weeks Request for quote
Q-QPR-12.7-1053-90
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @1053nm , Rotation Angle= 90° Clockwise 		R<0.25% @1053nm105312.7 2-3 Weeks Request for quote
Q-QPR-12.7-1064-45
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @1064nm , Rotation Angle= 45° Clockwise 		R<0.25% @1064nm106412.7 2-3 Weeks Request for quote
Q-QPR-12.7-1064-90
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @1064nm , Rotation Angle= 90° Clockwise 		R<0.25% @1064nm106412.7 2-3 Weeks Request for quote
Q-QPR-12.7-355-45
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @355nm , Rotation Angle= 45° Clockwise 		R<0.25% @355nm 35512.7 2-3 Weeks Request for quote
Q-QPR-12.7-355-90
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @355nm , Rotation Angle= 90° Clockwise 		R<0.25% @355nm 35512.7 2-3 Weeks Request for quote
Q-QPR-12.7-532-45
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @532nm , Rotation Angle= 45° Clockwise 		R<0.25% @532nm53212.7 2-3 Weeks Request for quote
Q-QPR-12.7-532-90
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @532nm , Rotation Angle= 90° Clockwise 		R<0.25% @532nm53212.7 2-3 Weeks Request for quote
Q-QPR-12.7-633-45
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @633nm , Rotation Angle= 45° Clockwise 		R<0.25% @633nm63312.7 2-3 Weeks Request for quote
Q-QPR-12.7-633-90
Quartz, Quartz Polarization Rotator, Ø= 12.7mm, AR Coating: R<0.25% @633nm , Rotation Angle= 90° Clockwise 		R<0.25% @633nm63312.7 2-3 Weeks Request for quote
Q-QPR-25.4-1053-45
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @1053nm , Rotation Angle= 45° Clockwise 		R<0.25% @1053nm105325.4 2-3 Weeks Request for quote
Q-QPR-25.4-1053-90
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @1053nm , Rotation Angle= 90° Clockwise 		R<0.25% @1053nm105325.4 2-3 Weeks Request for quote
Q-QPR-25.4-1064-45
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @1064nm , Rotation Angle= 45° Clockwise 		R<0.25% @1064nm106425.4 2-3 Weeks Request for quote
Q-QPR-25.4-1064-90
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @1064nm , Rotation Angle= 90° Clockwise 		R<0.25% @1064nm106425.4 2-3 Weeks Request for quote
Q-QPR-25.4-355-45
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @355nm , Rotation Angle= 45° Clockwise 		R<0.25% @355nm 35525.4 2-3 Weeks Request for quote
Q-QPR-25.4-355-90
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @355nm , Rotation Angle= 90° Clockwise 		R<0.25% @355nm 35525.4 2-3 Weeks Request for quote
Q-QPR-25.4-532-45
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @532nm , Rotation Angle= 45° Clockwise 		R<0.25% @532nm53225.4 2-3 Weeks Request for quote
Q-QPR-25.4-532-90
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @532nm , Rotation Angle= 90° Clockwise 		R<0.25% @532nm53225.4 2-3 Weeks Request for quote
Q-QPR-25.4-633-45
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @633nm , Rotation Angle= 45° Clockwise 		R<0.25% @633nm63325.4 2-3 Weeks Request for quote
Q-QPR-25.4-633-90
Quartz, Quartz Polarization Rotator, Ø= 25.4mm, AR Coating: R<0.25% @633nm , Rotation Angle= 90° Clockwise 		R<0.25% @633nm63325.4 2-3 Weeks Request for quote

Q-QPR-25.4-633-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @633nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-25.4-633-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @633nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-25.4-532-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @532nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-25.4-532-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @532nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-25.4-355-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @355nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-25.4-355-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @355nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-25.4-1064-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-25.4-1064-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1064nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-25.4-1053-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1053nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-25.4-1053-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1053nm

Diameter (mm)
25.4

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
7

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-12.7-633-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @633nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-12.7-633-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @633nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
633

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-12.7-532-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @532nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-12.7-532-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @532nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-12.7-355-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @355nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-12.7-355-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @355nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-12.7-1064-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-12.7-1064-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1064nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-12.7-1053-90 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1053nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
90°

Q-QPR-12.7-1053-45 - Parameter

Type
Quartz Polarization Rotator

Material
Quartz

Coating
R<0.25% @1053nm

Diameter (mm)
12.7

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
7

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Rotation Angle
45°

Q-QPR-25.4-633-90 - Download

Q-QPR-25.4-633-45 - Download

Q-QPR-25.4-532-90 - Download

Q-QPR-25.4-532-45 - Download

Q-QPR-25.4-355-90 - Download

Q-QPR-25.4-355-45 - Download

Q-QPR-25.4-1064-90 - Download

Q-QPR-25.4-1064-45 - Download

Q-QPR-25.4-1053-90 - Download

Q-QPR-25.4-1053-45 - Download

Q-QPR-12.7-633-90 - Download

Q-QPR-12.7-633-45 - Download

Q-QPR-12.7-532-90 - Download

Q-QPR-12.7-532-45 - Download

Q-QPR-12.7-355-90 - Download

Q-QPR-12.7-355-45 - Download

Q-QPR-12.7-1064-90 - Download

Q-QPR-12.7-1064-45 - Download

Q-QPR-12.7-1053-90 - Download

Q-QPR-12.7-1053-45 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
