Low-noise Amplified Photodetector
Overview & Specifications Related Products Order Now！

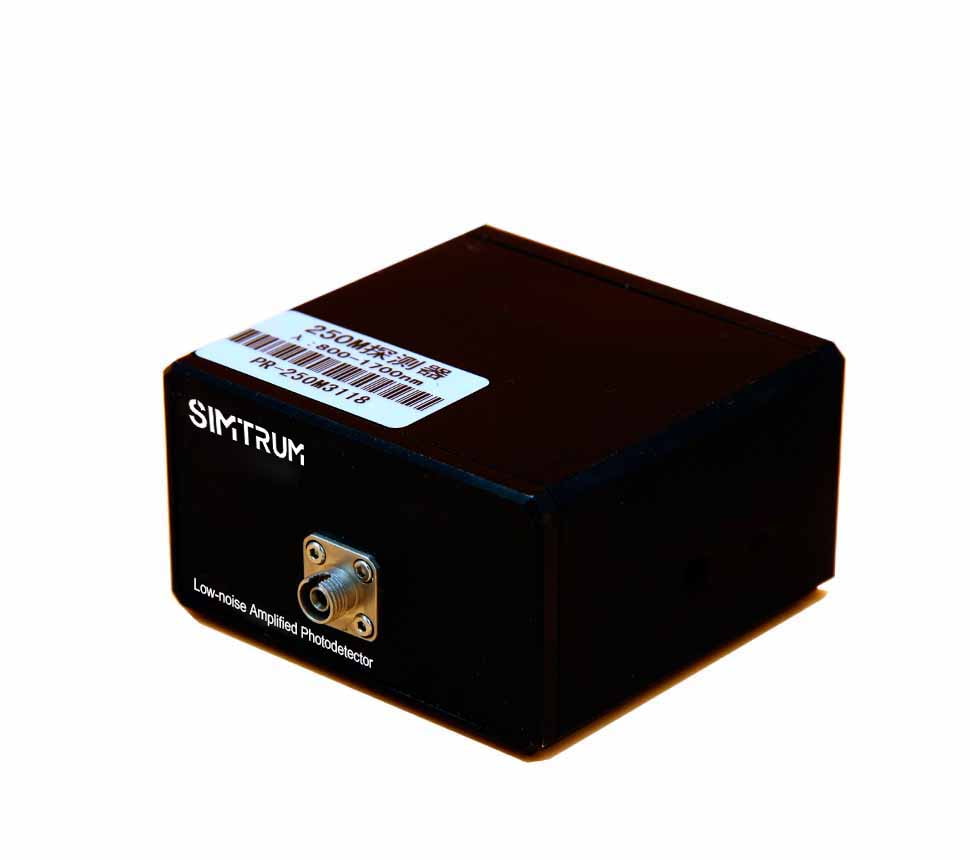

SIMTRUM's low-noise amplified photoelectric detection module integrates high-speed PIN detector and low-noise amplifier, single-mode optical fiber or free space coupling, SMA connector output, with high gain, high sensitivity, flat gain and other characteristics, mainly used in analog optical signal reception and optical fiber sensing system and other fields.

Features

  • Spectral range ：Si: 320-1000nm, InGaAs：900-1700nm
  • 3dB bandwidth: ~ 2GHz
  • Low noise and high gain
  • Optical fiber and free space coupling optional

Applications

  • Low light level signal detection
  • Heterodyne detection
  • Laser pulse detection




Product specifications

General parameters



Model
 Wavelength range
 3dB bandwidth
 Photosensitive surface
 Gain(V/W)
 NEP(pw/Hz1/2)
 Saturation power
 Output Signal
  LA-CQ01-PR-200K-A 900-1700nm DC-200KHz 75µm 5×10^6 4.5 -30dBm 0~7V
  LA-CQ01-PR-200K-B 320-1000nm 1.2mm 2.5×10^6 9 -27dBm 0~7V
  LA-CQ01-PR-10M-A 900-1700nm DC-10MHz 75µm 2×10^5 11 -15dBm 0~7V
  LA-CQ01-PR-10M-B 320-1000nm 1.2mm 1×10^5 22 -12dBm 0~7V
  LA-CQ01-PR-200M-A 900-1700nm DC-200MHz 75µm 1.8×10^4 14 -8dBm 0~3.7V
  LA-CQ01-PR-200M-B 320-1000nm 800µm 9×10^3 28 -5dBm 0~3.7V
  LA-CQ01-PR-500M-A 900-1700nm DC-500MHz 75µm 1.5×10^3 6 0dBm 0~2.8V
  LA-CQ01-PR-500M-B 320-1000nm 400µm 0.8×10^3 11.2 3dBm 0~2.8V
  LA-CQ01-PR-1G-A 900-1700nm 50K-1GHz 75µm 1×10^3 50 2dBm 0~2Vpp
  LA-CQ01-PR-1G-B 320-1000nm 400µm 500 100 5dBm 0~2Vpp
  LA-CQ01-PR-2G-A 800-1700nm 50K-2GHz 75µm 1×10^3 50 2dBm 0~2Vpp
  LA-CQ01-PR-2G-B 400-1100nm 150µm 200 250 5dBm 0~2Vpp





Frequency response curve

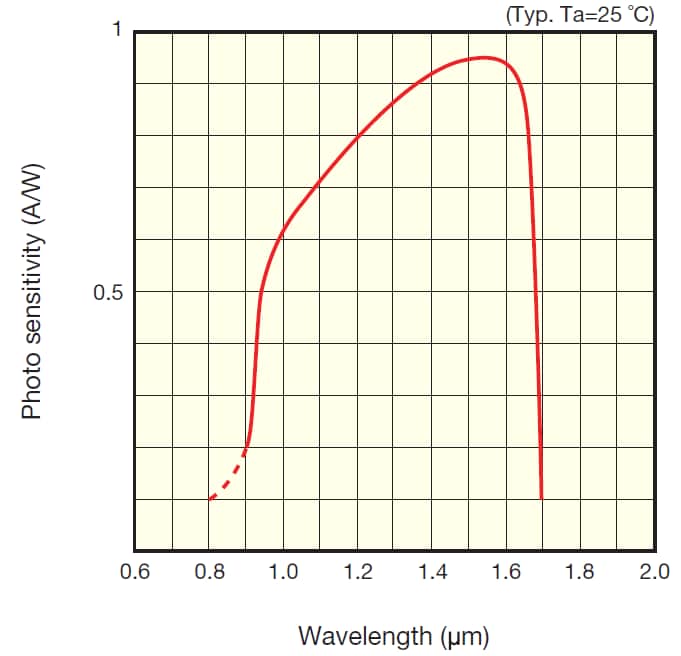

            Wavelength Range : 900-1650nm

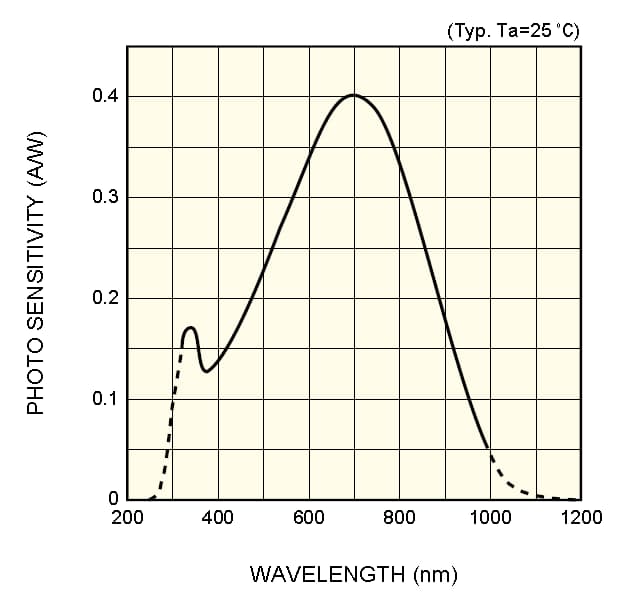

             Wavelength Range : 320-1000nm




Limit Conditions

Model Min Type Max Unit
  Supply voltage(Vop) DC±12 DC±15 DC±16.5 V
  Max. current(Imax) 80 100 / mA
  Max. input optical power(Pin) / / 10 mW
  Operating Temperature(Top) -10 / 60 ℃
  Storage Temperature(Tst) -40 / 85 ℃
  Storage Humidity(RH) 5 / 90 %

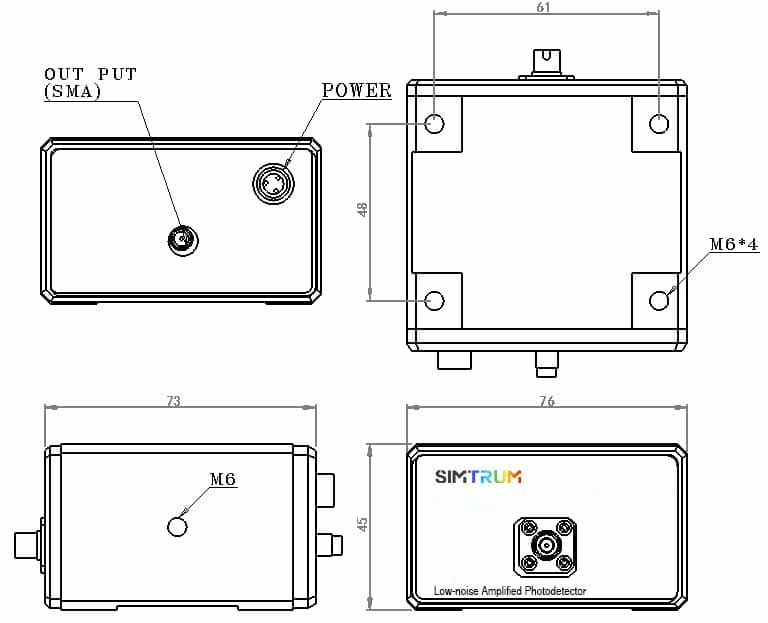

Mechanical Diagram (mm)
Port Description
Optical connector FC or free space
RF connector SMA（f）
Output impedance 50Ω
Output coupling DC or AC
Mounting holes M6
Device Dimensions 76mm×73mm×45mm
