8K Multi-line Scan Camera

7μm x 7μm 5μm x 5μm Specifications Order Now!

8K Multi-Line Scan Camera With 7μm x 7μm Pixel Size

These 8K multi-line scan cameras feature 8K resolution and 7μm x 7μm pixel size .Our products have been applied to inspections of plate and web, railway and traffic,food and medicine, as well as other sorting and appearance inspections.

Feature

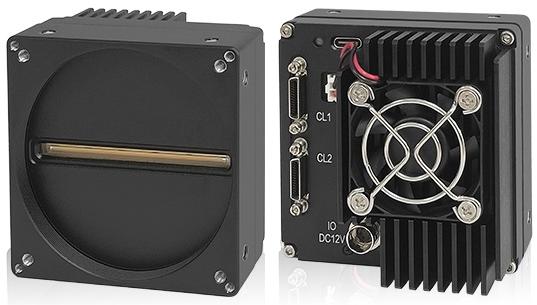

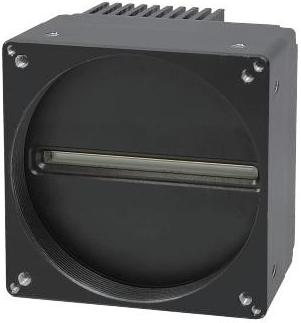

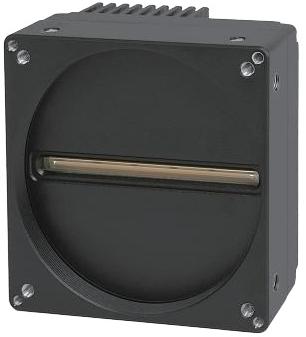

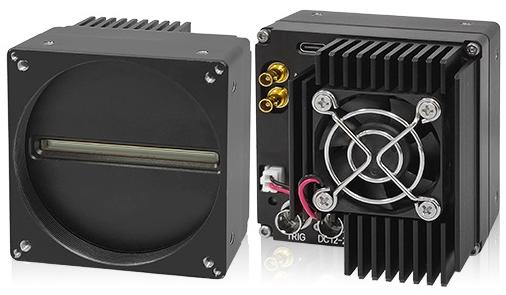

STU8KCL-100KT	STU8KCXP10-200KT / STU8KCXP10-66KC
-Global shutter CMOS -Binning/LUT/FFC -High sensitivity and lownoise -Spatial correction/rparallax correction -Scanning direction configurable -Real-time temperature monitoring -Digital gain /offset control -Camera link interface	-Global shutter CMOS -High sensitivity and lownoise -Spatial correction/rparallax correction -Scanning direction configurable -Real-time temperature monitoring -Rich exposure control modes(external trigger,free run) -Binning/LUT/FFC/automatic white balance -CoaXPress10 nterface

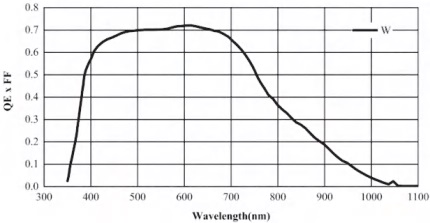

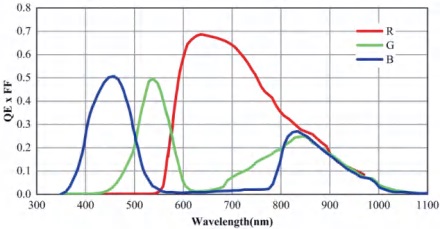

Spectral response

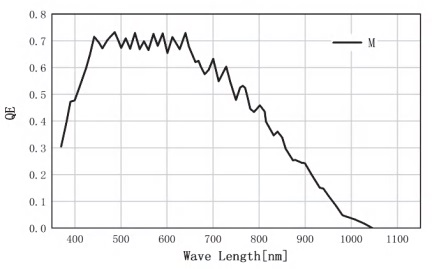

STU8KCL-100KT / STU8KCXP10-200KT

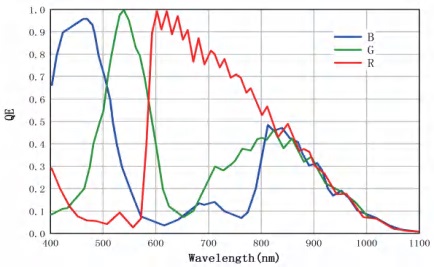

STU8KCXP10-66KC

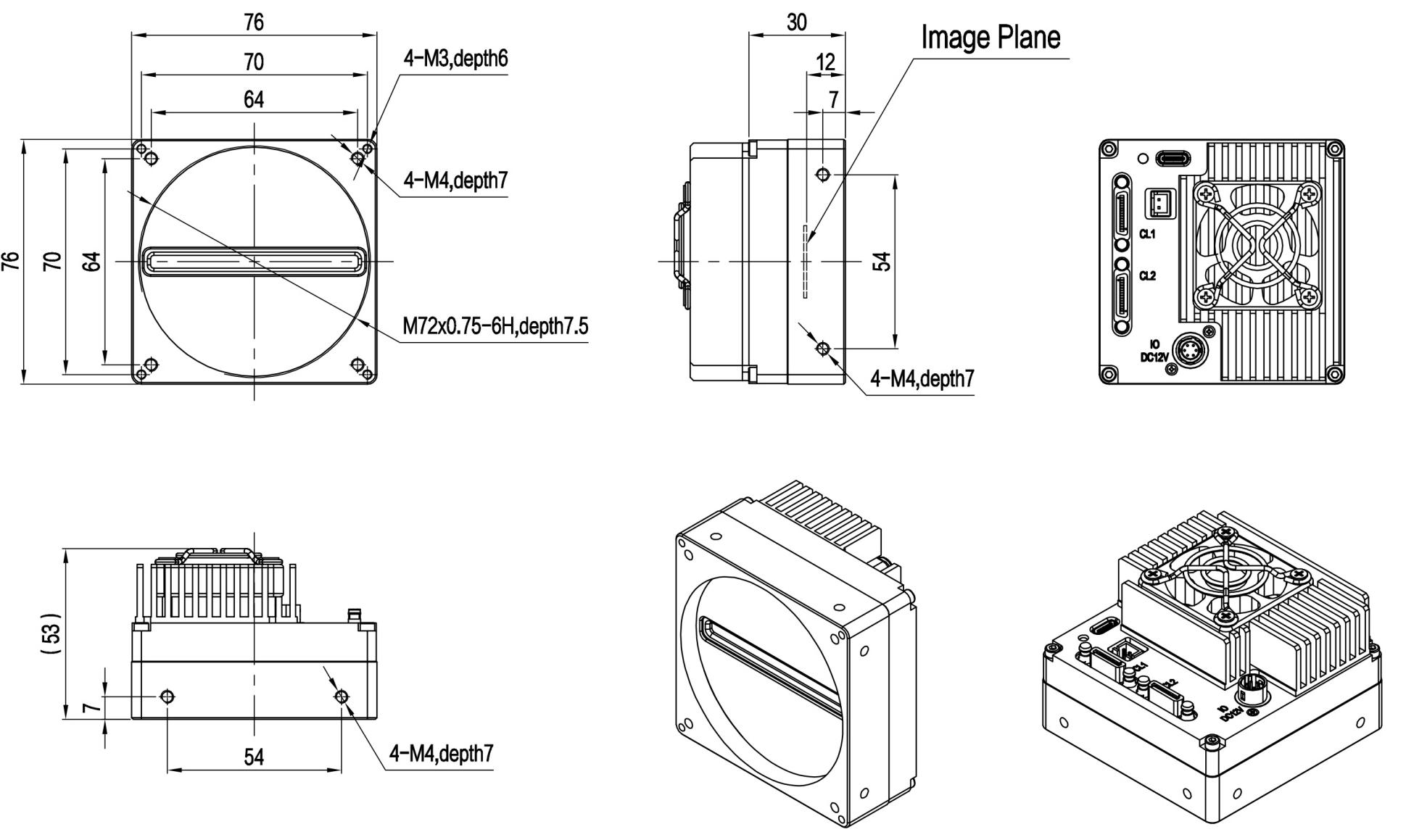

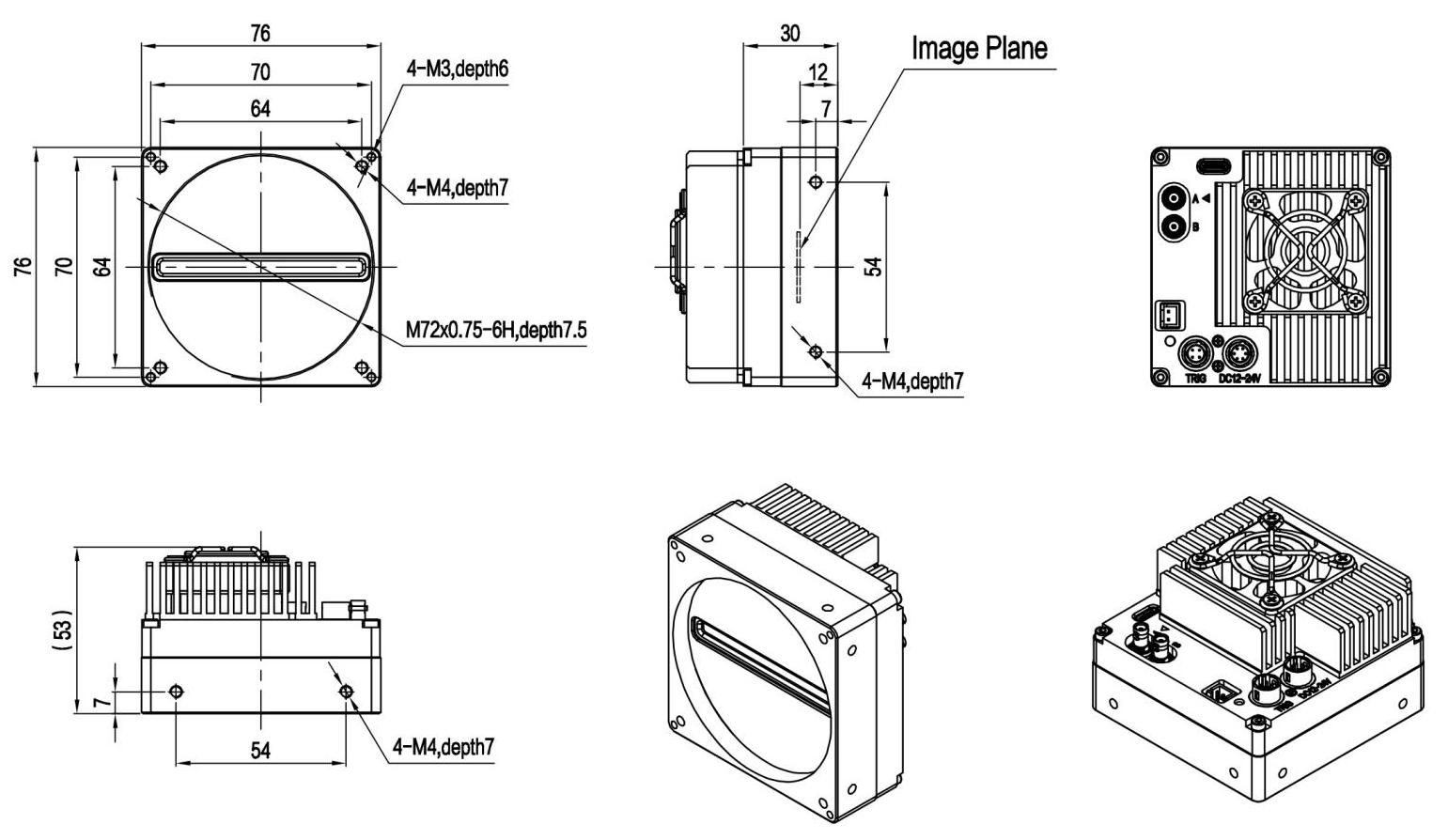

Drawings


STU8KCL-100KT

STU8KCXP10-66KC / STU8KCXP10-200KT

8K Multi-Line Scan Camera With 5μm x 5μm Pixel Size

These 8K multi-line scan cameras feature 8K resolution and 5μm x 5μm pixel size. Our products have been applied to inspections of plate ,web, traffic,lithium battery and solar panel,as well as other industrial inspection.

Feature

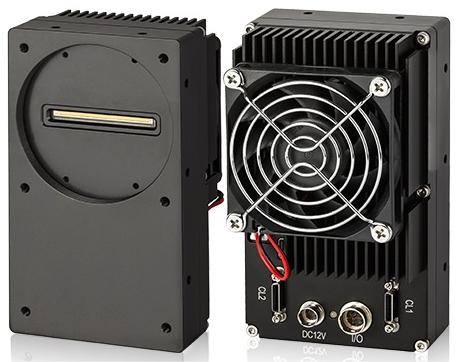

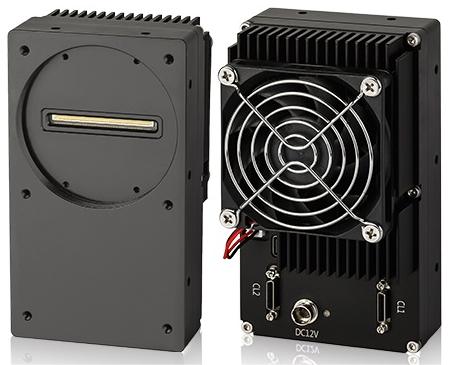

STL8KCL-30KF	STL8KCL-50KX
-ROI/FFC -Global shutter CMOS -High sensitivity and low noise -Camera link interface -Bi-directional scanning technology -Spatial correction/parallax correction -Analog gain/digital gain/offset control	-Global shutter CMOS -ROI/FFC/LUT -Support 2/3/4 lamps exposure -Scanning direction configurable -High sensitivity(4 lines/Lamp) -Rich exposure control modes (external trigger,free-run) -Simplify application system structure


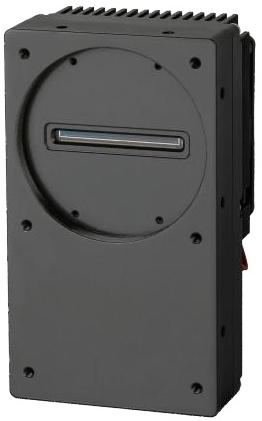

STL8KCL-100KT	STL8KCXP-43KC
-Global shutter CMOS -High sensitivity and low noise -Camera link interface -Up to 8 lines integration -Rich exposure control modes(external trigger, free-run) -FFC/LUT/ROI	-Global shutter CMOS -Trilinear color TDI sensor -High sensitivity and low noise -CoaXPress interface -Gamma table -Auto white balance/FFC/ROI -Spatial correction/rarallax correction

Application

STL8KCL-100KT / STL8KCL-50KX

-Lithium battery/solar panel inspection

-Semiconductor inspection

-Print and package inspection

-Plate and web inspection(STL8KCL-100KT only)

-Flat panel display inspection(STL8KCL-50KX only)

STL8KCL-30KF / STL8KCXP-43KC

-Printed circuit board inspection

-Semiconductor inspection

-Print and package inspection

-Food and medicine inspection

-Plate and web inspection

Spectral response

STL8KCL-30KF / STL8KCXP-43KC

STL8KCL-100KT / STL8KCL-50KX

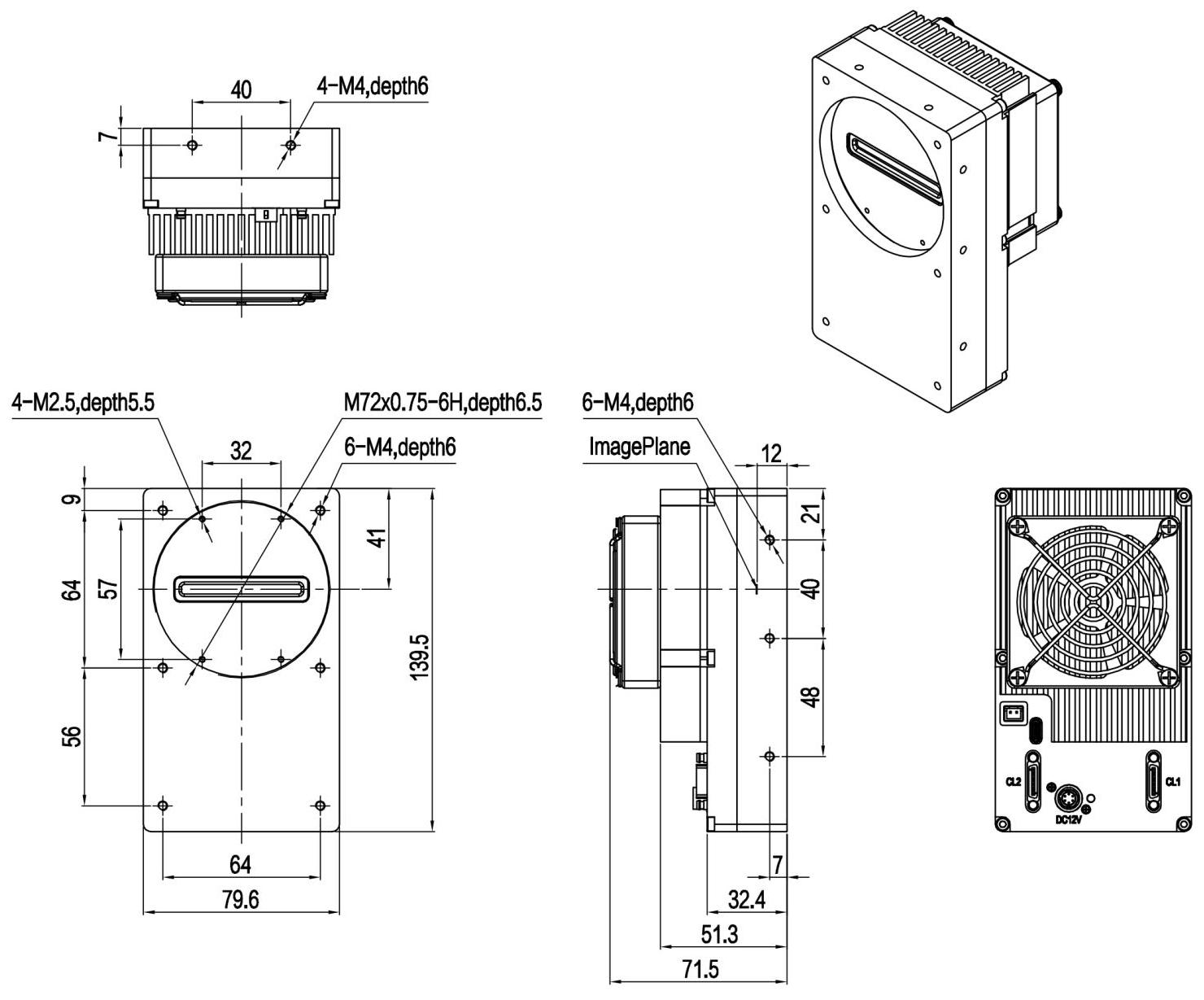

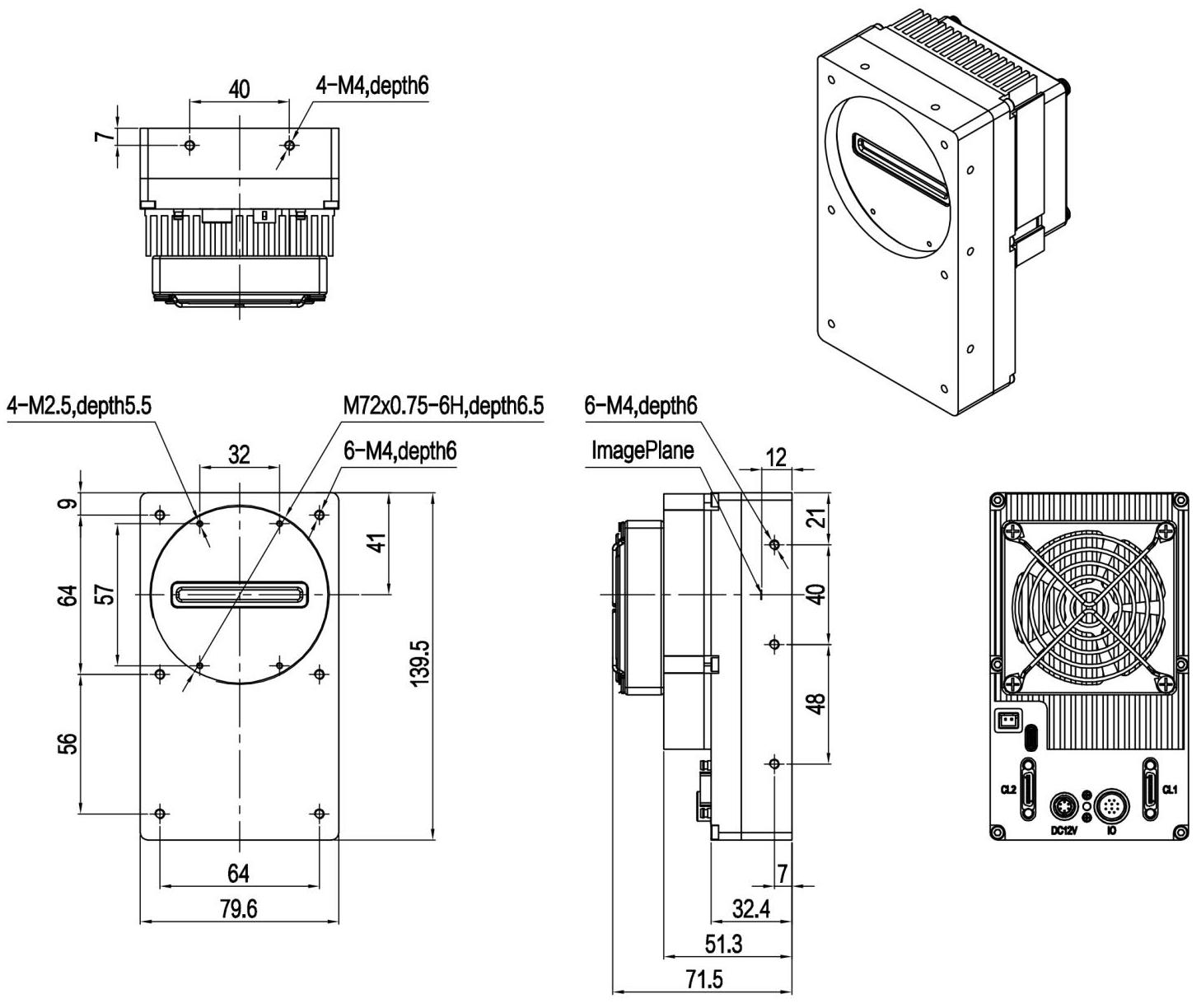

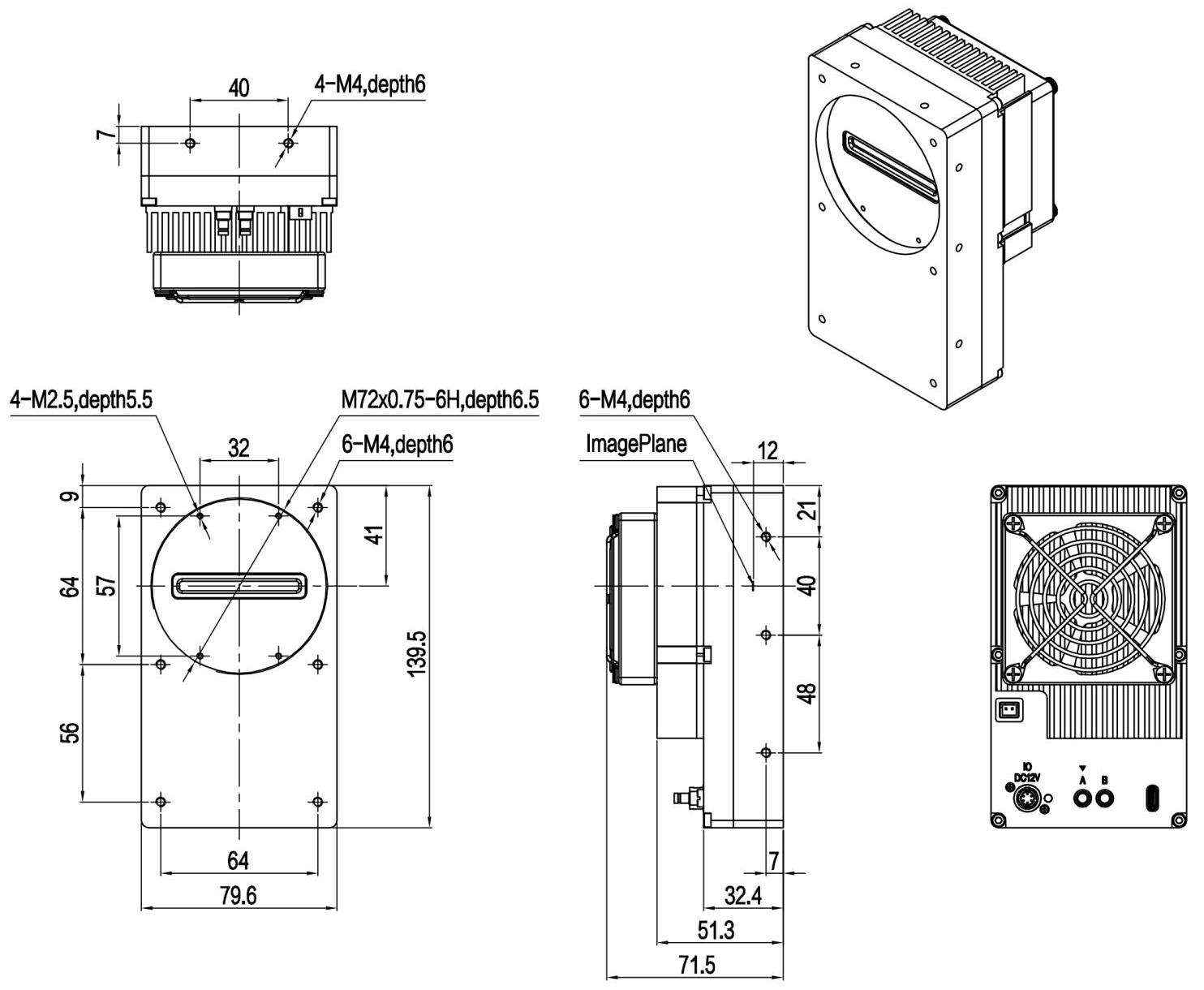

Drawings

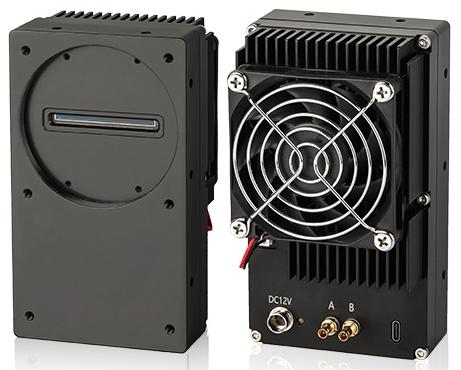

STL8KCL-50KX	STL8KCXP-43KC

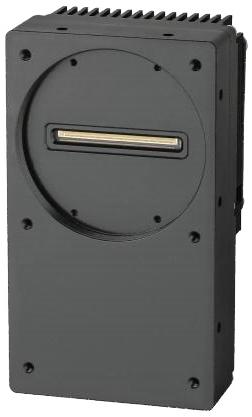

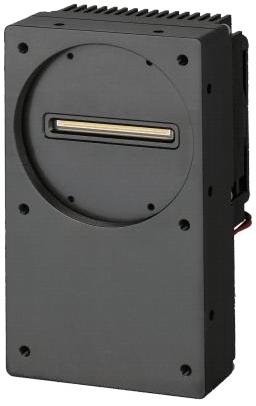

STL8KCL-30KF / STL8KCL-100KT

Product specifications and Brochures

Product Brochure Link:

Model	STU8KCL-100KT	STU8KCXP10-200KT	STU8KCXP10-66KC	STL8KCL-100KT	STL8KCXP-43KC	STL8KCL-50KX	STL8KCL-30KF
Sensor	Global Shutter CMOS
Image Mode	Mono	Mono	Color	Mono	Color	Mono	Color
Optical Size	57.34 mm	57.34 mm	57.34 mm	41.60 mm	41.60 mm	41.60 mm	41.60 mm
Resolution	8192* 2	8192* 2	8192 * 3	8320 * 8	8320 * 12	8320 * 16	8320 * 16（4 rows per RGBC）
Pixel Size	7μm *7μm	7μm *7μm	7μm * 7μm	5μm * 5μm	5μm * 5μm	5μm * 5μm	5μm * 5μm
Max Line Rate	100kHz@10Tap，71.4kHz@8Tap，40.8kHz@4Tap，20.4kHz@2Tap	197kHz@8bit，191kHz@10bit，159kHz@12bit	66.7kHz@8bit, 63.8kHz@10bit, 53.1kHz@12bit	100kHz@4Line TDI ,60kHz@8Line TDI	43kHz@8bit, 39kHz@10bit	50kHz@2Lamps，33kHz@3Lamps，25kHz@4Lamps	34kHz / 43kHz ROI
Bit Depth	8/10/12 bit	8/10/12 bit	8/10/12 bit	8/10/12 bit	8/10 bit	8/10 bit	8/10 bit
Dynamic Range	≥64.7 dB	Single line mode:63dB ,Double line average mode:65.3dB	≥63.0 dB	≥54 dB	≥52 dB	≥52 dB	≥58 dB
Data Rate	850 MB/s	1953 MB/s	1957 MB/s	850 MB/s	1216.8 MB/s	840 MB/s	830 MB/s
Trigger Mode	Free-run/external pulse/external PWM	Line Trigger/frame Trigger		Free-run/external pulse/external PWM
Exposure Control	Program/Pulse Width
ExposureTime	3.013μs - 63997μs（Step：0.012μs）	3.013μs-63997us(Step:0.012us)	3.013μs-63997μs(Step:0.012μs)	3μs - 63997μs（step：1μs）	1μs - 797μs（step：0.1μs）	1μs - 63997μs（step：1μs）	1μs - 63997μs（step：1μs）
Analog Gain	/	/	/	1/2/4x	1/2/4x	1/2/4x	1/2/4x
Digital Gain	0.01-8.00x	0.01-8.00x	0.01-8.00x	1-8x	0.1-8.0x	1-8x	1-8x
Data Interface	Camera Link	CoaXPress10	CoaXPress10	Camera link	Coaxpress	Camera link	Camera link
Lens Interface	M72 * 0.75			M72 * 0.75 / F Mount
Power Interface	Hirose HR10A-7R-6PB(Male)
Power Supply	DC12V±10% 1.5A	DC12-24V(±10%)2A	DC12-24V(±10%) 2A	DC12V±10% 2.5A	DC12V±10% 3A	DC12V±10% 3A	DC12V±10% 3A
Power Dissipation	11.1 W	15.0 W	15.0 W	18.0 W	21.0 W	21.0 W	21.0 W
Dimensions (WHD)(mm)	76x76x53	76x76x53	76x76x53	79.6x139.5x71.5	79.6x139.5x71.5	79.6x139.5x71.5	79.6x139.5x71.5
Operating Temperature	0-65℃	0-65℃	0-65℃	0-55℃	0-60℃	0-55℃	0-55℃
Storage Temperature	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Pixel Size (μm)

Search Reset

	Availability	Reference Price (USD)
STU8KCL-100KT 8K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 8192* 2, Pixel Size 7μm *7μm, Max Line Rate 100kHz@10Tap, 71.4kHz@8Tap, 40.8kHz@4Tap, 20.4kHz@2Tap, Bit Depth 8/10/12 Bit, Dynamic Range ≥64.7 dB, Data Rate 850 MB/s	6-8 weeks	Request for quote
STU8KCXP10-200KT 8K Multi-Line Scan Camera, Sensor Global Shutter CMOS , Image Mode Mono, Optical Size 57.34MM, Resolution 8192* 2, Pixel Size 7μm *7μm, Max Line Rate 197kHz@8bit, 191kHz@10bit, 159kHz@12bit, Bit Depth 8/10/12 Bit, Dynamic Range Single Line Mode:63.0dB, Double Line Average Mode:65.3dB, Data Rate 1953 MB/s	6-8 weeks	Request for quote
STU8KCXP10-66KC 8K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 57.34MM, Resolution 8192 * 3, Pixel Size 7μm * 7μm, Max Line Rate 66.7kHz@8bit, 63.8kHz@10bit, 53.1kHz@12bit, Bit Depth 8/10/12 bit, Dynamic Range ≥63.0 dB, Data Rate 1957 MB/s	6-8 weeks	Request for quote
STL8KCL-100KT 8K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 41.60MM, Resolution 8320 * 8, Pixel Size 5μm * 5μm, Max Line Rate , 100kHz@4Line TDI, 60kHz@8Line TDI, Bit Depth 8/10/12 Bit, Dynamic Range ≥54 dB, Data Rate 850 MB/s	6-8 weeks	Request for quote
STL8KCXP-43KC 8K Multi-line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 41.60MM, Resolution 8320 * 12, Pixel Size 5μm * 5μm, Max Line Rate 43kHz@8Bit, 39kHz@10Bit, Bit Depth 8/10 Bit, Dynamic Range ≥52 dB, Data Rate 1216.8 MB/s	6-8 weeks	Request for quote
STL8KCL-50KX 8K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 41.60MM, Resolution 8320 * 16,Pixel Size 5μm * 5μm, Max Line Rate 50kHz@2Lamps, 33kHz@3Lamps, 25kHz@4Lamps, Bit Depth 8/10 Bit, Dynamic Range ≥52 dB, Data Rate 840 MB/s	6-8 weeks	Request for quote
STL8KCL-30KF 8K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size, 41.60MM, Resolution 8320 * 16(4 Rows Per RGBC), Pixel Size 5μm * 5μm, Max Line Rate 34kHz / 43kHz ROI, Bit Depth 8/10 Bit, Dynamic Range ≥58 dB, Data Rate 830 MB/s	6-8 weeks	Request for quote
