Products / Imaging /Industrial Machine Vision Camera /High Speed Line Scan Camera /4K Multi-line Scan Camera /

4K Multi-line Scan Camera

Overview Specifications Order Now!

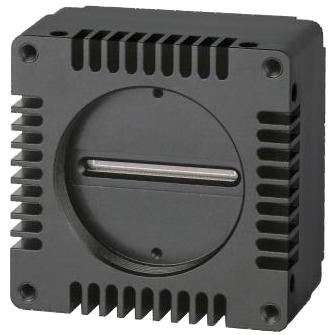

4K Multi-Line Scan Camera With 7μm x 7μm Pixel Size

Our 4K multi-line scan camera series features 4K resolution,multi-line CMOS and 7μm x 7μm pixel size. Our products have been applied to inspections and applications of railway, traffic, flat panel display and other industrial inspection.

Feature

STL4KGV-30KC STL4KGV-68KT

STL4KCL-68KC STL4KCL-200KT

-Global shutter CMOS

-High sensitivity and low noise

-FFC/ROI/LUT/binning

-GigE Vision interface

-Automatic white balance

-Gigabit ethernet interface,suitable for long-distance transmission

-Global shutter CMOS

-High sensitivity and low noise

-FFC/ROI/LUT/binning

-Analog gain /digital gain

-Camera Link interface

-Offset control(STL4KCL-200KT only)

-Camera link interface

Application

STL4KGV-30KC / STL4KCL-68KC

-Lithium battery/solar panel inspection

-Railway and traffic application

-Food and medicine inspection

-Plate and web inspection

STL4KGV-68KT / STL4KCL-200KT

-Solar panel inspection/Lithium battery

-Railway and traffic application

-Flat panel display inspection

-Plate and web inspection

Spectral response

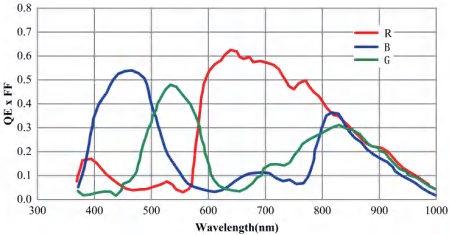

STL4KGV-30KC / STL4KCL-68KC

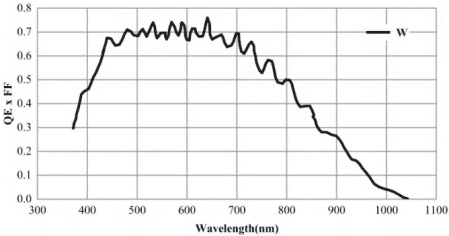

STL4KGV-68KT / STL4KCL-200KT

Drawings

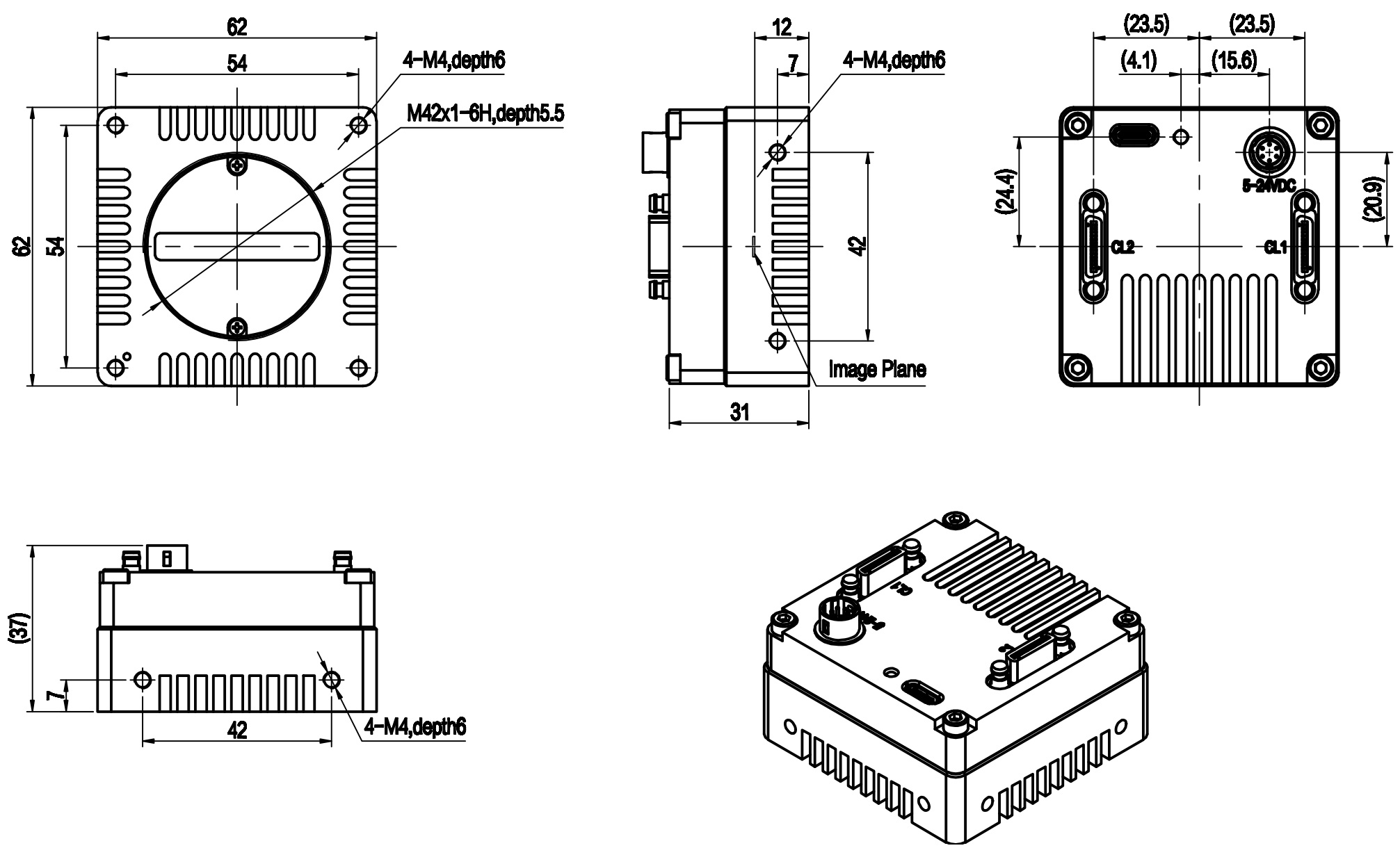

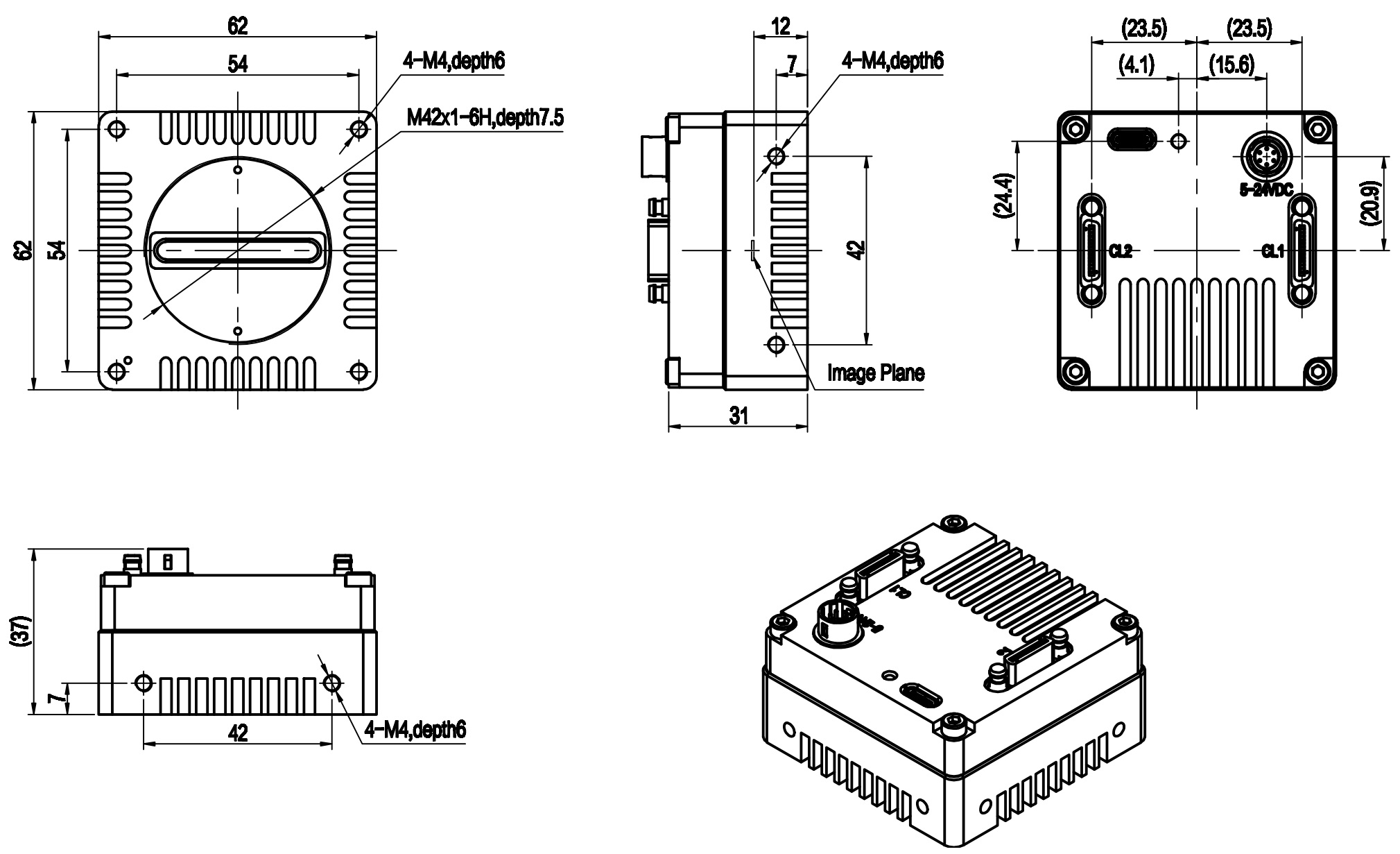

STL4KCL-68KC	STL4KCL-200KT

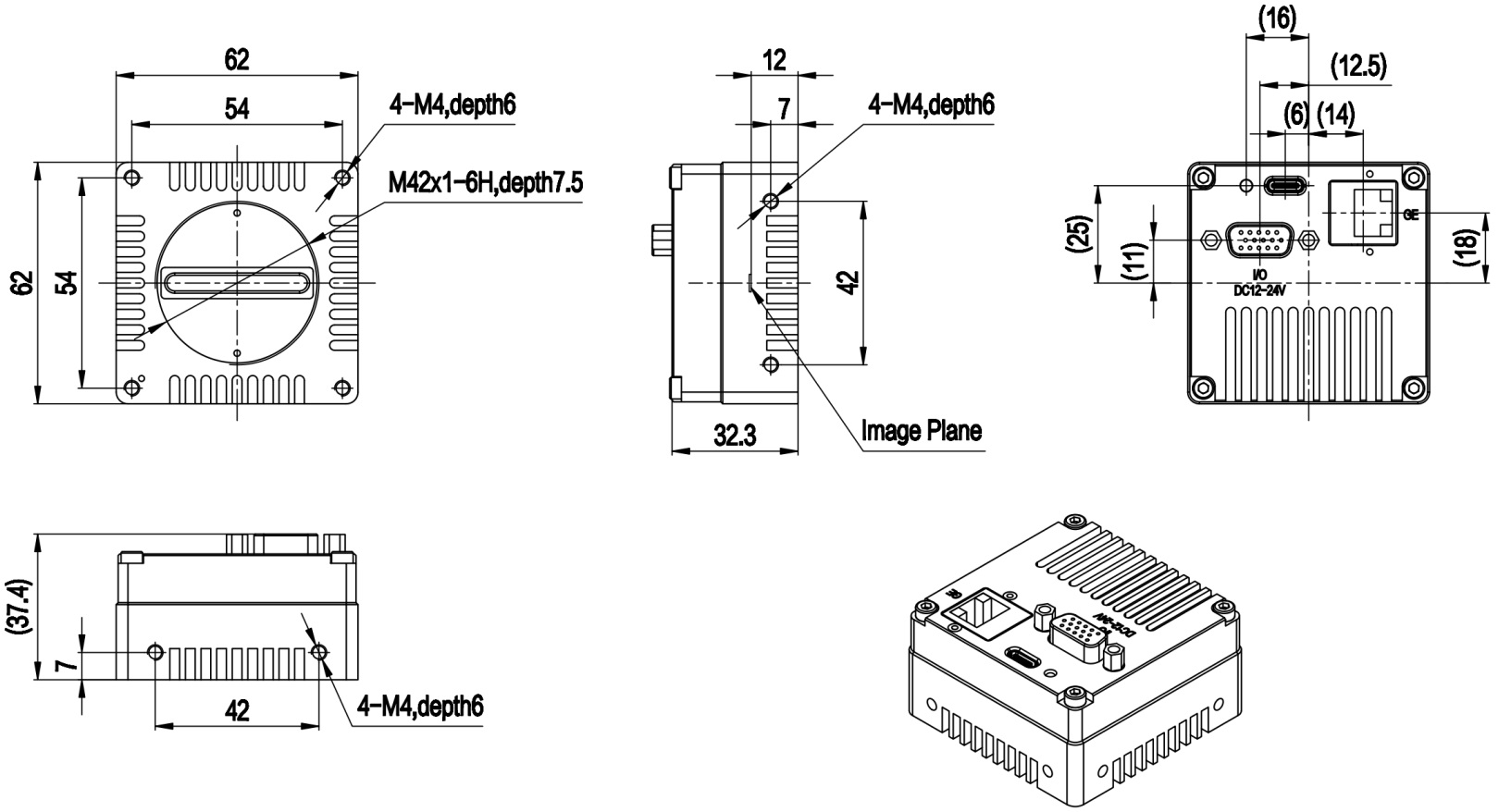

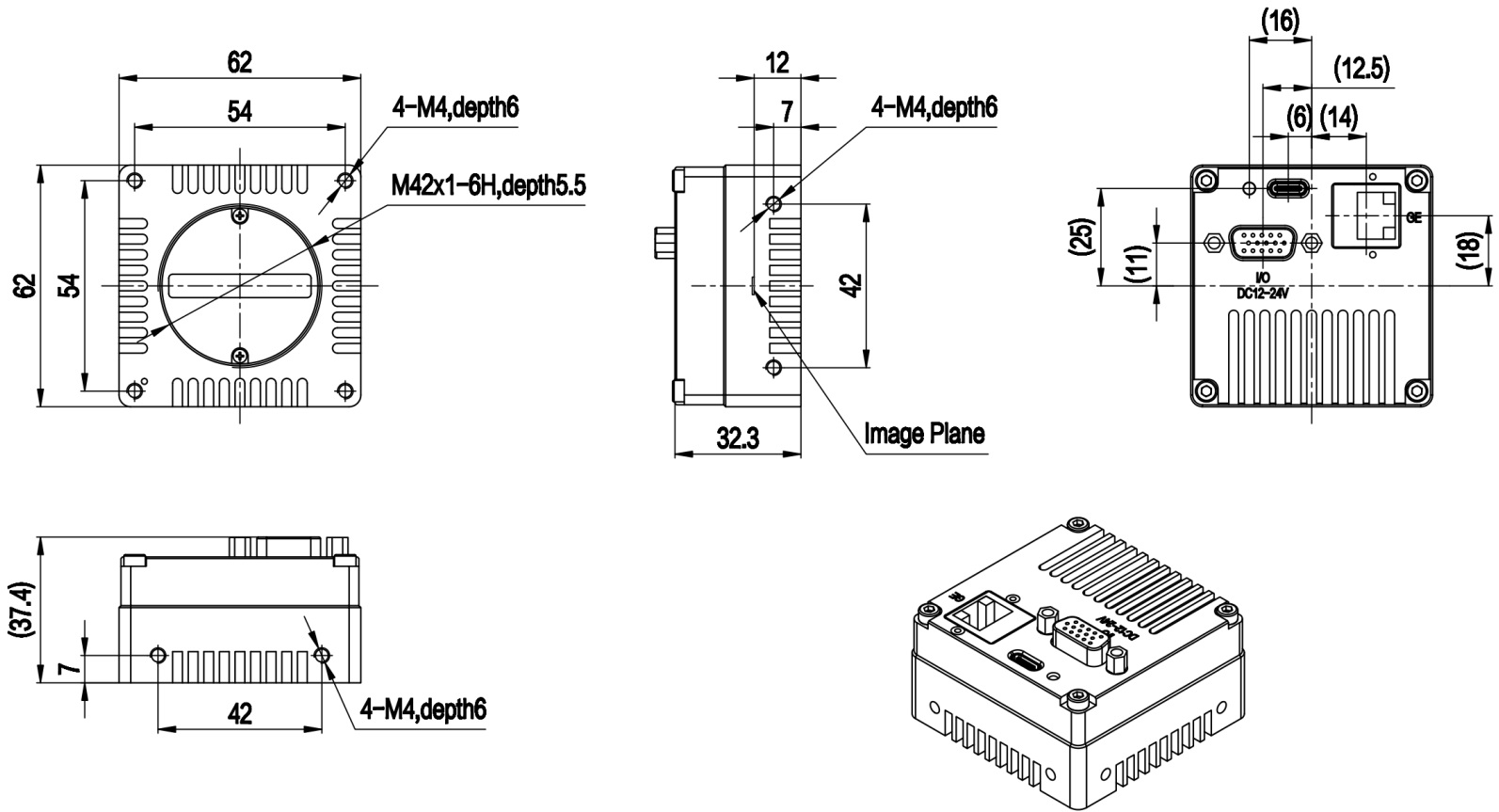

STL4KGV-30KC	STL4KGV-68KT

Product specifications and Brochures

Product Brochure Link:

Model	STL4KGV-30KC	STL4KGV-68KT	STL4KCL-68KC	STL4KCL-200KT
Sensor	Global shutter CMOS
Image Mode	Color	Mono	Color	Mono
Optical Size	28.67 mm	28.67 mm	28.67 mm	28.67 mm
Resolution	4096*2	4096 * 2	4096 * 2	4096 * 2
Pixel Size	7μm * 7μm	7μm * 7μm	7μm * 7μm	7μm * 7μm
Max Line Rate	10kHz (30kHz with SAccel™)	30kHz（68kHz with SAccel™）	68 kHz	200 kHz
Bit Depth	8/10/12 bit	8/10/12 bit	8/10/12 bit	8/10/12 bit
Dynamic Range	≥63.5 dB	≥63.5 dB	≥63.5 dB	≥66.2dB
Data Rate	124 MB/s	124 MB/s	840 MB/s	819 MB/s
Trigger Mode	Free-run/line trigger control/frame trigger control		Free-run/external pulse/external PWM
Exposure Control	Pulse width/program
ExposureTime	6μs - 10s（step：1μs）	6μs - 10s（step：0.1μs）	2μs - 10s（step：0.1μs）	2μs - 10s（step：0.1μs）
Analog Gain	1/2/3/4x	1/2/5/10x	1/2/3/4x	1/2/5/10x
Digital Gain	0.004-8.000x	0.004-8.000x	0.01-8.00x	0.01-8.00x
Data Interface	Gige vision	Gige vision	Camera link	Camera link
Lens Interface	M42 * 1	M42 * 1	M42 * 1	M42 * 1
Power Interface	HD15（Female）		Hirose HR10A-7R-6PB(Male)
Power Supply	DC12-24V(±10%) 1A	DC12-24V(±10%) 1A	DC5-24V(±10%) 1A	DC5-24V(±10%) 1A
Power Dissipation	4.9 W	5.0 W	5.2 W	5.3 W
Dimensions (WHD)(mm)	62.0x62.0x37.4	62.0x62.0x37.4	62.0x 62.0x37.0	62.0x62.0x37.0
Operating Temperature	0-65℃
Storage Temperature	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STL4KGV-30KC 4K Multi-line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 28.67MM, Resolution 40962, Pixel Size 7μm 7μm, Max Line Rate 10kHz (30kHz with SAccel™), Bit Depth 8/10/12 Bit, Dynamic Range ≥63.5 dB, Data Rate 124 MB/s	6-8 weeks	Request for quote
STL4KGV-68KT 4K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 28.67MM, Resolution 4096 * 2, Pixel Size 7μm * 7μm, Max Line Rate 30kHz（68kHz with SAccel™), Bit Depth 8/10/12 Bit, Dynamic Range ≥63.5 dB, Data Rate 124 MB/s	6-8 weeks	Request for quote
STL4KCL-68KC 4K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 28.67MM, Resolution 4096 * 2, Pixel Size 7μm * 7μm, Max Line Rate 68 kHz, Bit Depth 8/10/12 Bit, Dynamic Range ≥63.5 dB, Data Rate 840 MB/s	6-8 weeks	Request for quote
STL4KCL-200KT 4K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 28.67MM, Resolution 4096 * 2, Pixel Size 7μm * 7μm, Max Line Rate 200 kHz, Bit Depth 8/10/12 Bit, Dynamic Range ≥66.2dB, Data Rate 819 MB/s	6-8 weeks	Request for quote

STL4KCL-200KT - Parameter

STL4KCL-68KC - Parameter

STL4KGV-68KT - Parameter

STL4KGV-30KC - Parameter

STL4KCL-200KT - Download

STL4KCL-68KC - Download

STL4KGV-68KT - Download

STL4KGV-30KC - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
