STiHA Series Uncooled Thermal Modules for Temperature Screening
STiHA series thermal module is mainly composed of a 384x288/17µm infrared detector, optical lens, and SDK for temperature measurement with accuracy up to ±0.5℃. The captured temperature data and heat distribution of the target can be used to achieve radiation-free, non-invasive early disease diagnosis and long-distance, large-scale body temperature screening. Customers can quickly develop and integrate various temperature measuring systems like medical diagnosis and epidemic prevention.
Feature
Non-contact Temperature Measurement
- ±0.5℃ high precision temperature measurement without external black body
- Detect distance: 0.5mm (for medical diagnosis) / 5m (for epidemic prevention and animal thermography)
Fast Integration into System
- An all-in-one standard Type-C interface with power supply, data transmission and control.
- Support Windows/Android/Linux SDK; Achieve video stream analysis and conversion from gray to temperature
Compact & Light Structure
- Small size: 25.4mm x 25.4mm x 30.3mm (with lens)
- Light weight as low as 32.2g
Applications
Model Guide

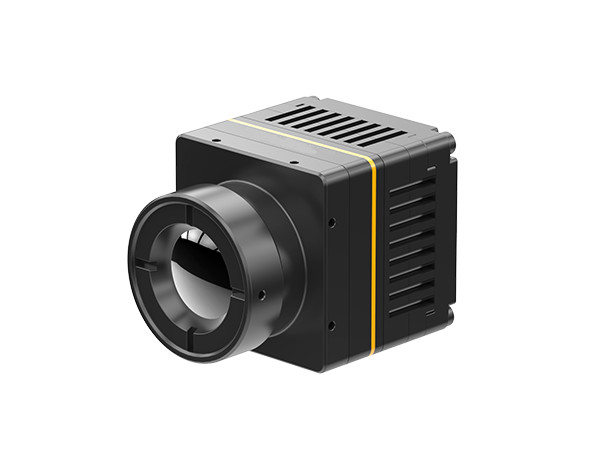

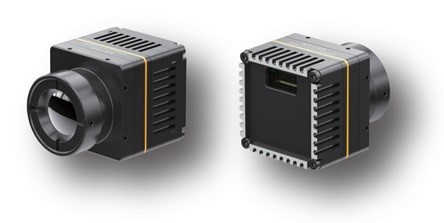

STiHA417W 384x288/17μm Thermal Module for Medical Thermal Image Screening
STiHA417W thermal module is specially developed for medical diagnosis. It is integrated with self-developed wafer level packaging 384×288/17μm infrared detector, 9.1mm lens, 30pin standard interface (Optional Type-C expansion board) and SDK for temperature measurement with accuracy up to ±0.5℃. The captured temperature data and heat distribution of target can be used to achieve radiation-free, non-invasive early disease diagnosis and long-distance, large-scale body temperature screening.
With typical NETD<50mk/f1.0/25℃, and temperature uniformity ≤±0.3℃ (better than the industry average of ±0.5℃), the overall thermal imaging uniformity of the STiHA417W thermal imaging module is better, and its temperature measurement function is more stable.
Without an external black body, the STiHA417W thermal imaging module has a compact & light structure, which guarantees a lower integration cost. STiHA417W thermal camera module has an all-in-one standard Type-C interface with power supply, data transmission and control, customers can quickly develop and integrate various temperature measuring systems like medical diagnosis and epidemic prevention.

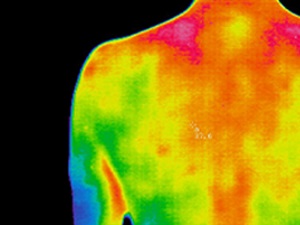

The STiHA417W thermal camera module can be quickly integrated into various medical thermal imaging devices, and it is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health check-ups, Rehabilitation, etc. at present and in the future.
Features
- ≤25.4×25.4×30.3 (With 9.1mm Lens)
- Typical NETD<40mk
- Detect Distance: 0.5m/5m
- Light Weight: 32.2±3g (With 9.1mm Lens)
- Superior Temperature Measurement Accuracy: ≤±0.5℃
Product specifications and Brochures
Product Brochure Link:

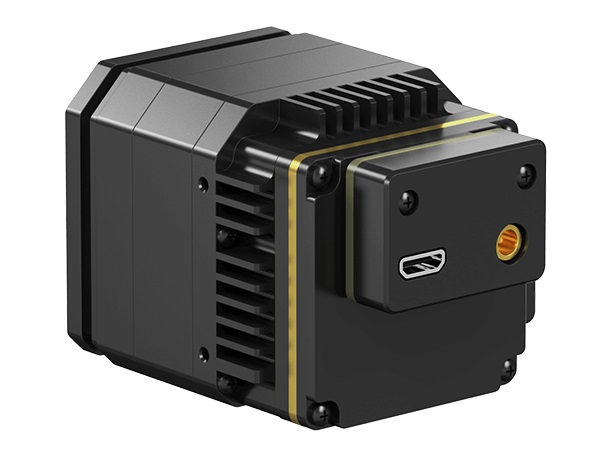

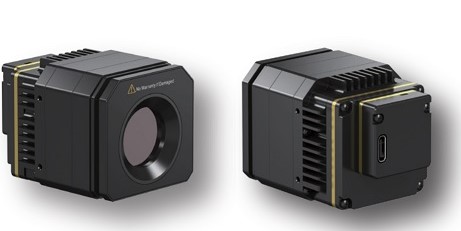

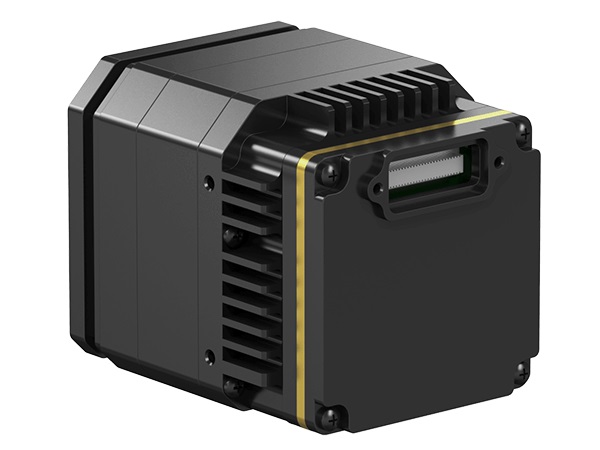

STiHA417 Infrared Module Specially Developed for IR Fever Sensing System
STiHA417 uncooled infrared thermal camera is specially developed for infrared (IR) fever sensing systems in order to measure human body temperature anytime and anywhere. It consists of a 400×300@17μm infrared detector, 7mm infrared optical lens, and a specialized SDK for human body temperature measurement.
Data captured by STiHA417 can be transferred to the back-end integration platform via a 50-pin or USB3.0 interface to achieve the display of full-screen temperature data and infrared thermal images and many other functions. With such an infrared thermal imaging module, customers could develop and integrate their own IR fever sensing system quickly and efficiently.

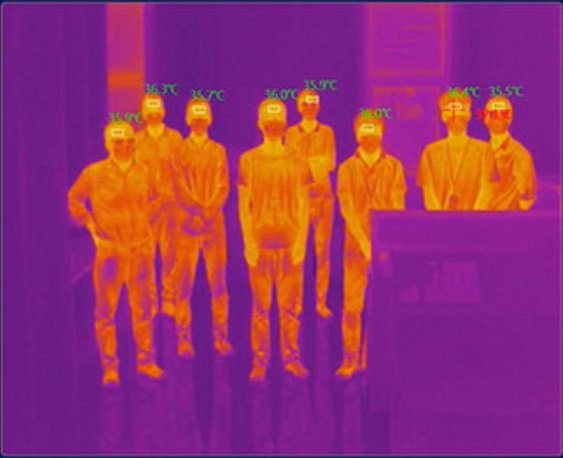

The STiHA417 thermal camera is specially developed for elevated skin temperature screening. It is easy to be integrated into an infrared thermographic system which has been used for fighting against COVID-19 and fast to detect elevated body temperature in places that have a large volume of people, such as airports, subways, train stations, schools, shopping centers, etc.
Below are the Driver & Software, or you can Click Here to drop us a message for technical assistance.
