Cooled Long-Wave Infrared Camera

STEYAS615L STGAVIN615L Related Products Order Now!

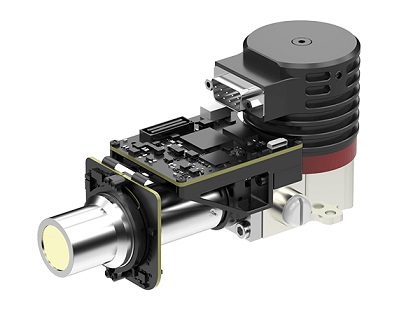

STEYAS615L 640X512 Cooled AD Module STEYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wavebands. STEYAS615L is a member of STEYAS family with a 640x512/15μm LWIR cooled detector and RS058 cryocooler integrated.
Feature - High thermal sensitivity with typical NETD ≤18mk - Cameralink interface output 16bit raw data, serial port control - The integrated structure that has consistent dimension with the detector - 5V single-supply - Output frame frequency is adjustable at 1~100Hz

Applications - Remote Monitoring System - Hand-held Reconnaissance System - Multi-sensor Payload	- Search & Tracking System - Enhanced Flight Vision System - Gas Detection

Product specifications and Brochures

Product Brochure Link:

Model	STEYAS615L
IR Detector Performance
Resolution	640x512
Pixel Pitch	15μm
Cryocooler	RS058
Spectral Range	7.7um~9.5um LW
Cooling Time (25°C)	≤5.5min
Optimal NETD (20°C)	≤25mK
Working Mode
Frame Rate	1~160Hz Adjustable
Working Mode	Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface	QSH 60 pin
Digital Video	Cameralink: Output 16bit Raw Data
External Sync	CC1: INT/Frame External Sync; CC2: MC External Sync
Communication	Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply	1 Channel Imaging Panel: 5V 1 Channel Cryocooler: 24V
Stable Power Consumption	9W
Dimension (mm)	148×58.5×71
Weight	≤680g
Working Temperature	-40°C ~ +60°C
Vibration Magnitude	Vibration: GJB Vehicle-mounted High Speed Transpor tShock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each

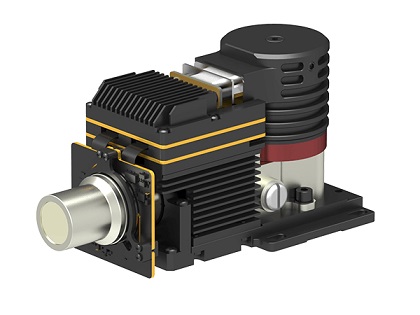

STGAVIN615L 640X512 Cooled Thermal Module STGAVIN series is the standard cooled infrared module offed by SIMTRUM. It is available with different resolution formats, different wavebands, and also different continuous optical lens options. STGAVIN615L is one of the STGAVIN series with a 640x512/15μm LWIR cooled detector and RS058 cryocooler inside. Various image processing algorithms are already embedded in the STGAVIN615L electronics to output clear infrared images in total darkness or bad weather conditions. It can detect and recognize risks and threats at a long distance while presenting more target details at a short distance.
Feature - Meet the needs of long-range detection - High sensitivity - Long-range detection - Easy integration into the System - DVP/Cameralink interface, RAW/YUV image output - A Variety of continuous optical zoom lenses are available

Applications - Remote Monitoring System - Hand-held Reconnaissance System - Multi-sensor Payload	- Search & Tracking System - Enhanced Flight Vision System - Gas Detection

Product specifications and Brochures

Product Brochure Link:

Model	STGAVIN615L
IR Detector Performance
Resolution	640x512
Pixel Pitch	15μm
Cryocooler	RS058
Spectral Range	7.7um~9.5um LW
Cooling Time(20°C)	≤7min
NETD (20°C)	≤25mK
Image Processing
Frame Rate	50Hz/100Hz
Dimming Mode	Linear/Histogram/Mixed
Digital Zoom	×1/×2/×4
Image Direction	Horizontally/Vertically/Diagonally Flip
Image Algorithm	NUC/AGC/IDE
Electrical Specification
Standard External Interface	J30JZ 25pin
Analog Video	PAL
Digital Video	16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync	Frame External Sync: RS422 Level
Communication	RS422, 115200bps
Power Supply	20~28VDC
Stable Power Consumption	14W
Dimension (mm)	155×67×80
Weight	≤900g
Operation Temperature	-40°C ~ +60°C
Vibration Magnitude	Vibration: GJB Vehicle-mounted High Speed Transport Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens	Fixed Zoom: 25mm/F2

Microscop Cameras

Camera Category	Resolution	Pixel Size	FPS	Wavelength	Note
Microscope TE-Cooling USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera	24MP and 61MP	5.94um and 3.76um	up to 190FPS	380nm -650nm	UV extended available
TE-Cooling USB3.0 CMOS Camera	10MP to 45MP	4.63um to 2.31um	up to 96FPS	380nm - 650nm	IR Cut filter
TE-Cooling USB3.0 CMOS Camera with External Trigger	0.5MP / 0.5MP	6.9um / 9um	20FPS	380nm - 650nm	External Trigger
Microscope USB3.0 CMOS Camera	0.5MP to 45MP	6.9um to 1.55um	upto 520FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced	1.3MP to 10MP	9.7um to 4.6um	upto 86FPS	200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP	1.5MP to 45MP	3.4um to 1.2um	upto 165FPS	380nm - 650nm	IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera	5MP	2um	30FPS	380nm - 650nm	IR Cut filter
HDMI Color CMOS Camera	2MP to 8MP		60FPS	380 - 1100nm
UV & NIR Enhanced CMOS Camera	4.2/8MP, 2.1/4.1MP		upto 200FPS	200-1100nm	UV or NIR Enhance

Scientific Cameras

Type	Model	Wavelength	Sensor Type	Resolution	Pixel size	Frame Rate	QE
X-RAY sCMOS Camera	XF95	80-1000eV	BSI sCMOS	2048 x 2048	22.5um or 13.3um	48	~100% full range
XUV/VUV Camera	maxCam	1-300nm	BSI/FSI CCD	1024 x 255	26um		Refer to brochures
High Speed sCMOS Camera	Dhyana 2100	200-1100nm	FSI CMOS / Mono	5220(H) x 4096(V)	4.5um x 4.5um	450fps@8bit	63%@520nm
High Speed sCMOS Camera	Dhyana 9KTDI	200-1100nm	BSI sCMOS TDI/Mono	9072	5um x 5um	510kHZ@8bit	82%@550nm,
Cooled High Sensitivity sCMOS Camera	95V2	200-1100nm	BSI sCMOS/Mono	2048(H) x 2048(V)	11μm x 11μm	48fps@12bit STD	95%@560nm
	400BSI V2	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	74fps@CL, 40fps@USB3.0	95%@600nm
	400BSI V3	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	100fps@CL, 40fps@USB3.0	95%@600nm
	400D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2040(V)	6.5μm x 6.5μm	35fps@16bit	72%@595nm
	400DC	200-1100nm	FSI sCMOS/Color	2048(H) x 2044(V)	6.5μm x 6.5μm	22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras	6060BSI	200-1100nm	BSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	26.4fps@12-bit STD	95%@580nm
	4040BSI	200-1100nm	BSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	90%@550nm
	6060FSI	200-1100nm	FSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	44fps@12-bit STD	72%@550nm
	4040FSI	200-1100nm	FSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	74%@600nm
Compact Industry sCMOS Camera	401D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2048(V)	6.5μm x 6.5μm	40fps@16bit, 45fps@8bit	72%@595nm
	401A-G	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	401A-U	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	201D	200-1100nm		2048(H) x 1152(V)	6.5μm x 6.5μm	70fps@16bit, 80fps@8bit	72%@595nm

Intensified CMOS Cameras

Type	Time-Resolved iCMOS	High-speed Gated iCMOS Camera		High-speed Fluorescence iCMOS Camera
Type	Time-Resolved iCMOS	540M/S	1000M/S	FLUO (1000 FPS)	FLUO (2000 FPS)
Product Image
Framerate	162 fps	540 fps	1000 fps	1000 fps - 7500 fps	2000 fps - 6400 fps
Sensor Resolution	1920 x 1200 pixels	1696 x 1710 pixels	1280 x 1024 pixels	1280 x 1024 pixels	1920 x 1080 pixels*
Pixel size	5.86 x 5.86 µm	8 x 8 µm	6.6 x 6.6 µm	6.6 x 6.6 µm	10 x 10 µm
Photon gain (max.)	50000 lm/m^2/lx	11000 lm/m^2/lx	11000 lm/m^2/lx	36000 lm/m^2/lx	36000 lm/m^2/lx
Gating repetition rate	100 or 300Khz	100khz	100khz	100khz	100khz
Intensifier	18mm intensifier	Dual-stage intensifier	Dual-stage intensifier	Single-stage intensifier	Single-stage intensifier
Bit Depth	10 bit and 12 bit	8 bit	8 and 12 bit	8 and 12 bit	8 bit
Minimum exposure time	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)

Imaging Intensified Tube

Type	Time-Resolved Image Intensifier		High-speed Image Intensifier
Type	Model 18	Model 25	Model 18	Model 25
Product Image
Input diameter	18mm	25mm	18mm	25mm
Effective area	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition	100 kHz, 300 kHz or 1 MHz	100 kHz, 300 kHz or 1 MHz	100khz Or 300khz , 2.5 MHz burst mode	100khz Or 300khz, 2.5 MHz burst mode
Min. gate width	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)
Frame Rate	Up to 500 fps	Up to 500 fps	up to 1,000,000 fps	up to 1,000,000 fps
Photon Gain	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000

Short-wave, Mid-wave, Long-wave Infrared Cameras

Product		Spectral Range	Rsolution	Cooling	Feature
SWIR Camera		400-1700nm	1.3MP, 0.3MP	uncooled
MIR Camera	Mid Infrared Detector	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Mid Infrared Camera	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Duel Band Detector	3.7 to 4.8um\|7.7 to 9.5um	320*256px	Cooled
LWIR Camera	Cooled LWIR Detector	7.7um to 9.4um	0.08MP, 0.3MP	Cooled
	Cooled LWIR Camera	7.7um to 9.4um	0.3MP	Cooled
	LWIR Thermography Camera	8 to 14um	0.08MP, 0.3MP,1.5MP	Uncooled	Broad Temperature Range
	Thermography Camera for Skin Screening	8 to 14um	320*256px	Uncooled	Body Temperature
	Thermal Imaging Cameras for Phone	8 to 14um	256*192px	Uncooled	For Smart Phone
	Compact Thermal Imaging Camera	8 to 14um	0.08MP, 0.3MP	Uncooled	For CCTV , Drone

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STEYAS615L LWIR Cooled Infrared Camera, Resolution: 640x512, Pixel Pitch: 15um, Spectral Range: 7.7um～9.5um LW, Frame Rate: 1~160Hz Adjustable		4-6 Weeks	Request for quote
		STGAVIN615L LWIR Cooled Infrared Camera, Resolution: 640x512, Pixel Pitch: 15um, Spectral Range: 7.7um～9.5um LW, Frame Rate: 1~160Hz Adjustable		4-6 Weeks	Request for quote

STGAVIN615L - Parameter

STEYAS615L - Parameter

STGAVIN615L - Download

STEYAS615L - Download
