The 1560nm Picosecond Pulse Fiber Laser series picosecond pulse update laser uses high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo system, to achieve a stable output of picosecond pulse laser in 1560nm band. One-button self-starting, long-term stable operation and maintenance-free, with extremely narrow laser pulses and high pulse peak power, it has a wide range of applications in the fields of the optical frequency comb, supercontinuum, terahertz THz, and other fields.
* Accept customization of parameters such as pulse width, power, repetition frequency, etc.
Characteristics Applications
-Pulse Width 1~100ps -Optical Frequency Comb
-Wavelength 1530~1560 nm -Supercontinuum
-Self-starting Maintenance-free -Terahertz Wave
-Full Polarization-maintaining High Stability -Ultra-faster Laser Research
Product specifications and Brochures
Product Brochure Link:
Parameters
Unit
Typical Value
Remarks
Center Wavelength
nm
1530~1560
Customizable

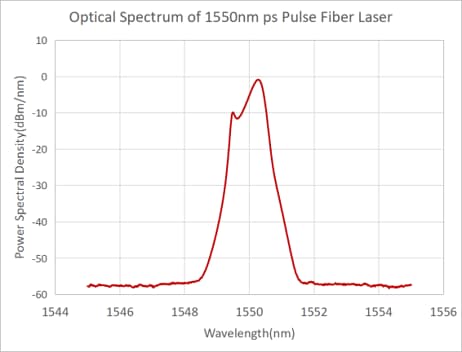

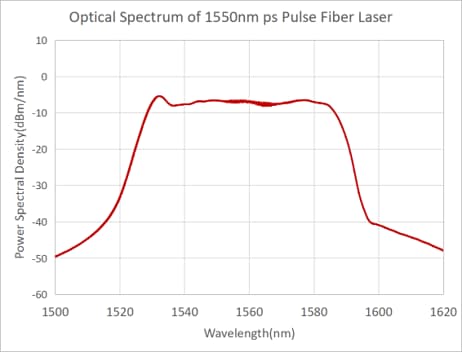

Spectrum Width
0.5~50

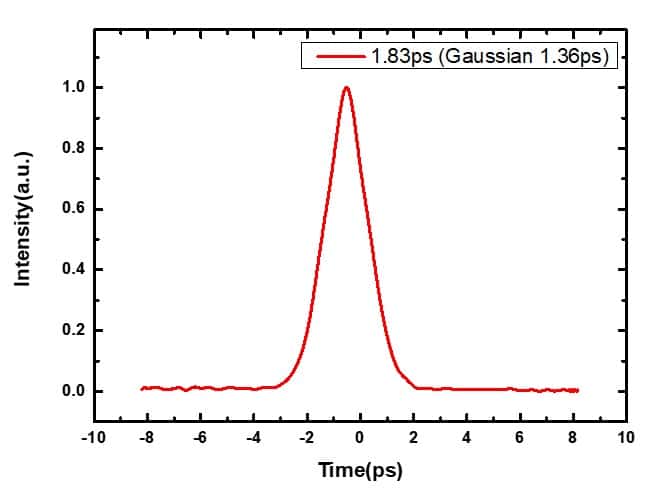

Pulse Duration
ps
1/10/50/100
Average Power
mW
1~120

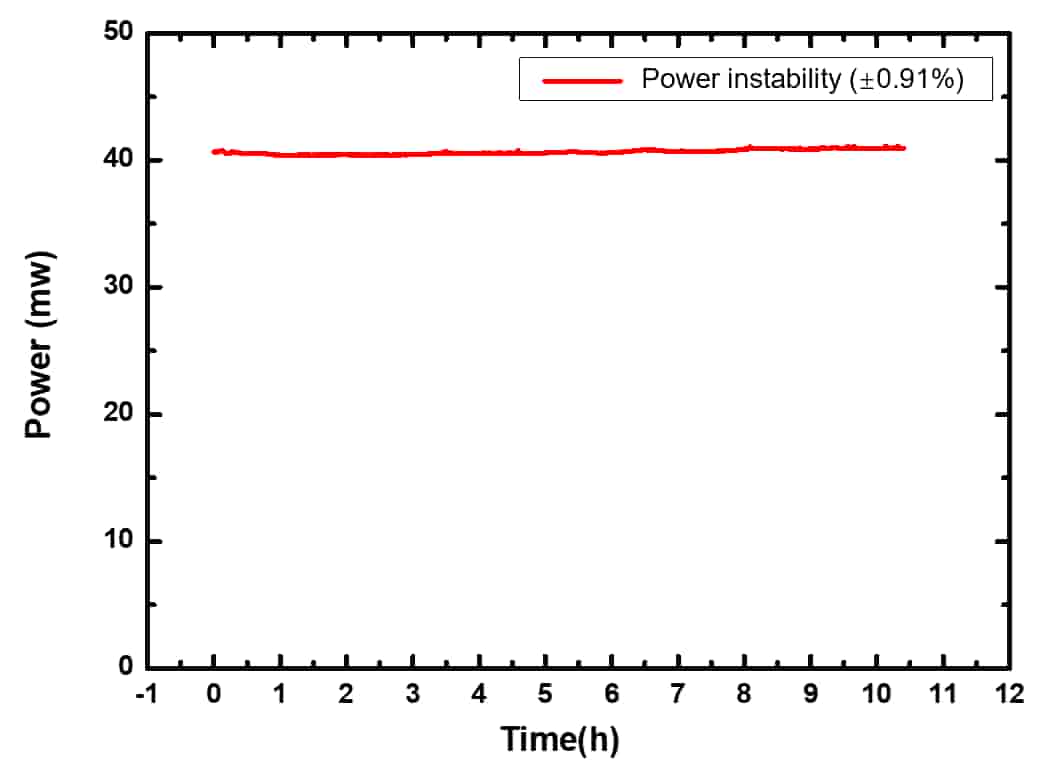

Power Instability
-
< ±1%

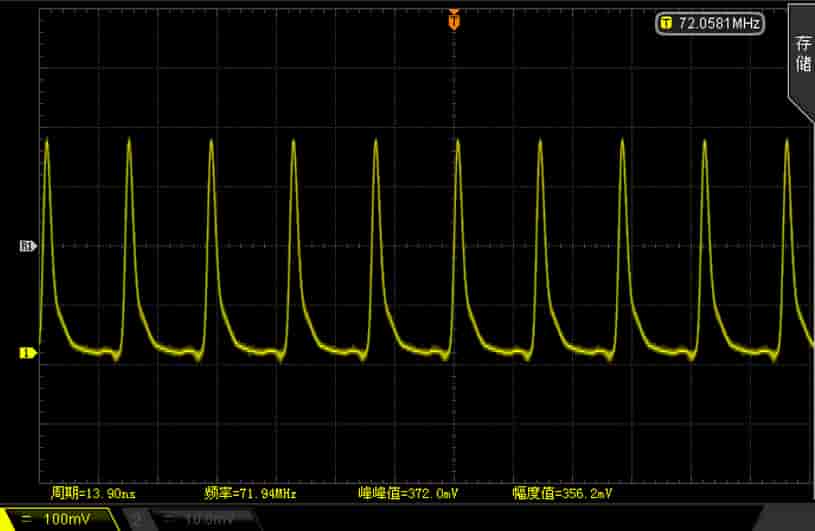

Repetition Rate
MHz
80
Repetition Rate Instability
Hz
< 100
Pulse Energy
nJ
>1
Polarization
Linear
Aligned to Slow Axis
Fiber Type
PM Fiber
Fiber connector
FC/APC
Worm Up time
min
< 1
* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level
General Parameters
Desktop
Module
Control function
Push Button in Front Panel
Synchronous electrical signal port
SMA
Power Supply
AC100~240V, <30W
DC5V, <20W
Dimensions(mm)
260(W)×280(D)×120(H)
200(W)×121(D)×65(H)mm
Operation Temperature
5 ~ 35°C
Operation Humidity
0~70%
Ordering Information/Model Number
PSPL
WL(nm)
Pulse Duration(ps)
Power(mW)
Freq(MHz)
Fiber
Packaging
1560
10/50/100
80/100
SM
PM
B - Desktop
M - Module
